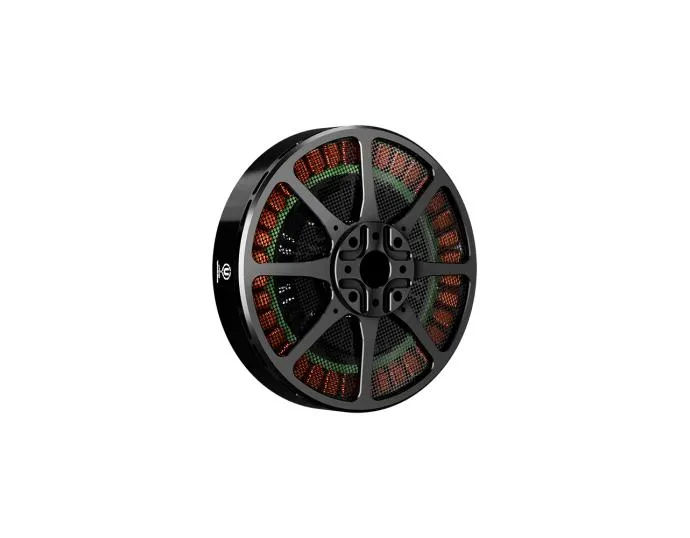

    U8 Lite L Efficiency Type UAV Motor KV95

    329.90

    Available points: 16000 Points Points reward: 329 Points

    ·3rd generation propellers+FOC ESC: Efficient
    ·High thrust/weight ratio
    ·Excessive Power
    Parameter：
    Quantity：

    329.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

    "U Efficiency" motors (from U-series) are aimed for high end UAVs requiring long endurance. This kind of UAVs are usually for surveillance, cruise, security and protection, surveying and mapping.

    Lightweight design allows you to fly longer, Industrial-grade dustproof and waterproof and anti-aging, greatly extends the working life of the motor. Curved magnets with precise tolerance control and rational magnet space for optimal motor magnetic circuit help improve motor performance. The motor uses imported customized bearings to extend the service life of the motor and ensure smooth flight and longer flight time.

    1. Max. thrust ：11.2kg
    2. Recommendation：T-MOTOR G30*10.5"prop
    3. MTBF：About 1000hours
    4. Features：Lightweight design, Waterproof, dustproof, low noise

    If you have any questions or inquires, please contact us: onlinesales@tmotor.com


    Technical Drawing


    Specification
    KV95Rated Voltage(Lipo)12S(4.2V/pc) / 48-52V
    Motor Weight (Incl. Cable)280gMotor DimensionsΦ87.1×28.05mm
    Idle Current(18V)0.7AShaft Diameter15mm
    Internal Resistance146mΩConfigu ration36N42P
    Peak Current(180s)38ACable Length90mm
    Max. Power(180s)1790WPacking Size130*111*50.6mm
    KV110Rated Voltage(Lipo)12S(4.2V/pc) / 48-52V
    Motor Weight (Incl. Cable)282gMotor DimensionsΦ87.1×28.05mm
    Idle Current(18V)0.9AShaft Diameter15mm
    Internal Resistance105mΩConfigu ration36N42P
    Peak Current(180s)45.8ACable Length90mm
    Max. Power(180s)2140WPacking Size130*111*50.6mm
    Test Data
    TypePropeller

    Throttle

    		Voltage
    (V)    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)

    RPM

    		Power
    (W)    		Efficiency
    (g/W)    		Operating
    Temperature
    (℃)
    U8lite L
    KV95    		G29*9.540%4817250.592.60157912413.8950℃
    45%4821590.733.56176117012.69
    50%4826040.874.66192922211.71
    55%4830921.035.95209528410.90
    60%4835531.187.22224734510.31
    65%4841001.368.8724144239.70
    70%4845731.5210.5325485019.12
    75%4852141.7212.7427056068.61
    80%4859391.9515.4028877328.12
    90%4771912.3420.6231579777.36
    100%4785212.7827.00343912766.68
    G30*10.540%4819980.703.04156114613.7368℃
    45%4824680.864.12173519712.54
    50%4829281.035.31190025311.56
    55%4834271.206.84205632610.51
    60%4839501.388.3522013989.93
    65%4845371.5810.3323604929.23
    70%4850161.7512.0224905728.77
    75%4857441.9914.6426356958.26
    80%4765072.2517.5827948347.80
    90%4779322.7324.03305611376.97
    100%4794263.2531.89331815046.27
    G32*1140%4824920.933.97151919013.1487℃
    45%4830871.145.39168125712.01
    50%4836721.356.89182632811.18
    55%4842171.558.59196640910.30
    60%4848781.7810.6821105089.60
    65%4855782.0113.0122526189.02
    70%4762512.2515.5823837408.45
    75%4768302.4617.9825048538.01
    80%4775872.7321.27263610087.53
    90%4791443.2729.14287313756.65
    100%47106113.7938.15306817945.92
    U8lite L
    KV110    		G28*9.240%4820220.653.49187716712.1454℃
    45%4825150.804.69207922411.23
    50%4830750.966.13227329210.52
    55%4835501.127.6924513669.69
    60%4840071.279.1226374349.22
    65%4845431.4311.3028285388.45
    70%4852171.6313.5330186438.11
    75%4760831.9016.9832308067.55
    80%4768322.1319.9933999477.21
    90%4782732.5526.57371612566.59
    100%4798473.0735.55406316745.88
    G29*9.540%4823770.804.30184620511.5872℃
    45%4828720.965.44204025911.07
    50%4834031.147.07223033710.09
    55%4840051.338.8424004219.51
    60%4846201.5210.9725735228.85
    65%4852231.7213.1327396248.37
    70%4759971.9616.1329287667.83
    75%4769022.2619.9331229457.31
    80%4776742.5023.30328811036.96
    90%4792022.9931.30357814776.23
    100%47109453.5541.45387019475.62
    G30*10.540%4826360.914.81180823011.4891℃
    45%4832061.116.32198830110.64
    50%4838301.338.2821783959.71
    55%4844441.5410.3323494929.04
    60%4850651.7512.5625115978.48
    65%4857731.9915.2226687237.98
    70%4765592.2618.5228358797.46
    75%4773442.5522.32301410576.95
    80%4781732.8226.44317312506.54
    90%4797613.3635.40344216675.85
    100%47112023.8745.80366621475.22
    Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
