    U15L Combo Pack Manned Aircraft Type UAV Motor 43KV Thunder 300A 24S

    1099.00

    Available points: 50000 Points Points reward: 1099 Points

    • Promotion
      • For every $300 off $30

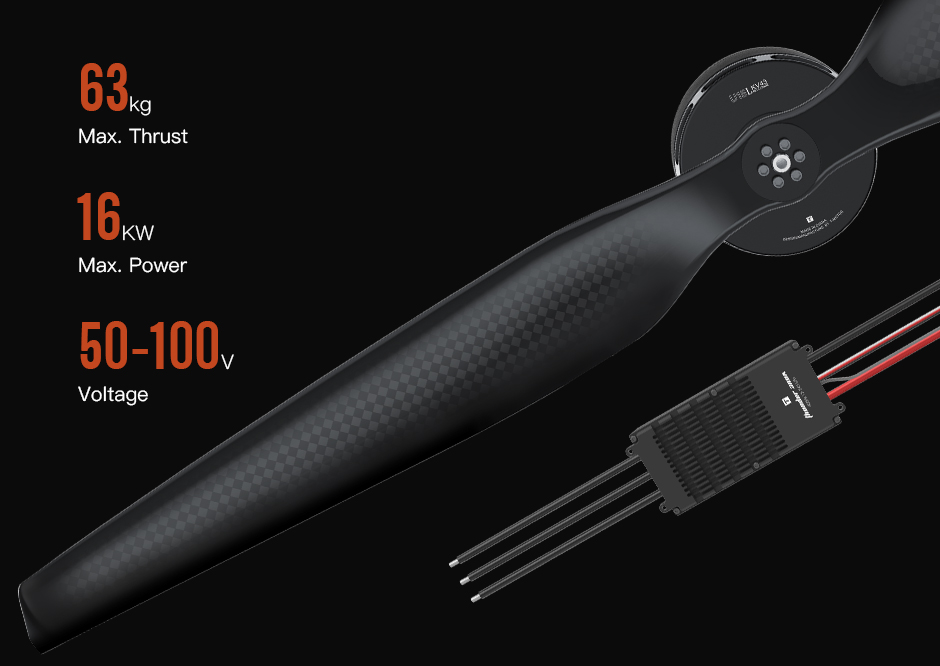

    • Big Power
    • Matched Propulsion solution
    • Stable & Reliable & Safe
    Parameter：
    ESC：
    • Thunder 300A 24S
    Propellers：
    • NS47*18
    Quantity：

    1099.00

    USD140 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Combo pack

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    Technical Drawing

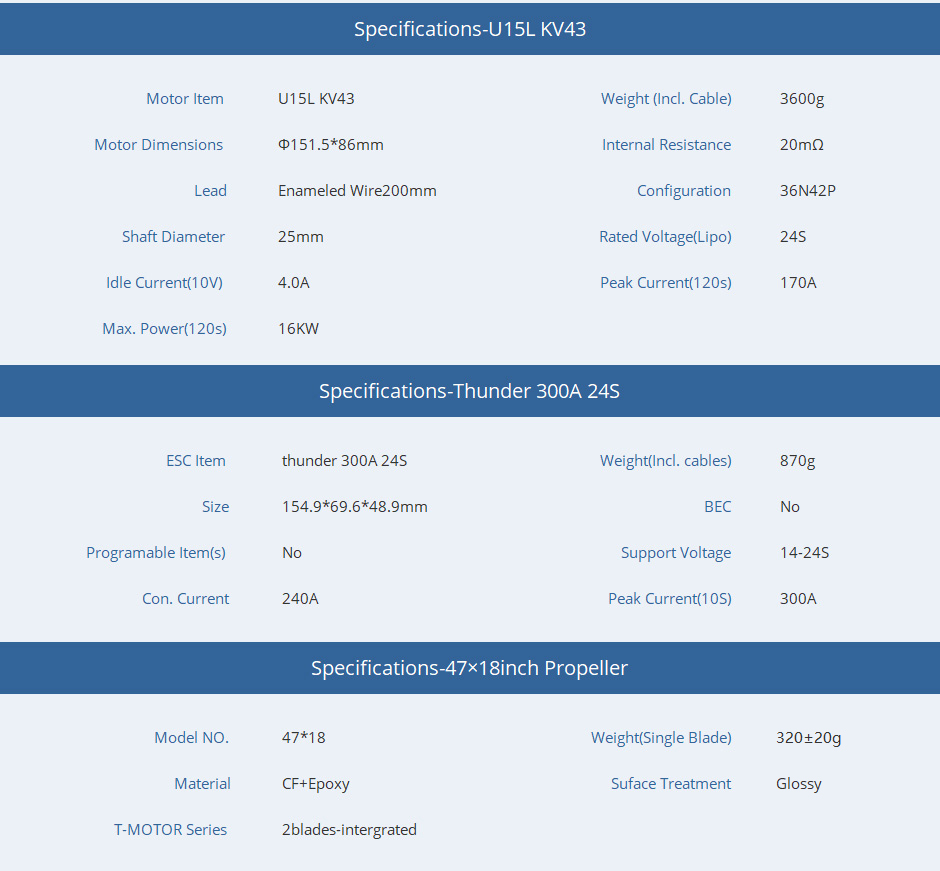

    Specification
    Motor ItemU15L KV43Weight (Incl. Cable)3600g
    Motor DimensionsΦ151.5*86mmInternal Resistance20mΩ
    LeadEnameled Wire200mmConfiguration36N42P
    Shaft Diameter25mmRated Voltage(LiPo)24S
    Idle Current(10V)4.0APeak Current(120s)135A
    Rated Power2800W

    ESC Itemthunder 300A 24SWeight(Incl. cables)870g
    Size154.9*69.6*48.9mm
    		No
    Programable Item(s)NoSupport Voltage14-24S
    Con. Current240APeak Current(10S)300A
    Model NO.47*18Weight(Single Blade)320±20g
    MaterialCF+EpoxySuface TreatmentGlossy
    T-MOTOR Series2blades-intergrated

    Test Data
    TypePropellerThrottleVoltage
    (V)    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPMPower
    (W)    		Efficiency
    (g/W)

    Operating
    Temperature

    (℃)

    U15L

    KV43

    		47*18"30%9995635.229.43123992910.30155
    (Ambient
    Temperature：
    32)
    35%98116686.3012.11141311929.80
    40%98149558.0616.72156616469.10
    45%982000910.7724.74180924348.20
    50%982476713.3333.35201932797.60
    55%982843815.3440.56219339847.10
    60%983131416.9446.64231345726.80
    65%983674719.9558.94246957696.40
    70%983896621.2264.97258063596.10
    75%984802526.2687.88279985805.60
    80%975068327.8495.31291392865.50
    85%975322529.28102.47297399765.30
    90%975619730.90110.953060107885.20
    95%976014633.17123.933156120365.00
    100%976338335.04134.643210131094.80
    Note: Temperature is motor coiling temperature at 100% throttle running 2mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
