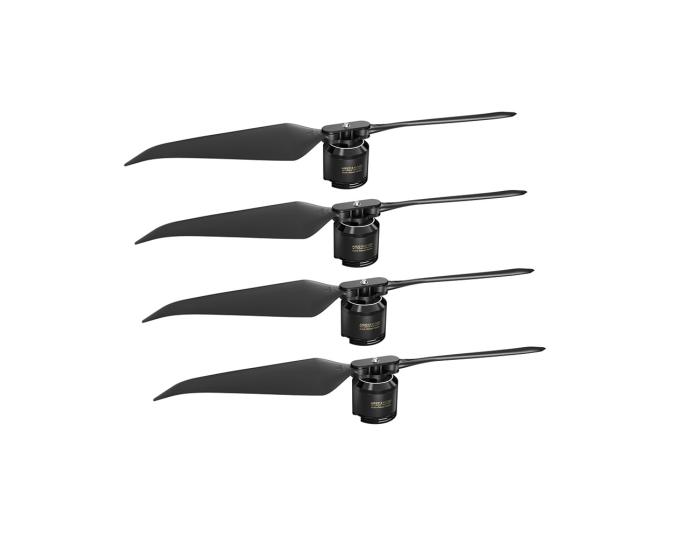

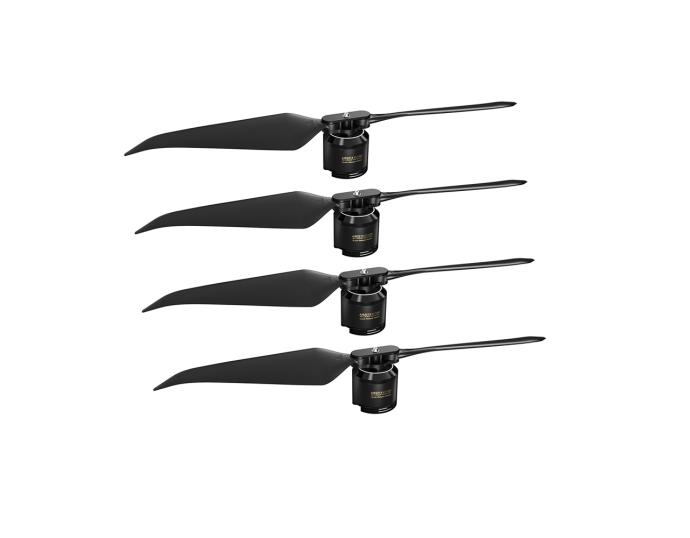

    Air Gear 355 (Quick-Release Version)

    99.99

    Available points: 100 Points Points reward: 99 Points

    Quantity :

    99.99

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

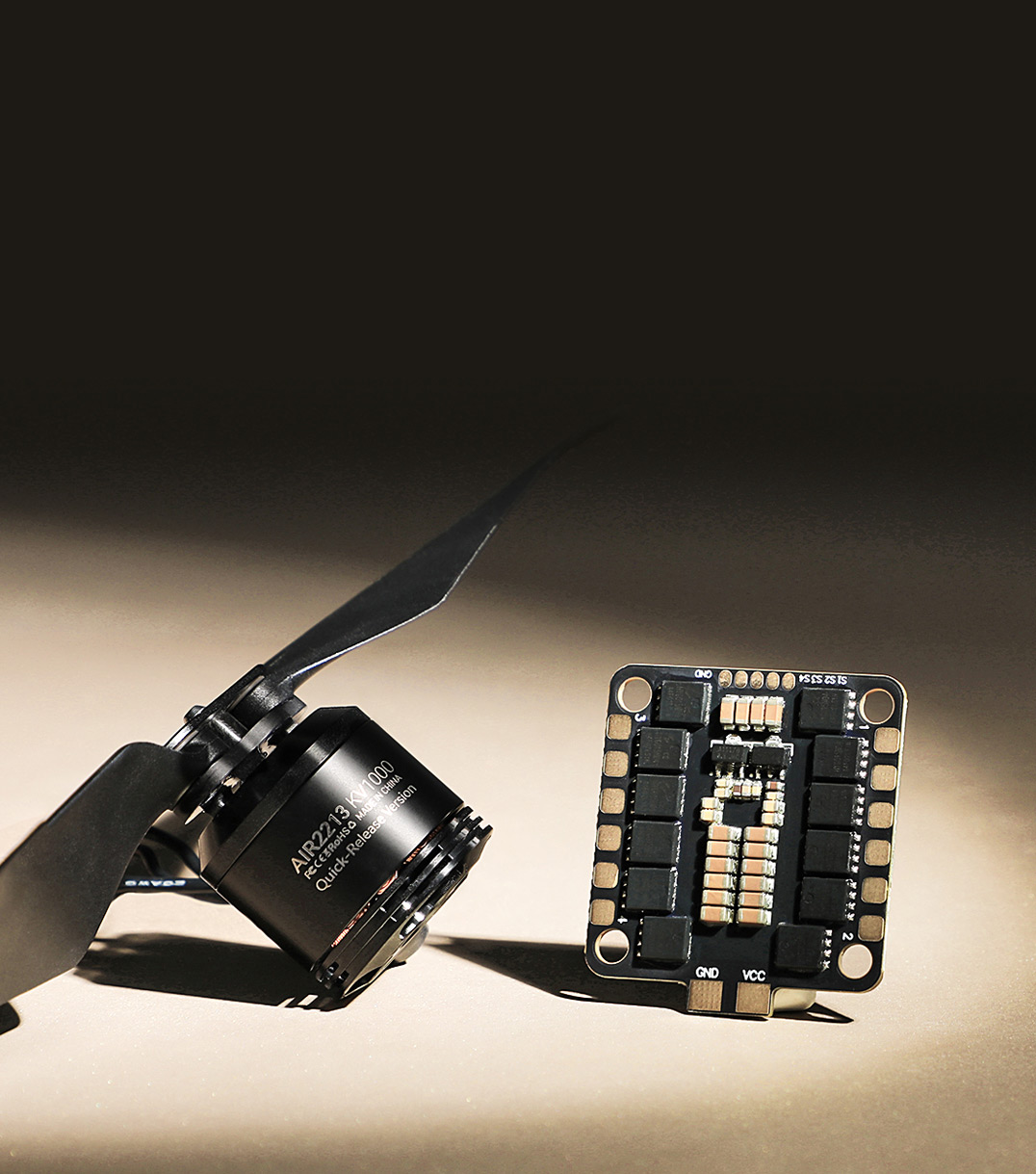

    air355

    AIR355 Combo
    (Quick-Release Version)

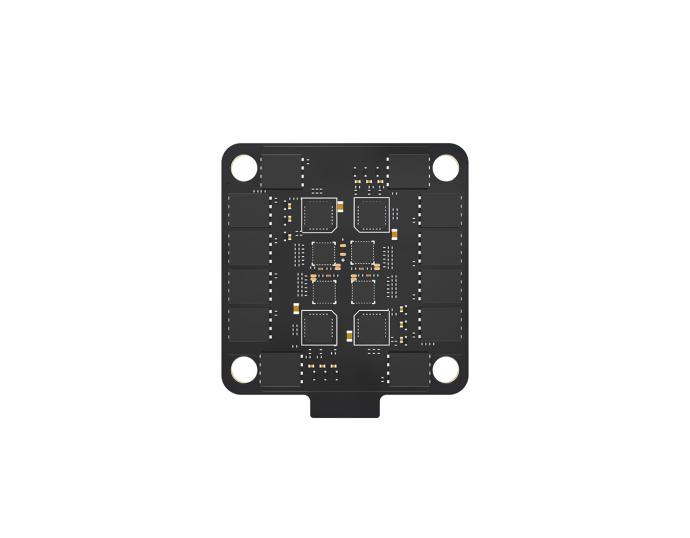

    New Version AIR 20A ESC (4IN1)

    Quick-release structure design

    The foolproof structural design and markings enable easier and more streamlined assembly and disassembly.

    New Version

    AIR 20A ESC (4IN1)

    Overall Combo Weight

    (Motor+Prop+ESC)

    Decrease By 13%

    Recommendations

    Multirotor Motor/KV
    AIR2213/KV1000 (Quick-Release Version)
    Multirotor Thrust/Arm (kg)
    0.4~0.5
    Propeller
    MF9545 (Quick-Release Version)
    MTOW-Quadcopter (kg)
    1.6~2.0
    ESC
    AIR 20A (4IN1)
    MTOW-Hexacopter (kg)
    2.4~3.0
    Battery (LiPo)/ Voltage
    3~4S (4.2V/PC)/12.6~16V
    MOTW-Octocopter (kg)
    3.2~4.0 (Non-Coaxial)

    *Attention: A loss of 25% should be considered for coaxial configuration.

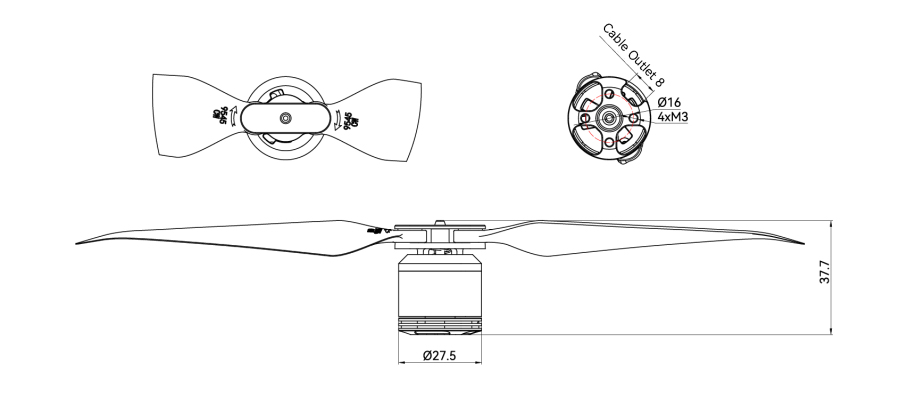

    Technical Drawing


    Specification Export to Excel
    KV1000Rated Voltage (LiPo)3~4S (4.2V/PC)/12.6V-16V
    Idle Current (10V)0.5AInternal Resistance140±10mΩ(Lead Wire300mm）
    Peak Current (180s)15A/ContinuousWeight (Incl. Cable)56±2g (Lead Wire300mm）
    Max Power (180s)238W/ContinuousPackage Weight/

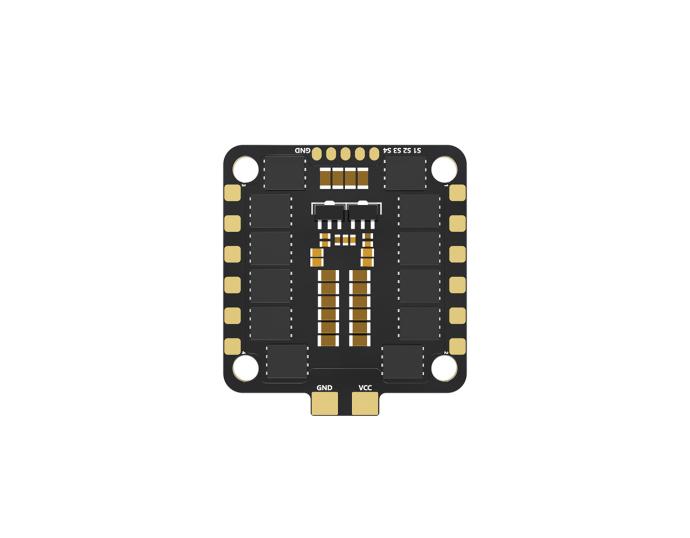

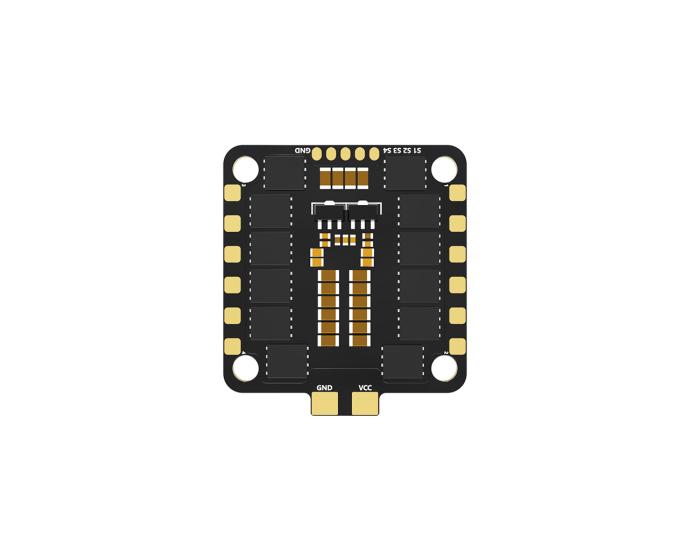

    AIR 20A 4IN1-Specifications
    Size (L*W*H)37.3*41.5*1.6mmRated Voltage (LiPo)2~4S
    Continuous Current20ABEC/
    Peak Current (10s)30AWeight (Incl. Cable)8.1g
    Banana Plug30.5*30.5/φ4mmThrottle Signal Frequency50~400Hz
    MF9545-Specifications
    Plastic PropellerMF9545Working Temp-10~40℃
    Weight (Single Propeller)3.36gStorage Temp10~35℃
    MaterialNylon+Glass FiberStorage Humidity65±20% RH
    Surface TreatmentMatte TechnologyOptimum RPM6000~7000RPM/min
    Propeller TypePolymer PropellerThrust Limitation1.5kg
    Test Data Export to Excel
    TypePropellerThrottleVoltage
    (V)    		Thrust
    (gf)    		Torque
    (N·m)    		Current
    (A)    		RPMPower
    (W)    		Efficiency
    (gf/W)    		Operating
    Temperature
    (℃)
    AIR2213-KV1000MF954530%16.051710.020.8240551313.0647
    (Ambient
    Temperature: 25)
    35%16.052270.031.2046531911.85
    40%16.052870.041.6652122610.83
    45%16.053570.052.255801369.94
    50%16.054270.052.926329479.17
    55%16.044970.063.676828588.51
    60%16.035730.074.547314727.94
    65%16.016410.085.517754887.31
    70%167240.096.4982021037.04
    75%15.998030.107.5986311206.68
    80%15.978830.118.8490461406.32
    85%15.969630.1210.1694411606.02
    90%15.9410430.1311.5898241825.73
    95%15.9311230.1413.13101912065.45
    100%15.9212020.1514.73105392305.22
    Note: Motor temperature is motor surface temperature @100% throttle running 10mins.
    (The above data is obtained by TMOTOR's independent platform test and is only for reference. The final interpretation right belongs to TMOTOR.)

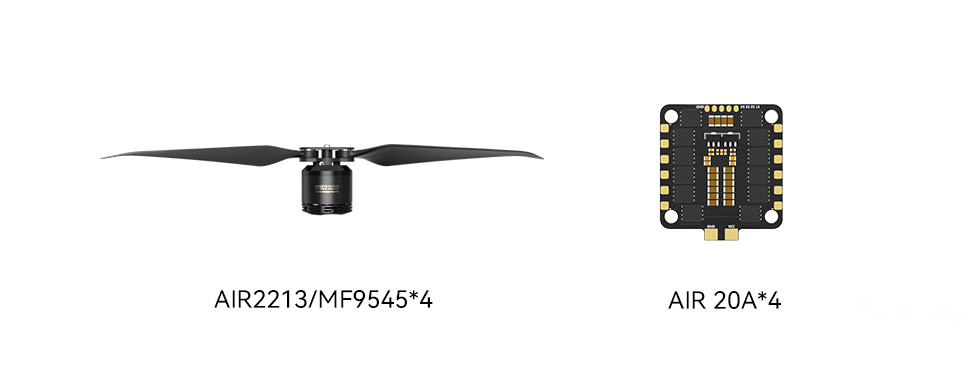

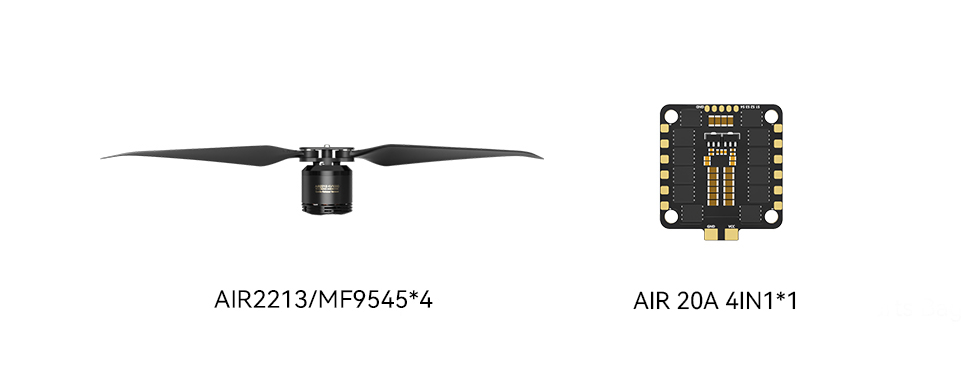

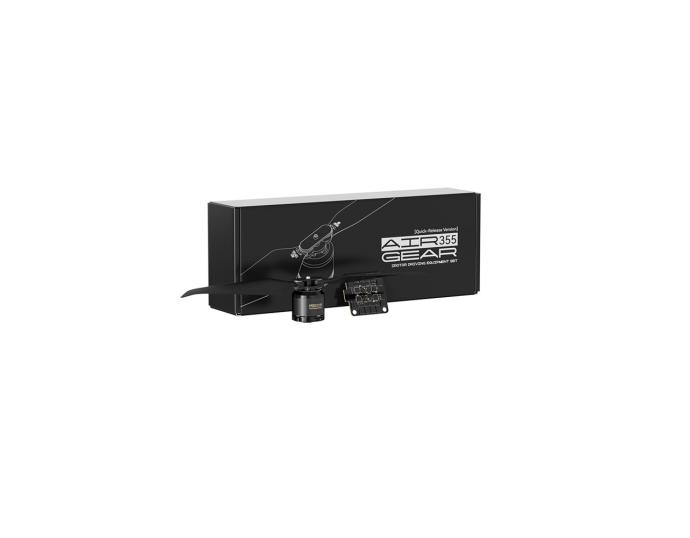

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
