    Airgear 450Ⅱ Combo Set Multi-Rotor UAV Power

    129.99

    Available points: 6500 Points Points reward: 129 Points

    Parameter：
    Quantity：

    129.99

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

    Technical Drawing


    Specification Export to Excel

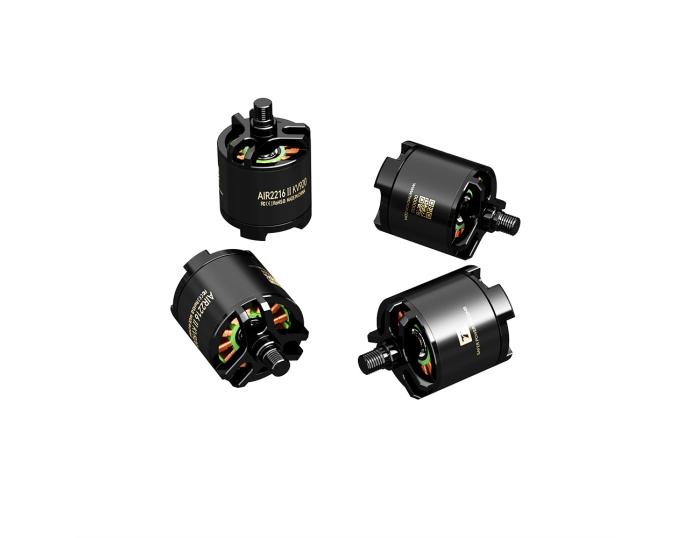

    AIR2216II-Specifications
    KV920Rated Voltage(Lipo)4S(4.2V/PC) / 16V
    Idle Current(10V)0.8AInternal Resistance115±10mΩ
    Peak Current(180s)17AWeight (Incl. Cable)64±2g
    Max Power (180S)272WPackage Weight/
    AIR 20A-Specifications
    Size(L x W x H)53x22x7mmRated Voltage(Lipo)3-4s
    Con.Current20ABEC/
    Peak Current(10s)30AWeight (Incl. Cable)21g
    Banana Plug3.5mmThrottle Signal Frequency50Hz-600Hz

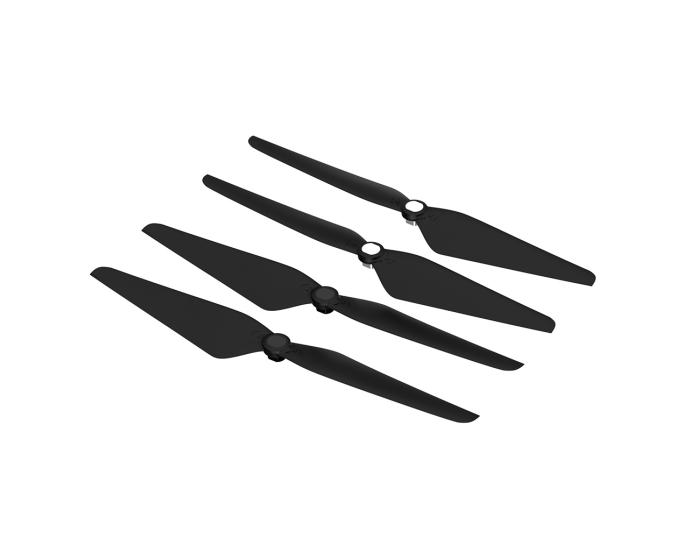

    T1045-Specifications
    Plastic Propeller10" *4.5
    (254x114.3mm)    		working Temp-10℃ ~40℃
    Weight (Single Propeller)13gStorage Temp10℃ ~35℃
    MaterialNylon+Glass fiberStorage Humidity65±20%RH
    Surface TreatmentMatte TechnologyOptimum RPM6000-7000RPM/min
    Propeller TypePolymer PropellerThrust Limitation1.2kg
    Test Data Export to Excel
    TypePropellerThrottleVoltage
    (V)    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPMPower
    (W)    		Efficiency
    (g/W)    		Operating
    Temperature
    (℃)
    AIR2216II-KV920T104530%162100.031.444042239.1280℃
    35%162590.041.874469308.67
    40%163090.052.294855378.45
    45%163730.052.865301468.15
    50%164470.063.605780587.76
    55%165360.084.536298727.39
    60%166280.095.616800907.01
    65%167290.106.7872811086.73
    70%168140.117.9276791266.44
    75%169060.129.2080961476.18
    80%169930.1410.5984681695.88
    85%1610870.1512.1188671935.65
    90%1611910.1613.8192572195.43
    95%1612890.1815.6896752495.18
    100%1613320.1816.3798572605.13
    Note: Motor temperature is motor surface temperature @100% throttle running 10mins.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
