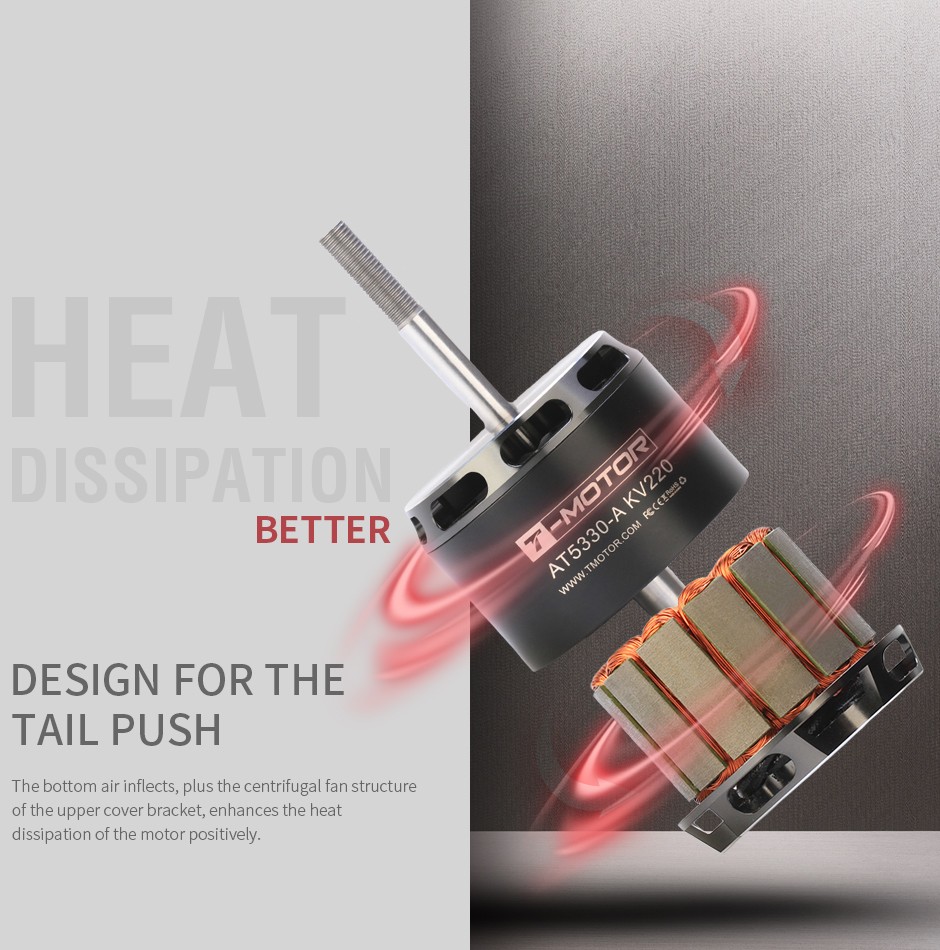

    AT5330-A 25-30CC 12S Aircraft Fixed Wing Brushless Motor -KV220

    179.00

    Available points: 9000 Points Points reward: 179 Points

    • Packaging Weight：900g，Packaging size：185*105*75mm
    KV：
    • KV220
    Quantity：

    179.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

    Technical Drawing


    Specification
    Model No./ KvAT5330 KV220Magnet Temperature Resistance Grade150℃
    Motor Size (mm)Φ63*117.3Lead (mm)Enameled Wire 100
    Stator TechnologyAnti-rust treatment; 180°C high temperature-resisting coatingsEnamelled Wires Temperature Resistance GradeClass C 220℃
    Configuration12N14PCoil Withdraw Voltage1000V/5s
    Shaft Diameter (mm)IN:10 OUT:8Rotor Dynamic Balance Standard≤5mg
    BearingImported 6800/6900ZZIPIP35
    KV ValueKV220Battery (lipo)/Voltage
    Recommendation    		12S（4.2V/Sl）/42-52V
    Idle Current (18V)3.0AESC RecommendationAT115A (6-12S)
    Peak Current (A)75A/Continuous180sPropeller Recommendation18-20寸
    Max. Power (W)3600W/Continuous 180sMotor Weight (g)Weight (incl. cables) 685g
    In ternal Resistance (mΩ)24Package Weight (g)900g
    SternthrustmotorAT5330 KV220VTOL MotorV605 KV210
    Sternthrustpropeller
    recommendation    		18-20寸VTOL PropV22*7.4
    SternthrustESC
    recommendation    		AT115A（6-12S）VTOL ESCFLAME 80A HV
    Sternthrustbattery(Lipo)/voltage
    recommendation    		12S（4.2V/Sl）/42-52VVTOL Battery (Lipo)/ Voltage12S（4.2V/Sl）/42-52V
    Sternthrustpullrecommendation(kg)4-6VTOL Thrust per Motor4.5-6
    MTOW (Quad) (kg)18-24

    Test Data
    Item No.PropThrottleVoltage
    (V)    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPMInputpower
    (W)    		Efficiency
    (g/W)    		Operating
    Temperature
    (℃)
    AT5330
    KV220    		18*1040%44.2016650.415.443555240.506.9277℃
    45%44.1720660.517.043949310.846.65
    50%44.1125680.629.444390416.306.17
    55%44.0332020.7813.064885574.965.57
    60%43.9837540.9316.215277712.745.27
    65%43.9242851.0719.455642854.215.02
    70%43.8247631.2924.4860401072.854.44
    75%43.7354091.4929.8464481304.904.15
    80%43.6260671.6835.3368031540.793.94
    90%43.4074042.0847.8974882078.383.56
    100%43.0782762.6165.3480752814.252.94
    19*1040%44.1819360.486.203509273.707.0891℃
    45%44.1324030.598.013899353.386.80
    50%44.0429670.7310.864324478.306.20
    55%43.7437020.9215.104807660.325.61
    60%43.6543241.0718.495185806.945.36
    65%43.6149581.2221.935538956.505.18
    70%43.5257291.4127.0559341177.094.87
    75%43.4365811.6332.9963401433.074.59
    80%43.3173291.8238.5166641668.084.39
    90%43.0689642.2552.1273132244.063.99
    100%42.76105182.7368.9278982947.273.57
    20*1040%44.0622010.546.713471295.507.45102℃
    45%43.9427330.678.963852393.756.94
    50%43.8633710.8311.914267522.496.45
    55%43.6641561.0216.384728715.045.81
    60%43.5548831.2020.415115888.925.49
    65%43.5155911.3724.4954651065.785.25
    70%43.4464441.5929.8258421295.524.97
    75%43.2873991.8236.3362231572.194.71
    80%43.1782482.0442.5065441834.724.50
    90%43.00100622.5157.5871892475.764.06
    100%42.68119133.0075.3477563215.343.70
    Notes：Motor temperature is the motor surface temperature aftering running on 100% for 3 mins.
    (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
