    A6-M-6S
    MODULAR Propulsion System
    A6-M-6S
    A6-M-6S
    MOTOR
    6S FOC 50A
    ESC
    MF2311P-M
    PROPELLER
    A6-M-6S Recommendations
    Take-off weight
    8~10kg
    Quadcopter
    Take-off weight
    12~15kg
    Hexacopter
    Technical Drawing


    Specification
    Model No.A6-M KV280Tube size25mm
    SetupA6-M (Motor)+6S FOC 50A (ESC)+
    MF2311P-M (Prop)    		Wire material,
    wire gauge, color    		Power wires: 16#AWG red & black
    Signal wires: 5P Teflon
    Recommended battery6S (LiPo)Wire length600±5mm
    Rated thrust2~2.5kgWeight375±2%g (incl. Wires+prop)
    Efficiency at rated thrust9g/W (2.5kg)IPIPX6
    Max. thrust6.3kgRecommended ambient
    temperature    		-20～55℃
    Motor specs.
    Stator size60*9mmKV280
    ESC specs.
    Throttle range1050~1950us (fixed)Max. voltage26V
    ProtocolDRONE CAN、 UAV CAN、
    CUBE CAN    		Peak current
    (for a short time)    		80A
    (Open environment
    and temperature≤60℃)
    Control methodPWM/CANBECNO
    Prop specs
    Model No.MF2311P-M (Polymer Folding)Length23 inch (585mm)
    Test Data
    TypeVoltage
    (V)    		Throttle
    (%)    		Current
    (A)    		Thrust
    (g)    		Motor
    efficiency
    (%)    		Overall
    efficiency
    (gf/W)    		Operating
    temperature
    (℃)
    A6-M KV280
    +
    6S FOC 50A
    +
    MF2311P-M    		2430%1.23472.0167.2215.97142
    (Ambient temperature:
    32)
    23.9935%2.27772.0773.2514.2
    23.9740%3.7111676.1712.59
    23.9445%5.641518.0778.1911.25
    23.9150%8.241976.7178.7310.03
    23.8655%11.342455.1978.719.08
    23.8160%15.182987.2978.398.27
    23.7565%19.573533.3678.057.6
    23.6870%24.764111.2977.127.01
    23.675%30.444693.0176.466.53
    23.5180%36.715260.5275.56.1
    23.4385%42.355740.1174.755.78
    23.490%44.775905.6274.045.64
    23.495%44.725897.473.985.64
    23.39100%44.815891.6773.725.62

    Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min.

    (Data above based on benchtest at T-MOTOR lab are for reference only.)

    A6-M KV280
    +
    6S FOC 50A
    +
    MF2311P-M    		22.2230%1.04403.0266.8117.39133
    (Ambient temperature:
    32)
    22.235%1.97661.4372.2515.13
    22.1940%3.24971.0475.6513.52
    22.1645%4.991319.277.4811.94
    22.1350%7.161701.9378.3310.75
    22.0955%9.912136.3278.399.76
    22.0560%13.242596.7778.578.9
    21.9965%17.23089.0278.178.16
    21.9370%21.873620.5877.637.55
    21.8675%26.884104.8176.856.99
    21.7880%32.614631.0675.936.52
    21.785%37.915061.2675.156.15
    21.6290%43.995512.3974.575.8
    21.5895%46.525690.4473.965.67
    21.58100%46.55687.6473.845.67

    Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min.

    (Data above based on benchtest at T-MOTOR lab are for reference only.)

    Analysis Chart

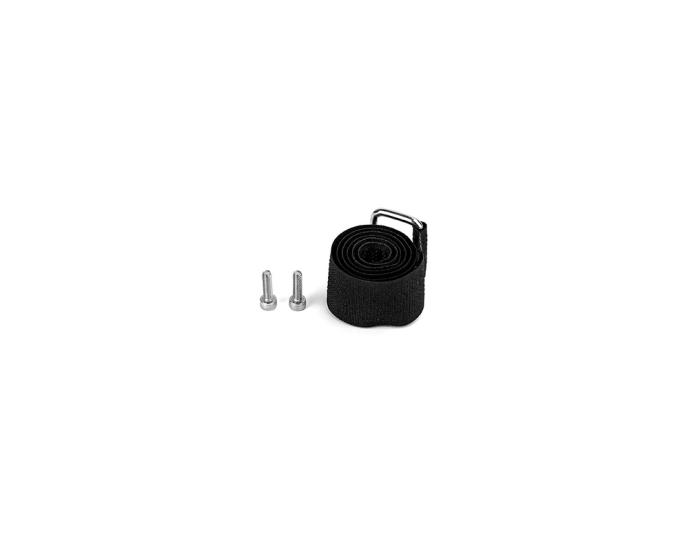

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
