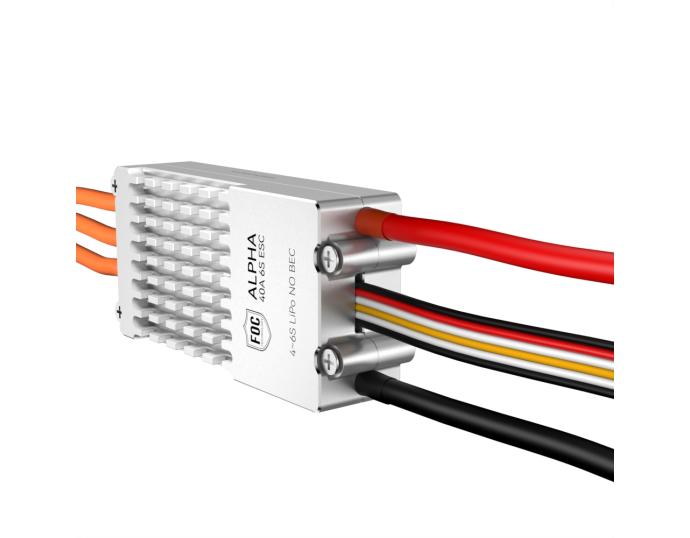

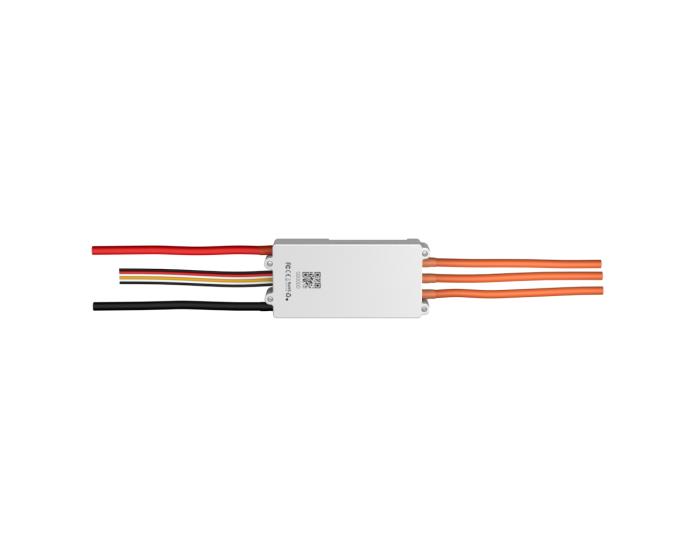

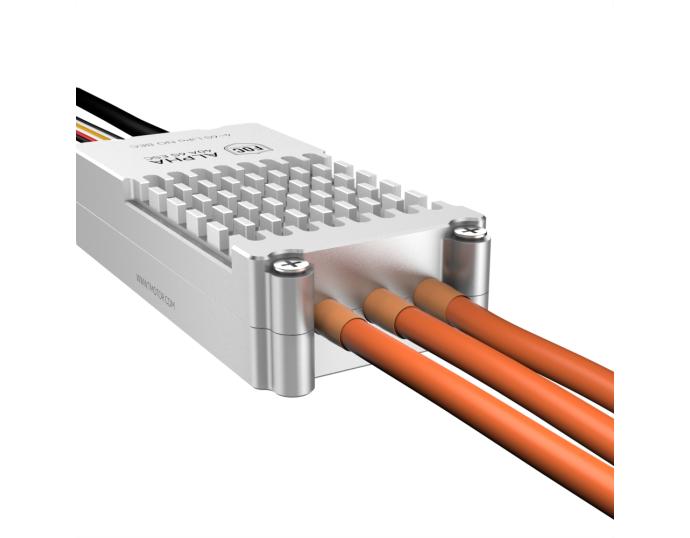

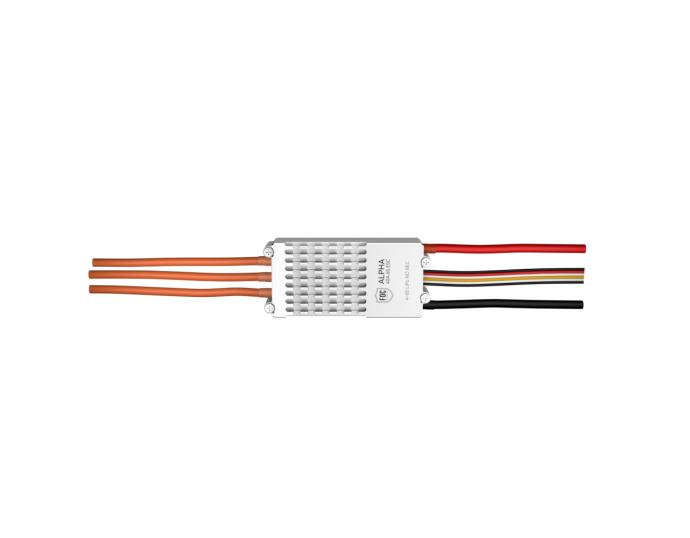

    ALPHA 40A 6S FOC Multi-Rotor UAVs ESC ★ ALPHA ESC Recommendations

    69.99

    Available points: 3000 Points Points reward: 69 Points

    • Low Noise , Temperature and Interference
    • Fast Response , High Efficiency
    • For Compatibility , Please Leave A Note of Motor Type
    Quantity：

    69.99

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR ALPHA 40A 6S Multi-Rotor UAV FOC ESC



    T-MOTOR Alpha 40A 6S ESC delivers precise, efficient motor control with FOC technology. It features low noise, fast response, built-in protections, and IP55 water and dust resistance, making it ideal for professional UAVs


    ALPHA 40A 6S ESC Hightlights:


    1. Special core program for multi-rotor controller greatly improve throttle response

    2. Power by independence stabilivolt IC supply microprocessor is with better antijamming performance for stability

    3. FOC sine driving is adopted for less noise and torque ripple , and better motor and ESC protection

    4. FOC ESCs are with output interface of RPM signal and error status signal

    5. Parameter as to real-time output throttle, RPM, current, capacity temperature and MOSFET temperature are available

    6. 30KHz PWM driving frequency

    7. Online upgrading of ESC firmware is available (Data LINK is needed）


    ALPHA ESC has faster responses with less pulse current and steady startup as compared with traditional square wave driving.

    This T-MOTOR ESC contains over current/Motor Lock-up/short circuit/Low voltage protection.


    Packing List Includes:


    1x T-Motor ALPHA 40A 6S ESC

    1x Hardware Kit


    Matching Guide:


    U3 KV170 Motor / U5 KV400 Motor / MN5212 KV340 Motor / MN4006 KV380 Motor


    Alternatively, Alpha ESC can be programmed by the end user with Alpha Data Link.

    Technical Drawing


    Specification
    Size64.5*29.4*14.7mm（L*W*H）Power CableSilicone wire-red/black-14AWG-150MM
    Weight(Incl. cables)54.5gSignal CablePVC flat cable-30 core wires--2-300MM
    (white, blank, black/JP 3P male connector)
    Motor CableSilicone wire-deep orange-16AWG-65MM*3PCSprogramming CablePVC flat cable-30 core wires--3-300MM
    (black, red, white/JP 3P male connector)
    Support Voltage(6S)18-25.2VBECNO
    Con. Current40AThrottle Pos. Range1100-1940μs
    Peak Current(10s)60AThrottle Refresh Frequency500Hz
    Standby Consumption≤50mAThrottle Response Speed120ms
    Packing List

    ALPHA 40A 6S包装清单英文.jpg

    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
