Specification Export to Excel
| Test Item | Long Shaft KV580 | Weight (Incl. Cable) | 298g |
| Motor Dimensions | Φ43*75mm | Internal Resistance | 18mΩ |
| Lead | 100mm | Configuration | 12N14P |
| Shaft Diameter | IN：5mm
OUT：5mm | Rated Voltage(Lipo) | 4-6S |
| Idle Current(10V) | 1.9A | Peak Current(180s) | 65A |
| Max Power (180S) | 1400W | Recommendation | / |
Test Data Export to Excel
| Type | Propeller | Throttle | Voltage
(V) | Current
(A) | Power
(W) | RPM | Torque
(N*m) | Thrust
(g) | Efficiency
(g/W) | Operating Temperature (℃) |
AT3530
Long Shaft
KV580 | APC
13*8 | 40% | 22.45 | 8.28 | 186.02 | 5419 | 0.245 | 1263 | 6.79 | /
(Ambient Temperature: /) |
| 45% | 22.42 | 10.02 | 224.67 | 5815 | 0.282 | 1448 | 6.45 |
| 50% | 22.39 | 11.88 | 265.99 | 6160 | 0.324 | 1653 | 6.22 |
| 55% | 22.36 | 13.93 | 311.31 | 6492 | 0.365 | 1852 | 5.95 |
| 60% | 22.31 | 16.71 | 372.77 | 6911 | 0.414 | 2107 | 5.65 |
| 65% | 22.24 | 20.48 | 455.55 | 7379 | 0.482 | 2439 | 5.35 |
| 70% | 22.18 | 24.14 | 535.51 | 7782 | 0.541 | 2723 | 5.08 |
| 75% | 22.11 | 28.75 | 635.48 | 8243 | 0.614 | 3062 | 4.82 |
| 80% | 22.02 | 33.81 | 744.61 | 8637 | 0.690 | 3265 | 4.38 |
| 85% | 21.90 | 41.07 | 899.42 | 8998 | 0.801 | 3429 | 3.81 |
| 90% | 21.80 | 47.32 | 1031.51 | 9378 | 0.880 | 3743 | 3.63 |
| 100% | 21.69 | 54.04 | 1171.88 | 9678 | 0.968 | 4082 | 3.48 |
APC
14*7 | 40% | 22.44 | 8.67 | 194.49 | 5297 | 0.262 | 1382 | 7.11 | 74
(Ambient Temperature: /) |
| 45% | 22.41 | 10.30 | 230.82 | 5615 | 0.301 | 1581 | 6.85 |
| 50% | 22.37 | 12.36 | 276.51 | 5965 | 0.344 | 1795 | 6.49 |
| 55% | 22.33 | 15.00 | 334.90 | 6352 | 0.398 | 2063 | 6.16 |
| 60% | 22.28 | 18.33 | 408.36 | 6775 | 0.460 | 2369 | 5.80 |
| 65% | 22.20 | 22.60 | 501.85 | 7255 | 0.536 | 2736 | 5.45 |
| 70% | 22.12 | 27.38 | 605.52 | 7686 | 0.611 | 3104 | 5.13 |
| 75% | 22.05 | 31.93 | 704.03 | 8073 | 0.686 | 3450 | 4.90 |
| 80% | 21.96 | 37.14 | 815.64 | 8436 | 0.766 | 3826 | 4.69 |
| 85% | 21.84 | 44.15 | 964.40 | 8863 | 0.864 | 4265 | 4.42 |
| 90% | 21.72 | 51.40 | 1116.61 | 9246 | 0.958 | 4660 | 4.17 |
| 100% | 21.61 | 58.46 | 1263.33 | 9496 | 1.052 | 4805 | 3.80 |
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.) |

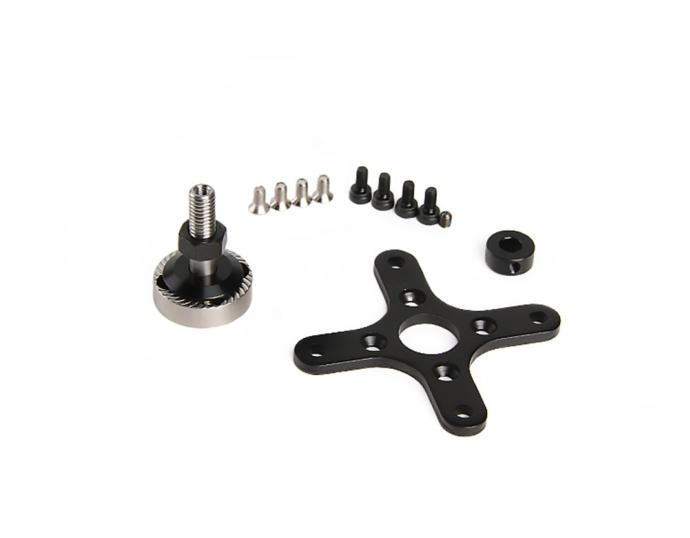

Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to "
onlinesales@tmotor.com " in time.
