Specification Export to Excel
| Test Item | KV160 | Weight (Incl. Cable) | 985g |
| Motor Dimensions | Φ90*75.8mm | Internal Resistance | 14mΩ |
| Lead | Wound Wire Outlet 100mm | Configuration | 24N28P |
| Shaft Diameter | IN：12mm
OUT：10mm | Rated Voltage(LiPo) | 10-14S |
| Idle Current(10V) | 4.0A | Peak Current(180s) | 115A |
| Max Power (180S) | 5000W/12S，5800W/14S |
|
|
| Test Item | KV190 | Weight (Incl. Cable) | 990g |
| Motor Dimensions | Φ90*75.8mm | Internal Resistance | 10mΩ |
| Lead | Wound Wire Outlet 100mm | Configuration | 24N28P |
| Shaft Diameter | IN：12mm
OUT：10mm | Rated Voltage(LiPo) | 10-12S |
| Idle Current(10V) | 5.0A | Peak Current(180s) | 135A |
| Max Power (180S) | 6000W/12S |
|
|
Test Data Export to Excel
| Type | Propeller | Throttle | Voltage
(V) | Current
(A) | Power
(W) | RPM | Torque
(N*m) | Thrust
(g) | Efficiency
(g/W) | Operating Temperature (℃) |
AT8025 KV160 | 24*10 | 40% | 44.57 | 8.95 | 398.80 | 2806 | 0.922 | 3061 | 7.67 | 67℃ |
| 45% | 44.55 | 10.95 | 487.92 | 3031 | 1.076 | 3595 | 7.37 |
| 50% | 44.53 | 13.66 | 608.40 | 3302 | 1.275 | 4278 | 7.03 |
| 55% | 44.51 | 16.94 | 754.13 | 3593 | 1.505 | 5065 | 6.72 |
| 60% | 44.48 | 20.77 | 923.56 | 3864 | 1.743 | 5894 | 6.38 |
| 65% | 44.44 | 25.37 | 1127.30 | 4164 | 2.027 | 6858 | 6.08 |
| 70% | 44.40 | 30.83 | 1368.76 | 4472 | 2.346 | 7941 | 5.80 |
| 75% | 44.36 | 36.84 | 1634.23 | 4765 | 2.675 | 9062 | 5.55 |
| 80% | 44.30 | 43.90 | 1944.71 | 5054 | 3.031 | 10264 | 5.28 |
| 85% | 44.24 | 51.68 | 2286.19 | 5333 | 3.404 | 11501 | 5.03 |
| 90% | 44.17 | 60.45 | 2669.77 | 5607 | 3.794 | 12799 | 4.79 |
| 100% | 44.02 | 78.92 | 3474.27 | 6120 | 4.600 | 15420 | 4.44 |
| 25*10 | 40% | 44.62 | 9.58 | 427.54 | 2708 | 1.014 | 3245 | 7.59 | 75℃ |
| 45% | 44.60 | 12.08 | 538.82 | 2973 | 1.217 | 3921 | 7.28 |
| 50% | 44.57 | 15.32 | 682.65 | 3264 | 1.466 | 4757 | 6.97 |
| 55% | 44.54 | 19.23 | 856.49 | 3552 | 1.733 | 5639 | 6.58 |
| 60% | 44.51 | 23.25 | 1034.62 | 3831 | 2.016 | 6575 | 6.36 |
| 65% | 44.46 | 28.83 | 1281.62 | 4123 | 2.340 | 7669 | 5.98 |
| 70% | 44.41 | 35.11 | 1559.11 | 4423 | 2.704 | 8854 | 5.68 |
| 75% | 44.35 | 42.18 | 1871.01 | 4717 | 3.087 | 10136 | 5.42 |
| 80% | 44.29 | 50.02 | 2215.59 | 4999 | 3.490 | 11471 | 5.18 |
| 85% | 44.22 | 58.87 | 2603.34 | 5274 | 3.909 | 12826 | 4.93 |
| 90% | 44.14 | 68.33 | 3016.11 | 5539 | 4.339 | 14182 | 4.70 |
| 100% | 43.97 | 89.78 | 3947.90 | 6036 | 5.258 | 17136 | 4.34 |
| 26*12 | 40% | 44.58 | 11.42 | 509.21 | 2596 | 1.332 | 3959 | 7.78 | 88℃ |
| 45% | 44.55 | 15.05 | 670.43 | 2891 | 1.659 | 4910 | 7.32 |
| 50% | 44.51 | 19.62 | 873.19 | 3183 | 1.994 | 5976 | 6.84 |
| 55% | 44.47 | 24.78 | 1101.82 | 3471 | 2.365 | 7104 | 6.45 |
| 60% | 44.43 | 30.42 | 1351.57 | 3739 | 2.737 | 8247 | 6.10 |
| 65% | 44.37 | 37.33 | 1656.54 | 4023 | 3.174 | 9584 | 5.79 |
| 70% | 44.31 | 45.33 | 2008.69 | 4310 | 3.633 | 10941 | 5.45 |
| 75% | 44.23 | 54.65 | 2417.28 | 4590 | 4.117 | 12432 | 5.14 |
| 80% | 44.16 | 64.25 | 2837.31 | 4855 | 4.624 | 13890 | 4.90 |
| 85% | 44.07 | 75.46 | 3325.48 | 5112 | 5.150 | 15433 | 4.64 |
| 90% | 43.98 | 87.28 | 3838.19 | 5362 | 5.694 | 17014 | 4.43 |
| 100% | 43.74 | 115.07 | 5033.52 | 5825 | 6.863 | 20360 | 4.04 |
| 23*10 | 40% | 52.18 | 10.58 | 552.29 | 3302 | 1.087 | 3642 | 6.59 | 76℃ |
| 45% | 52.16 | 12.82 | 668.83 | 3554 | 1.262 | 4239 | 6.34 |
| 50% | 52.13 | 15.92 | 830.11 | 3861 | 1.486 | 5026 | 6.05 |
| 55% | 52.10 | 19.76 | 1029.43 | 4193 | 1.750 | 5946 | 5.78 |
| 60% | 52.06 | 24.26 | 1263.22 | 4521 | 2.048 | 6994 | 5.54 |
| 65% | 52.02 | 29.72 | 1545.98 | 4871 | 2.388 | 8154 | 5.27 |
| 70% | 51.96 | 36.31 | 1886.85 | 5222 | 2.768 | 9441 | 5.00 |
| 75% | 51.90 | 43.78 | 2271.97 | 5564 | 3.167 | 10805 | 4.76 |
| 80% | 51.84 | 51.75 | 2682.65 | 5894 | 3.578 | 12197 | 4.55 |
| 85% | 51.76 | 60.74 | 3143.74 | 6209 | 4.004 | 13585 | 4.32 |
| 90% | 51.68 | 70.55 | 3646.31 | 6514 | 4.450 | 15000 | 4.11 |
| 100% | 51.51 | 91.30 | 4702.73 | 7072 | 5.335 | 17768 | 3.78 |
| 24*10 | 40% | 52.16 | 11.04 | 575.99 | 3179 | 1.195 | 3858 | 6.70 | 89℃ |
| 45% | 52.14 | 13.89 | 724.26 | 3478 | 1.427 | 4681 | 6.46 |
| 50% | 52.11 | 17.54 | 913.70 | 3803 | 1.702 | 5634 | 6.17 |
| 55% | 52.07 | 21.91 | 1140.84 | 4131 | 2.002 | 6685 | 5.86 |
| 60% | 52.02 | 27.27 | 1418.53 | 4471 | 2.347 | 7877 | 5.55 |
| 65% | 51.97 | 33.78 | 1755.27 | 4818 | 2.747 | 9209 | 5.25 |
| 70% | 51.90 | 40.87 | 2121.25 | 5157 | 3.159 | 10636 | 5.01 |
| 75% | 51.84 | 49.19 | 2549.96 | 5494 | 3.618 | 12149 | 4.76 |
| 80% | 51.77 | 58.24 | 3015.48 | 5818 | 4.088 | 13721 | 4.55 |
| 85% | 51.69 | 68.18 | 3524.36 | 6123 | 4.571 | 15313 | 4.35 |
| 90% | 51.60 | 79.33 | 4093.14 | 6420 | 5.078 | 16948 | 4.14 |
| 100% | 51.40 | 103.71 | 5331.12 | 6961 | 6.141 | 20162 | 3.78 |
| 25*10 | 40% | 50.76 | 11.32 | 574.45 | 3036 | 1.265 | 4009 | 6.98 | 103℃ |
| 45% | 50.73 | 14.62 | 741.62 | 3354 | 1.540 | 4934 | 6.65 |
| 50% | 50.70 | 18.57 | 941.65 | 3671 | 1.845 | 5961 | 6.33 |
| 55% | 50.66 | 23.27 | 1178.59 | 3991 | 2.181 | 7090 | 6.02 |
| 60% | 50.61 | 29.22 | 1478.71 | 4323 | 2.566 | 8371 | 5.66 |
| 65% | 50.56 | 35.72 | 1805.87 | 4656 | 2.977 | 9728 | 5.39 |
| 70% | 50.49 | 43.55 | 2198.86 | 4981 | 3.432 | 11230 | 5.11 |
| 75% | 50.42 | 52.54 | 2649.06 | 5298 | 3.915 | 12795 | 4.83 |
| 80% | 50.33 | 63.06 | 3173.78 | 5607 | 4.444 | 14504 | 4.57 |
| 85% | 50.25 | 73.45 | 3690.78 | 5903 | 4.976 | 16192 | 4.39 |
| 90% | 50.15 | 85.27 | 4276.32 | 6178 | 5.516 | 17898 | 4.19 |
| 100% | 49.94 | 111.85 | 5585.29 | 6699 | 6.669 | 21251 | 3.80 |
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.) |
AT8025 KV190 | 23*10 | 40% | 44.65 | 13.76 | 614.47 | 3395 | 1.144 | 3792 | 6.17 | 76℃ |
| 45% | 44.63 | 16.60 | 740.87 | 3668 | 1.315 | 4456 | 6.01 |
| 50% | 44.59 | 20.40 | 909.84 | 3968 | 1.542 | 5269 | 5.79 |
| 55% | 44.55 | 25.49 | 1135.72 | 4299 | 1.840 | 6257 | 5.51 |
| 60% | 44.51 | 30.87 | 1373.99 | 4636 | 2.130 | 7239 | 5.27 |
| 65% | 44.44 | 38.26 | 1700.55 | 4996 | 2.496 | 8440 | 4.96 |
| 70% | 44.39 | 45.85 | 2034.96 | 5356 | 2.878 | 9698 | 4.77 |
| 75% | 44.31 | 55.34 | 2451.98 | 5693 | 3.291 | 11099 | 4.53 |
| 80% | 44.23 | 65.43 | 2893.81 | 6029 | 3.713 | 12534 | 4.33 |
| 85% | 44.14 | 76.14 | 3360.88 | 6332 | 4.138 | 13917 | 4.14 |
| 90% | 44.04 | 87.97 | 3874.09 | 6640 | 4.570 | 15335 | 3.96 |
| 100% | 43.83 | 113.82 | 4988.91 | 7192 | 5.459 | 18097 | 3.63 |
| 24*10 | 40% | 44.64 | 14.36 | 641.22 | 3280 | 1.253 | 4128 | 6.44 | 89℃ |
| 45% | 44.61 | 17.95 | 800.65 | 3577 | 1.490 | 4935 | 6.16 |
| 50% | 44.57 | 22.64 | 1009.32 | 3907 | 1.779 | 5926 | 5.87 |
| 55% | 44.53 | 28.27 | 1258.85 | 4245 | 2.111 | 7051 | 5.60 |
| 60% | 44.47 | 34.92 | 1552.99 | 4589 | 2.473 | 8272 | 5.33 |
| 65% | 44.40 | 43.04 | 1911.10 | 4939 | 2.883 | 9697 | 5.07 |
| 70% | 44.33 | 51.91 | 2301.24 | 5284 | 3.320 | 11149 | 4.85 |
| 75% | 44.25 | 62.52 | 2766.66 | 5624 | 3.783 | 12724 | 4.60 |
| 80% | 44.15 | 74.00 | 3267.27 | 5943 | 4.266 | 14331 | 4.39 |
| 85% | 44.05 | 86.23 | 3798.70 | 6234 | 4.752 | 15898 | 4.19 |
| 90% | 43.94 | 100.17 | 4401.00 | 6528 | 5.258 | 17553 | 3.99 |
| 100% | 43.70 | 129.08 | 5641.04 | 7057 | 6.275 | 20614 | 3.65 |
| 25*10 | 40% | 44.04 | 17.08 | 752.36 | 3224 | 1.490 | 4826 | 6.41 | 104℃ |
| 45% | 43.96 | 20.80 | 914.30 | 3479 | 1.740 | 5645 | 6.17 |
| 50% | 43.86 | 25.28 | 1108.87 | 3752 | 2.030 | 6597 | 5.95 |
| 55% | 43.72 | 31.41 | 1373.36 | 4070 | 2.400 | 7800 | 5.68 |
| 60% | 43.56 | 38.60 | 1681.24 | 4391 | 2.800 | 9135 | 5.43 |
| 65% | 43.21 | 46.87 | 2025.08 | 4690 | 3.210 | 10476 | 5.17 |
| 70% | 43.03 | 56.31 | 2422.91 | 4991 | 3.680 | 11971 | 4.94 |
| 75% | 42.78 | 66.76 | 2855.55 | 5276 | 4.150 | 13501 | 4.73 |
| 80% | 42.53 | 78.10 | 3321.60 | 5541 | 4.640 | 15032 | 4.53 |
| 85% | 42.28 | 89.86 | 3799.22 | 5801 | 5.130 | 16554 | 4.36 |
| 90% | 42.01 | 103.56 | 4350.59 | 6063 | 5.650 | 18203 | 4.18 |
| 100% | 41.39 | 133.33 | 5518.71 | 6716 | 6.700 | 21549 | 3.85 |
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.) |

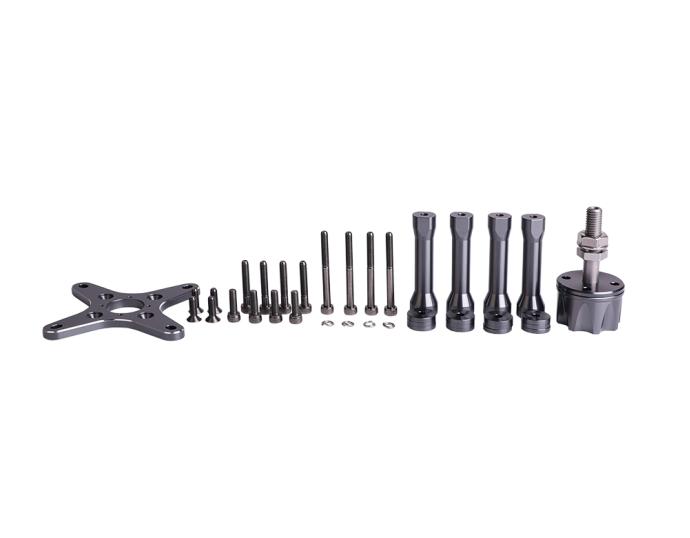

Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to "
onlinesales@tmotor.com " in time.
