    FLAME 180A 12S V2.0 Multi-Rotor UAVs ESC

    259.99

    Available points: 13000 Points Points reward: 259 Points

    • 6-12S
    • Preferred option for U12II KV120
    • IP56
    Quantity：

    259.99

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

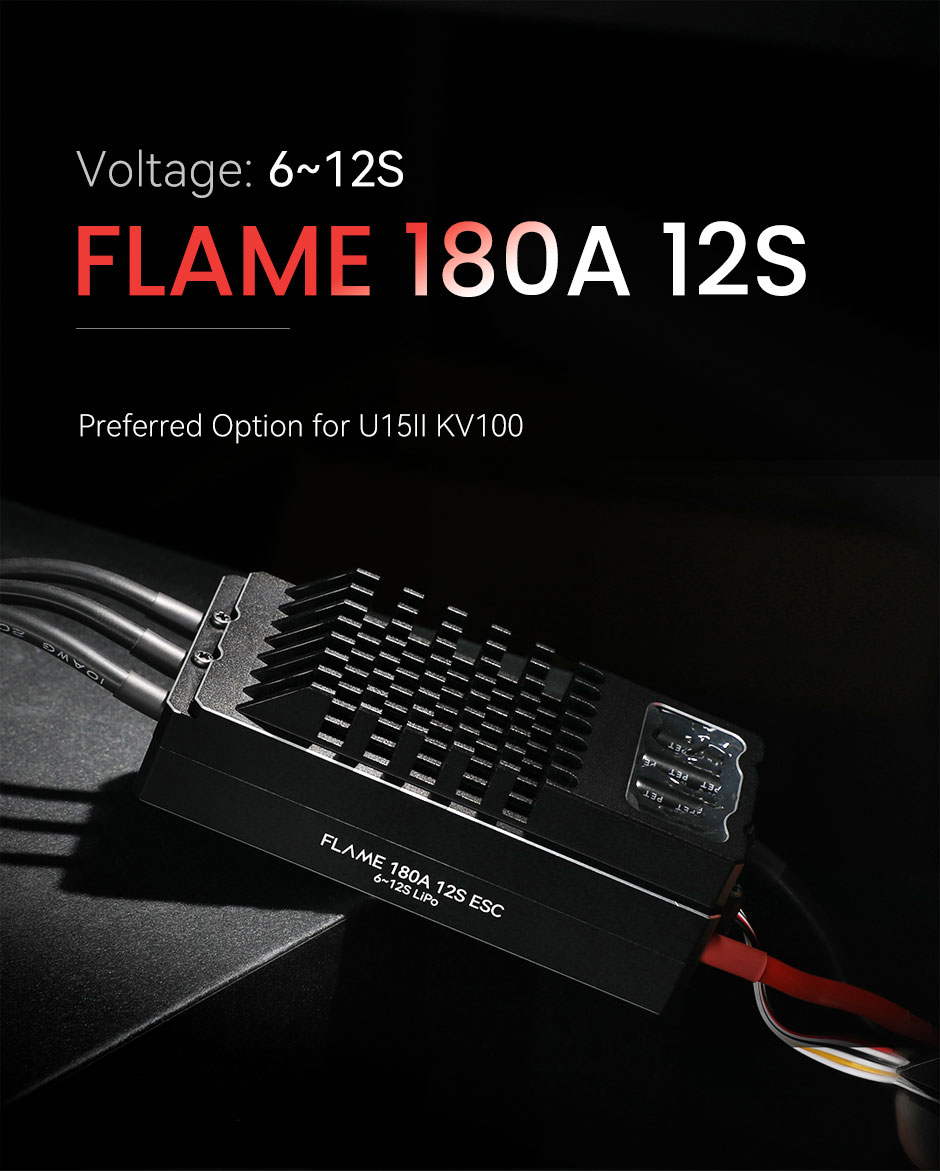

    About T-MOTOR FLAME 180A 12S Multirotor UAVs ESC



    T-MOTOR FLAME 180A 12S ESC delivers 180A continuous and 200A peak power (10s) for multi-rotors. Compatible with U12 motors and 6-12S LiPo, it features efficient heat dissipation, IP56 protection, and essential safeguards like overload, motor lock-up, and throttle signal loss protection. Ideal for demanding flight conditions.


    FLAME 180A 12S ESC Hightlights:


    • 500Hz, 6-12S LiPo

    • IP56

    • Layered structure Efficient and reasonable heat dissipation

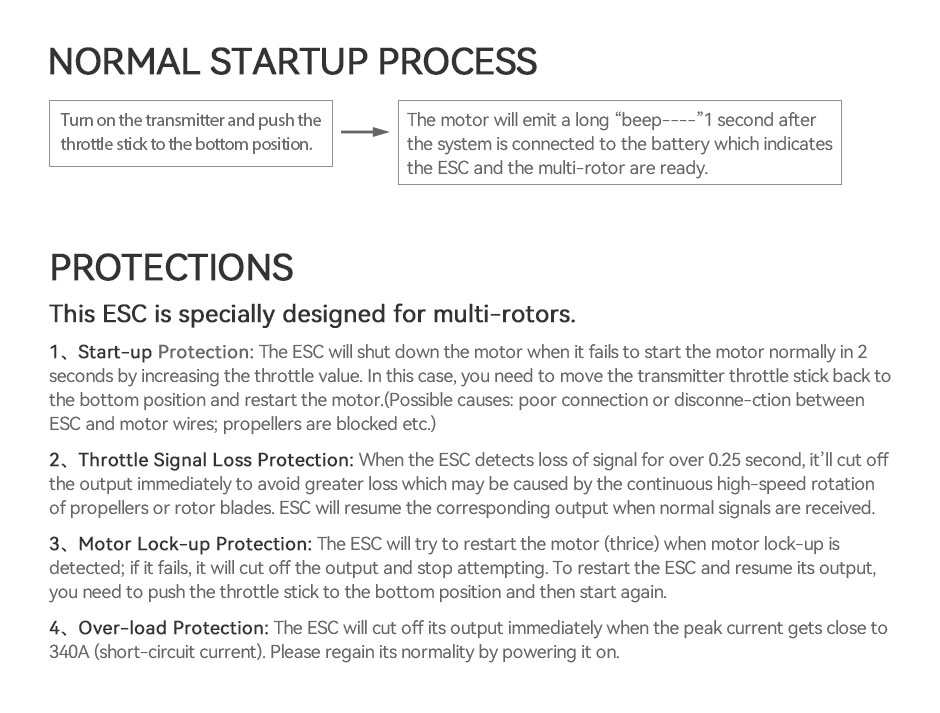

    • Start-up, Overload, Motor lock-up and Throttle signal loss protection


    Packing List Includes:


    1x T-Motor FLAME 180A 12S ESC

    1x Hardware Kit


    Matching Guide:


    U15 v2 KV100 Motor / G40*13.1 Prop





    Technical Drawing
