    MN3510 Navigator Type UAV Multi-Motor KV360/KV630/KV700

    79.90

    Available points: 4000 Points Points reward: 79 Points

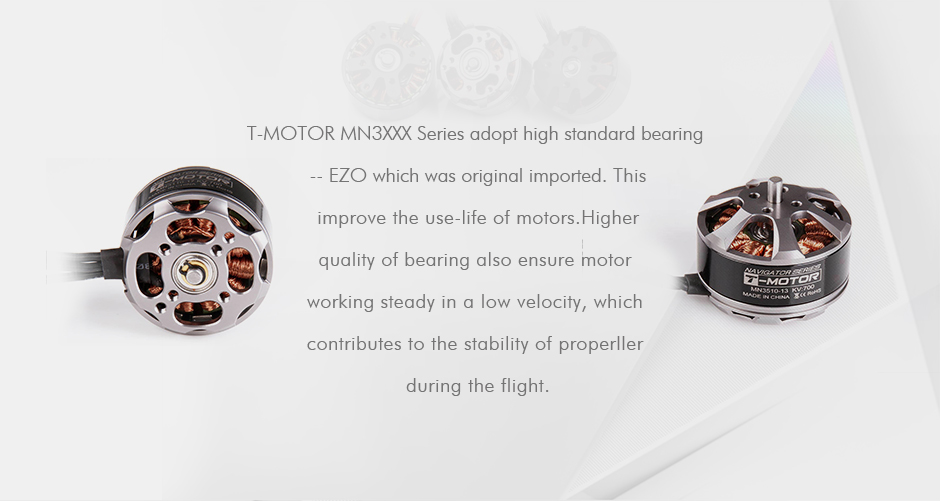

    • Qualified EZO bearing

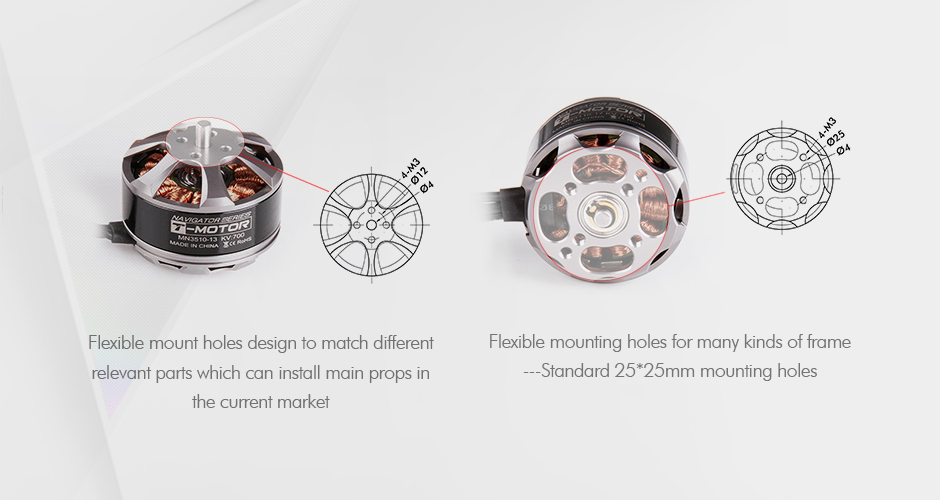

    • Flexible Mounting Holes
    KV：
    • KV360
    • KV630
    • KV700
    Quantity：

    79.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

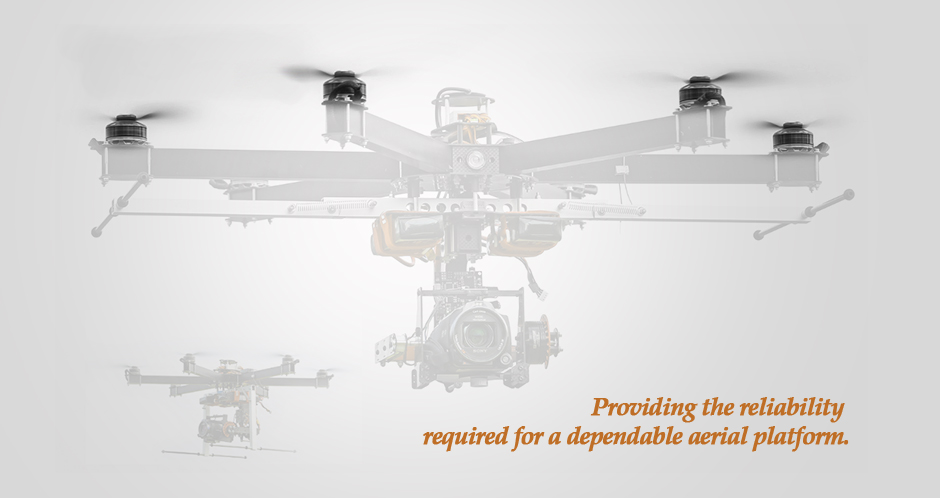

    "Navigator" motors are for general uses like aerial photography.
    For demand of multi-rotors, VTOL and fixed wings.

    1. Max. thrust ：1.9kg

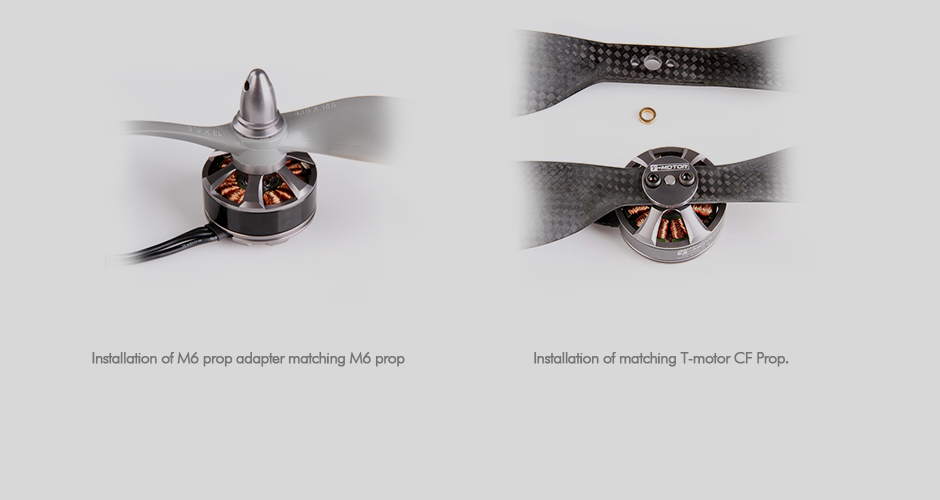

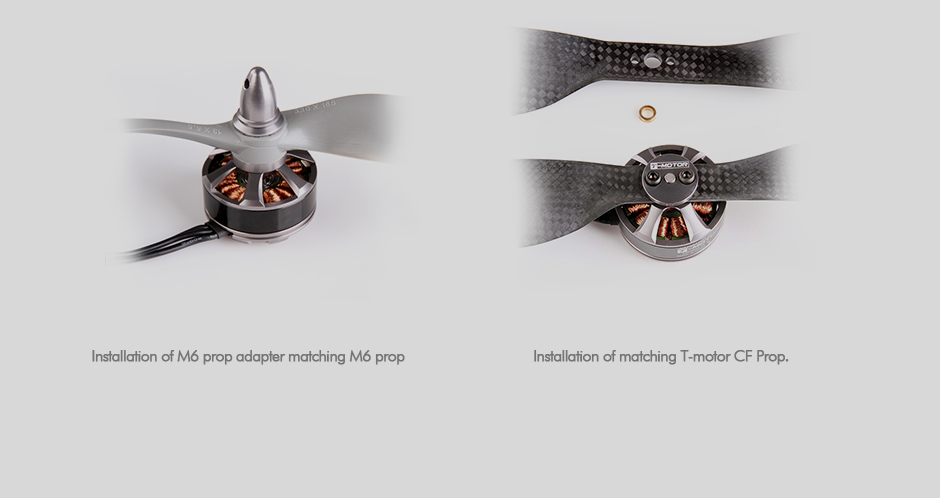

    2. Recommendation: T-MOTOR P15*5 Prop
    3. MTBF：About 1000hours
    4. Features：Super Balance; High Strength Construction

    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com


    Technical Drawing


    Specification
    Test ItemMN3510 KV360Configuration12N14P
    Internal Resistance188mΩMotor DimensionsΦ41.8×28.5mm
    Shaft Diameter4mmStatorHeight10mm
    Stator Diameter35mmCable Length600mm
    AWG18#Weight Excluding Cables97g
    Weight Including Cables117gIdle Current@10v0.4A
    No.of Cells(Lipo)3-6SMax Continuous Current 180S15A
    Max Continuous Power 180S330W

    Test ItemMN3510 KV630Configuration12N14P
    Internal Resistance65mΩMotor DimensionsΦ41.8×28.5mm
    Shaft Diameter4mmStator Height10mm
    Stator Diameter35mmCable Length600mm
    AWG18#Weight Excluding Cables97g
    Weight Including Cables119gIdle Current@10v0.5A
    No.of Cells(Lipo)3-4SMax Continuous Current 180S22A
    Max Continuous Power 180S495W

    Test ItemMN3510 KV700Configuration12N14P
    Internal Resistance50mΩMotor DimensionsΦ41.8×28.5mm
    Shaft Diameter4mmStator Height10mm
    Stator Diameter35mmCable Length600mm
    AWG18#Weight Excluding Cables97g
    Weight Including Cables118gIdle Current@10v0.5A
    No.of Cells(Lipo)3-4SMax Continuous Current 180S25A
    Max Continuous Power 180S555W

    Test Data
    Item No.Voltage
    (V)    		PropThrottleCurrent
    (A)    		Power
    (W)    		Thrust
    (G)    		RPMEfficiency
    (G/W)    		Operating
    Temperature
    (℃)

    MN3510

    KV360

    		14.8

    T-MOTOR

    14*4.8CF

    		50%1.217.76280260015.7740
    65%2.537.00500340013.51
    75%3.551.80620380011.97
    85%4.972.52760430010.48
    100%5.784.36870460010.31

    T-MOTOR

    15*5CF

    		50%1.522.20340260015.3242
    65%344.40580330013.06
    75%4.566.60760380011.41
    85%5.885.84900410010.48
    100%6.8100.64100044009.94

    T-MOTOR

    16*5.4CF

    		50%1.7325.60380245014.8440
    65%3.653.28630320011.82
    75%5.378.44800370010.20
    85%6.9102.12100040009.79
    100%8.1119.88110043009.18
    22.2

    T-MOTOR

    12*4CF

    		50%1.635.5235043009.8543
    65%2.759.9456053009.34
    75%488.8076060008.56
    85%5.5122.1093066007.62
    100%6.4142.08106070007.46

    T-MOTOR

    13*4.4CF

    		50%1.839.96460420011.5143
    65%3.475.4873053009.67
    75%4.8106.5690059008.45
    85%6.2137.64110065007.99
    100%7.5166.50130069007.81

    T-MOTOR

    14*4.8CF

    		50%2.555.50660400011.8950
    65%4.7104.34100049009.58
    75%6.8150.96128055008.48
    85%8.8195.36150060007.68
    100%10.6235.32170065007.22

    T-MOTOR

    15*5CF

    		50%366.60780380011.7160
    65%5.6124.32118045009.49
    75%7.7170.94146053008.54
    85%10.6235.32170057207.22
    100%12.5277.50190060406.85
    Notes:The test condition of temperature is motor surface temperature in 100% throttle while the motor run 10min.

    MN3510

    KV630

    		14.8

    T-MOTOR

    12*4CF

    		50%2.841.44440450010.6243
    65%5.378.4475057009.56
    75%7.6112.4891065008.09
    85%10148.00110070007.43
    100%12.3182.04126075006.92

    T-MOTOR

    13*4.4CF

    		50%3.450.32540450010.7344
    65%6.190.2886055009.53
    75%8.8130.24110063008.45
    85%11.8174.64130068007.44
    100%14207.20150073007.24

    T-MOTOR

    14*4.8CF

    		50%4.668.08700410010.2853
    65%8.7128.76111053008.62
    75%11.8174.64136057007.79
    85%16.4242.72170063007.00
    100%20296.00185066006.25
    Notes:The test condition of temperature is motor surface temperature in 100% throttle while the motor run 10min.

    MN3510

    KV700

    		11.1

    T-MOTOR

    12*4CF

    		50%2.527.75350400012.6140
    65%4.853.28550490010.32
    75%6.673.2670055009.56
    85%9.1101.0187063008.61
    100%11.1123.21100066008.12

    T-MOTOR

    13*4.4CF

    		50%2.932.19400380012.4342
    65%5.662.16650490010.46
    75%7.987.6983053009.47
    85%10.5116.55100060008.58
    100%12.6139.86110064007.87

    T-MOTOR

    14*4.8CF

    		50%4.145.51550350012.0943
    65%7.785.47890450010.41
    75%10.7118.77106049008.92
    85%14.5160.95130055008.08
    100%17.3192.03146058007.60
    14.8

    T-MOTOR

    11*3.7CF

    		50%3.247.3646053009.7143
    65%688.8071065008.00
    75%8.2121.3687075007.17
    85%11162.80108082006.63
    100%13192.40123087006.39

    T-MOTOR

    12*4CF

    		50%3.856.24580500010.3143
    65%7.4109.5288063008.04
    75%10.3152.44110073007.22
    85%14207.20136077006.56
    100%16.8248.64160083006.44

    T-MOTOR

    13*4.4CF

    		50%4.769.56730490010.4947
    65%9133.20112061008.41
    75%12.3182.04140068007.69
    85%16236.80160074006.76
    100%19.4287.12180078506.27
    Notes:The test condition of temperature is motor surface temperature in 100% throttle while the motor run 10min.

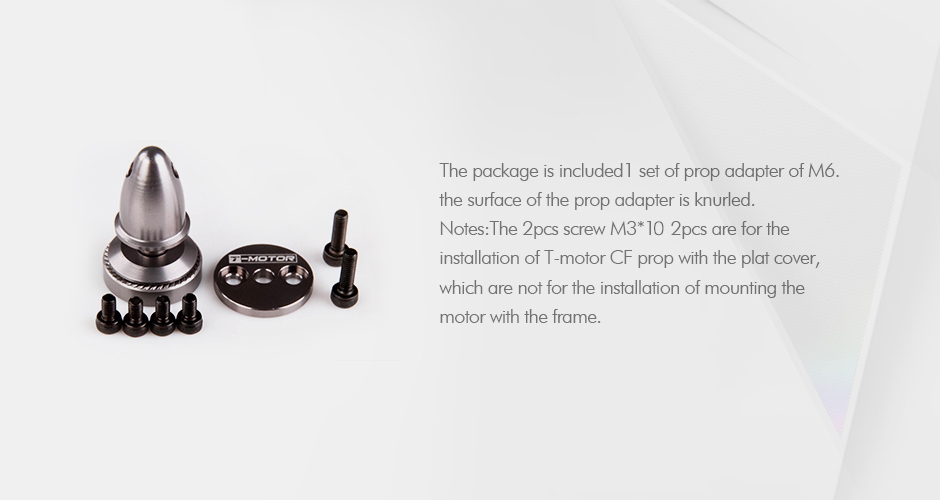

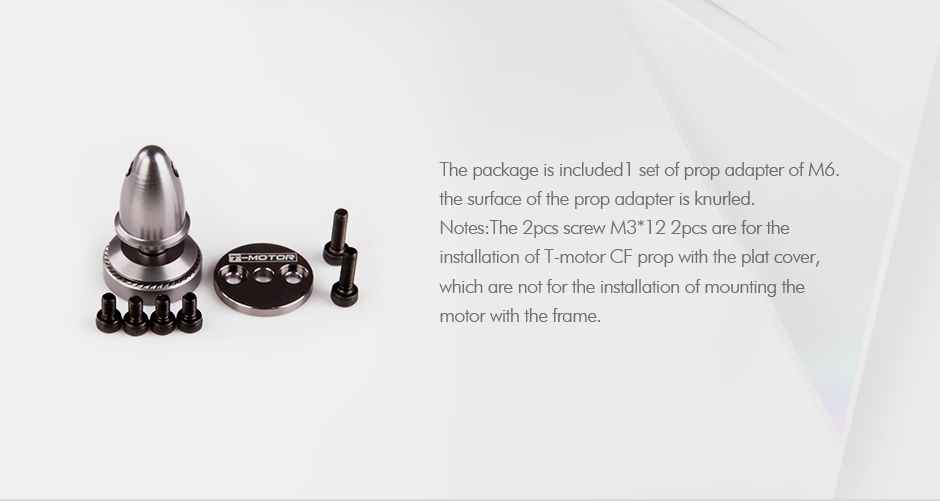

    Packing List

    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
