    V40A 14S

    99.90

    Available points: 100 Points Points reward: 99 Points

    Quantity：

    99.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications
    • Download

    Hot Products

    V40A 14S
    V40A 14STHE ADVANCED EDITION OF FOC ESCS

    Fast
    response

    Efficient
    driving

    Accurate
    control

    Low-noise
    operation

    recommendation

    U5
    MOTOR
    V40A
    ESC
    P17
    PROPELLER

    Specification

    6~14S

    Support Voltage

    20A

    Con. Current

    40A(10s)

    Peak Current

    50g(excl. cable)/68g

    ESC Weight

    62*30*18mm

    ESC Size

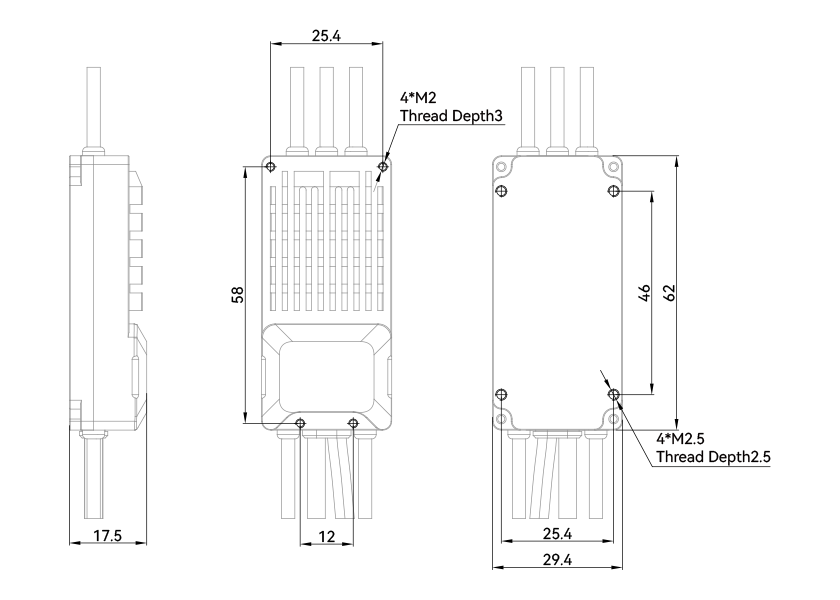

    Technical Drawing

    V40A 14S-draw-en.png

    Specification Export to Excel
    Model No.V40A 14SPower CableSilicone wire-red/black-14AWG-150mm
    Size62*30*18mm (L*W*H)Signal CableShielded cables-Black-OD4.2-5C
    -300mm-JP-3P*2-Black blank white
    -green yellow gray
    Weight(Incl. cables)69gEncoder cables/
    Motor CableSilicone wire-orange-16AWG-65mmProtocolPWM/CAN
    Support Voltage18~60V (6~14S)BECNO
    Continuous Current20AThrottle Pos. Range1040-1940μs
    Peak Current(<10s)40AThrottle Refresh Frequency50-500HZ
    Standby Consumption≤50mA@48VThrottle Response Speed300ms

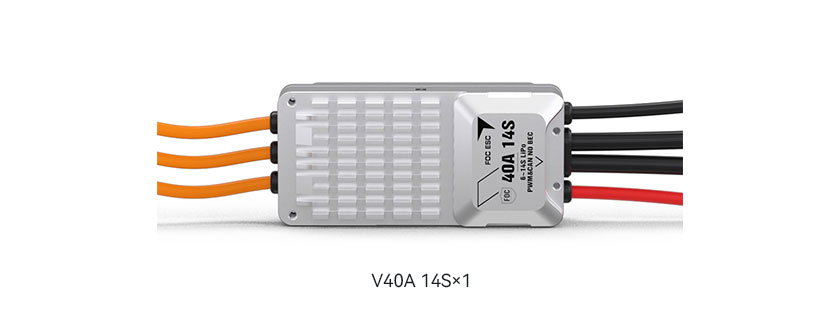

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
