    V80A 14S
    V80A 14STHE ADVANCED EDITION OF FOC ESCS

    Fast
    response

    Efficient
    driving

    Accurate
    control

    Low-noise
    operation

    recommendation

    VL7015 KV190
    MOTOR
    V80A
    ESC
    P24
    PROPELLER

    Specification

    6~14S

    Support Voltage

    40A

    Con. Current

    80A(10s)

    Peak Current

    78g(excl. cable)/110g

    ESC Weight

    84*35*19mm

    ESC Size

    Technical Drawing

    Specification Export to Excel
    Model No.V80A 14SPower CableSilicone wire-red/black
    -12AWG-180mm
    Size84*35*19mm (L*W*H)Signal CableShielded cables-Black-OD4.2-5C
    -450mm-JP-3P*2-Black blank
    white-green yellow gray
    Weight(Incl. cables)110gEncoder cablesShielded cables-Black-24AWG-5C
    -450mm-M6 aviation connector
    Motor CableSilicone wire-orange-14AWG-110mmProtocolPWM/CAN
    Support Voltage18~60V (6~14S)BECNO
    Continuous Current40AThrottle Pos. Range1040-1940
    Peak Current(<10s)80AThrottle Refresh Frequency50-500HZ
    Standby Consumption≤50mA@48VThrottle Response Speed300ms

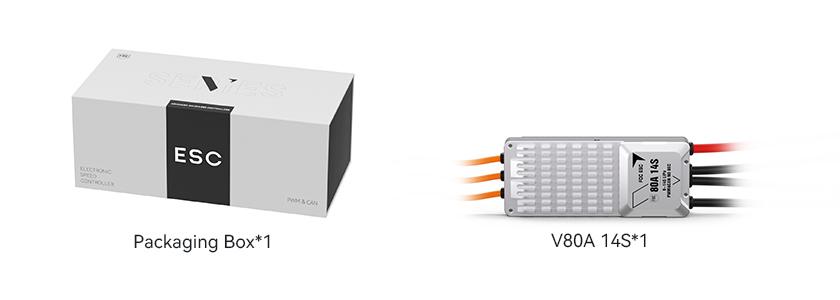

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
