Name: T-MOTOR VL8018: Powerful Brushless Motor for Large Drones
Brand: T-Motor
SKU: T-MOTOR001408
Price: 299.00 USD
Availability: InStock

Collect

Detail information
Specifications
Download

Hot Products

VL Series
Propulsion System

VL8018 KV190

MOTOR

V120A

ESC

G26

PROPELLER

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Recommendation

12S

Voltage

17.6kg

Max Thrust/Arm

30~32kg

Recommended MTOW(Quad)

Technical Drawing


Specification

Model No.	VL8018	Magnet Level	180℃
Motor Size	Φ88.8*43.5mm	Lead Cable	Silicone wire14# 1000mm
Stator	150°C high temperature -resisting coatings	Copper Wire	220℃
Configuration	24N28P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 12 OUT: 10	Rotor Dynamic BalanceStandard	≤10mg
Bearing	Imported 6901	IP	IPX5
CentrifugalCooling Design	YES	Package Size	15012057mm

Model No.	VL8018	KV (RPM/V)	180
Rated Voltage (LiPo)	12S	Idle Current (15V)	2.2A
Internal Resistance(25℃)	37mΩ	Peak Current	100A
Continuous Power(180s)	1600W	Ambient Temperature	-30℃～55℃
Max. Thrust	17.6kg	Motor Weight(indl. Cable)	655g

ESC specs.
Model No.	V120A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	130A (Under certain heat dissipation conditions)	Propeller-locking	ElectronicPropeller -locking
Continuous Current	60A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector
Standby Consumption	≤50mA	Output Cable	Silicone wire-orange -12AWG-85±10mm
Throttle Pos. Range	1040~1940us (fixed)	Input Cable	Silicone wire-red/black -12AWG-180±10mm
Throttle RefreshFrequency	50~500Hz	Signal Cable	Shielded cables-Black -OD4.2-5C-500±10-JP -3P*2-Black blank white -green yellow gray
Throttle ResponseSpeed	300ms	Weight (Incl. cables)	170g

Prop specs.
Model No.	G268.5 inch (660.4215.9mm)	Weight (Single Blade)	68±5g

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
VL8018 KV180 + V120A 14S + G26*8.5	40%	44.38	3277	1.01	7.97	2628	354	9.26	59 (Ambient Temperature: 25)
	42%	44.35	3623	1.11	9.14	2758	405	8.94
	44%	44.33	3971	1.22	10.41	2886	461	8.61
	46%	44.29	4349	1.32	11.78	3014	522	8.34
	48%	44.25	4741	1.44	13.28	3140	587	8.07
	50%	44.22	5123	1.55	14.85	3266	657	7.80
	52%	44.18	5527	1.67	16.55	3390	731	7.56
	54%	44.13	5980	1.81	18.48	3517	816	7.33
	56%	44.09	6424	1.94	20.50	3638	904	7.11
	58%	44.05	6860	2.07	22.62	3757	996	6.89
	60%	44.00	7328	2.20	24.87	3875	1094	6.70
	62%	43.95	7794	2.34	27.25	3991	1198	6.51
	64%	43.90	8246	2.47	29.72	4105	1305	6.32
	66%	43.85	8720	2.61	32.34	4218	1418	6.15
	68%	43.79	9188	2.76	35.13	4329	1538	5.97
	70%	43.73	9667	2.90	38.08	4436	1665	5.80
	80%	43.34	12133	3.65	55.09	4940	2388	5.08
	90%	42.93	14394	4.34	75.04	5364	3222	4.47
	100%	42.48	16107	4.88	95.16	5657	4043	3.98
VL8018 KV180 + V120A 14S + G26*8.5	40%	49.91	4097	1.25	9.65	2927	482	8.50	59 (Ambient Temperature: 25)
	42%	49.88	4525	1.37	11.08	3071	553	8.19
	44%	49.84	4967	1.50	12.60	3213	628	7.91
	46%	49.81	5423	1.64	14.29	3353	712	7.62
	48%	49.76	5900	1.78	16.15	3488	804	7.34
	50%	49.73	6392	1.92	18.09	3606	899	7.11
	52%	49.68	6894	2.07	20.20	3758	1004	6.87
	54%	49.64	7388	2.22	22.46	3890	1115	6.63
	56%	49.61	7938	2.38	24.89	4021	1235	6.43
	58%	49.55	8452	2.53	27.45	4147	1360	6.22
	60%	49.49	8996	2.70	30.16	4273	1493	6.03
	62%	49.42	9529	2.86	33.03	4397	1632	5.84
	64%	49.35	10077	3.03	36.12	4519	1783	5.65
	66%	49.28	10632	3.19	39.32	4642	1938	5.49
	68%	49.21	11190	3.36	42.71	4755	2102	5.32
	70%	49.14	11751	3.52	46.19	4867	2270	5.18
	80%	48.74	14450	4.34	66.04	5353	3219	4.49
	90%	48.28	16458	4.97	87.07	5712	4204	3.91
	100%	48.03	17587	5.22	99.04	5855	4756	3.63
Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

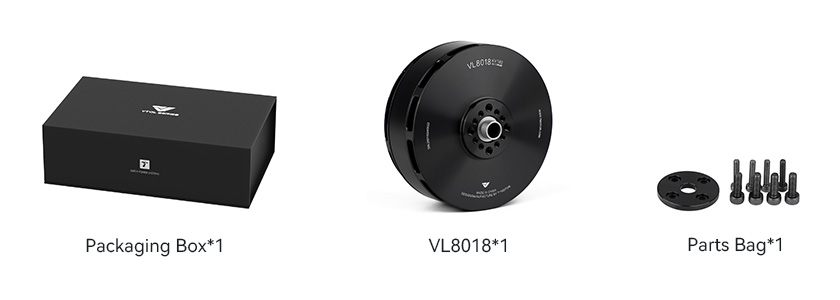

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.

VL8018 3D Diagram
