    505-X Combo Pack Type (Integrated Propulsion System）UAV Motor 320/380KV

    190.00

    Available points: 9500 Points Points reward: 190 Points

    • Fast and convenient
    • Free of complicated mounting process
    • Turn-key system, perfect compatibility, superb cost performance
    • Modularized propulsion system
    Parameter：
    • MN505-S KV380+Alpha 60A LV
    • MN505-S KV380+Alpha 60A LV+MF1806
    • MN505-S KV320+Alpha 60A LV+MF2211
    • MN505-S KV320+Alpha 60A LV
    Quantity：

    190.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    Technical Drawing


    Specification
    Product Model505-XKV320Exposed wire length650mm
    Arm size122.6*69*67.9mmBoom weight (incl. wire)398g
    Configu ration24N28PShaft DiameterIN:6mm OUT:4mm
    Idle Current（24V）2.5ARated Voltage(Lipo)6S
    Internal Resistance38mΩIP/
    Peak Current(180s)55AESCALPHA 60A 6S
    Max Power (180S)1200WPropeller RecommendationMF2211
    Product Model505-XKV380Exposed wire length650mm
    Arm size122.6*69*67.9mmBoom weight (incl. wire)387g
    Configu ration24N28PShaft DiameterIN:6mm OUT:4mm
    Idle Current（24V）3.6ARated Voltage(Lipo)6S
    Internal Resistance28mΩIP/
    Peak Current(180s)50AESCALPHA 60A 6S
    Max Power (180S)963WPropeller RecommendationMF1806
    Test Data
    TypePropellerThrottle
    (%)    		Voltage
    (V)    		Current
    (A)    		Power
    (W)    		RPMTorque
    (N·m)    		Thrust
    (g)    		Efficiency
    (g/W)    		Operating
    Temperature
    (℃)
    505-X
    KV320（Alpha 60A 6S）    		MF221140%23.837.7118426120.52195310.6288
    （Ambient
    Temperature：
    25）
    45%23.7710.2824428840.6423959.80
    50%23.7013.3131531470.7628519.04
    55%23.6216.7539633990.8833288.41
    60%23.5320.6148536411.0138177.87
    65%23.4224.9858538731.1443187.38
    70%23.3129.6869240921.2748246.97
    75%23.1934.8280742961.4053286.60
    80%23.0540.2992944911.5358196.26
    85%22.9245.99105446721.6562895.97
    90%22.7652.25119048491.7767645.69
    95%22.6855.70126349351.8370145.55
    100%22.6656.45127949521.8470505.51
    505-X
    KV380（Alpha 60A 6S ）    		MF180640%23.905.05120.7932350.2511699.6883
    （Ambient
    Temperature：
    25）
    45%23.866.58157.1235930.3014439.18
    50%23.828.51202.6539520.3717428.60
    55%23.7610.70254.1743050.4320698.14
    60%23.7013.24313.7946470.5024157.70
    65%23.6316.13381.2249860.5827837.30
    70%23.5619.39456.6653120.6531626.92
    75%23.4723.06541.1656330.7335586.57
    80%23.3727.08632.9959440.8239666.27
    85%23.2731.48732.3462450.9043765.98
    90%23.1536.21838.2865350.9947905.71
    95%23.0441.00944.5368021.0751905.49
    100%23.0141.88963.9268481.0852605.46
    Notes：Motor temperature is the motor surface temperature aftering running at 100% for 10 mins.
    (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)

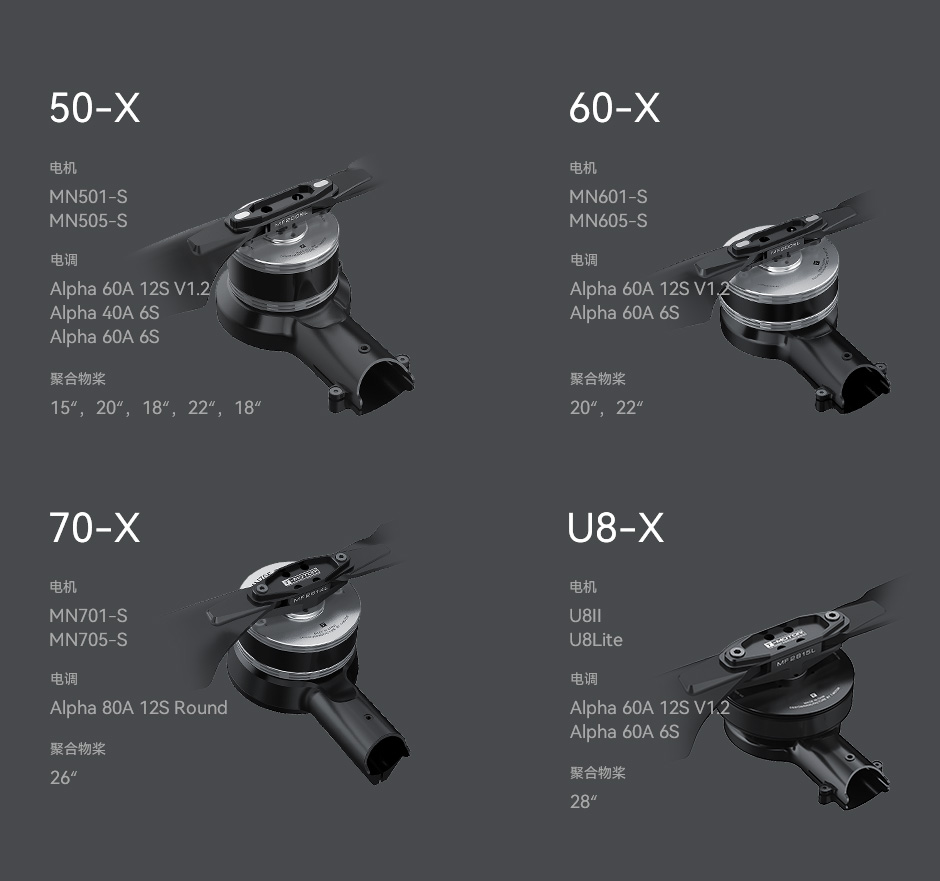

    Matching Table
    Arm SetCompatible
    Tube Size    		MotorKVDefault ESCDefault
    Propeller    		Propeller OptionsCustom ESC
    501-X25mm/30mm
    (25mm=30mm+
    adapter)    		MN501-SKV240ALPHA 60A 12S V1.2MF1503P15*5, FA15.2*5FLAME 60A 12S
    KV300ALPHA 40A 6SMF2009P20*6, FA20.2*6.6ALPHA 60A 12S V1.2,
    AIR 40A
    KV360MF1806P18*6.1, FA18.2*5.9
    505-XMN505-SKV320ALPHA 60A 6SMF2211P22*6.6, FA22.2*7.2FLAME 60A 12S
    KV380MF1806P18*6.1, FA18.2*5.9
    601-XMN601-SKV170ALPHA 60A 12S V1.2MF2009P20*6, FA20.2*6.6FLAME 60A 12S
    KV320ALPHA 60A 6SP20*6, FA20.2*6.6
    605-XMN605-SKV170ALPHA 60A 12S V1.2MF2211P22*6.6, FA22.2*7.2FLAME 60A 12S
    KV320ALPHA 60A 6S
    701-XMN701-SKV135ALPHA 80A 12S
    Round    		MF2614P24*7.2-10mm Hole,
    G24*7.8, FA24.2*7.9    		/
    705-XMN705-SKV125ALPHA 80A 12S
    Round    		MF2614G26*8.5, FA26.2*8.5/
    U8Ⅱ-X
    U8 Lite-X
    XU8-X    		U8Ⅱ
    U8 Lite
    XU8    		KV85ALPHA 60A 12S V1.2MF2815G28*9.2, FA28.2*9.2FLAME 60A 12S
    KV100
    KV150ALPHA 60A 6S
    KV190
    6007Ⅱ-X25mm/28mm6007ⅡKV160ALPHA 60A 12S V1.2MF2211FA22.2*7.2,
    NS22*6.6, P22*6.6    		FLAME 60A 12S
    KV320ALPHA 60A 6S
    P60-X25mm/30mm
    (25mm=30mm+
    adapter)    		P60KV170FLAME 60A 12SMF2211P22*6.6, G22*7.2/
    P80-X30mm/35mm
    or 40mm
    (Notify us your tube size)    		P80KV100/KV120ALPHA 80A 12SMF3016P30*10, G30*10.5FLAME 80A 12S,
    FLAME 100A 14S
    X-50125mm/30mm
    (25mm=30mm+
    adapter)    		MN501-SKV240ALPHA 60A 12S V1.2P15*5/FLAME 60A 12S
    KV300ALPHA 40A 6SP20*6/ALPHA 60A 6S,
    AIR 40A
    KV360P18*6.1/
    X-505MN505-SKV320ALPHA 60A 6SP22*6.6/FLAME 60A 12S
    KV380P18*6.1/
    X-601MN601-SKV170ALPHA 60A 12S V1.2P20*6/FLAME 60A 12S
    KV320ALPHA 60A 6S/
    X-605MN605-SKV170ALPHA 60A 12S V1.2P22*6.6/FLAME 60A 12S
    KV320ALPHA 60A 6S/
    X-U8Ⅱ
    X-U8 Lite    		U8Ⅱ
    U8 Lite    		KV85ALPHA 60A 12S V1.2G28*9.2/FLAME 60A 12S
    KV100/
    KV150ALPHA 60A 6S/
    KV190/
    X-70130mm/35mm
    (30mm=35mm+
    adapter)    		MN701-SKV135ALPHA 80A 12S
    Round    		P24*7.2
    -10mmHole    		G24*7.8/
    X-705MN705-SKV125ALPHA 80A 12S
    Round    		G26*8.5//
    * NOTE : order qty should be an EVEN number.
