150CC发动机理想替代方案
| 电机型号 | AT1050 | 磁铁耐温等级 | 180℃ |

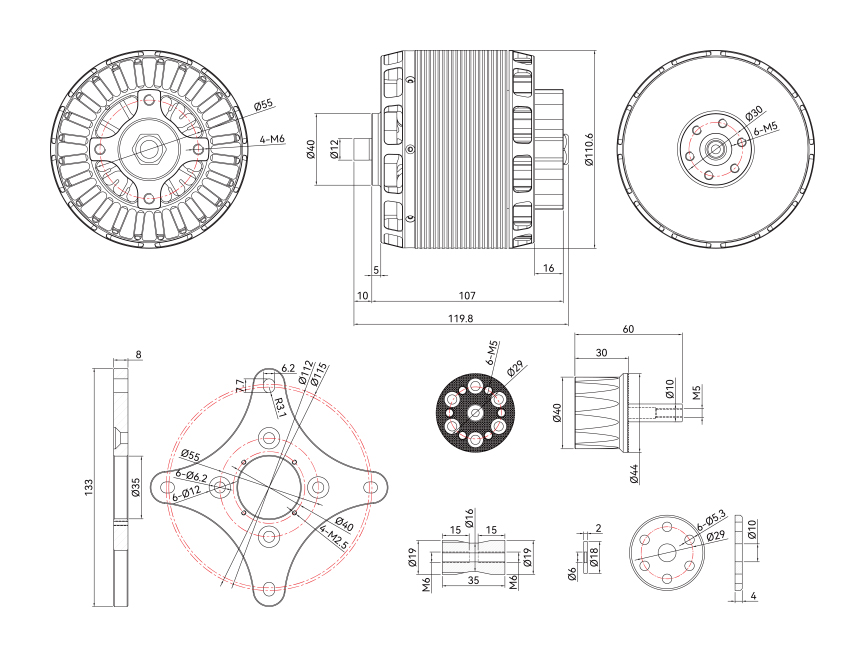

| 电机外观尺寸 | Φ110.6*119.8mm | 引线规格x长度 | 漆包线100mm |
| 定子工艺 | 耐150℃高温涂敷 | 漆包线耐温等级 | 220℃ |
| 槽极数 | 24N28P | 线圈耐压 | 1000V/5s |
| 电机轴径 | IN:15mm OUT:12mm | 转子动平衡标准 | ≤30mg |
| 轴承型号 | 6902/6202ZZ轴承 | 包装尺寸 | 246*162*139mm |
| KV值 | 90 | 空载电流 (15V) | 5.6A |
| 最大持续功率 | 5947W | 最大电流 | 135A |
| 工作额定电压 (LiPo) | 24S | 相间内阻 | 7.2mΩ |
| 最大拉力 | 36kg | 电机重量 (含线) | 2600g |
| 型号 | 桨 | 油门点 (%) | 电压 (V) | 电流 (A) | 功率 (W) | 转速 (RPM) | 扭矩 (N·m) | 拉力 (g) | 力效 (g/W) | 电机温度 (℃) |
| AT1050 KV90 | 29*12 | 40% | 88.26 | 31.15 | 2749 | 4019 | 4.91 | 13740 | 5.00 | 101 （环境温度： 28℃） |
| 45% | 88.15 | 37.89 | 3340 | 4312 | 5.68 | 15891 | 4.76 | |||
| 50% | 87.96 | 50.67 | 4457 | 4788 | 7.09 | 19742 | 4.43 | |||
| 55% | 87.79 | 61.63 | 5411 | 5114 | 8.22 | 22747 | 4.20 | |||
| 60% | 87.64 | 66.08 | 5791 | 5246 | 8.65 | 23965 | 4.14 | |||
| 65% | 87.50 | 72.19 | 6317 | 5406 | 9.26 | 25626 | 4.06 | |||
| 70% | 87.37 | 79.59 | 6954 | 5582 | 10.00 | 27428 | 3.94 | |||
| 75% | 87.24 | 88.25 | 7698 | 5771 | 10.78 | 29437 | 3.82 | |||
| 80% | 87.12 | 96.53 | 8409 | 5938 | 11.55 | 31189 | 3.71 | |||
| 90% | 86.87 | 112.39 | 9764 | 6238 | 12.93 | 33904 | 3.47 | |||
| 100% | 86.48 | 139.77 | 12087 | 6611 | 15.06 | 36666 | 3.03 | |||
| 30*10 | 40% | 88.31 | 30.17 | 2665 | 4033 | 4.69 | 13566 | 5.09 | 98 （环境温度： 28℃） | |
| 45% | 88.21 | 36.97 | 3261 | 4338 | 5.42 | 15772 | 4.84 | |||
| 50% | 88.02 | 49.28 | 4337 | 4798 | 6.77 | 19681 | 4.54 | |||
| 55% | 87.87 | 59.77 | 5251 | 5117 | 7.91 | 22660 | 4.31 | |||
| 60% | 87.84 | 64.14 | 5634 | 5247 | 8.33 | 23911 | 4.24 | |||
| 65% | 87.82 | 70.23 | 6167 | 5407 | 8.91 | 25465 | 4.13 | |||
| 70% | 87.77 | 77.66 | 6816 | 5588 | 9.63 | 27398 | 4.02 | |||
| 75% | 87.67 | 85.78 | 7521 | 5773 | 10.38 | 29314 | 3.90 | |||
| 80% | 87.62 | 93.25 | 8170 | 5941 | 11.02 | 30935 | 3.79 | |||
| 90% | 87.42 | 108.63 | 9496 | 6249 | 12.33 | 33235 | 3.50 | |||
| 100% | 87.12 | 134.45 | 11712 | 6600 | 14.37 | 36129 | 3.08 | |||
| 30*12 | 40% | 88.27 | 31.68 | 2797 | 3825 | 5.17 | 14293 | 5.11 | HOT （环境温度： 28℃） | |
| 45% | 88.15 | 38.79 | 3419 | 4110 | 6.03 | 16566 | 4.85 | |||
| 50% | 88.04 | 46.74 | 4115 | 4397 | 6.96 | 19107 | 4.64 | |||
| 55% | 87.71 | 67.80 | 5947 | 4977 | 9.21 | 24808 | 4.17 | |||
| 60% | 87.62 | 73.17 | 6411 | 5112 | 9.74 | 26176 | 4.08 | |||
| 65% | 87.50 | 80.24 | 7022 | 5271 | 10.45 | 27885 | 3.97 | |||
| 70% | 87.37 | 88.34 | 7718 | 5444 | 11.20 | 29726 | 3.85 | |||
| 75% | 87.23 | 97.44 | 8499 | 5620 | 12.01 | 31725 | 3.73 | |||
| 80% | 87.08 | 107.11 | 9327 | 5792 | 12.85 | 33742 | 3.62 | |||
| 90% | 86.84 | 124.58 | 10819 | 6076 | 14.37 | 35865 | 3.31 | |||
| 100% | 86.40 | 152.27 | 13156 | 6414 | 16.59 | 38696 | 2.94 | |||
| 注意：电机温度为100%油门下电机运行3分钟的钢圈温度。 （该数据由T-MOTOR自主平台测试所得，仅作为选型参考，最终解释权归T-MOTOR所有。） | ||||||||||
