About T-MOTOR MN2806 Antigravity Outrunner UAV Motor KV400/KV650

T-MOTOR Antigravity MN2806 KV400/KV650 Outrunner Brushless Motor is engineered for professional users who demand precision, reliability, and performance. Whether you're capturing stunning aerial footage, conducting surveys, or creating spectacular drone light shows, the MN2806 delivers the power and efficiency required for flawless operation.

Antigravity MN2806 Highlights:

Max. thrust: 1.1kg, recommended thrust: 0.4-0.6kg

Motor service life: 600 hours

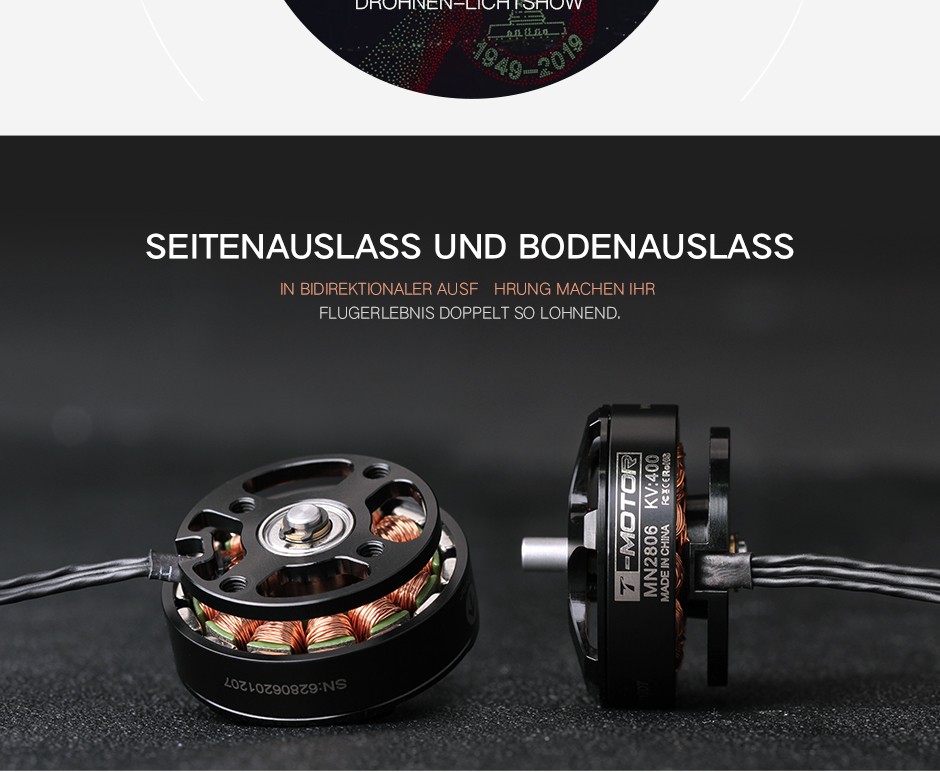

Wires lead out from the side-bottom of the motor

Various applications: Aerial photography, Surveying, Drone light shows

" Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.

Application Areas：

Multi-rotors, VTOL，UAVs

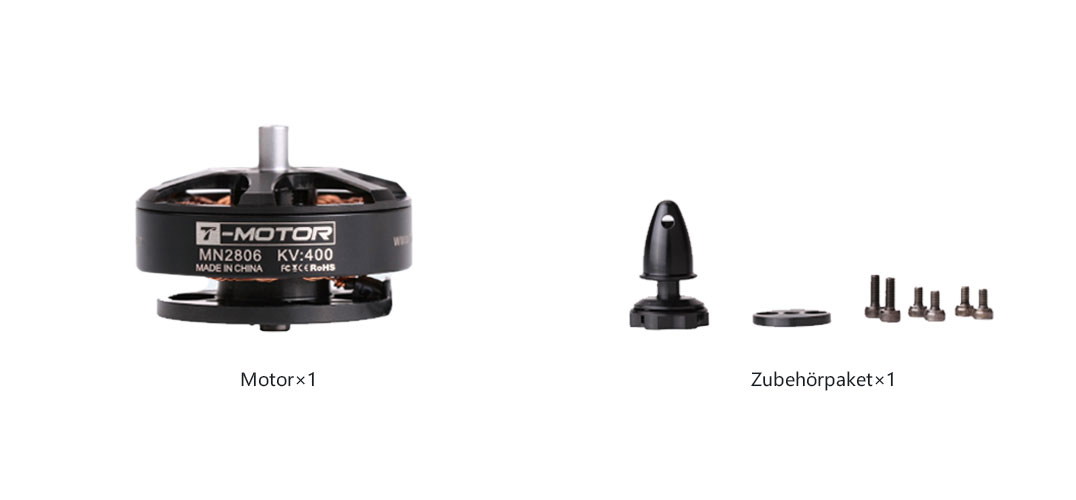

Packing List Includes:

1 x T-MOTOR MN2806 Motor KV400/KV650 ( kv which you choose)

1 x Hardware pack

Matching Guide:

T-MOTOR P13*4.4 Prop

If you have any questions or inquires, please contact us: onlinesales@tmotor.com

Technical Drawing

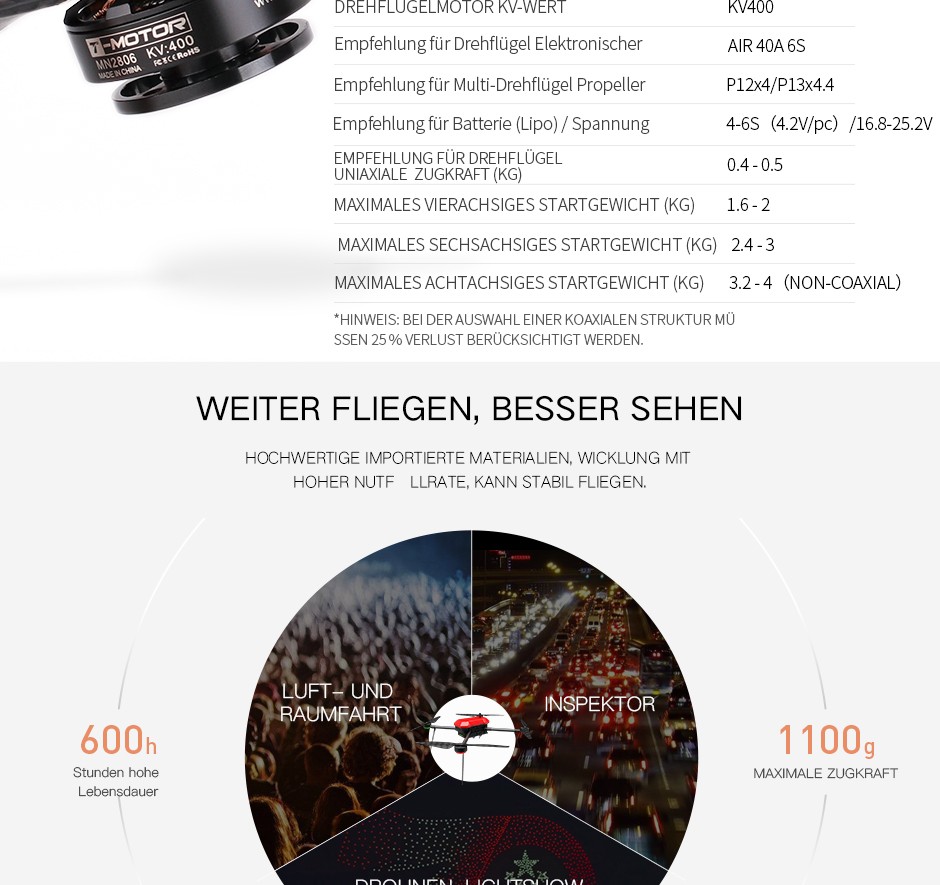

Specification

Model No./ Kv	MN2806 KV400/650	Motor Size(mm)	Φ35*26
Stator Technology	Anti-rust treatment;180°C high temperature-resisting coatings	Configuration	12N14P
Shaft Diameter(mm)	IN:4 OUT:4	Bearing	Imported 694ZZ
Magnet Temperature Resistance Grade	150℃	Lead(mm)	Enameled Wire 50mm
Enamelled Wires Temperature Resistance Grade	180℃	Coil Withdraw Voltage	500V/5s
Rotor Dynamic Balance Standard	≤10mg

KV Value	KV400	Battery (lipo)/Voltage Recommendation	4-6S（4.2V/Sl）/16.8-25.2V
Idle Current（18V）	0.2A	ESC Recommendation	AIR40A6S
Peak Current（A）	9.4A/Continuous 180s	Propeller Recommendation	P12X4/P13X4.4
Max. Power（W）	216W/Continuous 180s	Motor Weight（g）	46g Weight (incl. cables)
Internal Resistance（mΩ）	645	Package Weight（g）	110g

KV Value	KV650	Battery (lipo)/Voltage Recommendation	4S（4.2V/Sl）/16.8V
Idle Current（18V）	0.2A	ESC Recommendation	AIR40A6S
Peak Current（A）	12.3A/持续180s	Propeller Recommendation	P12X4/P13X4.4
Max. Power（W）	187W/持续180s	Motor Weight（g）	46g Weight (incl. cables)
Internal Resistance（mΩ）	275	Package Weight（g）	110g

Test Data

Item No.	Prop	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Inputpower (W)	Efficiency (g/W)	Operating Temperature ℃)
MN2806 KV400	T-MOTOR P12*4	40%	23.59	230	0.04	0.76	3080	17.85	12.91	45℃
		45%	23.54	282	0.05	1.00	3417	23.62	11.93
		50%	23.46	344	0.06	1.32	3755	30.94	11.11
		55%	23.33	398	0.07	1.63	4036	37.94	10.50
		60%	23.28	458	0.08	2.00	4319	46.61	9.83
		65%	23.16	511	0.08	2.38	4571	55.18	9.26
		70%	23.12	568	0.09	2.83	4837	65.34	8.70
		75%	23.09	642	0.10	3.34	5094	77.08	8.33
		80%	23.01	705	0.11	3.84	5337	88.41	7.97
		85%	22.93	774	0.12	4.45	5594	101.97	7.59
		90%	22.91	845	0.14	5.10	5838	116.77	7.24
		95%	22.90	915	0.14	5.78	6068	132.32	6.91
		100%	22.86	958	0.15	6.30	6235	144.03	6.65
	T-MOTOR P13*4.4	40%	23.63	262	0.04	0.86	2991	20.38	12.85	52℃
		45%	23.60	325	0.05	1.14	3299	26.83	12.11
		50%	23.57	398	0.07	1.50	3632	35.42	11.24
		55%	23.53	458	0.07	1.88	3908	44.21	10.36
		60%	23.43	531	0.09	2.32	4184	54.29	9.78
		65%	23.25	592	0.10	2.75	4416	63.91	9.26
		70%	23.17	660	0.11	3.27	4664	75.78	8.71
		75%	23.14	729	0.12	3.82	4902	88.36	8.25
		80%	23.09	798	0.13	4.40	5126	101.53	7.86
		85%	23.11	875	0.14	5.07	5357	117.10	7.47
		90%	23.11	947	0.15	5.80	5573	134.10	7.06
		95%	23.07	1018	0.16	6.56	5777	151.45	6.72
		100%	23.05	1068	0.17	7.10	5902	163.53	6.53
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
MN2806 KV650	T-MOTOR P12*4	40%	15.47	237	0.04	1.21	3138	18.75	12.66	55℃
		45%	15.44	314	0.05	1.77	3589	27.41	11.47
		50%	15.43	361	0.06	2.19	3851	33.73	10.71
		55%	15.41	438	0.07	2.89	4236	44.49	9.85
		60%	15.39	492	0.07	3.39	4469	52.23	9.43
		65%	15.37	568	0.09	4.21	4802	64.76	8.78
		70%	15.35	631	0.10	4.93	5054	75.60	8.34
		75%	15.32	714	0.11	6.01	5384	92.08	7.75
		80%	15.30	772	0.12	6.77	5584	103.58	7.45
		85%	15.27	865	0.14	8.07	5895	123.26	7.02
		90%	15.25	919	0.14	8.95	6083	136.53	6.73
		95%	15.21	999	0.17	10.36	6345	157.65	6.34
		100%	15.20	1036	0.17	11.04	6456	167.82	6.17
	T-MOTOR P13*4.4	40%	15.51	269	0.04	1.32	2994	20.44	13.16	65℃
		45%	15.51	346	0.06	1.88	3371	29.13	11.87
		50%	15.43	417	0.07	2.48	3694	38.30	10.89
		55%	15.42	485	0.08	3.13	3989	48.20	10.06
		60%	15.39	557	0.09	3.88	4278	59.69	9.34
		65%	15.37	626	0.11	4.64	4538	71.38	8.78
		70%	15.33	700	0.11	5.46	4777	83.73	8.36
		75%	15.33	785	0.13	6.49	5041	99.46	7.90
		80%	15.28	863	0.14	7.59	5284	115.98	7.44
		85%	15.25	941	0.15	8.77	5510	133.74	7.04
		90%	15.22	1015	0.16	10.01	5729	152.40	6.66
		95%	15.19	1090	0.18	11.29	5925	171.60	6.35
		100%	15.17	1138	0.18	12.28	6061	186.36	6.10
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
