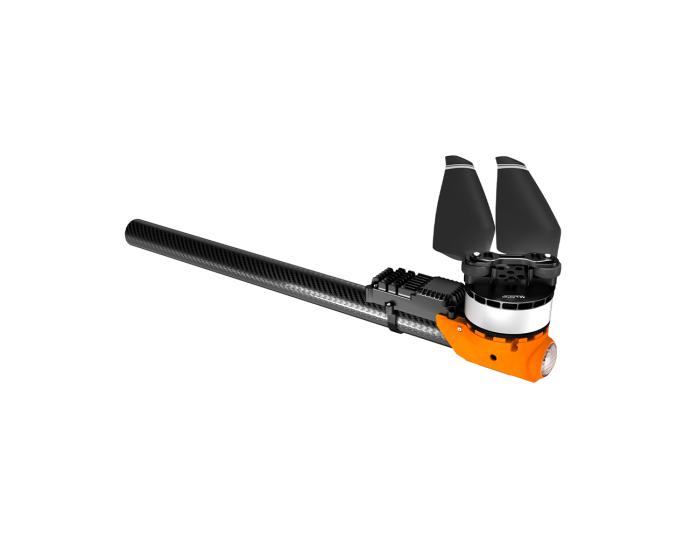

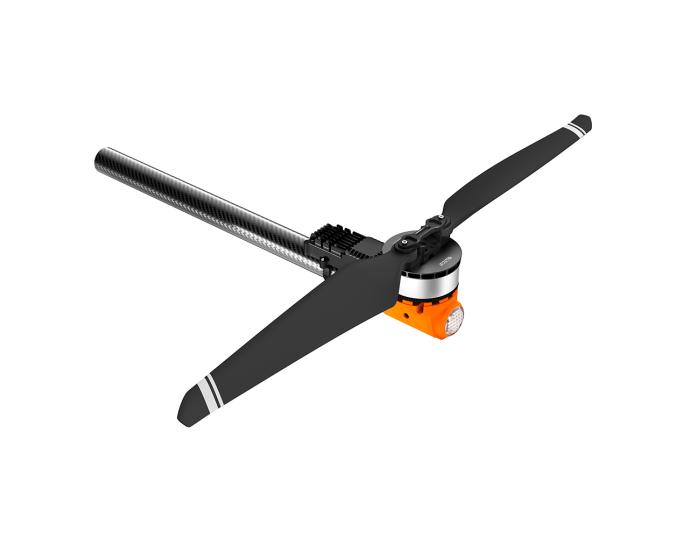

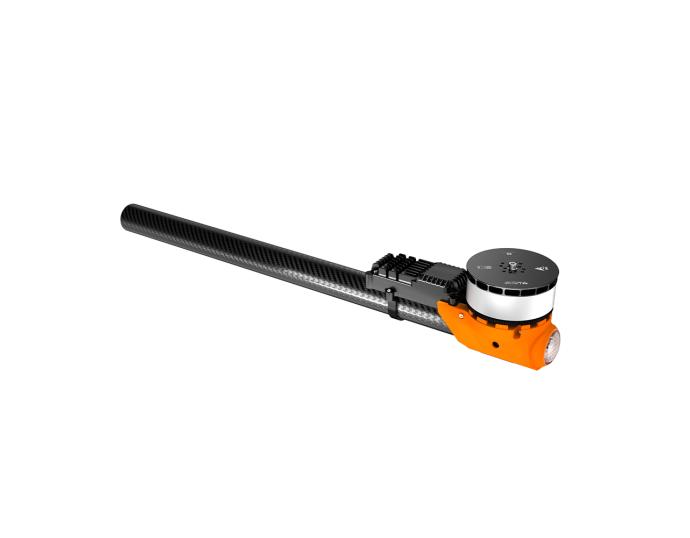

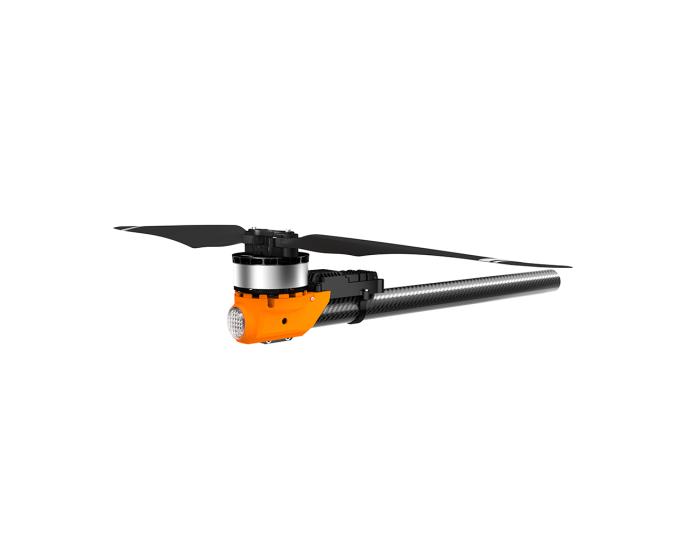

    A6L
    MODULAR
    Propulsion System
    For 5L quadcopter or 10L hexacopter agricultural drones
    A6L
    A6L
    MOTOR
    14S FOC 80A
    ESC
    MF2407P
    PROPELLER
    A6L Recommendations
    Load capacity(liquid)
    5L
    Agriculture Quadcopter Drone
    Load capacity(liquid)
    10L
    Agriculture Hexacopter Drone
    Take-off weight
    16~22kg
    Quadcopter
    Take-off weight
    24~33kg
    Hexacopter
    A6
    Silicone protective cover with two colors optional
    Fluorescent Orange
    Industrial Gray
    Technical Drawing


    Specification Export to Excel
    Model No.A6L KV160Tube size30mm
    SetupA6L (Motor)+14S FOC 80A (ESC)+
    MF2407P (Prop)    		Wire material,
    wire gauge, color    		Power wires：14#AWG red & black
    Signal wires: 5P Teflon
    Recommended battery12~14S (LiPo)Wire length1000±5mm
    Rated thrust4~5.5kgWeight760±2%g (incl. Wires+prop)
    Efficiency at rated thrust7.8g/W (4.2kg)IPIPX6
    Max. thrust12kgRecommended ambient
    temperature    		-20～55℃
    Motor specs.
    Stator size62*18mmKV160
    ESC specs.
    Throttle range1100~1940us (fixed)Max. voltage61V
    ProtocolDRONE CAN、 UAV CAN、
    CUBE CAN    		Peak current
    (for a short time)    		80A
    (Open environment
    and temperature≤60℃)
    Control methodPWM/CANBECNO
    Prop specs
    Model No.MF2407P (Polymer Folding)Length24 inch (622mm)
    Test Data Export to Excel
    TypeVoltage
    (V)    		ThrottleCurrent
    (A)    		Thrust
    (g)    		Torque
    (N·m)    		RPMMotor
    Efficiency
    (%)    		Overall
    Efficiency
    (gf/W)    		Operating
    Temperature
    (℃)
    A6L KV160
    +
    14S FOC 80A
    +
    MF2407P    		5430%2.4115020.54204888.4611.47135
    (Ambient Temperature:
    27.8)
    35%3.7420940.72239288.8210.32
    40%5.4827750.92273588.639.33
    45%7.5134781.14304589.148.53
    50%10.0442611.38336089.047.81
    55%13.2251641.65366788.247.19
    60%16.6659971.92395287.796.63
    65%18.8165212.07410887.106.38
    70%24.6377812.46445685.725.81
    75%27.0582622.62460185.835.62
    80%30.6889212.82476784.375.35
    85%35.8098383.10497783.015.06
    90%41.45107273.40519482.084.76
    95%47.79115803.67539679.874.46
    100%51.04120093.80549578.864.33

    Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min.

    (Data above based on benchtest at T-MOTOR lab are for reference only.)

    Analysis Chart

    Load curve
