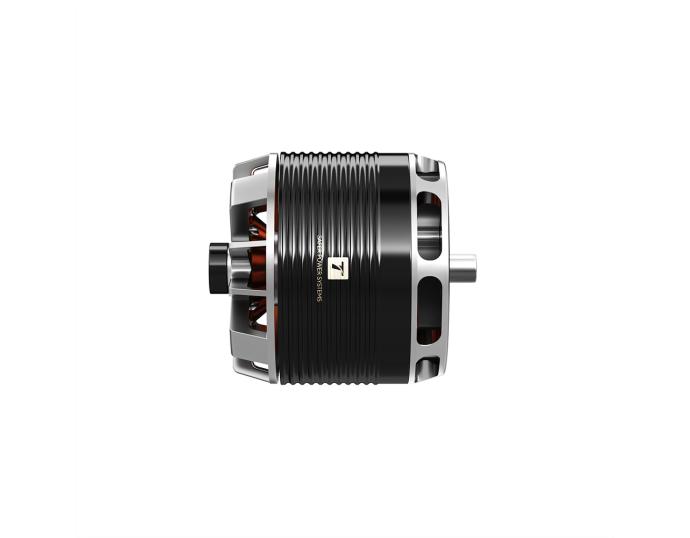

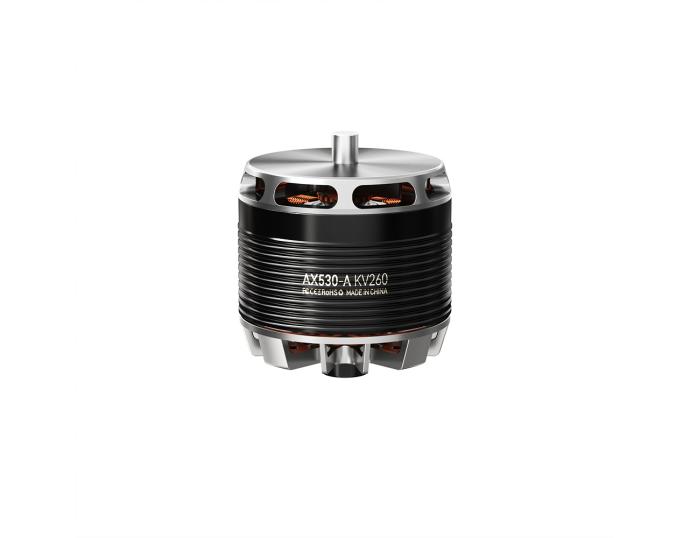

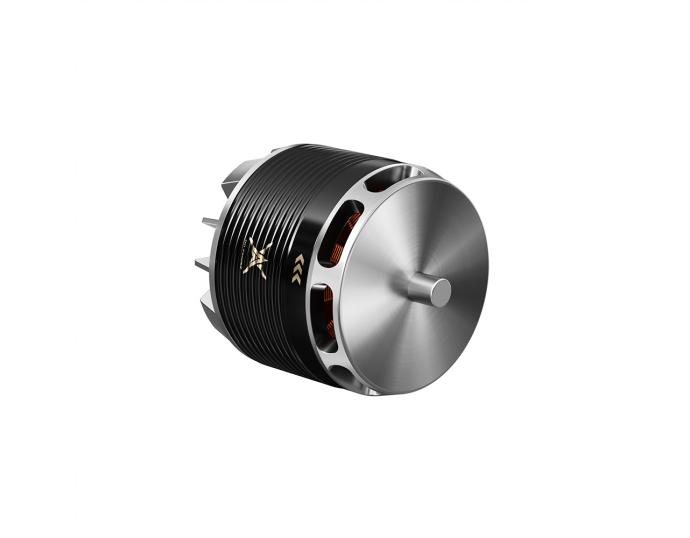

    AX530-A

    199.00

    Available points: 0 Points Points reward: 199 Points

    Quantity :

    199.00

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications

    Hot Products

    ax

    AX SERIES BRUSHLESS MOTORS

    A POWER SYSTEM SPECIFICALLY ENGINEERED FOR FIXED-WING CRUISE UAVS

    AX435-A | AX435-B | AX525-A | AX525-B | AX530-A | AX530-B

    HIGH MOUNTING VERSATILITY

    Designed for pusher configurations. Features rear shaft output for internally mounted installations and  front shaft output for externally mounted installations, adapting to diverse airframe layouts.

    ax

    AX435-A | AX435-B | AX525-A | AX525-B | AX530-A | AX530-B

    ENHANCED COOLING EFFICIENCY

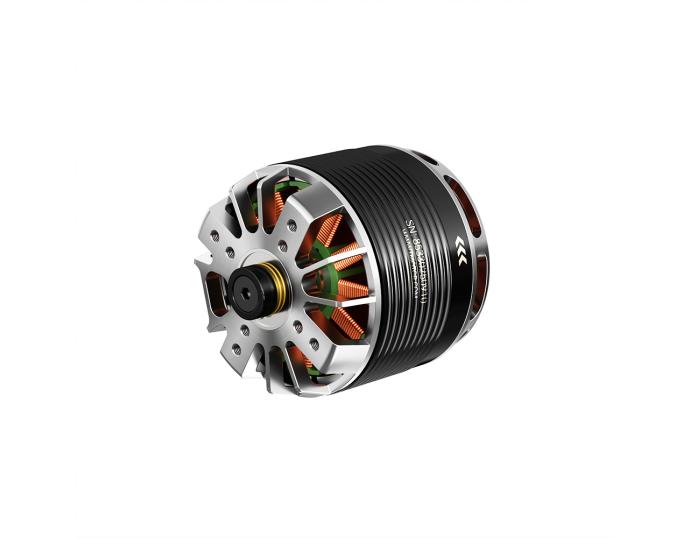

    Optimized for pusher applications. End caps incorporate tilted centrifugal cooling fins aligned with rotation direction, improving heat dissipation efficiency by 5%.

    AX435-A | AX435-B | AX525-A | AX525-B | AX530-A | AX530-B

    QUICK INSTALLATION

    Integrated collet-type prop hub enables rapid installation of folding propellers.

    AX530-A Configuration

    Recommended Takeoff Weight

    17-19kg

    Max Thrust

    12.7kg

    Motor weight

    680g

    Recommended Battery

    12S(Lipo)

    Recommended Setup

    AX530-A Motor+AT195A ESC+ AUFZ20*13/AUZ20*13 Prop

    Technical Drawing


    Specification Export to Excel
    Model No.AX530-AMagnet Level180℃
    Motor SizeΦ63.6*73mmLead CableEnameled Wire 150mm
    Stator150°C high temperature
    -resisting coatings    		Copper Wire220℃
    Configuration12N14PCoil Insulation Test500V/5s
    Shaft DiameterIN:10mm OUT:8mmRotor Dynamic BalanceStandard≤30mg
    BearingImported 6800/6900ZZPackage Size197*104*75mm
    Tech Specs
    KV260Idle Current(15V)3.2A
    Max Power2600WPeak Current120A
    Rated Voltage (Lipo)12SInternal Resistance20mΩ
    Max Thrust12.7kgWeight (incl.cable)680g
    Test Data Export to Excel
    TypePropellerThrottle
    (%)    		Voltage
    (V)    		Current
    (A)    		Power
    (W)    		RPMTorque
    (N·m)    		Thrust
    (g)    		Efficiency
    (g/W)    		Operating
    Temperature
    (℃)
    AX530-A
    KV260    		AUFZ 20*1340%44.679.5242536230.9128426.68110.7
    （Ambient
    Temperature：
    25）
    45%44.6012.4755639821.1034606.22
    50%44.5316.4773343921.3342345.77
    55%44.4222.3499248621.6452175.26
    60%44.3028.38125752721.9361694.91
    65%44.1834.66153156232.2170394.60
    70%44.0441.90184559712.4979764.32
    75%43.8850.32220863202.8189564.06
    80%43.6959.90261766663.1499953.82
    90%43.2085.56369672483.98110883.00
    100%42.62117.79502078564.81127172.53
    AUZ 20*1340%44.629.5542636010.9330767.22111.2
    （Ambient
    Temperature：
    25）
    45%44.5612.6156239601.1137546.68
    50%44.4816.8374843591.3546026.15
    55%44.3622.72100848321.6756875.64
    60%44.2428.95128152391.9867445.27
    65%44.1235.33155955852.2676984.94
    70%43.9843.03189259442.5787644.63
    75%43.8151.59226062782.8798144.34
    80%43.6261.29267466173.21109484.09
    90%43.1884.14363372443.89132043.63
    100%42.55119.15506978154.88137552.71
    Notes：Motor temperature is the motor surface temperature aftering running at 100% for 1 mins.
    (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)
    Packing List
    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
