    F40PRO IV 5Inch FPV Racing Drone Motor KV1950/KV2400

    26.90

    Available points: 1300 Points Points reward: 26 Points

    1. Easy Cornering

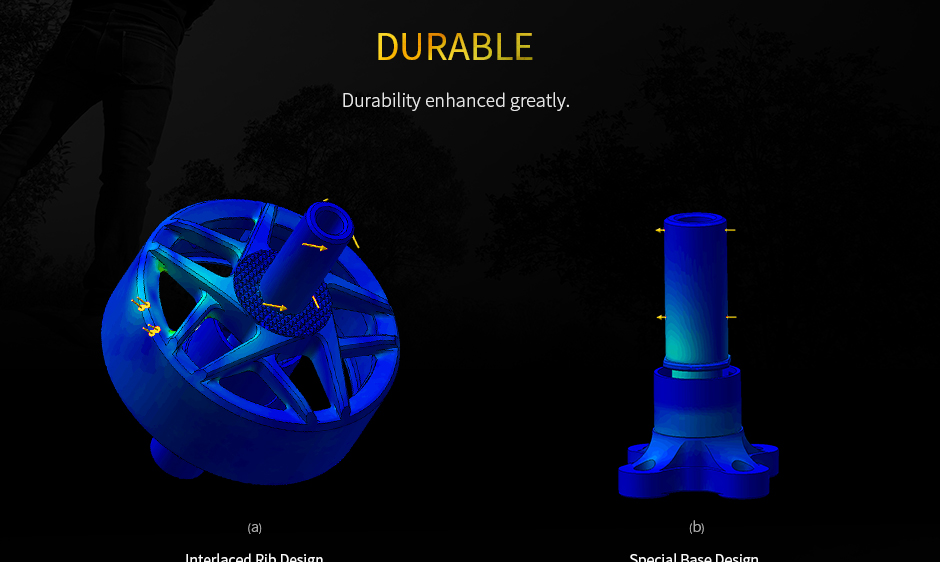

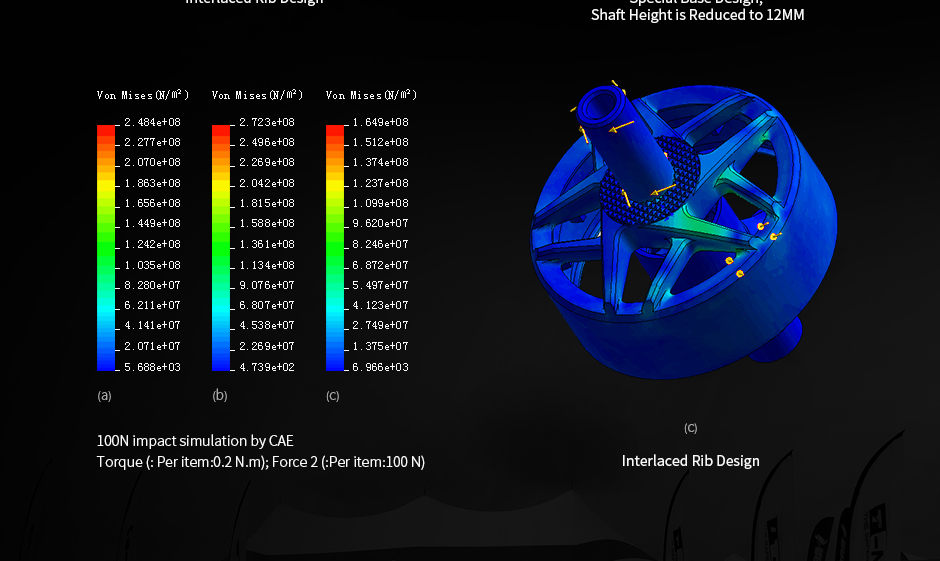

    2. More Durable
    3. Accurate Control
    4. Suitable for 5" freestyle and racing

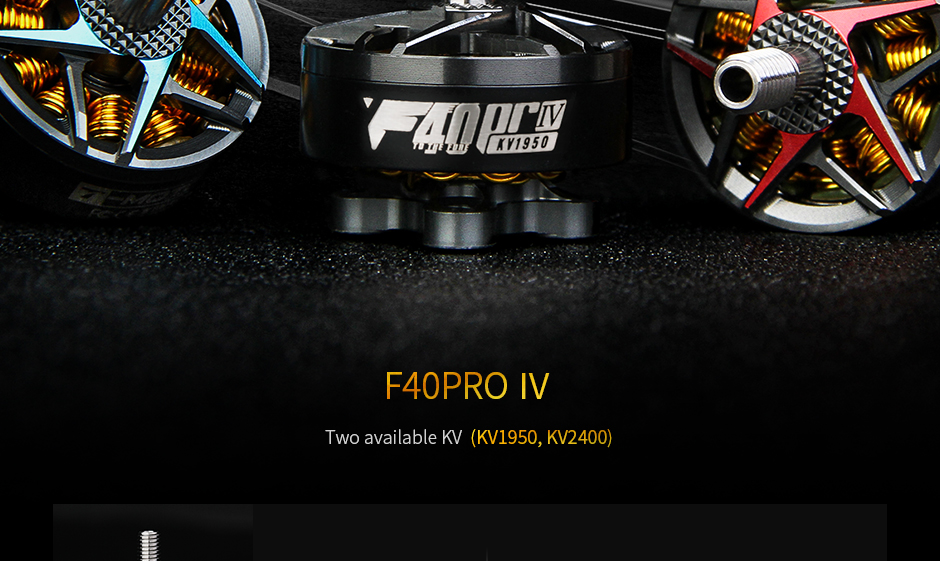

    KV：
    • KV1950
    • KV2400

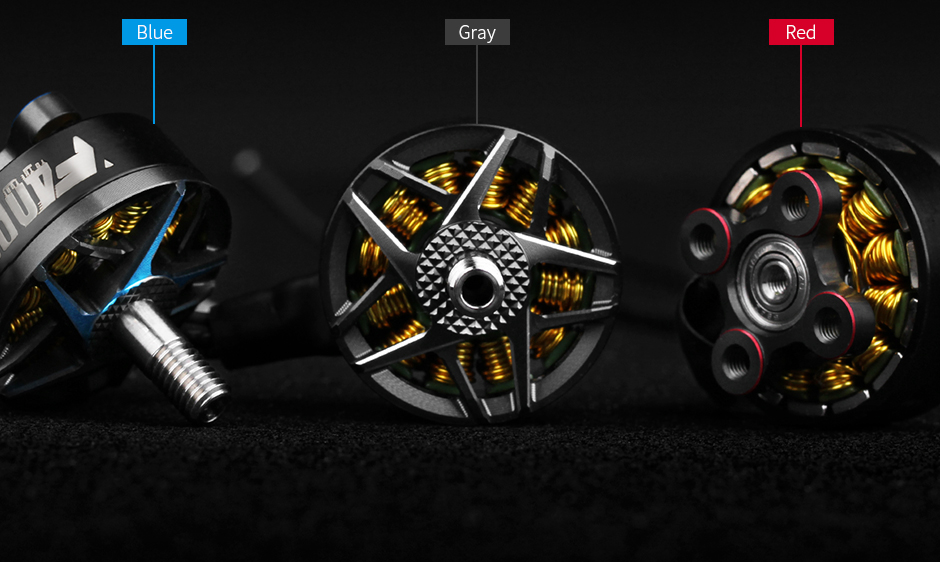

    Color：
    • Grey
    • Red
    • Blue
    Quantity：

    26.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR F40 Pro IV 5inch Racing Drone Motor


    The F40 PRO IV motor model is 2306, suitable for 5-inch freestyle and racing. Compared with the F40 PRO III, the weight is reduced by 9%, only 29.5g.

    It has high torque, strong explosive power and high efficiency, and the maximum pulling force can reach 1.62kg.


    F40 Pro IV Hightlights:

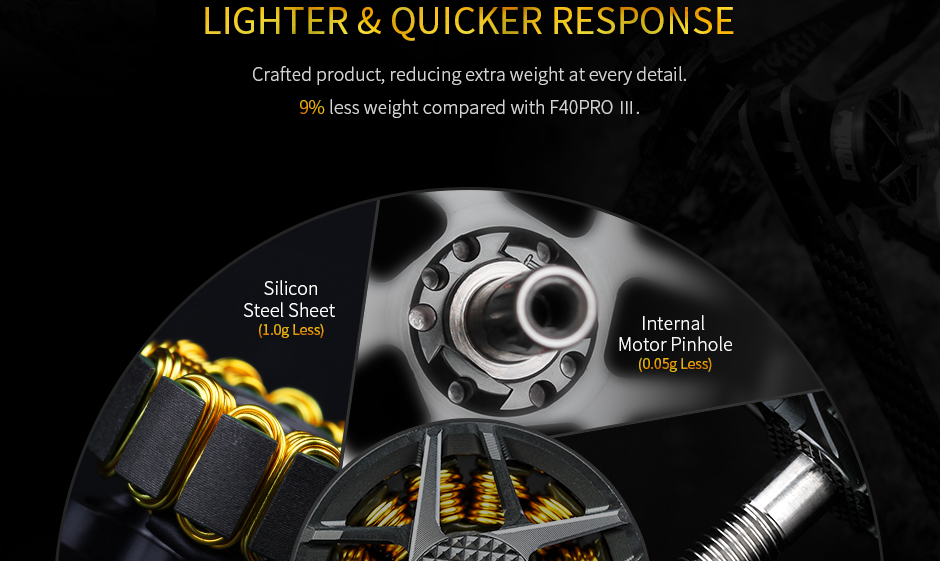

    The F40 PRO-IV continues the lineage of great FPV brushless motors by T-Motor. The F40 PRO-IV is lighter and agile compared to its predecessor, 9% less weight compared to the F40 PRO III.

    We has worked very hard to improve the user experience by crafting and enhancing every detail of the F40 PRO IV to help reduce its weight.

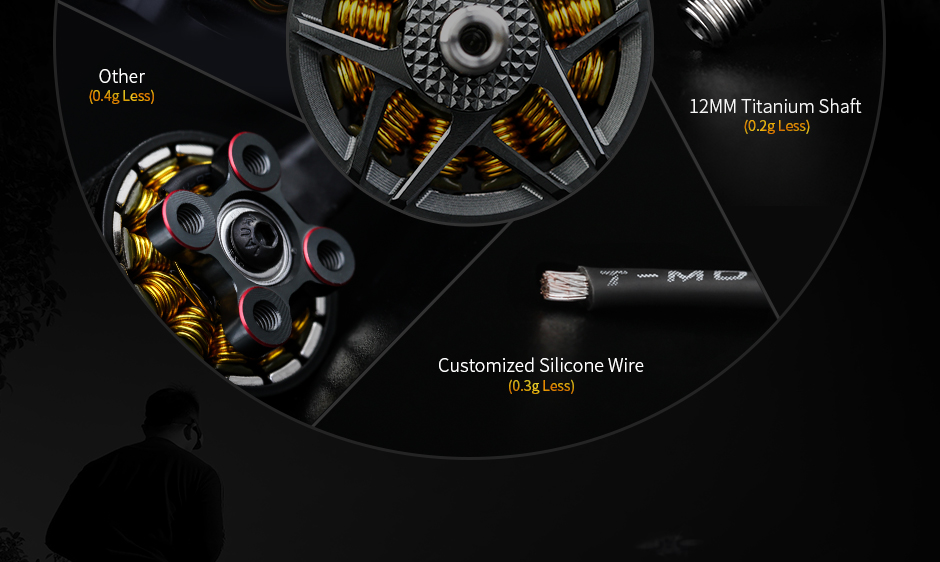

    Things that were considered were the internal motor pinhole, 12mm titanium shaft, silicon steel sheet and customized silicone wire. The 2306 size suitable for 5 inch freestyle and racing


    Packing List Includes:


    1x T-Motor F40 PRO IV Motor (Choose 1950KV or 2400KV)

    1x Hardware Kit


    Matching Guide:


    F7 Flight controller

    F55A Pro II ESC

    T5146 FPV Drone propeller

    Technical Drawing

    Specification
    Test ItemKV1950Weight(Incl.Cable)30.8g
    Motor DimensionsΦ27.9*29.8mmInternal Resistance65mΩ
    Lead20#AWG 150mmConfiguration12N14P
    Shaft Diameter4mmRated Voltage(Lipo)4-6S
    Idle Current(10V)1.3APeak Current(60s)42A
    Max. Power(60s)1012W

    Test ItemKV2400Weight(Incl.Cable)30.6g
    Motor DimensionsΦ27.9*29.8mmInternal Resistance45mΩ
    Lead20#AWG 150mmConfiguration12N14P
    Shaft Diameter4mmRated Voltage(Lipo)4S
    Idle Current(10V)1.6APeak Current(60s)42.9A
    Max. Power(60s)666W

    Test Data
    TypePropellerThrottleThrust
    (g)    		Voltage
    (V)    		Current
    (A)    		RPMPower
    (W)    		Efficiency
    (g/W)

    Operating
    Temperature

    (℃)
    F40PRO Ⅳ
    1950    		T5146
    Tri-
    Blade    		50%642.3424.147.4718862180.433.5694
    (Ambient
    Temperature:
    30℃)
    55%749.8624.119.4820210228.633.28
    60%866.3624.0711.6721604280.903.08
    65%990.6824.0214.3823089345.472.87
    70%1100.9123.9717.3124296415.012.65
    75%1181.9823.9219.8725349475.312.49
    80%1284.9623.8822.9726221548.432.34
    85%1380.9223.8226.0927150621.472.22
    90%1476.1923.7729.3227950696.892.12
    95%1511.6723.7132.5628781771.871.96
    100%1767.9223.5740.4831359954.281.85
    T5147
    Tri-
    Blade    		50%644.9524.137.8218547188.663.4296
    (Ambient
    Temperature:
    30℃)
    55%754.3824.0910.0019916240.903.13
    60%877.1924.0512.5221413301.202.91
    65%994.8824.0115.1322665363.222.74
    70%1111.0523.9518.1423849434.532.56
    75%1204.0623.9020.9224883500.132.41
    80%1291.7923.8523.9525728571.352.26
    85%1384.5723.8026.9526591641.502.16
    90%1476.6923.7530.1127371715.092.07
    95%1560.6923.6933.6628125797.361.96
    100%1856.7223.5343.01307821011.811.84
    T5150
    Tri-
    Blade    		50%661.5224.137.7818696187.863.5296
    (Ambient
    Temperature:
    30℃)
    55%773.8624.1010.0019843241.033.21
    60%894.7124.0512.5421576301.642.97
    65%994.4024.0114.9622838359.082.77
    70%1101.2623.9617.7424091425.022.59
    75%1209.2123.9020.8525057498.322.43
    80%1297.1823.8523.8625894569.122.28
    85%1397.8923.8026.9726733641.922.18
    90%1489.8923.7530.2027498717.312.08
    95%1558.4123.7033.3528037790.321.97
    100%1902.3223.5343.03308691012.671.88
    Note: Motor temperature is motor surface temperature at 100% throttle running 1mins.
    (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
    F40PRO Ⅳ
    2400    		T5146
    Tri-
    Blade    		50%512.0816.118.3917057135.163.7988
    (Ambient
    Temperature:
    30℃)
    55%591.1816.0710.4018274167.163.54
    60%663.6816.0312.7619485204.613.24
    65%762.3015.9915.3920675246.023.10
    70%852.5715.9418.2221792290.292.94
    75%943.6215.8921.4222565340.232.77
    80%1030.6315.8324.7423702391.592.63
    85%1093.4315.7827.7724506438.172.50
    90%1158.0415.7330.6725239482.492.40
    95%1230.5015.6734.2426095536.522.29
    100%1424.3915.5541.3627649643.232.21
    T5147
    Tri-
    Blade    		50%510.0116.118.6516737139.323.6690
    (Ambient
    Temperature:
    30℃)
    55%594.7516.0710.9118006175.303.39
    60%674.6216.0213.2919125212.873.17
    65%755.9915.9815.9320240254.532.97
    70%849.5415.9318.9521395301.922.81
    75%932.2415.8821.9222342348.122.68
    80%1009.9715.8225.2723313399.662.53
    85%1089.7715.7628.7824096453.582.40
    90%1162.5415.7132.0924739504.072.31
    95%1246.3515.6435.6225467557.242.24
    100%1435.4215.5342.9525704666.802.15
    T5150
    Tri-
    Blade    		50%514.3016.108.5216635137.143.7590
    (Ambient
    Temperature:
    30℃)
    55%597.0616.0710.7517854172.733.46
    60%688.8816.0213.3019146213.053.23
    65%774.6215.9816.0120321255.883.03
    70%864.3515.9318.8821395300.762.87
    75%951.8215.8821.9621854348.592.73
    80%1031.8215.8225.3223353400.502.58
    85%1110.9015.7628.8024092453.862.45
    90%1182.4815.7032.0824754503.762.35
    95%1256.1615.6435.4825129555.122.26
    100%1448.3815.5342.9127272666.322.17
    Note: Motor temperature is motor surface temperature at 100% throttle running 1mins.
    (Date above based on benchtest are for reference only. Comparion with that of other motor types is not recommended.)
