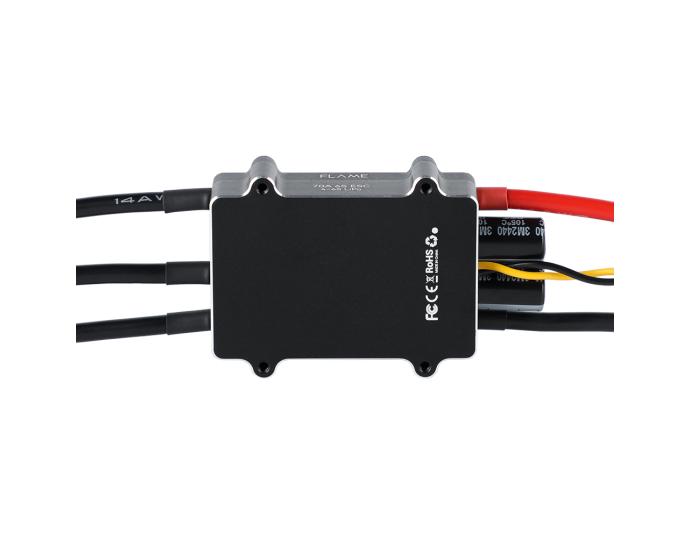

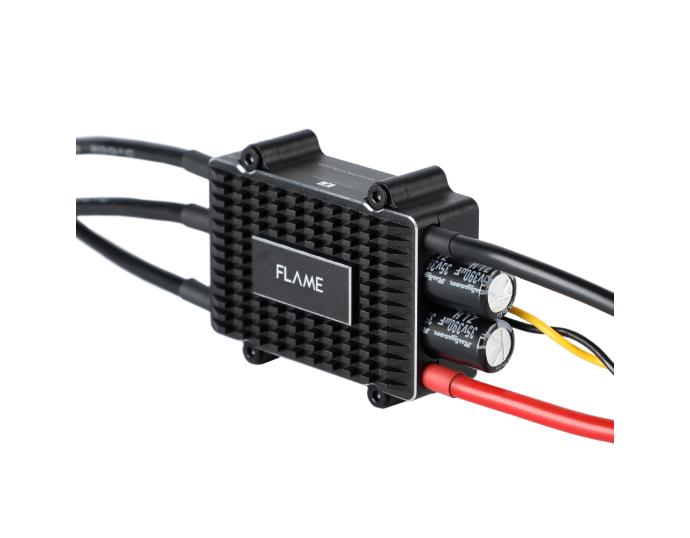

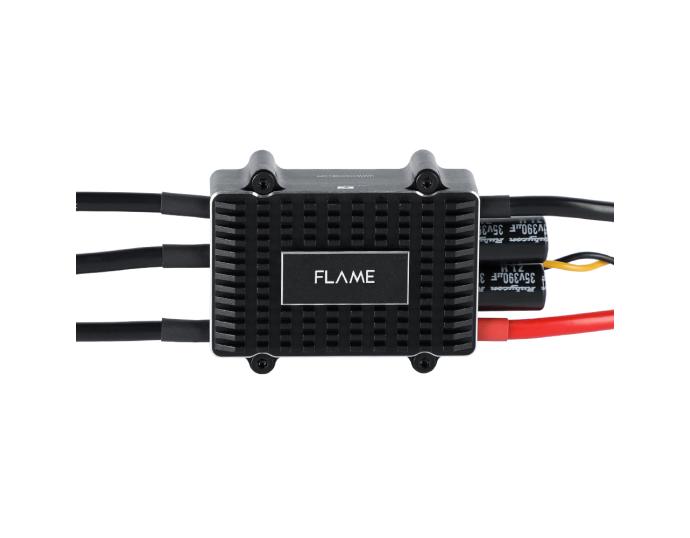

    FLAME 70A 6S Multi-Rotor Drone ESC 4-6S Controller

    69.99

    Available points: 3500 Points Points reward: 69 Points

    • LiPo：4-6S
    • Better compatibility with MN5208 MN5212 U8
    • layered structure
    Quantity：

    69.99

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR FLAME 70A 4-6S Multirotor UAVs ESC



    T-MOTOR FLAME 70A 6S ESC provides 70A continuous and 80A peak power (10s) for multi-rotors, supporting 4-6S LiPo. Compatible with U12 and other motors, it features efficient heat dissipation, a CNC aluminum case, and low power consumption. With a 500Hz refresh rate and Nano Tech PCB, it’s perfect for specialized UAVs in agriculture and search operations.


    FLAME 7A 4-6S ESC Hightlights:


    • Better compatibility with MN5208 MN5212 U8

    • Layered structure

    • Refresh rate500Hz, supporting 4-6s lipo

    • PCB with Nano Technology

    • CNC aluminum alloy enclosure

    • Efficient Heat Dissipation

    • Low Power Consumption

    • Widely used in the special domain as UAV for Agriculture, Searching etc.

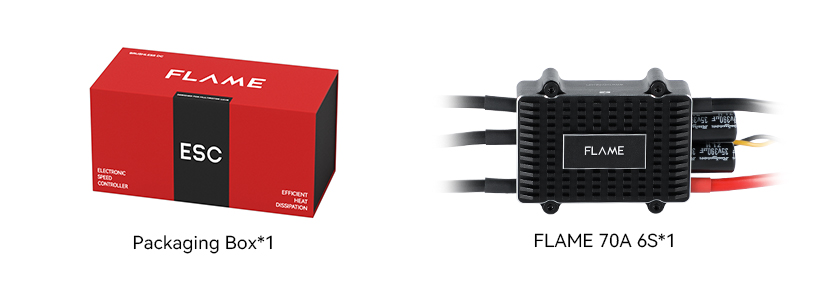

    Packing List Includes:


    1x T-Motor FLAME 70A 4-6S ESC

    1x Hardware Kit


    Matching Guide:


    P60 Pin KV340 Motor / U12 V2 KV60 Motor




    Technical Drawing
