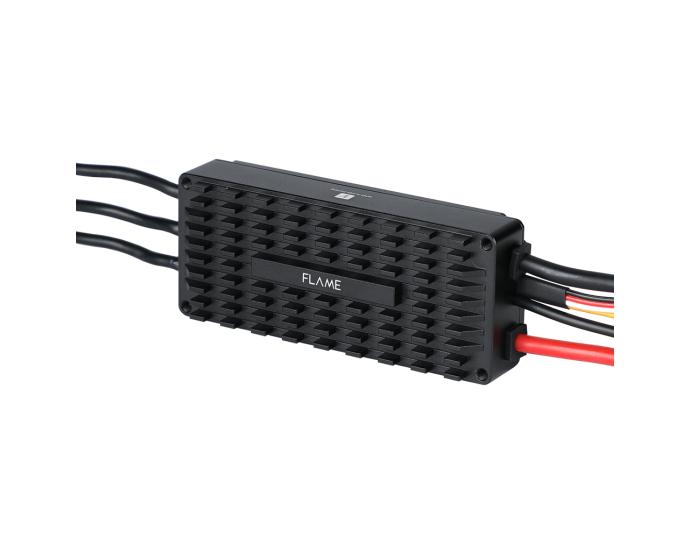

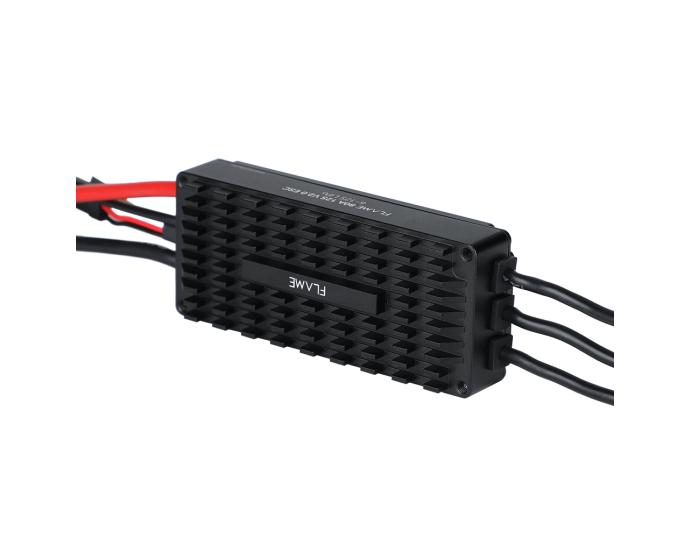

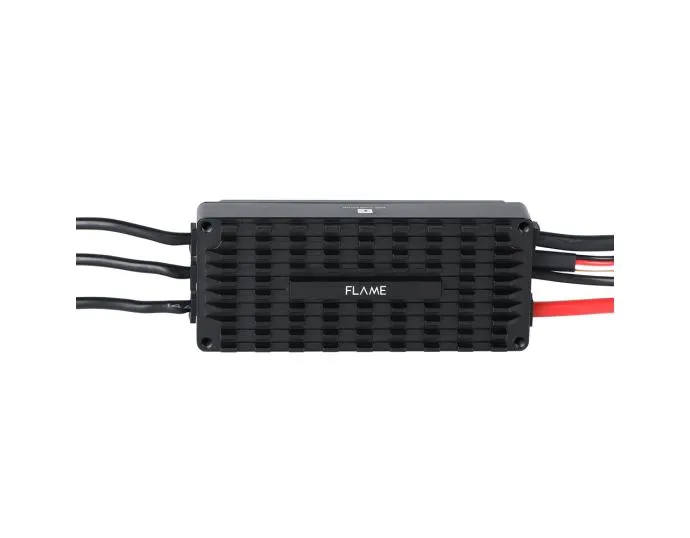

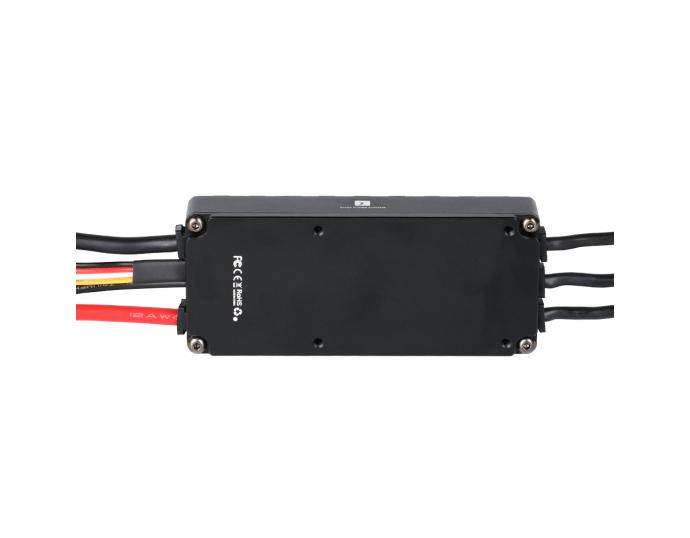

    FLAME 80A 12S V2.0 Multi-Rotor UAVs ESC

    119.99

    Available points: 5000 Points Points reward: 119 Points

    • Full sealed
    • excellent waterproof
    • More stable performance, safer in use
    Quantity：

    119.99

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

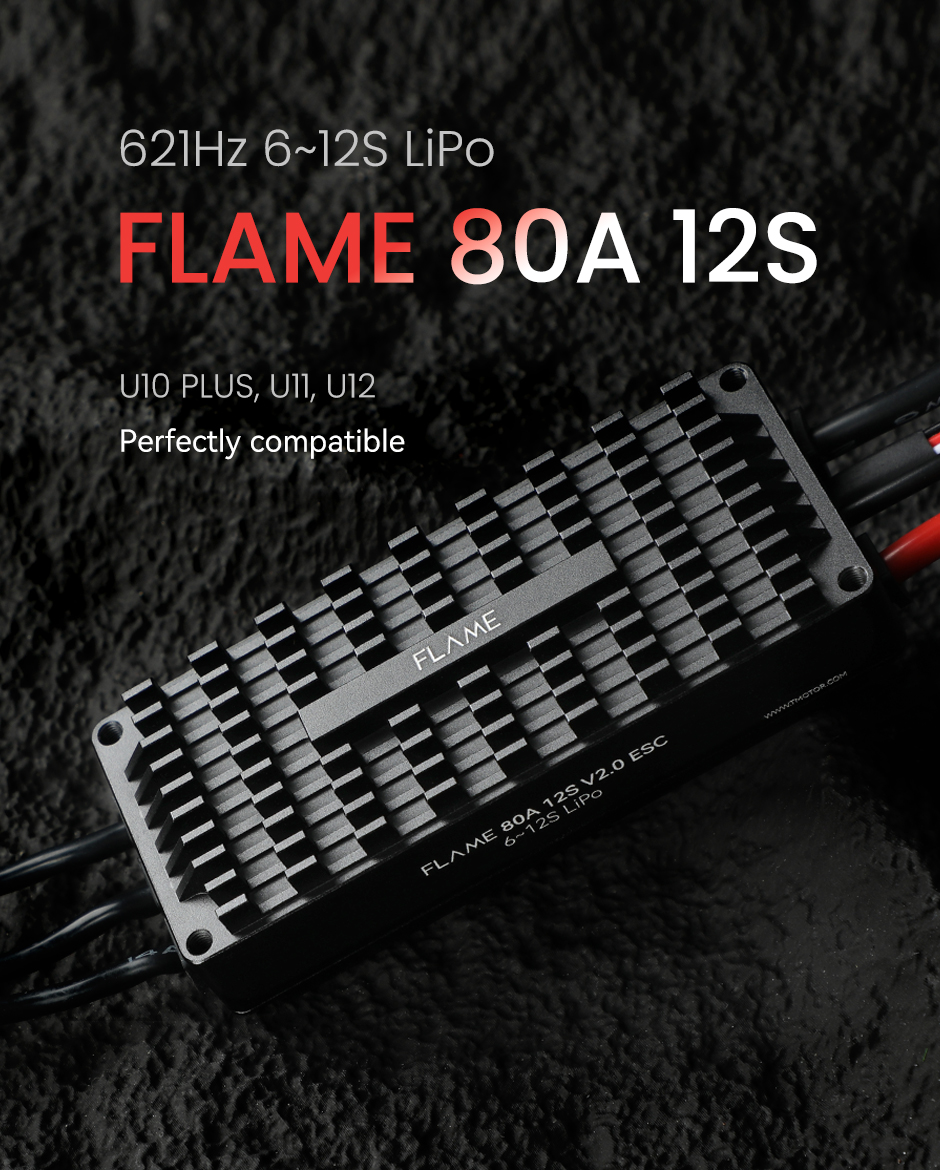

    About T-MOTOR FLAME 80A 12S V2.0 Multirotor UAVs ESC



    T-MOTOR FLAME 80A 12S ESC offers reliable power for multi-rotors with 80A continuous and 120A peak current (10s). Compatible with U12 motors, it supports 6-12S LiPo and features efficient heat dissipation with a durable machined aluminum case. With an IP57 waterproof and dustproof rating, it’s built for tough conditions. Protection features include start-up, overload, motor lock-up, and throttle signal loss safeguards, ensuring stable and safe performance.


    FLAME 80A 12S ESC Hightlights:


    • Layered structure

    • Refresh rate: 600Hz, supporting 6-12s lipo

    • PCB with Nano Technology

    • CNC aluminum alloy enclosure

    • High-performance microprocessor

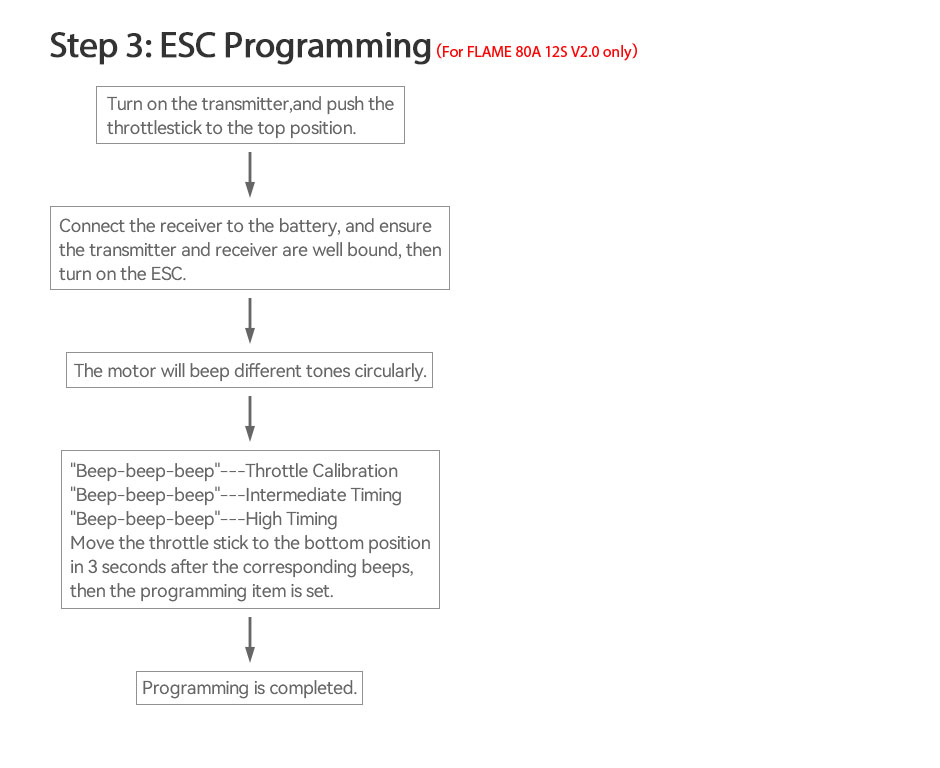

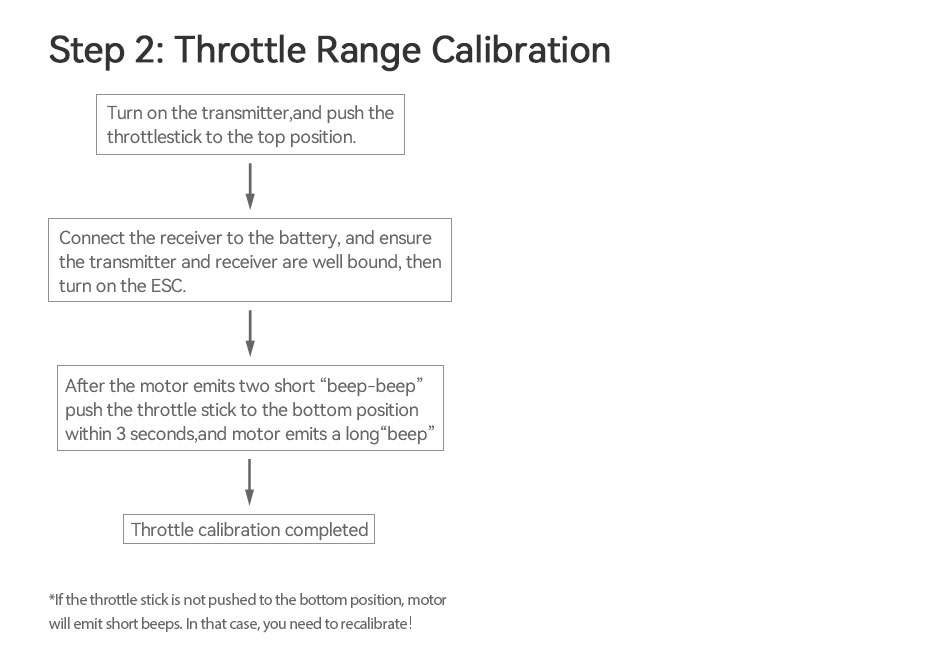

    • Throttle range configurable

    • Separate voltage regulator IC for the microprocessor

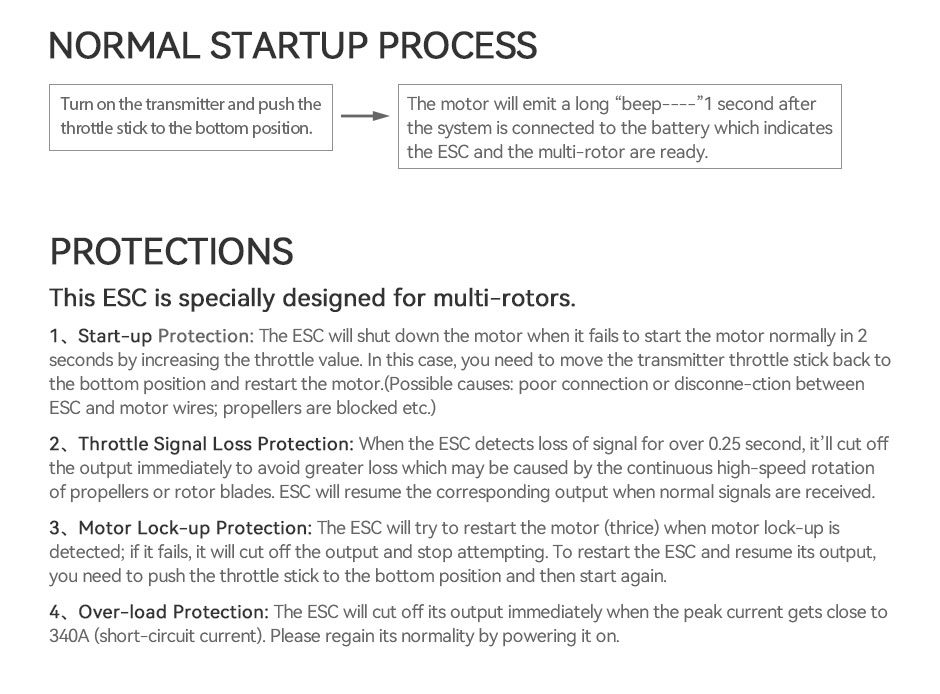

    • Multiple protection features

    • USB supported for firmware updates

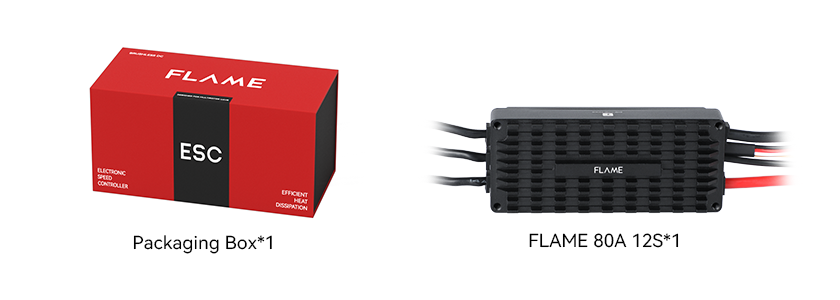

    Packing List Includes:


    1x T-Motor FLAME 80A 12S ESC

    1x Hardware Kit


    Matching Guide:


    U7 v2 KV490 Motor / MN701-S IP45 KV280 Motor






    Technical Drawing
