Optimized layup structure

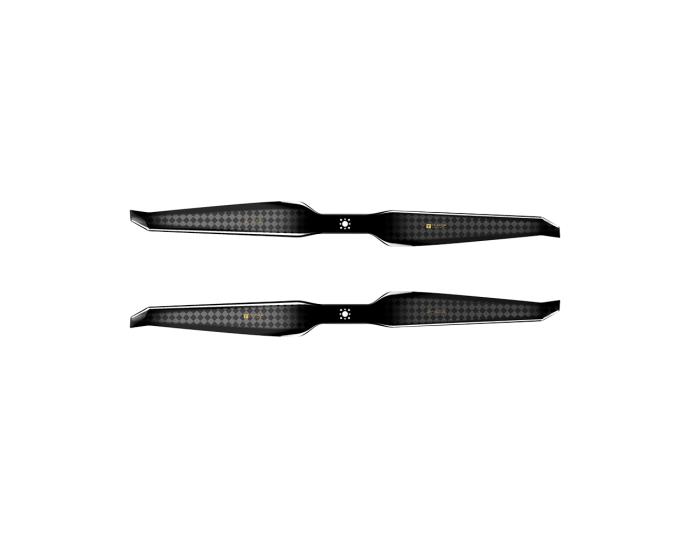

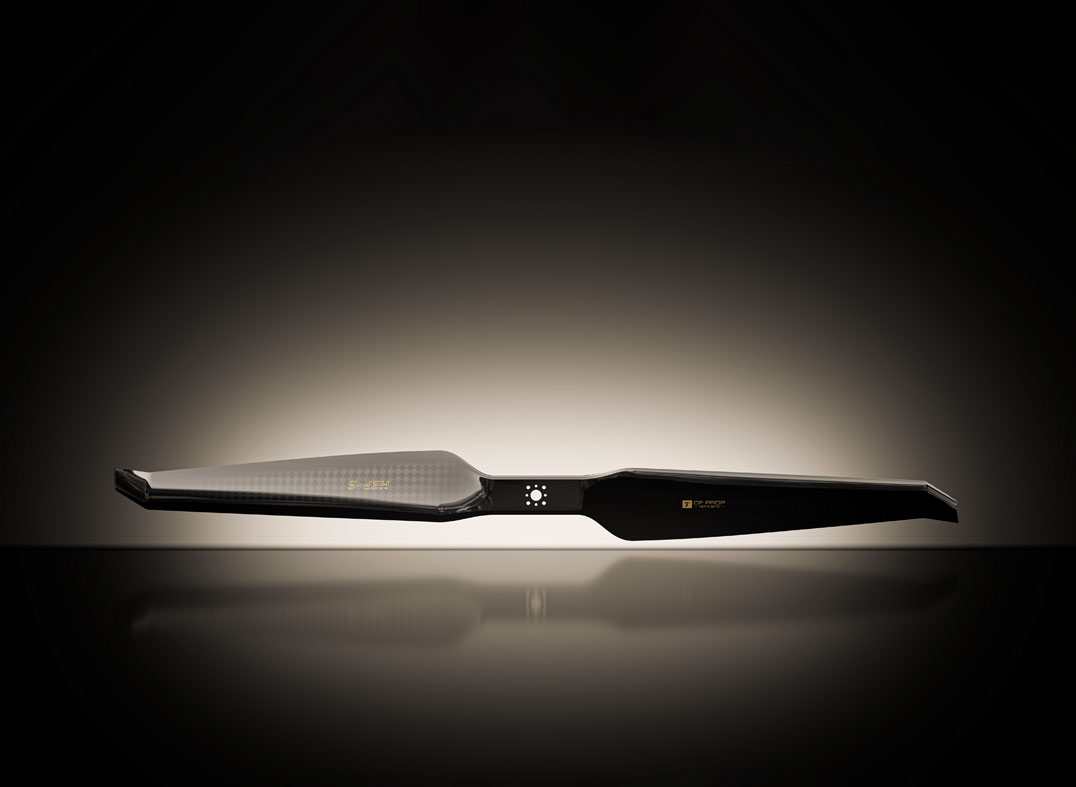

HEP-S Series 36*12 High-Performance
Heavy-Lift Carbon Fiber Propellers
High Load Capacity · Fast Response · Motor Synergistic Design
- 165gSingle Propeller Weight
- 2100~3050RPMRecommended RPM Range
- 8.7~18.3kgRecommended Thrust Range
Enhanced Structural Strength
T1100-grade carbon fiber reinforcement in high stress areas
25% increase in structural strength over the G Series
Delivering reliable performance for heavy-lift missions such as mountainous
hoisting, field transportation, and emergency response operations.
*Performance data is based on T-MOTOR laboratory testing. Actual results may vary slightly due to differences in operating conditions, environmental factors, and application scenarios.
Rapid Dynamic Response
Lightweight structure and optimized center of gravity design deliver swift power response and steady flight transition.
*Performance data is based on T-MOTOR laboratory testing. Actual results may vary slightly due to operating conditions and motor configuration.
Optimized center of gravity for balanced mass distribution
Extended Flight Endurance
Optimized airfoil, chord, and twist distribution enhance aerodynamic efficiency, delivering up to 3% longer flight endurance under the same power setup.
*Performance data is based on T-MOTOR laboratory testing. Actual results may vary slightly due to differences in operating conditions, environmental factors, and application scenarios.
Synergistic Powertrain Design
Co-developed with T-MOTOR power type motors for optimized thrust efficiency and precise power matching.
Model: HEP-S 36*12 · Motor Compatibility: MN1115 KV130 · Recommended Voltage: 14S · Recommended Takeoff Weight for Quadcopter: 48kg
Reliable Identification and Protection

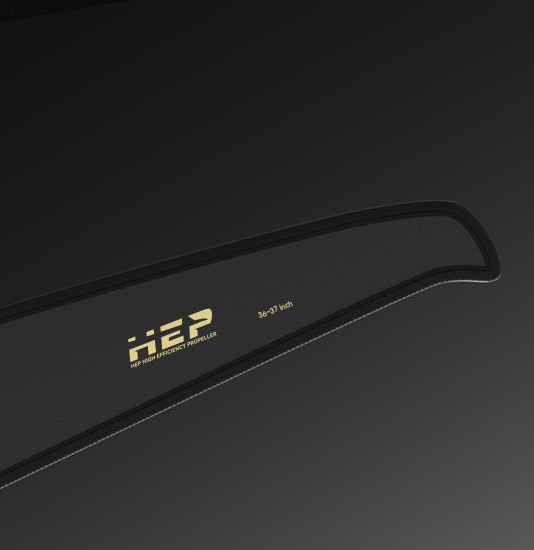

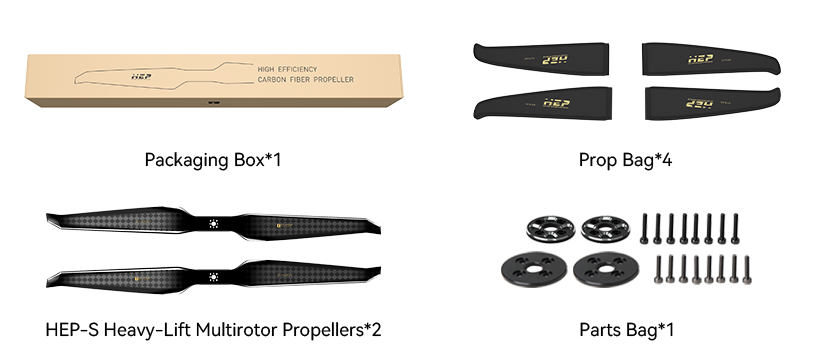

Integrated QR code molding and protective packaging improve lifetime traceability and transport safety.
