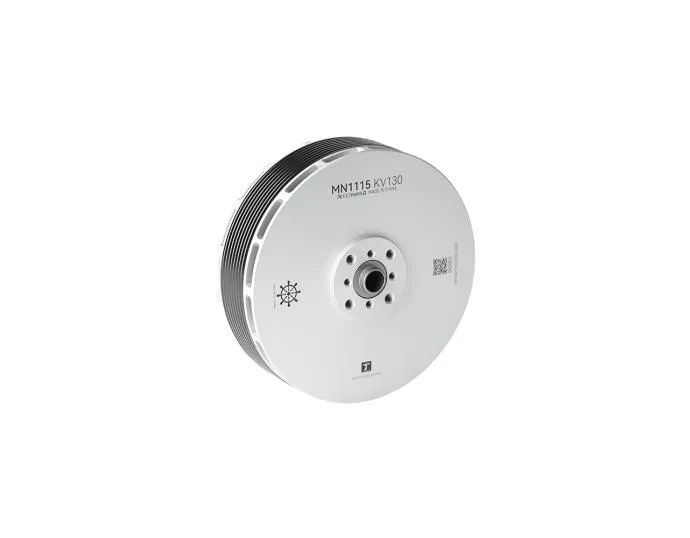

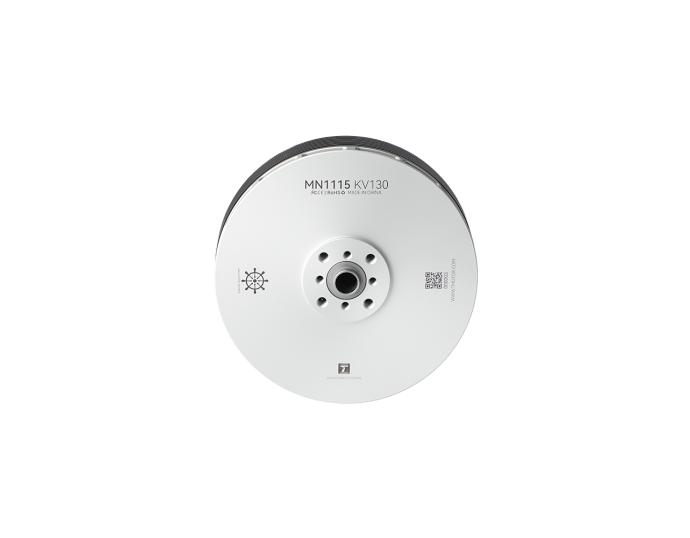

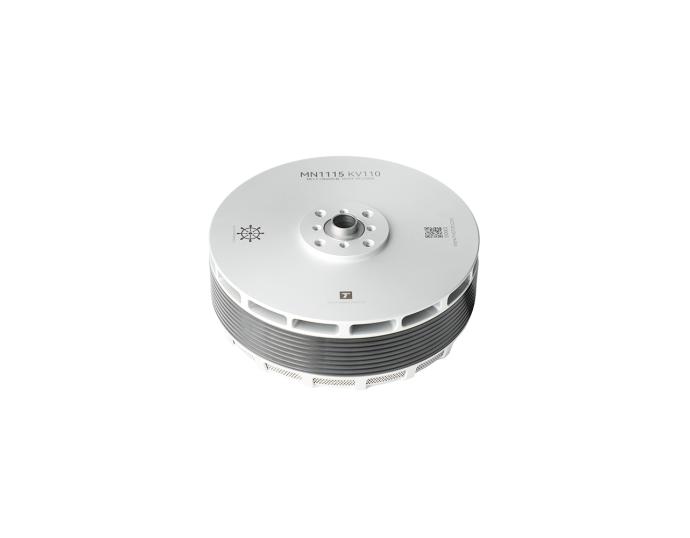

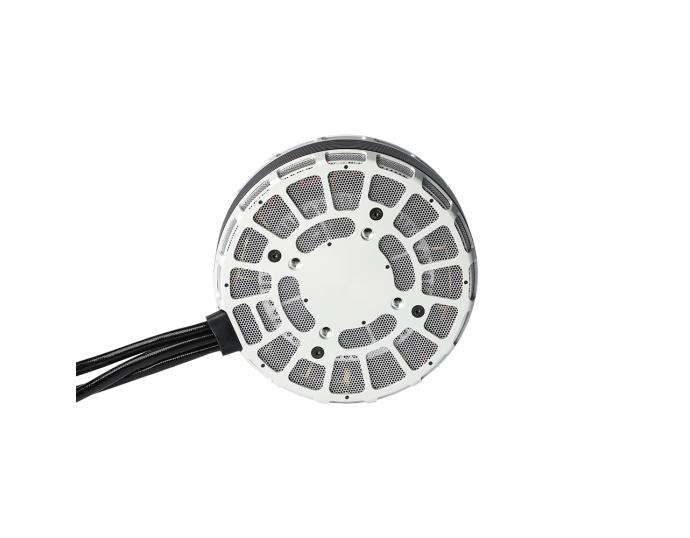

Name: MN1115 60kg MTOW Heavy-Payload Multirotor UAV Motor
Brand: T-Motor
SKU: T-MOTOR001529
Price: 379.90 USD
Availability: InStock

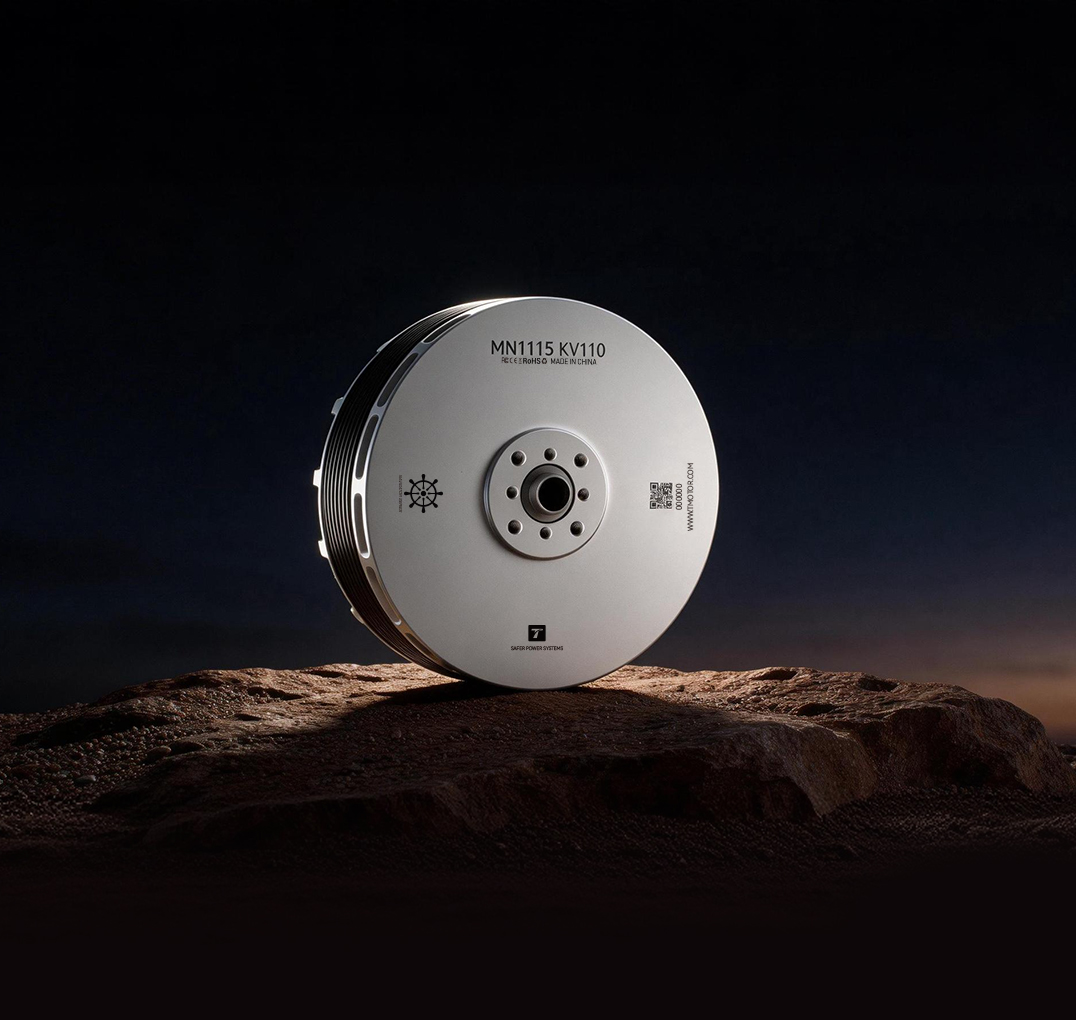

MN1115

Classic Silver-and-Black Motor Design
Optimized for Heavy-Lift UAVs

KV110/130 Voltage14/12s

Max Thrust/Arm34.3kg

Rated Thrust/Arm14~15kg

Applicable Configurations

Multirotor 4-Rotor

Multirotor 6-Rotor

Multirotor 8-Rotor

Multirotor Coaxial

Core Applications

Heavy-Lift Logistics
& Delivery

Fire Rescue
& Emergency Supply

Agri/Forestry
Spraying

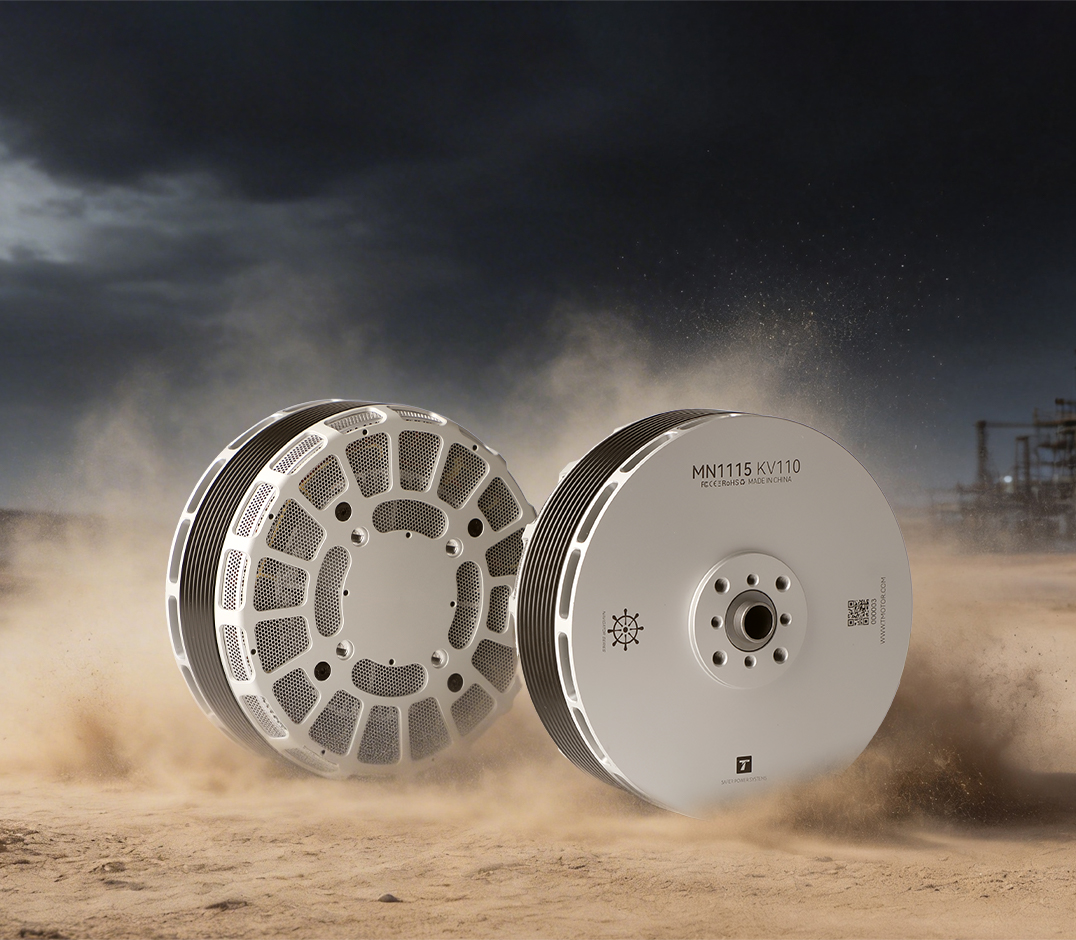

High Environmental Adaptability and Protection Rating

IP45 for harsh environments

Ultra-Long Service Life and High Reliability

≥ 2000 hoursMTBF

-30°C~+55°CStable Operating Temperature

Dual Dust-Mesh Structure for Rotor and Stator

IP45 protection standard, balancing lightweight design with protective performance

Effectively resists water spray or heavy rain, ensuring stable motor operation in various harsh weather conditions.

No dust accumulation inside after high-dust testing; insulation performance remains intact and the motor operates normally.

Integrated High-Efficiency Cooling System

Built-in one-piece die-cast cooling fin structure doubles the heat dissipation area; compared with traditional split cooling structures, it enables faster heat transfer and higher cooling efficiency, reducing winding temperature by 5~8°C

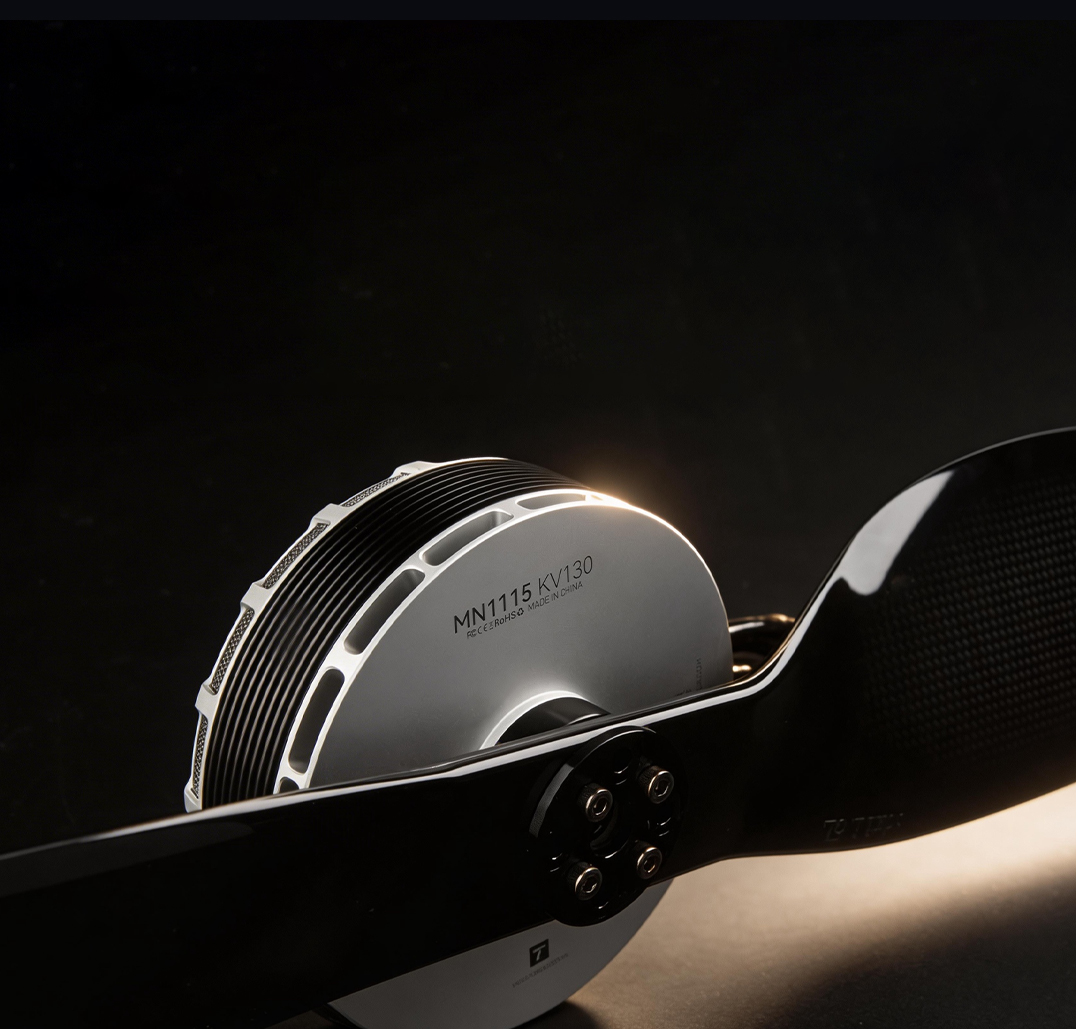

MN1115 Recommended Setup

Motor: MN1115

KV: 110/130

ESC: M200A 14S

Propeller: G36

Customization Options

Tailored solutions based on your application and performance requirements Flexible customization to meet specific needs and create greater value

Custom Coating

Custom Logo

Temperature Sensor

Custom KV

Custom Hole Pattern

Custom Cable Length

More Tailored Solutions

MN1115

Classic Silver-and-Black Motor Design
Optimized for Heavy-Lift UAVs

KV110/130 Voltage14/12s

Max Thrust/Arm34.3kg

Rated Thrust/Arm14~15kg

Applicable Configurations

Multirotor 4-Rotor

Multirotor 6-Rotor

Multirotor 8-Rotor

Multirotor Coaxial

Core Applications

Heavy-Lift Logistics
& Delivery

Fire Rescue
& Emergency Supply

Agri/Forestry
Spraying

High Environmental Adaptability and Protection Rating

IP45 for harsh environments

Ultra-Long Service Life and High Reliability

≥ 2000 hoursMTBF

-30°C~+55°CStable Operating Temperature

Dual Dust-Mesh Structure for Rotor and Stator

IP45 protection standard, balancing lightweight design with protective performance

Effectively resists water spray or heavy rain, ensuring stable motor operation in various harsh weather conditions.

No dust accumulation inside after high-dust testing; insulation performance remains intact and the motor operates normally.

Integrated High-Efficiency Cooling System

MN1115 Recommended Setup

Motor: MN1115

KV: 110/130

ESC: M200A 14S

Propeller: G36

Customization Options

Tailored solutions based on your application and performance requirements Flexible customization to meet specific needs and create greater value

Custom Coating

Custom Logo

Temperature Sensor

Custom KV

Custom Hole Pattern

Custom Cable Length

More Tailored Solutions

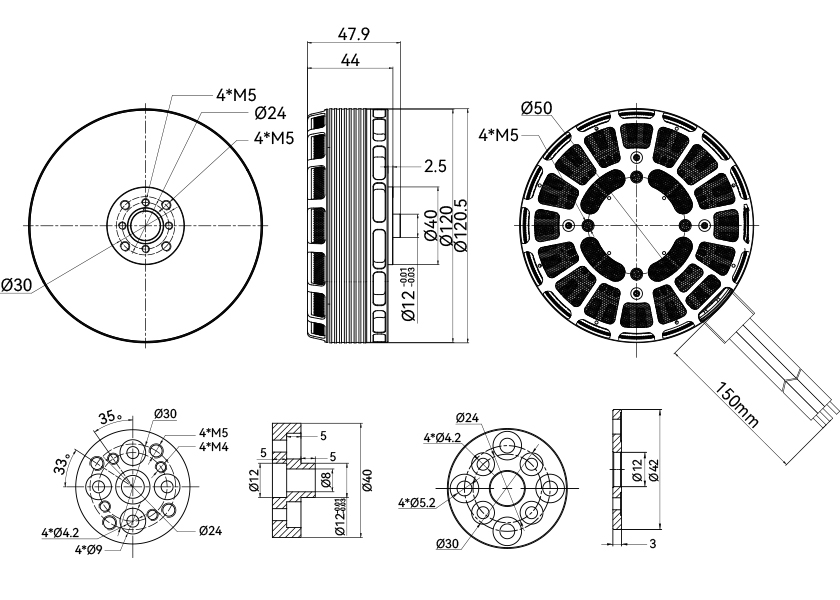

Model No.	MN1115	Motor Size	Φ120.5*47.9mm
Stator Technology	Imported Silicon Steel Sheet; Anti-Rust treatment; 150℃high Temperature-Resisting Coatings	Copper Wire	220℃ High Temperature Resistance
Magnet Level	180℃ High Temperature Resistance	Coil Insulation Test	1000V Withstand Voltage Test
IP	IP45	Configuration	36N40P
Rotor Dynamic Balance Standard	≤30mg	Bearing	Imported 6902ZZ
Output Shaft Diameter	12mm	Wire Specification/ Length	Enameled Wire*150mm

Technical Parameters
KV Value	110	Idle Current (20V)	3.5A
Max Power (180s)	2800W	Internal Resistance	12mΩ
Rated Voltage (Lipo)	14S	Peak Current	152A
Max Thrust	34.3kg	Motor Weight (Incl. Cable)	1040g
Package Weight	1500g

KV Value	130	Idle Current (20V)	2.7A
Max Power (180s)	2816W	Internal Resistance	16mΩ
Rated Voltage (Lipo)	12S	Peak Current	180A
Max Thrust	33.3kg	Motor Weight (Incl. Cable)	1055g
Package Weight	1500g

Recommended Combinations
Rotor Motor	MN1115 KV110	Rotor ESC	M200A14S
Rotor Blade	G36	Battery Voltage	14S
Rotor Motor	MN1115 KV130	Rotor ESC	M200A14S
Rotor Blade	G36	Battery Voltage	12S

Type	Propeller	Voltage (V)	Throttle	Current (A)	RPM	Thrust (gf)	Power (W)	Efficiency (g/W)	Torque (N·m)	Operating Temperature (℃)
MN1115 KV110	G36	53.97	40%	13.74	2019	6548	741	8.83	2.84	82℃ (Ambient Temperature: 25)
		54.04	42%	15.80	2121	7338	854	8.60	3.15
		54.01	44%	18.11	2221	8166	978	8.35	3.47
		54.00	46%	20.45	2316	8992	1104	8.14	3.80
		54.01	48%	23.25	2421	9931	1256	7.91	4.17
		54.02	50%	26.32	2518	10861	1422	7.64	4.53
		53.99	52%	29.48	2615	11811	1592	7.42	4.91
		53.97	54%	32.92	2710	12807	1777	7.21	5.31
		54.03	56%	36.55	2799	13802	1974	6.99	5.70
		53.99	58%	40.61	2896	14892	2192	6.79	6.14
		54.03	60%	44.71	2988	15900	2416	6.58	6.55
		54.00	62%	49.03	3078	16965	2648	6.41	6.98
		54.01	64%	54.09	3164	18079	2922	6.19	7.43
		54.03	66%	58.60	3245	19129	3166	6.04	7.86
		54.01	68%	63.99	3333	20261	3456	5.86	8.34
		54.03	70%	69.36	3414	21357	3747	5.70	8.79
		54.04	80%	99.39	3778	26896	5371	5.01	11.11
		54.10	90%	127.92	4035	31145	6920	4.50	12.94
		54.08	100%	151.89	4183	34369	8214	4.18	14.32
Type	Propeller	Voltage (V)	Throttle	Current (A)	RPM	Thrust (gf)	Power (W)	Efficiency (g/W)	Torque (N·m)	Operating Temperature (℃)
MN1115 KV130	G36	45.97	40%	16.68	2041	7010	767	9.14	2.89	90℃ (Ambient Temperature: 25)
		45.97	42%	19.26	2144	7805	885	8.82	3.20
		45.96	44%	21.97	2244	8603	1010	8.52	3.52
		45.99	46%	24.80	2338	9424	1141	8.26	3.84
		45.98	48%	28.23	2441	10364	1298	7.98	4.21
		46.01	50%	31.80	2538	11281	1463	7.71	4.57
		45.98	52%	35.64	2633	12243	1639	7.47	4.95
		45.99	54%	39.83	2729	13248	1832	7.23	5.34
		46.00	56%	43.95	2816	14216	2022	7.03	5.72
		46.01	58%	48.97	2911	15314	2253	6.80	6.15
		46.01	60%	54.12	3001	16359	2490	6.57	6.58
		46.00	62%	59.31	3087	17394	2728	6.38	7.00
		46.02	64%	65.08	3172	18467	2995	6.17	7.43
		46.03	66%	70.68	3251	19475	3253	5.99	7.85
		46.05	68%	77.22	3338	20585	3556	5.79	8.31
		46.04	70%	83.53	3415	21615	3846	5.62	8.74
		46.10	80%	119.33	3760	26816	5501	4.88	10.93
		46.08	90%	152.58	4001	30703	7031	4.37	12.58
		46.10	100%	179.88	4158	33340	8292	4.02	13.75
Notes: Motor temperature is the motor surface temperature aftering running on 80% for 10 min. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
