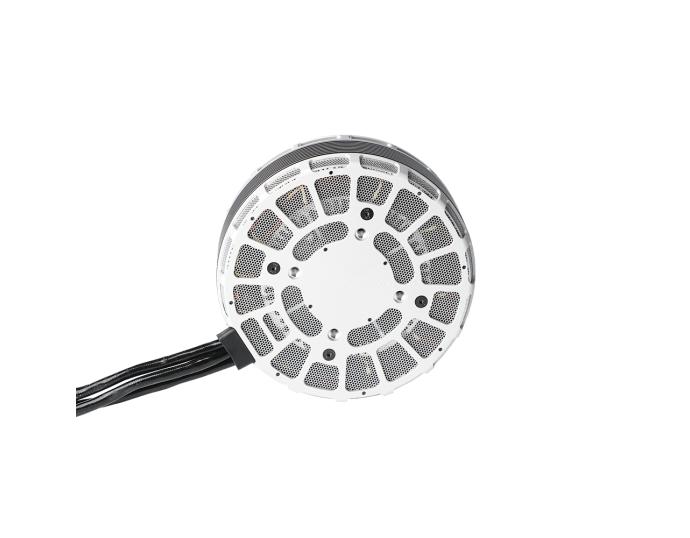

MN1118

Classic Silver-and-Black Motor Design
Optimized for Heavy-Lift UAVs

KV90/108 Voltage14/12s

Max Thrust/Arm38.0kg

Rated Thrust/Arm16~18kg

Applicable Configurations

Multirotor 4-Rotor

Multirotor 6-Rotor

Multirotor 8-Rotor

Multirotor Coaxial

Core Applications

Heavy-Lift Logistics
& Delivery

Fire Rescue
& Emergency Supply

Agri/Forestry
Spraying

High Environmental Adaptability and Protection Rating

IP45 for harsh environments

Ultra-Long Service Life and High Reliability

≥ 2000 hoursMTBF

-30°C~+55°CStable Operating Temperature

Dual Dust-Mesh Structure for Rotor and Stator

IP45 protection standard, balancing lightweight design with protective performance

Effectively resists water spray or heavy rain, ensuring stable motor operation in various harsh weather conditions.

No dust accumulation inside after high-dust testing; insulation performance remains intact and the motor operates normally.

Integrated High-Efficiency Cooling System

Built-in one-piece die-cast cooling fin structure doubles the heat dissipation area;compared with traditional split cooling structures, it enables faster heat transfer and higher cooling efficiency, reducing winding temperature by 5~8°C

MN1118 Recommended Setup

Motor: MN1118

KV: 90/108

ESC: M200A 14S

Propeller: VZ40

Customization Options

Tailored solutions based on your application and performance requirements Flexible customization to meet specific needs and create greater value

Custom Coating

Custom Logo

Temperature Sensor

Custom KV

Custom Hole Pattern

Custom Cable Length

More Tailored Solutions

MN1118

Classic Silver-and-Black Motor Design
Optimized for Heavy-Lift UAVs

KV90/108 Voltage14/12s

Max Thrust/Arm38.0kg

Rated Thrust/Arm16~18kg

Applicable Configurations

Multirotor 4-Rotor

Multirotor 6-Rotor

Multirotor 8-Rotor

Multirotor Coaxial

Core Applications

Heavy-Lift Logistics
& Delivery

Fire Rescue
& Emergency Supply

Agri/Forestry
Spraying

High Environmental Adaptability and Protection Rating

IP45 for harsh environments

Ultra-Long Service Life and High Reliability

≥ 2000 hoursMTBF

-30°C~+55°CStable Operating Temperature

Dual Dust-Mesh Structure for Rotor and Stator

IP45 protection standard, balancing lightweight design with protective performance

Effectively resists water spray or heavy rain, ensuring stable motor operation in various harsh weather conditions.

No dust accumulation inside after high-dust testing; insulation performance remains intact and the motor operates normally.

Integrated High-Efficiency Cooling System

MN1118 Recommended Setup

Motor: MN1118

KV: 90/108

ESC: M200A 14S

Propeller: VZ40

Customization Options

Tailored solutions based on your application and performance requirements Flexible customization to meet specific needs and create greater value

Custom Coating

Custom Logo

Temperature Sensor

Custom KV

Custom Hole Pattern

Custom Cable Length

More Tailored Solutions

Model No.	MN1118	Motor Size	Φ120.5*50.9mm
Stator Technology	Imported Silicon Steel Sheet; Anti-Rust treatment; 150℃high Temperature-Resisting Coatings	Copper Wire	220℃ High Temperature Resistance
Magnet Level	180℃ High Temperature Resistance	Coil Insulation Test	100VWithstand Voltage Test
IP	IP45	Configuration	36N40P
Rotor Dynamic Balance Standard	≤30mg	Bearing	Imported 6902ZZ
Output Shaft Diameter	12mm	Wire Specification/ Length	Enameled Wire*150mm
Technical Parameters

KV Value	90	Idle Current (20V)	2.8A
Max Power(180s)	2281W	Internal Resistance	18mΩ
Rated Voltage (Lipo)	14S	Peak Current	163A
Max Thrust	39.2kg	Motor Weight (Incl. Cable)	1170g
Package Weight	1600g

KV Value	108	Idle Current (20V)	3.3A
Max Power (180s)	2230W	Internal Resistance	13mΩ
Rated Voltage (Lipo)	12S	Peak Current	192A
Max Thrust	38.0kg	Motor Weight (Incl. Cable)	1186g
Package Weight	1620g

Recommended Combinations
Rotor Motor	MN1118 KV90	Rotor ESC	M200A14S
Rotor Blade	VZ40	Battery Voltage	14S
Rotor Motor	MN1118 KV108	Rotor ESC	M200A14S
Rotor Blade	VZ40	Battery Voltage	12S

Type	Propeller	Voltage (V)	Throttle	Current (A)	RPM	Thrust (gf)	Power (W)	Efficiency (gf/W)	Torque (N·m)	Operating Temperature (℃)
MN1118 KV90	VZ40	53.96	40%	15.22	1622	8690	821	10.58	4.02	110℃ (Ambient Temperature: 25)
		53.97	42%	17.58	1702	9622	949	10.14	4.45
		53.98	44%	20.10	1781	10549	1085	9.72	4.89
		53.96	46%	22.73	1856	11494	1227	9.37	5.32
		53.94	48%	25.82	1938	12540	1393	9.00	5.80
		53.95	50%	29.03	2014	13591	1566	8.68	6.29
		53.96	52%	32.59	2089	14648	1759	8.33	6.78
		53.95	54%	36.39	2162	15704	1963	8.00	7.28
		53.94	56%	40.02	2230	16694	2159	7.73	7.74
		53.96	58%	43.92	2304	17880	2370	7.55	8.29
		53.97	60%	48.43	2377	18989	2613	7.27	8.80
		53.95	62%	53.27	2446	20194	2874	7.03	9.39
		53.94	64%	58.09	2514	21371	3133	6.82	9.92
		53.94	66%	62.88	2578	22443	3392	6.62	10.44
		53.96	68%	68.63	2645	23766	3703	6.42	11.04
		53.97	70%	74.23	2708	24961	4006	6.23	11.61
		53.99	80%	105.19	2995	30891	5679	5.44	14.38
		53.99	90%	134.79	3195	35619	7277	4.90	16.63
		53.98	100%	163.80	3341	39239	8841	4.44	18.41
MN1118 KV108	VZ40	45.90	40%	19.36	1662	9124	889	10.27	4.25	122℃ (Ambient Temperature: 25)
		45.91	42%	22.22	1743	10068	1020	9.87	4.69
		45.90	44%	25.42	1824	11046	1167	9.47	5.17
		45.93	46%	28.71	1901	12019	1318	9.12	5.61
		45.93	48%	32.61	1983	13094	1498	8.74	6.12
		45.95	50%	36.67	2060	14171	1685	8.41	6.62
		45.90	52%	41.01	2137	15238	1882	8.10	7.12
		45.95	54%	45.54	2211	16344	2093	7.81	7.65
		45.91	56%	50.46	2281	17442	2317	7.53	8.16
		45.93	58%	55.81	2356	18690	2563	7.29	8.74
		45.92	60%	61.39	2427	19842	2819	7.04	9.28
		45.96	62%	67.19	2496	21042	3088	6.81	9.85
		45.93	64%	73.44	2563	22213	3373	6.59	10.40
		45.95	66%	79.47	2625	23324	3652	6.39	10.92
		45.88	68%	86.32	2690	24521	3961	6.19	11.49
		45.90	70%	93.13	2752	25700	4274	6.01	12.06
		45.89	80%	130.13	3025	31182	5972	5.22	14.68
		45.90	90%	162.92	3200	35169	7478	4.70	16.57
		45.93	100%	192.47	3307	38091	8840	4.31	17.99
Notes: Motor temperature is the motor surface temperature aftering running on 80% for 10 min. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
