    MN2212 V2.0 Multirotor Fixed Wing UAV Motor KV780/KV920

    46.90

    Available points: 2000 Points Points reward: 46 Points

    • High Strength Construction
    • Super Balance
    KV：
    • KV780
    • KV920
    Quantity：

    46.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR MN4112 Multirotor Fixed Wing UAV Motor KV780/KV920

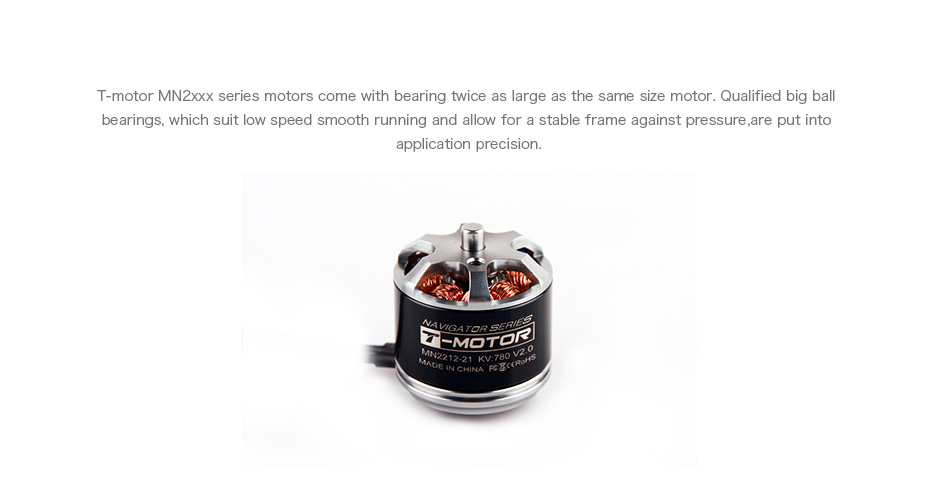

    T-Motor MN2212 V2.0 Navigator KV780 KV920 Brushless Motor is designed for aerial photography with multi-rotor UAVs, offering smooth, reliable, and durable performance.

    Ideal for 450mm long endurance multicopters, it features a self-cooling design for enhanced efficiency and longer flight times. With a max thrust of 1.8kg and MTBF of 1000 hours, this motor is built for high strength and balance. Recommended with T-Motor P15*5 props, it ensures optimal performance for multi-rotors, VTOL, and fixed-wing applications.


    Navigator MN4112 Hightlights:


    • Max. thrust ：1.8kg

    • MTBF：About1000hours

    • Features：Super Balance; High Strength Construction


    Application Areas：


    Multi-rotors, VTOL, and Fixed-wing UAVs.


    Packing List Includes:


    1x T-MOTOR MN4112 Motor KV780 KV92( kv which you choose)

    1x Hardware pack


    Matching Guide:

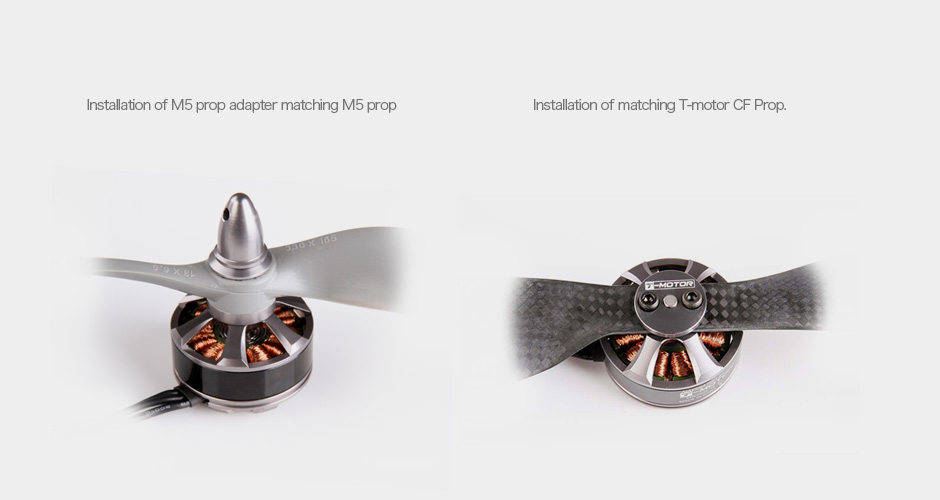

    T-MOTOR P15*5 Prop / Air 20A 3-4S ESC


    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com

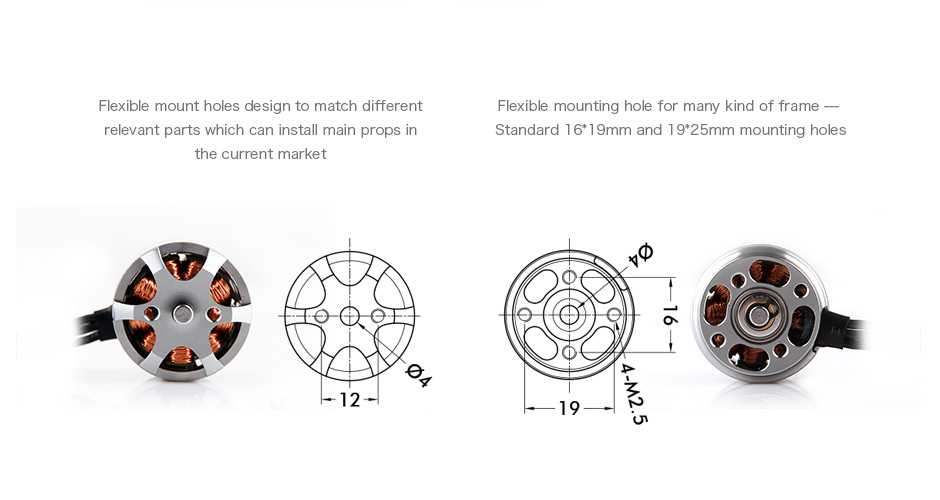

    Technical Drawing


    Specification
    Test ItemMN2212 KV780 V2.0Configuration9N12P
    Internal Resistance173mΩMotor DimensionsΦ27.5×26.5mm
    Shaft Diameter4mmStator Height13mm
    Stator Diameter22mmCable Length400mm
    AWG20#Weight Excluding Cables55g
    Weight Including Cables65gIdle Current@10v0.4A
    No.of Cells(Lipo)2-4SMax Continuous Current 180S13A
    Max Continuous Power 180S200W

    Test ItemMN2212 V2.0 KV920Configuration9N12P
    Internal Resistance142mΩMotor DimensionsΦ27.5×26.5mm
    Shaft Diameter4mmStator Height13mm
    Stator Diameter22mmCable Length400mm
    AWG20#Weight Excluding Cables54g
    Weight Including Cables65gIdle Current@10v0.5A
    No.of Cells(Lipo)2-4SMax Continuous Current 180S15A
    Max Continuous Power 180S220W

    Test Data
    Item No.Voltage
    (V)    		PropThrottleCurrent
    (A)    		Power
    (W)    		Thrust
    (G)    		RPMEfficiency
    (G/W)    		Operating
    Temperature
    (℃)

    MN2212 V2.0

    KV780

    		14.8

    T-MOTOR
    9545B

    		50%2.131.0829342609.43/
    65%459.247653008.04
    75%5.682.8860559607.30
    85%7.4109.5274260006.78
    100%10.3152.4491873506.02
    Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

    MN2212 V2.0

    KV920

    		11.1

    T-MOTOR
    9545B

    		50%1.617.7617644009.91/
    65%333.328955008.68
    75%4.347.7338564008.07
    85%5.864.3847570007.38
    100%8.189.9161778006.86
    Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
    Packing List

    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
