    MN3520 Multirotor Fixed Wing UAV Motor KV400

    109.90

    Available points: 4800 Points Points reward: 109 Points

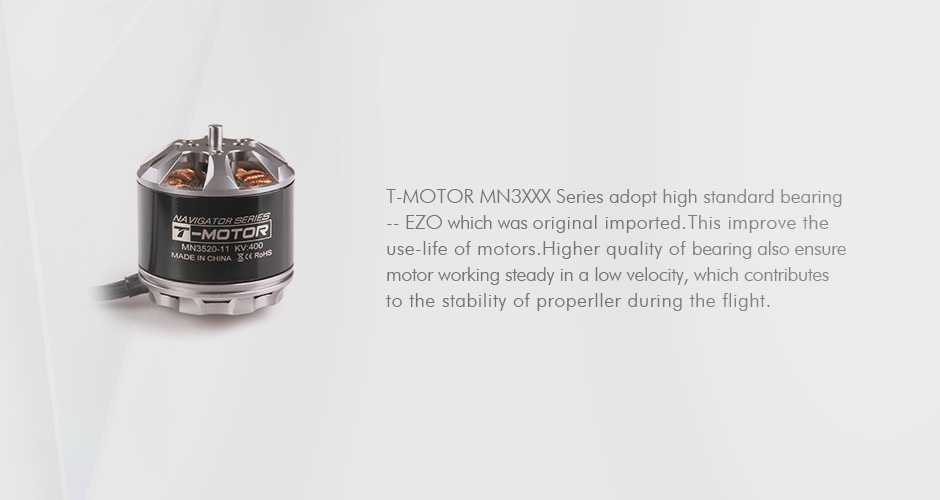

    • Qualified EZO bearing

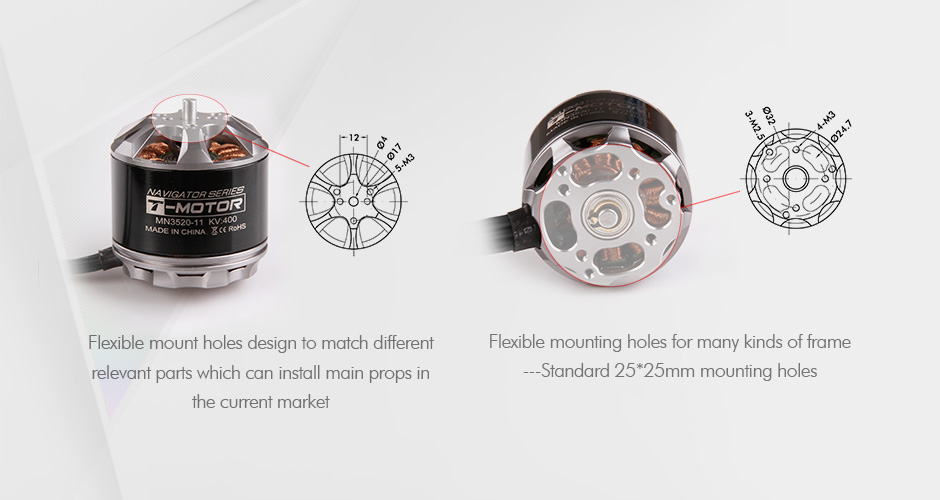

    • Flexible Mounting Holes
    Quantity：

    109.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR Navigator MN3520 Multirotor Fixed Wing UAV Motor KV400


    T-Motor MN3520 Navigator Series Motor offers exceptional performance for both fixed-wing and multicopter UAVs, making it ideal for aerial photography, multi-rotors, VTOL, and fixed-wing applications.

    Featuring a self-cooling design, it ensures optimal performance with a maximum thrust of 3.6kg and an MTBF of around 1000 hours.

    Recommended with T-Motor P17*5.8 props, its super balance and high-strength construction make it a reliable choice for demanding drone operations.


    Navigator MN3520 Hightlights:


    • Max thrust: 3.6kg
    • MTBF: About 1000hours

    • Features: Super Balance; High Strength Construction

    "Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.


    Application Areas：


    Cargo Drones, Tethered, Mapping and Inspection.


    Packing List Includes:


    1x T-MOTOR MN3520 Motor KV400 ( kv which you choose)

    1x Hardware pack


    Matching Guide:


    T-MOTOR P17.5.8 Prop / Air 40a 6s esc


    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com

    "Navigator" motors are for general uses like aerial photography.

    For demand of multi-rotors, VTOL and fixed wings.


    1. Max. thrust ：3.6kg

    2. Recommendation: T-MOTOR P17*5.8 Prop

    3. MTBF：About 1000hours

    4. Features：Super Balance; High Strength Construction


    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com

    Technical Drawing


    Specification
    Test ItemMN3520 KV400Report NO.MN.00018
    Internal Resistance82mΩConfiguration12N14P
    Shaft Diameter4mmMotor DimensionsΦ42.5×42mm
    Stator Diameter35mmStator Height20mm
    AWG16#Cable Length600mm
    Weight Including Cables222gWeight Excluding Cables194g
    No.of Cells(Lipo)4-8SIdle Current@10v1.2A
    Max Continuous Power 180S1140WMax Continuous Current 180S38A
    Test Data
    Item No.Voltage
    (V)    		PropThrottleCurrent
    (A)    		Power
    (W)    		Thrust
    (G)    		RPMEfficiency
    (G/W)    		Operating
    Temperature
    (℃)

    MN3520

    KV400

    		22.2

    T-MOTOR

    15*5CF

    		50%4.599.901010428010.1150
    65%8.8195.36154054007.88
    75%12.3273.06192060507.03
    85%16.6368.52238067006.46
    100%20.3450.66270071005.99

    T-MOTOR

    16*5.4CF

    		50%5.3117.66114041609.6955
    65%10.2226.44178052607.86
    75%14.4319.68220058506.88
    85%19.4430.68268065006.22
    100%23.2515.04300068005.82

    T-MOTOR

    17*5.8CF

    		50%6.5144.30134040009.2967
    65%12.5277.50212050007.64
    75%17.7392.94267056006.79
    85%23.3517.26320061006.19
    100%28.1623.82360064505.77
    Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
    Packing List

    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
