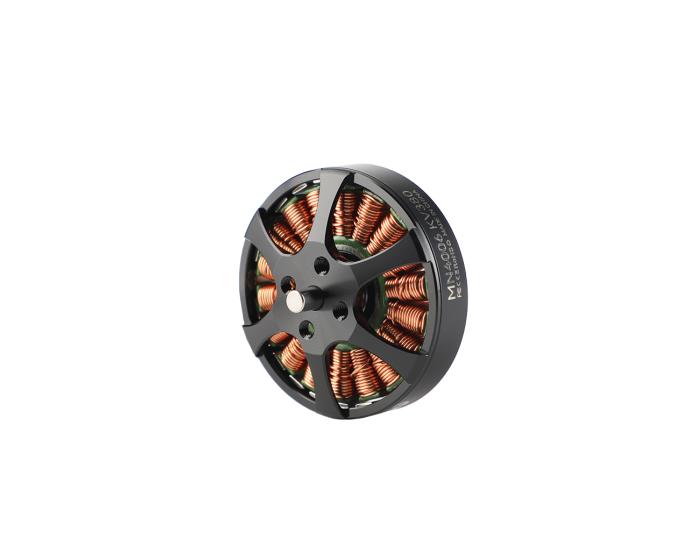

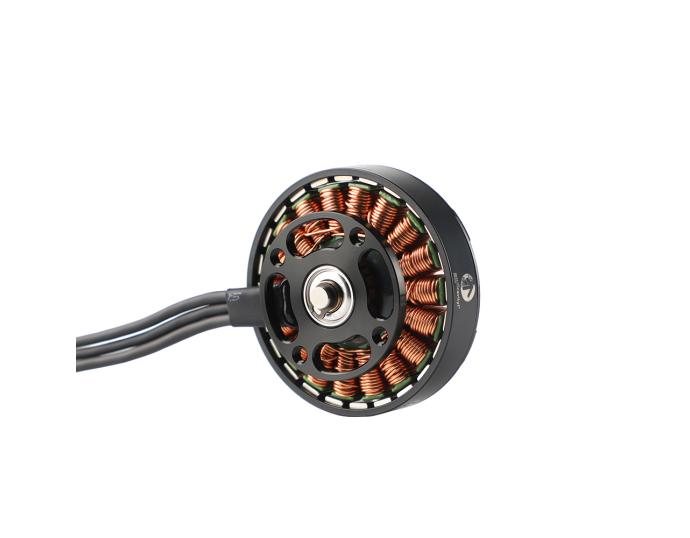

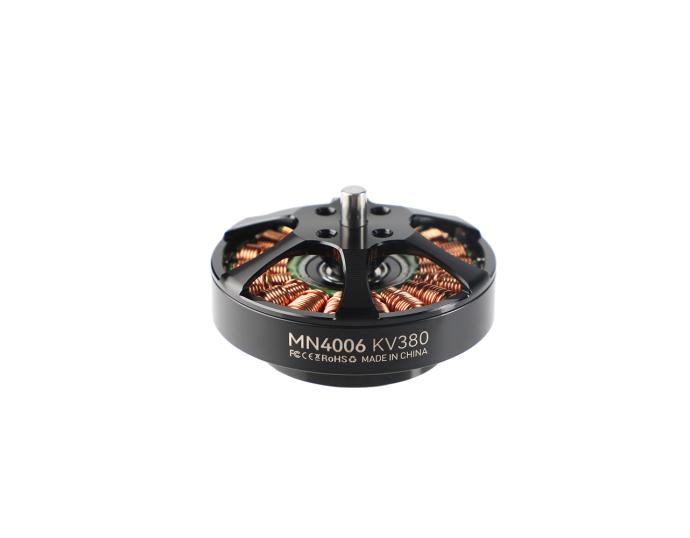

    MN4006 Antigravity Type 4-6S UAV Motor KV380 2PCS/SET

    149.90

    Available points: 7000 Points Points reward: 149 Points

    • Ultrathin Design Lightest Weight
    • Unique Ventilation and Cooling System
    KV：
    • KV380
    Quantity：

    149.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR MN4006 Multirotor UAV Motor KV380


    T-MOTOR MN4006 Antigravity KV380 is a revolutionary brushless motor designed for top-tier UAV performance. Weighing only 57g, it’s one of the lightest motors in its class, offering exceptional power without compromising on durability. Crafted with precision, this motor delivers unparalleled efficiency, making it the ideal choice for builders who demand both high performance and reliability.Up to 1.6kg thrust



    Antigravity MN4006 Hightlights:


    • Ultrathin design , lightest weight compare the same size motor in market

    • Single thick copper wire winding by hand

    • Unique ventilation and cooling design

    • Excellent assembling workmanship

    • High grade EZO bearing

    • 92% Max Efficiency (4-6A)

    • Up to 1.6kg thrust


    Application Areas：


    Multi-rotors, VTOL, UAV


    Packing List Includes:


    2x T-MOTOR MN4006 Motor KV380

    1x CW prop adapter

    1x CCWprop adapter


    Matching Guide:


    T-MOTOR T16*5.4 Prop / AIR 40A 2-6S MultiRotor UAV Drone ESC


    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com


    Technical Drawing


    Specification
    Test ItemKV380Weight (Incl. Cable)68g
    Motor DimensionsΦ44.35×21mmInternal Resistance194mΩ
    Lead50mmConfiguration18N24P
    Shaft Diameter40mmRated Voltage(Lipo)4-6S
    Idle Current(22V)0.3APeak Current(180s)16A
    Max. Power(180s)380W

    Test Data
    TypeVoltage
    (V)    		PropellerThrottleCurrent
    (A)    		Power
    (W)    		RPM

    Torque

    （N*m）

    		Thrust
    (g)    		Efficiency
    (g/W)

    Operating

    Temperature

    (℃)

    MN4006

    KV380

    		24

    T-MOTOR

    13*4.4”

    CF

    		50%2.004837190.1054411.3330
    55%2.506045280.1165610.93
    60%3.107448400.1275310.12
    65%3.708951550.148539.61
    75%5.1012254510.1710628.68
    85%6.8016363270.2112867.88
    100%9.7023365150.2716337.01

    T-MOTOR

    14*4.8”

    CF

    		50%2.405839610.1267511.7237
    55%3.207743290.1479810.39
    60%3.809146190.169089.96
    65%4.7011349250.1810339.16
    75%6.5015654850.2212868.24
    85%8.5020460040.2715767.73
    100%12.2029367310.3419756.75

    T-MOTOR

    15*5”

    CF

    		50%3.107437460.1580510.8246
    55%4.109840890.189599.75
    60%4.8011543580.2010939.49
    65%5.8013946340.2312368.88
    75%8.3019952150.2915617.84
    85%10.7025756270.3318237.10
    100%15.0036061770.4022286.19

    T-MOTOR

    16*5.4”

    CF

    		50%3.708934950.1992810.45HOT
    55%4.8011538170.2210969.51
    60%5.9014240790.2512588.88
    65%7.2017343260.2914278.26
    75%10.0024048030.3417407.25
    85%12.9031051190.3919706.36
    100%17.5042054450.4523095.50
    Note: The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
    (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
