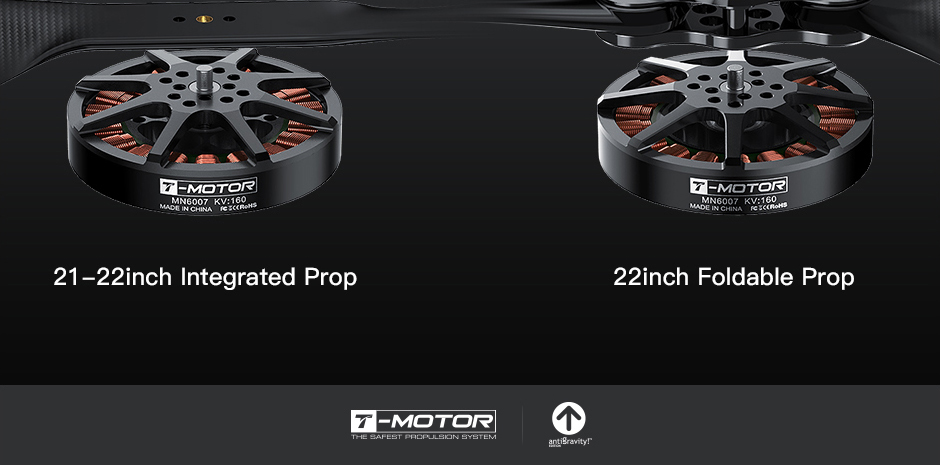

MN6007 Antigravity Type 6-12S UAV Motor KV320

119.99

Available points: 5000 Points Points reward: 119 Points

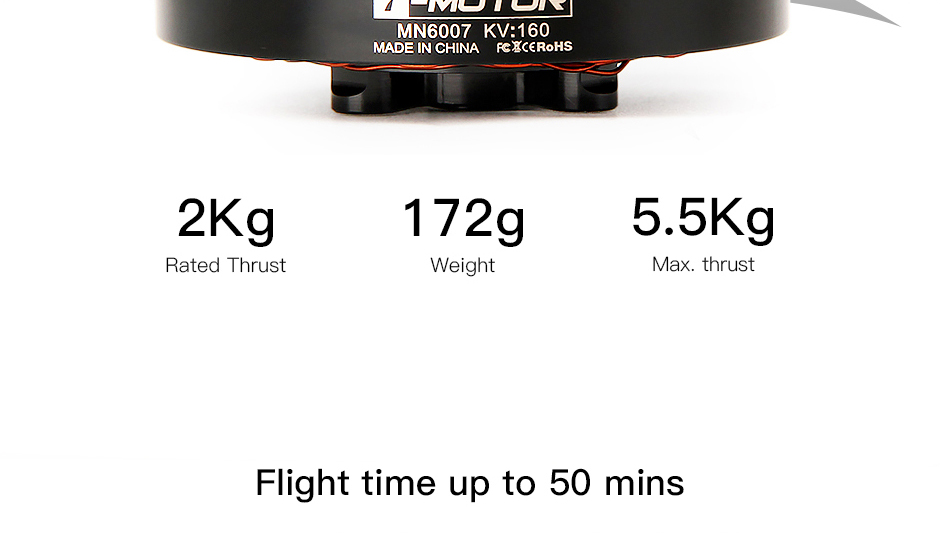

• Flight time up to 50 mins
• Max. thrust up to 5.5kg

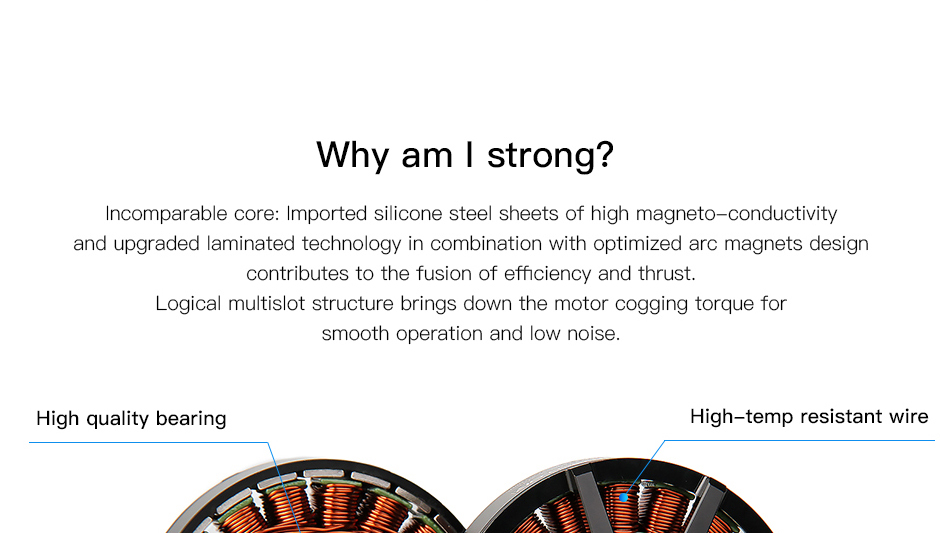

• Lower coging torque
• Ultra light,high efficiency

Parameter：

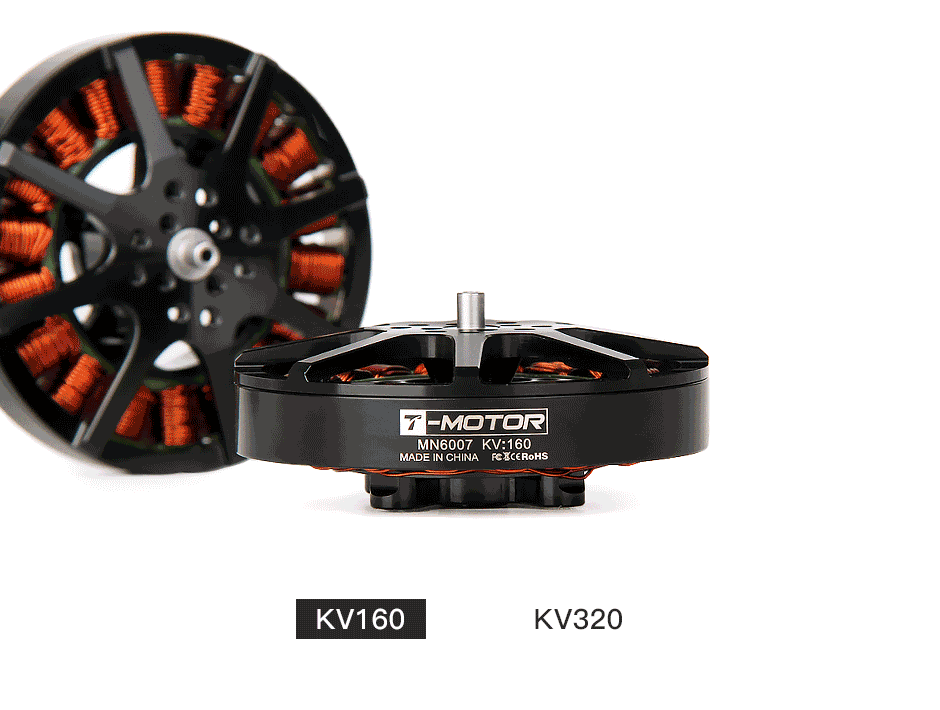

KV160
KV320

Quantity：

119.99

USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

Relevant Products

FLAME 60A 12S V2.0 Multi-Rotor Drone ESC 6-12S Controller

$99.99 Buy Now
P22*6.6 Prop-2PCS/PAIR

$140.9 Buy Now
FA22.2*7.2 Prop-2PCS/PAIR

$243.9 Buy Now
MF2211-2PCS/PAIR

$54.9 Buy Now

Detail information
Specifications

Hot Products

Technical Drawing

Specification

Test Item	KV160	Weight (Incl. Cable)	180g
Motor Dimensions	Φ67*30.1mm	Internal Resistance	227mΩ
Lead	Enameled Wire 60mm	Configuration	18N22P
Shaft Diameter	6mm	Rated Voltage(Lipo)	6-12S
Idle Current(22V)	0.5A	Peak Current(180s)	18A
Max. Power(180s)	864W

Test Item	KV320	Weight (Incl. Cable)	180g
Motor Dimensions	Φ67*30.1mm	Internal Resistance	50mΩ
Lead	Enameled Wire 60mm	Configuration	18N22P
Shaft Diameter	6mm	Rated Voltage(Lipo)	6S
Idle Current(22V)	1.4A	Peak Current(180s)	39A
Max. Power(180s)	936W

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
MN6007 KV160	T-MOTOR P21*6.3“ CF	40%	47.95	1287	0.29	2.17	2686	104	12.37	55 (Ambient Temperature: 22℃)
		42%	47.95	1359	0.30	2.37	2777	113	11.99
		44%	47.94	1444	0.32	2.58	2864	124	11.69
		46%	47.93	1539	0.34	2.80	2948	134	11.44
		48%	47.93	1634	0.36	3.03	3042	145	11.23
		50%	47.92	1719	0.38	3.30	3129	158	10.86
		52%	47.92	1842	0.40	3.58	3222	171	10.75
		54%	47.91	1959	0.43	3.89	3312	186	10.52
		56%	47.90	2064	0.45	4.19	3395	200	10.30
		58%	47.90	2166	0.47	4.49	3485	215	10.07
		60%	47.89	2285	0.50	4.85	3570	232	9.85
		62%	47.88	2412	0.52	5.17	3648	247	9.75
		64%	47.88	2519	0.55	5.54	3735	265	9.50
		66%	47.87	2649	0.58	5.93	3812	284	9.33
		68%	47.86	2759	0.60	6.32	3892	302	9.12
		70%	47.84	2958	0.64	6.98	4012	334	8.86
		80%	47.80	3530	0.77	9.10	4373	435	8.11
		90%	47.76	4063	0.88	11.38	4728	544	7.47
		100%	47.69	4843	1.06	14.96	5145	713	6.79
	T-MOTOR P22*6.6“ CF	40%	47.94	1497	0.36	2.58	2612	124	12.11	64 (Ambient Temperature: 22℃)
		42%	47.94	1602	0.38	2.83	2694	136	11.79
		44%	47.93	1704	0.40	3.11	2774	149	11.44
		46%	47.93	1806	0.42	3.32	2854	159	11.33
		48%	47.92	1909	0.45	3.62	2945	174	11.00
		50%	47.91	2041	0.48	3.98	3023	191	10.70
		52%	47.90	2139	0.51	4.30	3107	206	10.38
		54%	47.90	2272	0.54	4.67	3190	224	10.16
		56%	47.90	2410	0.57	4.99	3275	239	10.09
		58%	47.88	2533	0.59	5.40	3351	259	9.79
		60%	47.87	2643	0.62	5.75	3432	275	9.60
		62%	47.87	2767	0.65	6.17	3511	295	9.37
		64%	47.86	2910	0.68	6.63	3583	317	9.17
		66%	47.85	3009	0.71	7.01	3662	336	8.97
		68%	47.84	3128	0.74	7.49	3736	358	8.73
		70%	47.83	3273	0.77	7.96	3805	381	8.60
		80%	47.77	3971	0.93	10.72	4178	512	7.75
		90%	47.72	4574	1.07	13.50	4498	644	7.10
		100%	47.64	5384	1.26	17.65	4871	841	6.40
MN6007 KV320	T-MOTOR P21*6.3“ CF	40%	24.31	1342	0.30	4.76	2761	116	11.59	51 (Ambient Temperature: 22℃)
		42%	24.31	1433	0.32	5.18	2859	126	11.38
		44%	24.29	1554	0.34	5.73	2952	139	11.16
		46%	24.28	1657	0.37	6.27	3050	152	10.89
		48%	24.27	1748	0.39	6.78	3150	165	10.63
		50%	24.26	1845	0.41	7.39	3245	179	10.29
		52%	24.25	1961	0.43	8.04	3333	195	10.06
		54%	24.24	2073	0.46	8.64	3427	209	9.89
		56%	24.22	2179	0.48	9.37	3518	227	9.60
		58%	24.21	2307	0.51	10.10	3605	245	9.43
		60%	24.20	2412	0.53	10.87	3689	263	9.17
		62%	24.19	2536	0.56	11.54	3773	279	9.09
		64%	24.17	2657	0.59	12.38	3854	299	8.88
		66%	24.15	2803	0.62	13.29	3928	321	8.73
		68%	24.13	2952	0.65	14.45	4039	349	8.47
		70%	24.11	3065	0.67	15.19	4111	366	8.37
		80%	24.03	3638	0.80	19.85	4471	477	7.63
		90%	23.94	4263	0.94	25.23	4809	604	7.06
		100%	23.80	5009	1.10	32.77	5231	780	6.42
	T-MOTOR P22*6.6“ CF	40%	24.30	1573	0.37	5.65	2681	137	11.47	62 (Ambient Temperature: 22℃)
		42%	24.29	1677	0.39	6.16	2765	150	11.20
		44%	24.27	1795	0.42	6.81	2858	165	10.86
		46%	24.26	1895	0.44	7.42	2953	180	10.52
		48%	24.25	2048	0.48	8.12	3036	197	10.40
		50%	24.23	2156	0.51	8.83	3120	214	10.08
		52%	24.22	2264	0.54	9.61	3205	233	9.73
		54%	24.20	2409	0.57	10.48	3288	254	9.50
		56%	24.19	2543	0.60	11.17	3369	270	9.41
		58%	24.17	2666	0.63	12.04	3454	291	9.16
		60%	24.16	2788	0.66	12.96	3536	313	8.90
		62%	24.14	2927	0.69	13.85	3608	334	8.76
		64%	24.12	3061	0.72	14.81	3684	357	8.57
		66%	24.11	3194	0.75	15.67	3760	378	8.45
		68%	24.09	3300	0.78	16.66	3830	401	8.22
		70%	24.07	3421	0.80	17.57	3903	423	8.09
		80%	23.97	4112	0.96	23.37	4256	560	7.34
		90%	23.86	4694	1.11	29.44	4569	703	6.68
		100%	23.70	5547	1.30	38.31	4935	908	6.11
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
