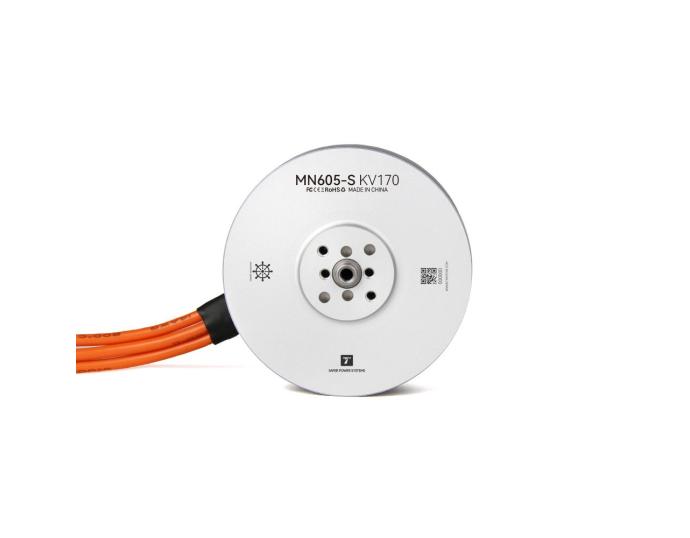

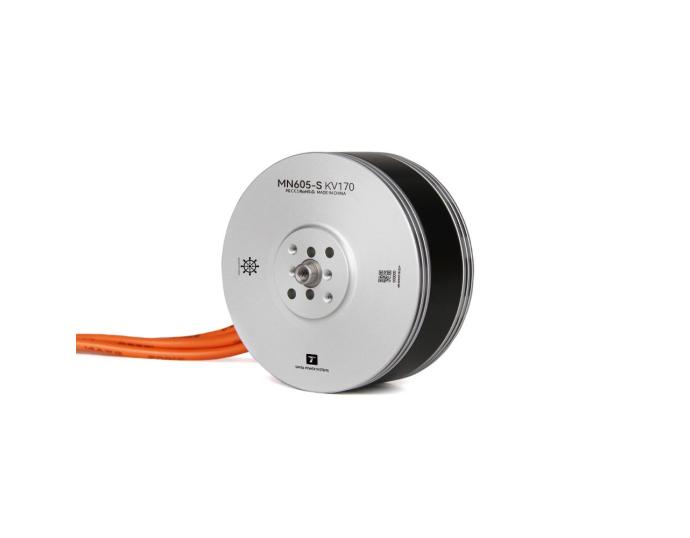

    MN605-S IP45 Multirotor Fixed Wing UAV Motor KV170 2PCS/SET

    279.98

    Available points: 14000 Points Points reward: 279 Points

    • Strong power ,long service life
    • Excellent cooling performance
    • Anti-high temperature/Anti-overload
    • Dust-resistance/Waterproof/Anti-corrosion
    Parameter：
    Quantity：

    279.98

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR Navigator MN601-S Multirotor Fixed Wing UAV Motor KV170


    T-MOTOR MN605-S KV170 Multirotor Motor delivers high performance for multi-rotors, VTOL, and fixed-wing UAVs. Its advanced cooling design improves heat dissipation by 15%, while high-temperature resistant components ensure durability. Features include dust, water, and corrosion resistance, easy mounting, and a modular propulsion system. Max thrust: 8.6kg, MTBF: 1000 hours. Recommended with T-Motor P22*6.6" prop.


    Navigator MN605-S Hightlights:


    • Max thrust: 8.6kg
    • MTBF: About 1000hours

    • Features: Dust-resistance/Waterproof/Anti-corrosion

    "Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.


    Application Areas：


    Cargo Drones, Tethered, Mapping and Inspection.


    Packing List Includes:


    1x T-MOTOR MN601 Motor KV170 ( kv which you choose)

    1x Hardware pack


    Matching Guide:


    T-MOTOR P22*6.6 Prop / Alpha 60A 12s


    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com

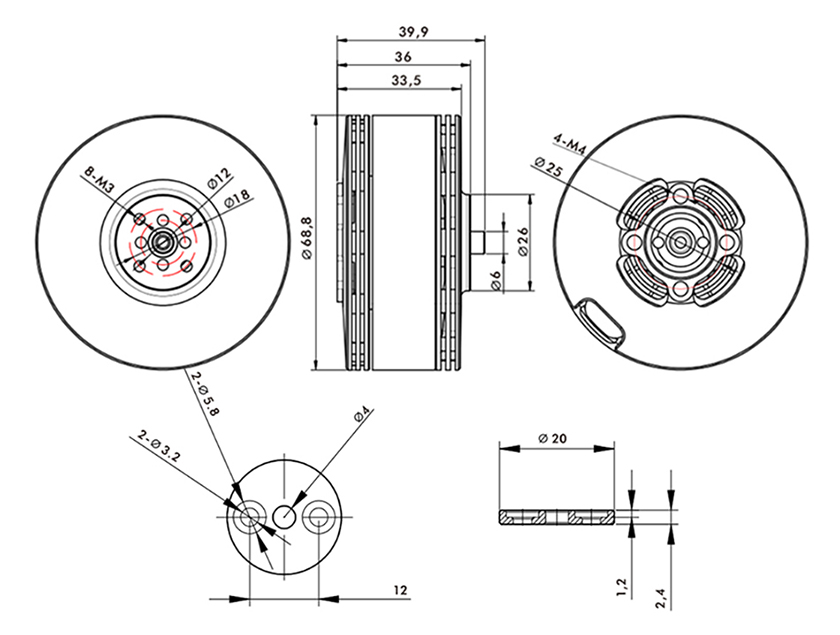

    Technical Drawing


    Specification
    Motor SizeΦ68.8*34.9mmCopper Wire180℃ high temperature resistance: Level H
    StatorImported silicon steel sheet; Anti-rust treatment;
    180°Chigh temperature-resisting coatings    		Coil Insulation Test500V
    Configuration24N28PCentrifugal Cooling DesignYES
    Shaft DiameterIN：6mm，OUT：6mmRotor Dynamic Balance Standard≤5Mg
    BearingImported 626ZZMotor Dynamic Balance Standard≤10Mg
    Magnet Level150℃ high temperature resistanceIPIP45
    Lead Cable14AWG*150mm
    KV170Rated Voltage ( Lipo )6-12S
    Idle Current（20V）1AESC RecommendationFLAME 60A 12S
    Peak Current（180s）35APropeller Recommendation20-22"
    Max.Power（180s）1700WMotor Weight (indl. Cable)350g
    Internal Resistance65mΩPackage Weight980g(2PCS/SET)
    KV320Rated Voltage ( Lipo )6S
    Idle Current（17V）2.2AESC RecommendationFLAME 70A 6S
    Peak Current（180s）55APropeller Recommendation20-22"
    Max.Power（180s）1400WMotor Weight (indl. Cable)350g
    Internal Resistance21mΩPackage Weight960g(2PCS/SET)
    Test Data
    TypePropellerThrottle

    Voltage
    (V)

    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPM

    Power
    (W)

    		Effciency
    (g/W)    		Operating
    Temperature
    (℃)
    MN605S
    KV170    		T-MOTOR
    P21*6.3    		40%47.8717870.433.8033581829.8262.6

    (Ambient

    Temperature:

    34.5℃)

    42%47.8618620.454.0034371919.73
    44%47.8520160.484.5035742159.36
    46%47.8421530.514.9036752349.18
    48%47.8223110.555.5037892638.79
    50%47.8024830.586.0039222878.66
    52%47.7826690.626.5040423118.59
    54%47.7527630.666.9041653298.39
    56%47.7329470.677.5042883588.23
    58%47.7131150.718.1043633868.06
    60%47.6933150.758.7044714157.99
    62%47.6634350.799.3045984437.75
    64%47.6435820.839.8047054677.67
    66%47.6137460.8810.4048224957.57
    68%47.5839510.9211.2049275337.41
    70%47.5641080.9512.0050175717.20
    75%47.4845841.0513.9052746606.95
    80%47.4050181.1615.9055317546.66
    90%47.2161441.4321.30606110066.11
    100%47.0276511.7129.10665013685.59
    MN605S
    KV170    		T-MOTOR
    P22*6.6    		40%47.9220670.524.30326520610.0388

    (Ambient

    Temperature:

    34.5℃)

    42%47.9122080.564.7033132259.81
    44%47.8923840.605.2035092499.57
    46%47.8825530.655.7036272739.35
    48%47.8627040.696.3037453028.97
    50%47.8428920.736.9038603308.76
    52%47.8130670.777.5039733598.55
    54%47.7932730.818.2040853928.35
    56%47.7634710.859.0042084308.08
    58%47.7435840.889.6042874587.82
    60%47.7137360.9410.2043864877.68
    62%47.6938960.9910.9044735207.49
    64%47.6641041.0311.7045775587.36
    66%47.6342831.0812.6046976007.14
    68%47.6045001.1213.5048086437.00
    70%47.5747211.1814.3049036806.94
    75%47.4854771.3017.4051968266.63
    80%47.3960641.4420.2054509576.33
    90%47.1872011.7226.20592312365.83
    100%46.9786262.0634.60646916255.31
    MN605S
    KV320    		T-MOTOR
    P21*6.3    		40%23.8714650.286.5030441559.4454

    (Ambient

    Temperature:

    34.5℃)

    42%23.8615520.307.0031161679.29
    44%23.8416290.337.5032151799.11
    46%23.8117570.368.2033221959.00
    48%23.7918830.398.9034132128.89
    50%23.7620460.4210.0035642388.61
    52%23.7221960.4611.0037162618.42
    54%23.6923540.5011.9038202828.35
    56%23.6524670.5212.7039043008.21
    58%23.6226060.5613.6040063218.11
    60%23.5927510.6114.7041133477.93
    62%23.5529300.6316.0042283777.78
    64%23.5131000.6717.2043454047.67
    66%23.4732620.7218.4044604327.55
    68%23.4334730.7419.8045854647.49
    70%23.3936600.8021.7047275087.21
    75%23.2841110.8925.5049975946.93
    80%23.1546010.9929.8052976906.67
    90%22.8655571.1939.2057818966.20
    100%22.6165421.4150.50625011425.73
    MN605S
    KV320    		T-MOTOR
    P22*6.6    		40%23.8415020.346.70283213910.1364

    (Ambient

    Temperature:

    34.5℃)

    42%23.8316960.377.7029881559.88
    44%23.8017720.408.3030841729.67
    46%23.7719130.449.0031971929.41
    48%23.7520920.4710.0033112139.17
    50%23.7122940.5111.4034622368.96
    52%23.6824830.5512.5035862648.65
    54%23.6426580.5914.0037042928.43
    56%23.6027970.6214.7038013218.25
    58%23.5629890.6716.3039263507.96
    60%23.5231400.7217.4040313787.70
    62%23.4832770.7718.7041374077.64
    64%23.4435090.8120.2042654397.36
    66%23.4036200.8521.7043464767.25
    68%23.3538750.9123.3044655087.17
    70%23.3040540.9525.2045845447.00
    75%23.1745841.0630.0048596366.69
    80%23.0550381.1735.1051057266.38
    90%22.7561081.4245.3055919395.90
    100%22.4671781.6758.60600811365.52
    Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
    (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)
    Analysis Chart

    Packing List

    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
