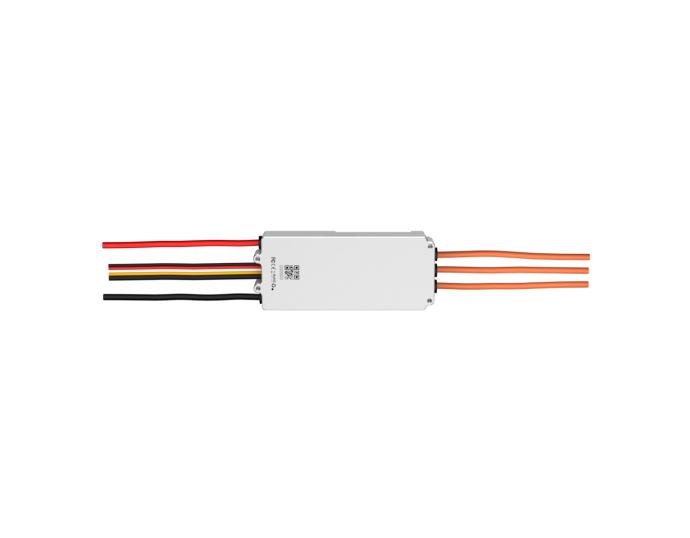

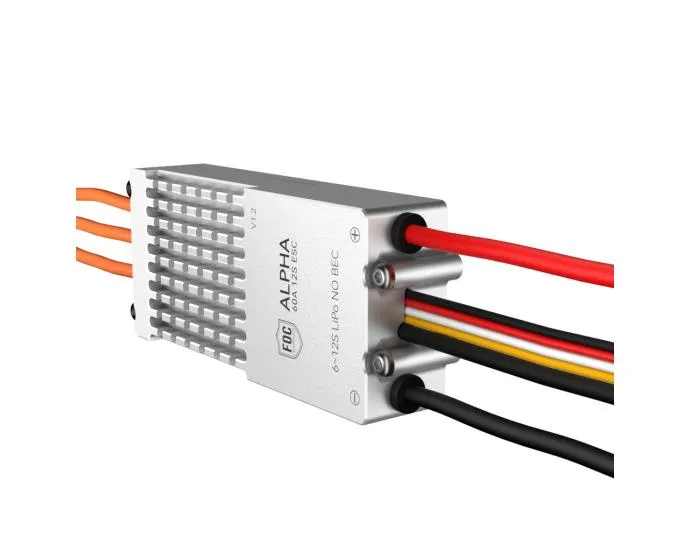

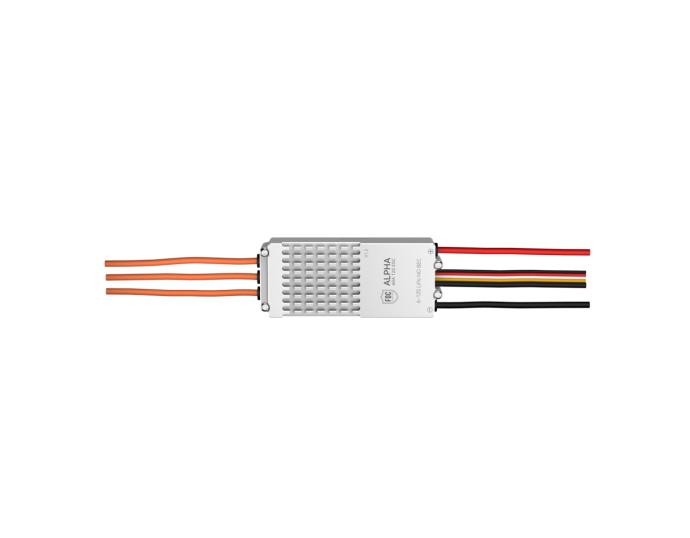

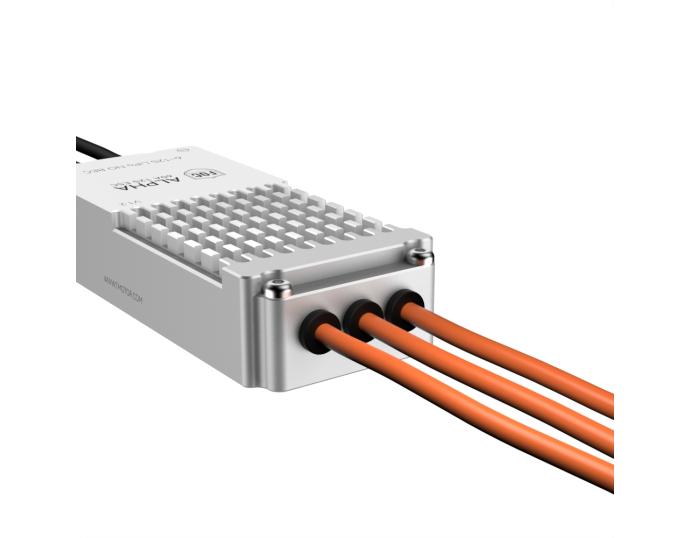

    ALPHA 60A 12S V1.2 Multi-Rotor Drone FOC ESC ★ ALPHA ESC Recommendations

    109.99

    Available points: 4800 Points Points reward: 109 Points

    • Low Noise , Temperature and Interference，Fast Response , High Efficiency
    • For Compatibility , Please Leave A Note of Motor Type
    Quantity：

    109.99

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR ALPHA 60A 12S V1.2 Multi-Rotor Drone FOC ESC



    T-MOTOR Alpha 60A 12S V1.2 ESC delivers precise, efficient motor control with FOC technology. It features low noise, fast response, high efficiency, and built-in protections, making it ideal for professional UAVs. Specify your motor type for compatibility.


    ALPHA 60A 12S V1.2 ESC Hightlights:


    1. Low Noise

    2. Temperature and Interference

    3. Fast Response

    4. High Efficiency

    5. For Compatibility

    6. Please Leave A Note of Motor Type


    ALPHA ESC has faster responses with less pulse current and steady startup as compared with traditional square wave driving.

    This T-MOTOR ESC contains over current/Motor Lock-up/short circuit/Low voltage protection.


    Packing List Includes:


    1x T-Motor ALPHA 60A 12S V1.2 ESC

    1x Hardware Kit


    Matching Guide:


    MN601-S kv170 / MN605-S KV170 / MN701-S KV135 / MN705-S KV125


    Alternatively, Alpha ESC can be programmed by the end user with Alpha Data Link.



    Technical Drawing


    Specification
    Size78.7*32.5*16.2mm（L*W*H）Power CableSilicone wire-red/black-14AWG-160MM
    Weight(Incl. cables)73gSignal CablePVC flat cable-30 core wires--2-300MM
    (white, blank, black/JP 3P male connector)
    Motor CableSilicone wire-deep orange-16AWG-65MM*3PCSprogramming CablePVC flat cable-30 core wires--3-300MM
    (black, red, white/JP 3P male connector)
    Support Voltage(12S)18-50.4VBECNO
    Con. Current60AThrottle Pos. Range1100-1940μs
    Peak Current(10s)80AThrottle Refresh Frequency500Hz
    Standby Consumption≤50mAThrottle Response Speed300ms
    Packing List

    ALPHA 60A 12S V1.2包装清单英文.jpg

    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
