    MN601-S IP45 Multirotor Fixed Wing UAV KV170 2PCS/SET

    259.98

    Available points: 13000 Points Points reward: 259 Points

    • Strong power ,long service life
    • Excellent cooling performance
    • Anti-high temperature/Anti-overload
    • Dust-resistance/Waterproof/Anti-corrosion
    Parameter：
    Quantity：

    259.98

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

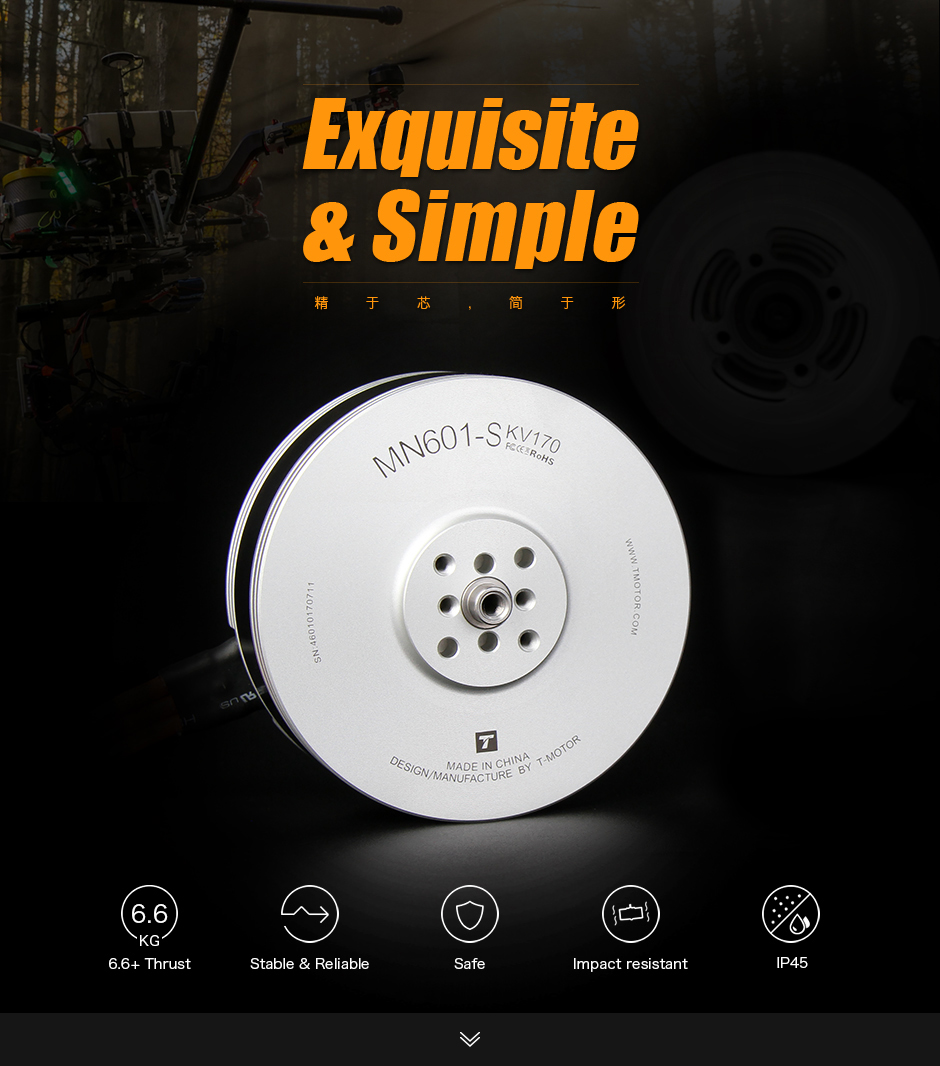

    About T-MOTOR Navigator MN601-S Multirotor Fixed Wing UAV Motor KV170

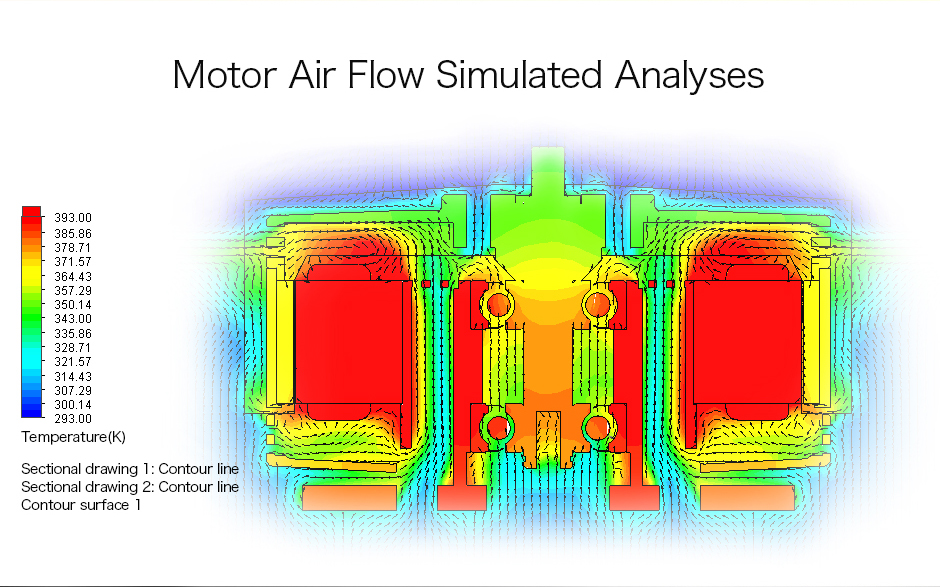

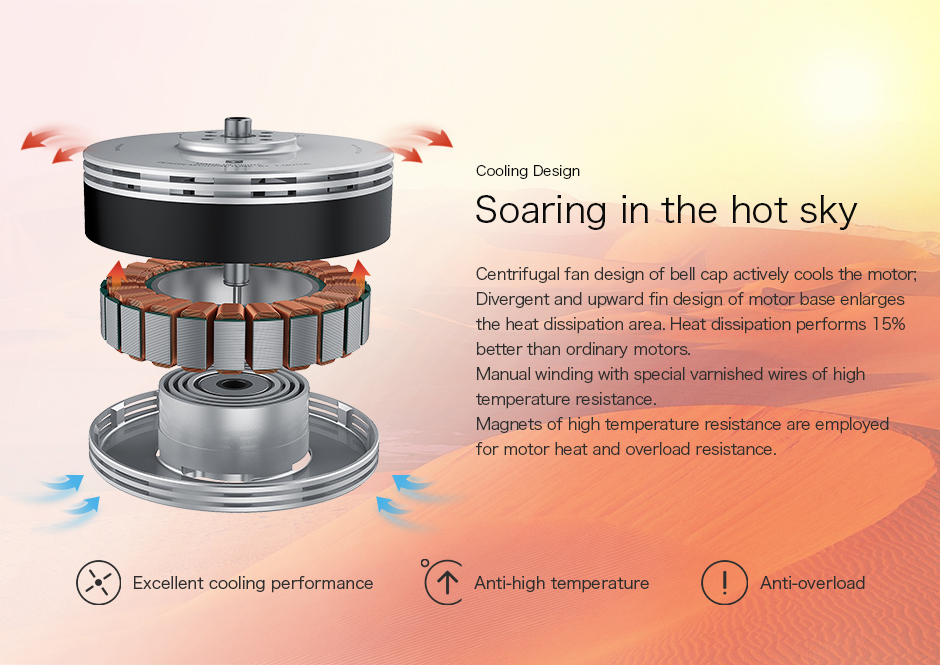

    T-MOTOR Navigator MN601-S-320KV Brushless Motor (2 pcs/set) offers exceptional durability and cooling with its centrifugal fan design and enhanced heat dissipation.

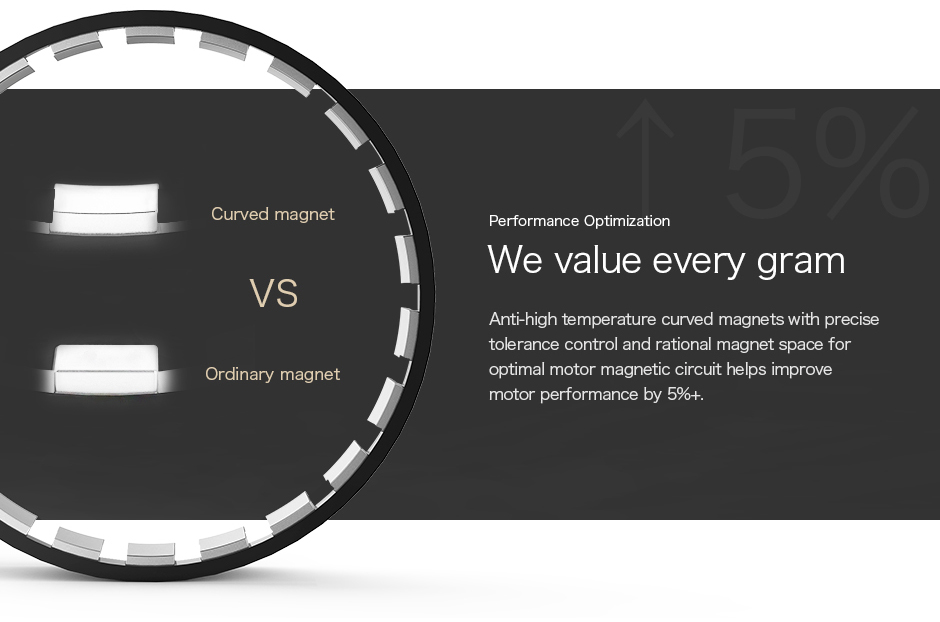

    Built with high-temperature resistant magnets and varnished wires, it ensures long life, overload resistance, and efficient cooling.

    With water, dust, and corrosion resistance, it’s perfect for tough UAV applications. Available in various RPM/V options, providing thrust from 900g to over 5,000g.


    Navigator MN601-S Hightlights:


    • Max thrust: 6.6kg
    • MTBF: About 1000hours

    • Features: Dust-resistance/Waterproof/Anti-corrosion

    "Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.


    Application Areas：


    Cargo Drones, Tethered, Mapping and Inspection.


    Packing List Includes:


    1x T-MOTOR MN601 Motor KV170 ( kv which you choose)

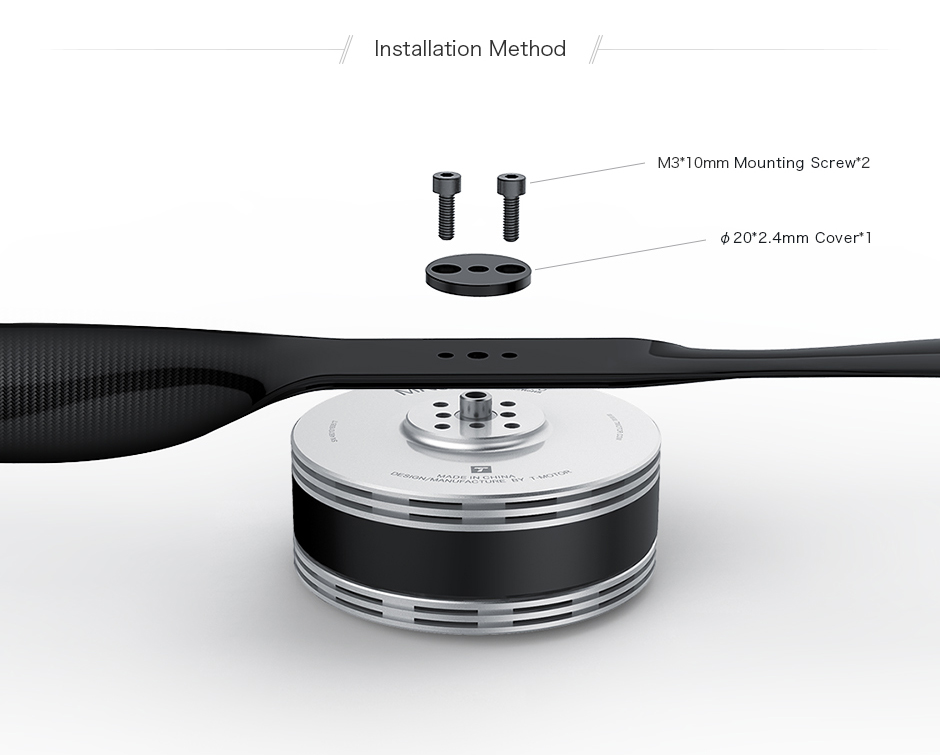

    1x Hardware pack


    Matching Guide:

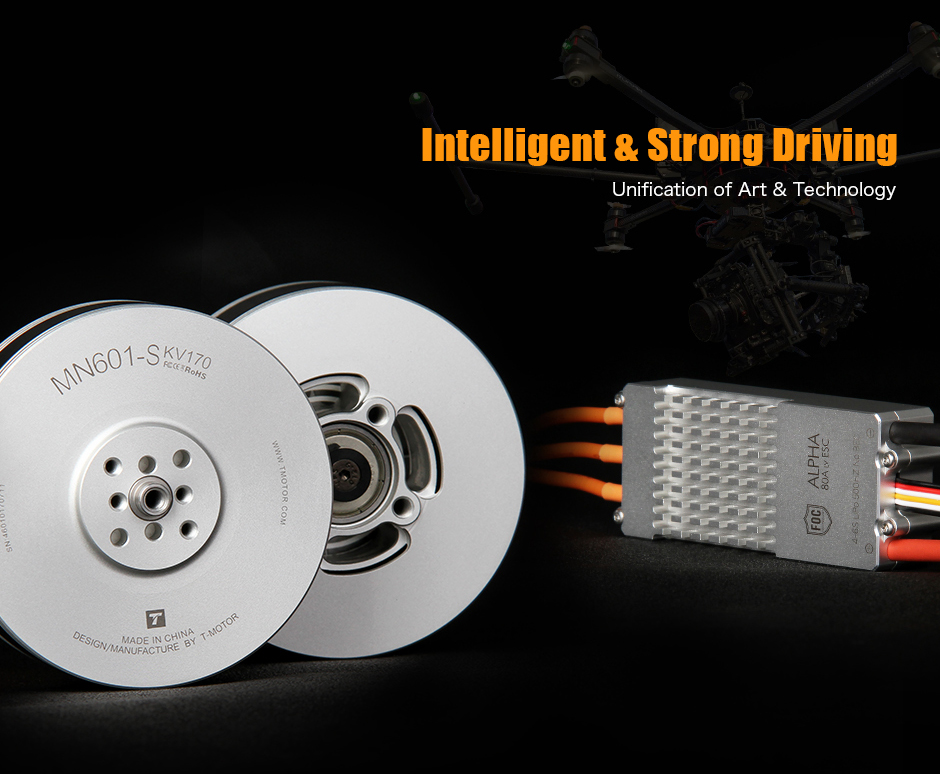

    T-MOTOR P20*6 Prop / Alpha 60A 12s


    If you have any questions or inquires, please contact us:  onlinesales@tmotor.com



    Technical Drawing


    Specification
    Motor SizeΦ68.8*34.9mmCopper Wire180℃ high temperature resistance: Level H
    StatorImported silicon steel sheet; Anti-rust treatment;
    150°Chigh temperature-resisting coatings    		Coil Insulation Test500V
    Configuration24N28PCentrifugal Cooling DesignYES

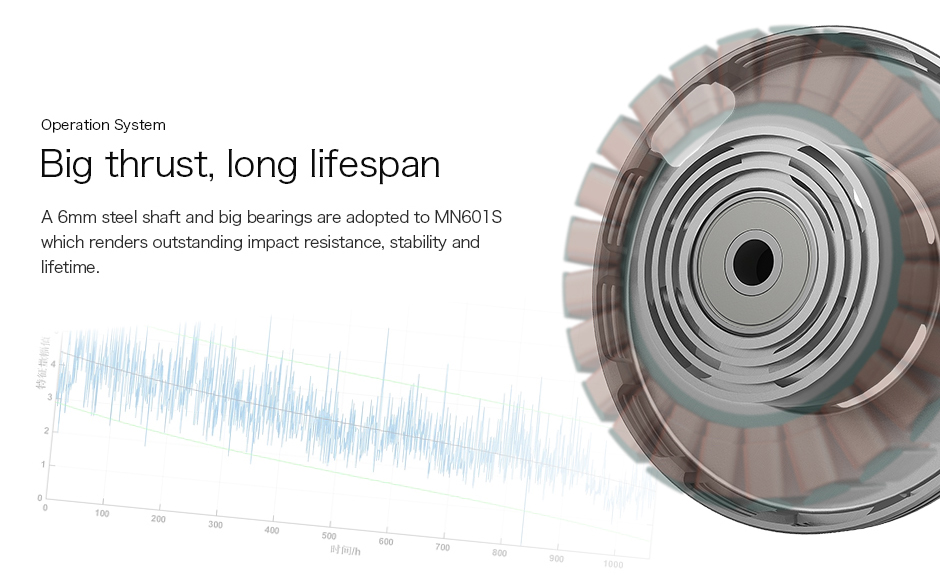

    Shaft DiameterIN：6mm，OUT：6mmRotor Dynamic Balance Standard≤5Mg
    BearingImported 626ZZMotor Dynamic Balance Standard≤10Mg
    Magnet Level150℃ high temperature resistanceIPIP45
    Lead Cable16AWG*150mm
    KV170Rated Voltage ( Lipo )6-12S
    Idle Current（20V）0.8AESC RecommendationFLAME 60A 12S
    Peak Current（180s）30APropeller Recommendation20-21"
    Max.Power（180s）1500WMotor Weight (indl. Cable)250g
    Internal Resistance115mΩPackage Weight820g(2PCS/SET)
    KV320Rated Voltage ( Lipo )6S
    Idle Current（17V）1.6AESC RecommendationFLAME 70A 6S
    Peak Current（180s）50APropeller Recommendation20-21"
    Max.Power（180s）1200WMotor Weight (indl. Cable)246g
    Internal Resistance39mΩPackage Weight815g(2PCS/SET)
    Test Data
    TypePropellerThrottle

    Voltage
    (V)

    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPM

    Power
    (W)

    		Effciency
    (g/W)    		Operating
    Temperature
    (℃)
    MN601S
    KV170    		T-MOTOR
    P20*6    		40%47.9614140.332.70327212910.9267.5

    (Ambient

    Temperature:

    34.5℃)
    42%47.9515300.363.00338914410.64
    44%47.9416200.393.30350615810.24
    46%47.9317360.413.60362417310.06
    48%47.9218790.434.0037531929.80
    50%47.9019570.464.3038512069.50
    52%47.8921510.484.8039942309.36
    54%47.8822580.515.2041212499.07
    56%47.8523880.545.6042252688.91
    58%47.8424590.555.8042282778.86
    60%47.8225400.596.2043622968.57
    62%47.8126830.616.7044813208.38
    64%47.7928190.647.1045893398.31
    66%47.7629480.667.5046903588.23
    68%47.7431150.708.3047913967.86
    70%47.7332770.728.9049234257.71
    75%47.6735720.8010.1051444817.42
    80%47.6239320.8811.7053955577.06
    90%47.4847511.0715.4059017316.50
    100%47.3458091.2720.7064829805.93
    MN601S
    KV170    		T-MOTOR
    P21*6.3    		40%48.0016770.403.10327214911.2785

    (Ambient

    Temperature:

    34.5℃)

    42%47.9817740.423.50338916810.56
    44%47.9719660.454.00350619210.25
    46%47.9620620.494.30362420610.00
    48%47.9421820.514.6037532219.89
    50%47.9223070.545.1038512449.44
    52%47.9124630.585.5039942649.35
    54%47.8826240.616.0041212879.13
    56%47.8627260.646.6042253168.63
    58%47.8529120.697.1042283408.57
    60%47.8230270.687.5043623598.44
    62%47.8131650.738.0044813828.27
    64%47.7833660.778.8045894208.01
    66%47.7534850.809.3046904447.85
    68%47.7336410.849.8047914687.78
    70%47.7037990.8810.4049234967.66
    75%47.6341860.9712.1051445767.26
    80%47.5545931.0613.9053956616.95
    90%47.3854121.2518.1059018586.31
    100%47.2166051.4924.70648211665.66
    MN601S
    KV320    		T-MOTOR
    P20*6    		40%23.909760.243.8027519110.7554.5

    (Ambient

    Temperature:

    34.5℃)

    42%23.8910580.254.20285010010.54
    44%23.8711830.284.80299611510.33
    46%23.8512750.305.20308812410.28
    48%23.8313890.335.80323513810.05
    50%23.8214920.356.4033761529.79
    52%23.7916580.387.3035201749.55
    54%23.7617570.407.8036181859.48
    56%23.7318940.428.5036992029.39
    58%23.7119720.449.0038292139.24
    60%23.6921300.479.8039242329.17
    62%23.6622030.5010.6040442518.78
    64%23.6223070.5211.4041422698.57
    66%23.5924430.5512.4042682938.35
    68%23.5625870.5713.7043723238.01
    70%23.5327310.6014.8045053487.84
    75%23.4430400.6817.0047483987.63
    80%23.3534180.7719.9050174657.36
    90%23.1341910.9426.4055116116.86
    100%22.9249041.0734.2059807846.26
    MN601S
    KV320    		T-MOTOR
    P21*6.3    		40%23.8911940.304.50264410811.1176.2

    (Ambient

    Temperature:

    34.5℃)

    42%23.8712120.324.80277711510.58
    44%23.8513490.355.50291513110.28
    46%23.8314480.386.1030221459.96
    48%23.8115990.416.8031651629.88
    50%23.7816770.447.4032721769.53
    52%23.7518710.478.4034202009.38
    54%23.7120350.519.3035632219.23
    56%23.6821230.5510.0036502378.97
    58%23.6522540.5810.8037292558.82
    60%23.6123510.6111.5038142728.66
    62%23.5824500.6412.4039542928.38
    64%23.5425930.6813.2040453118.34
    66%23.5028200.7114.5041543418.28
    68%23.4629870.7515.9042813738.01
    70%23.4230770.7816.9043943967.77
    75%23.3234900.8619.6046164577.64
    80%23.2038780.9523.1048515367.24
    90%22.9447251.1231.1053697136.62
    100%22.7055101.2739.4057558946.16
    Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
    (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)
    Analysis Chart

    Packing List

    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
