    MN805-S IP45 Navigator Type UAV Multi-Motor KV170

    269.99

    Available points: 13000 Points Points reward: 269 Points

    • Heavy load motor,born for VTOL
    • Long service life

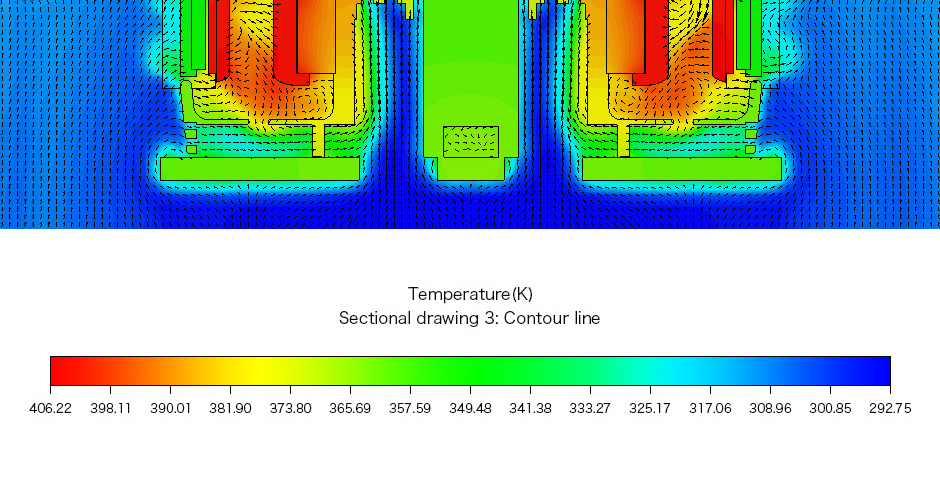

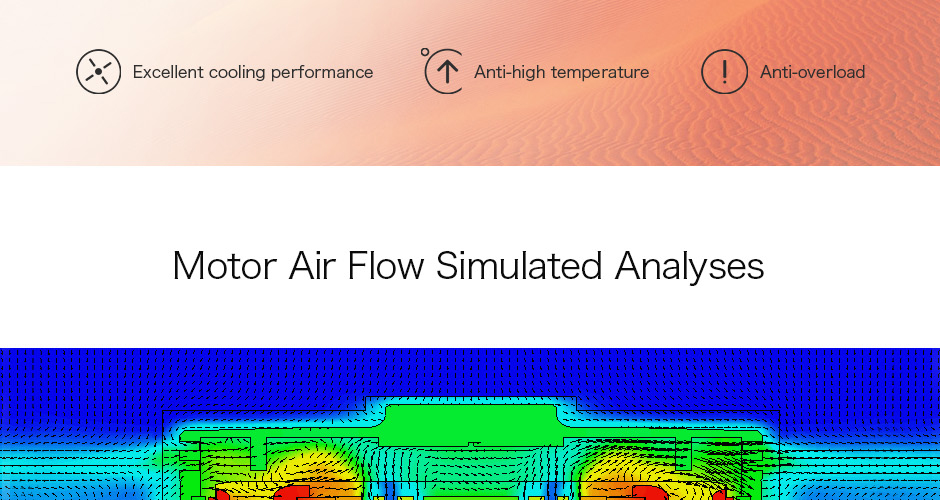

    • Excellent cooling performance
    • Anti-high temperature/Anti-overload

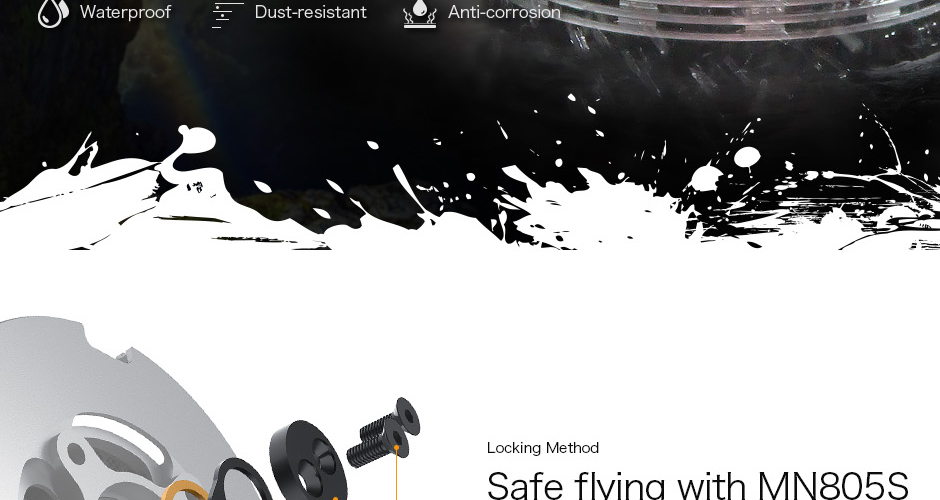

    • Dust-resistance/Waterproof/Anti-corrosion
    Parameter：
    Quantity：

    269.99

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications
    • Download

    Hot Products

    Technical Drawing


    Specification
    Motor SizeΦ89*44.4mmCopper Wire220℃ high temperature resistance: Level C
    StatorImported silicon steel sheet; Anti-rust treatment;
    150°Chigh temperature-resisting coatings    		Coil Insulation Test500V

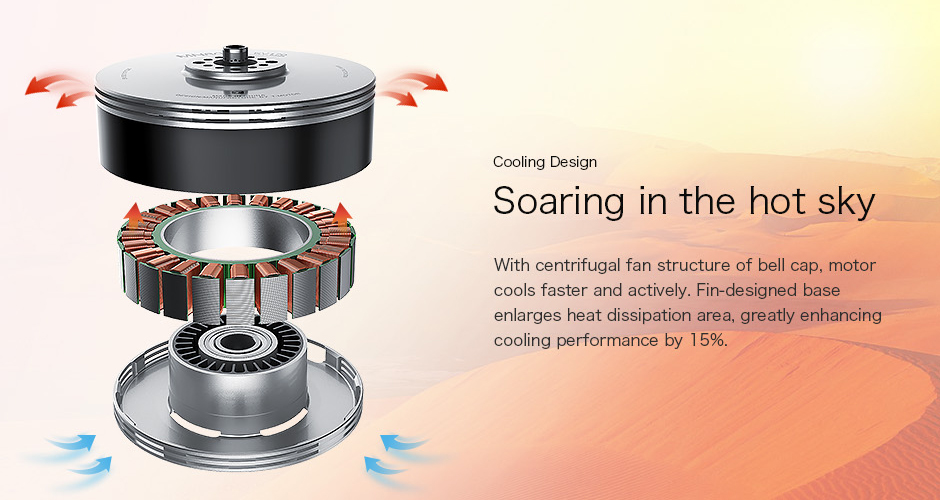

    Configuration24N28PCentrifugal Cooling DesignYES

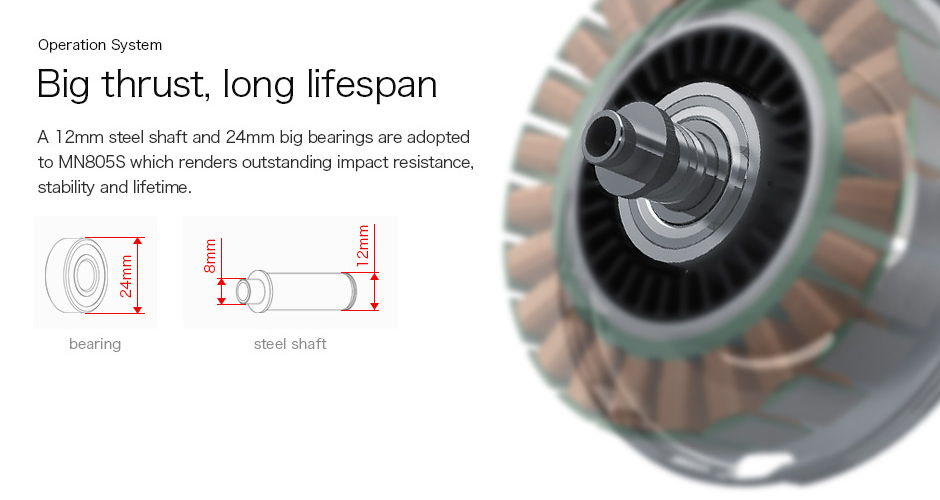

    Shaft DiameterIN：12mm，OUT：8mmRotor Dynamic Balance Standard≤5Mg
    BearingImported 6901ZZMotor Dynamic Balance Standard≤10Mg
    Magnet Level180℃ high temperature resistanceIPIP45
    Lead Cable14AWG*150mm

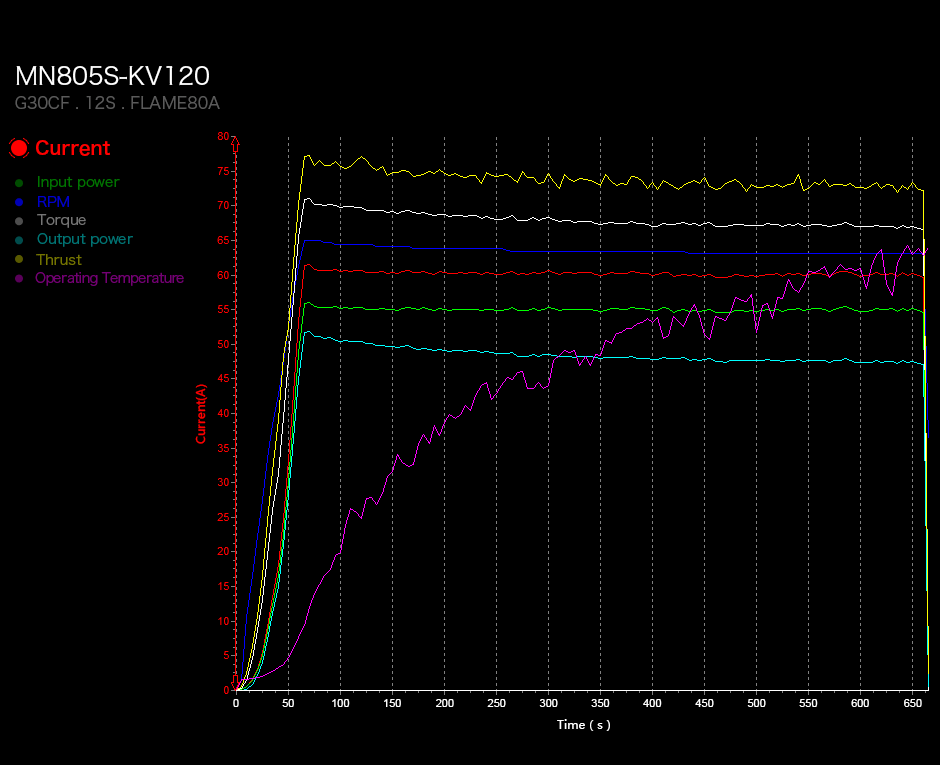

    KV120Rated Voltage ( Lipo )6-12S
    Idle Current（18V）1.6AESC RecommendationFLAME 80A 12S V2.0
    Peak Current（180s）65APropeller Recommendation30-32"
    Max.Power（180s）3200WMotor Weight (indl. Cable)620g
    Internal Resistance48mΩPackage Weight750g
    KV150Rated Voltage ( Lipo )6-12S
    Idle Current（15V）2.2AESC RecommendationFLAME 80A 12S V2.0
    FLAME 100A 14S
    Peak Current（180s）75APropeller Recommendation28-29"
    Max.Power（180s）3600WMotor Weight (indl. Cable)625g
    Internal Resistance32mΩPackage Weight750g

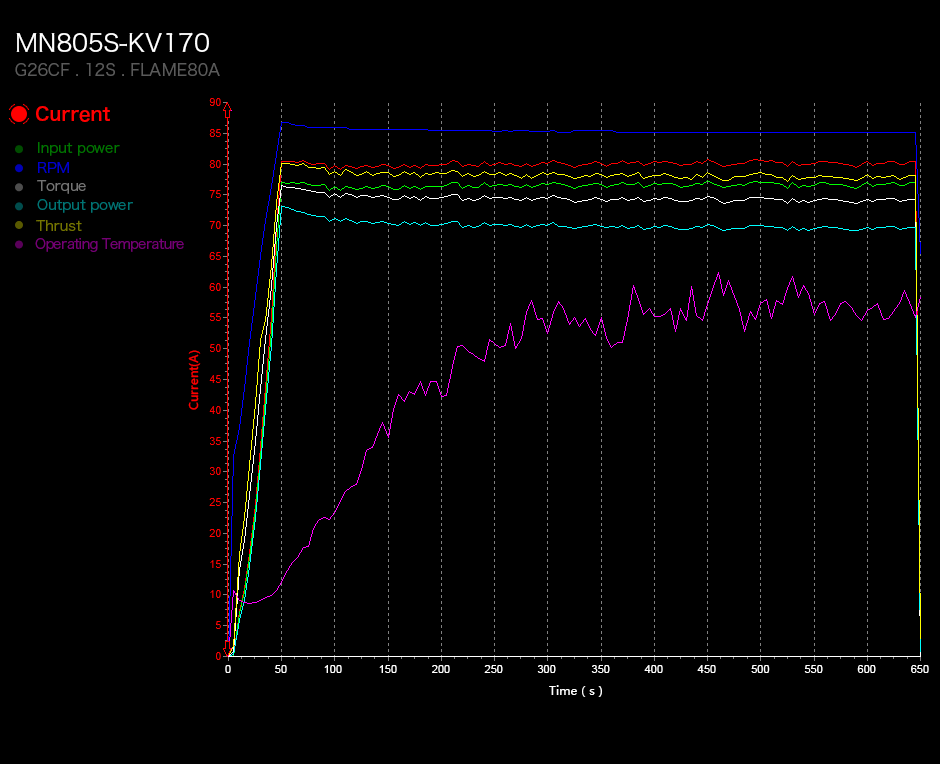

    KV170Rated Voltage ( Lipo )6-12S
    Idle Current（15V）2.6AESC RecommendationFLAME 100A 14S
    Peak Current（180s）83APropeller Recommendation26-27"
    Max.Power（180s）4000WMotor Weight (indl. Cable)625g
    Internal Resistance28mΩPackage Weight750g
    Test Data
    TypePropellerThrottle

    Voltage
    (V)

    		Thrust
    (g)    		Torque
    (N*m)    		Current
    (A)    		RPM

    Power
    (W)

    		Effciency
    (g / W)    		Operating
    Temperature
    (℃)
    MN805S
    KV120    		T-MOTOR
    G30*10.5    		40%47.9933211.056.28182830111.0386.3
    (Ambient Temperature
    :0℃)
    42%47.9837271.157.39194235510.51
    44%48.0040371.298.26203039610.19
    46%47.9743991.419.2921234469.88
    48%47.9847101.5110.2522004929.58
    50%47.9750271.6211.2522795409.32
    52%48.0053211.7112.2323465879.08
    54%48.0056931.8213.4624236468.82
    56%47.9960711.9514.7525007088.59
    58%47.9763412.0415.7525597568.40
    60%47.9666852.1416.9726188148.22
    62%47.9570252.2518.3226888788.00
    64%47.9674722.3920.0227799607.79
    66%47.9878872.5621.77287210447.56
    68%47.9782952.6823.46294111257.38
    70%47.9787402.8225.22301712097.23
    75%47.9596933.2230.62321014686.60
    80%47.93104853.6036.31340517406.02
    90%47.90121294.3949.00374423475.17
    100%47.89143005.2264.69407030984.62
    MN805S
    KV150    		T-MOTOR
    G28*9.2    		40%47.9237581.127.55234836210.3996.3
    (Ambient Temperature
    :0℃)
    42%47.9439481.188.17241939110.08
    44%47.9642751.279.0825184369.82
    46%47.9645671.379.9626004789.56
    48%48.0048821.4510.9026875239.33
    50%47.9751821.5511.8727685709.10
    52%47.9555821.6613.1028626288.89
    54%47.9861301.8114.7929847108.63
    56%47.9565861.9816.4630887898.34
    58%47.9171372.1318.2332248738.17
    60%47.9175872.2519.8033179497.99
    62%47.9180402.3921.59342010347.77
    64%47.9385472.5523.47351611257.59
    66%47.9390932.7025.68362212307.39
    68%47.9294812.8427.61370713237.16
    70%47.9299182.9929.71378314246.97
    75%47.92107313.3635.56402317046.30
    80%47.92115283.7942.37422820305.68
    90%47.90137784.6357.81463327694.97
    100%47.80160285.4275.17501335934.46
    MN805S
    KV170    		T-MOTOR
    G26*8.5    		40%48.0436080.957.8326693769.5887.5
    (Ambient Temperature
    :0℃)
    42%48.0438601.028.6327644159.30
    44%48.0542021.119.6428714639.07
    46%48.0545181.1910.6629725128.82
    48%48.0449001.3111.9031125728.57
    50%48.0451981.4113.0632206278.28
    52%47.9956971.5514.7033597058.07
    54%47.9861741.6816.3434877847.87
    56%47.9966911.8418.3636358817.59
    58%47.9770831.9719.9937439597.38
    60%47.9675412.1021.78384610457.21
    62%47.9680232.2423.77396911407.04
    64%47.9685632.3825.84407912396.91
    66%47.9590852.5428.15419813506.73
    68%47.9494802.6930.78432514756.43
    70%47.9498712.8232.73441415696.29
    75%47.91107243.1639.06466118715.73
    80%47.93115903.5245.76490321935.28
    90%47.88135424.3061.64534229514.59
    100%47.84159935.0780.37575838454.16
    Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
    (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)
