    Thunder 12~24S 200A High Power UAVs ESC

    1149.90

    Available points: 0 Points Points reward: 1149 Points

    Quantity：

    1149.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    Relevant Products

    • Detail information
    • Specifications

    Hot Products

    About T-MOTOR Thunder 12~24S 200A for High Power Mulitirotor UAVs ESC



    T-MOTOR Thunder 12~24S 200A ESC delivers high power, efficient cooling, and robust durability with a full-metal body, advanced safety features, and waterproof design.

    Perfect for demanding UAV applications, it ensures reliable performance in any environment.


    Thunder 200A ESC Hightlights:


    High Power Support: Designed for 12~24S systems, ideal for high-performance drones.

    Efficient Cooling: Multi-tube connection, stacked aluminum shell for superior heat dissipation.

    Enhanced Protection: Multiple safety features prolong ESC lifespan.

    Anti-Interference: Shielded wires ensure clean signals and reliable operation.

    Premium Quality: Rigorously tested electronics ensure durability and performance.

    Waterproof Design: IP54-rated, anti-corrosion shell protects against rain, dust, and liquids


    Packing List Includes:


    1x T-Motor Thunder 200A Drone ESC

    1x Hardware Kit


    Matching Guide:


    V13L VTOL Drone Motor

    DRIVEPOWERFULLY

    COMPATIBLE
    EFFICIENTLY

    Support: 12~24S 200A
    THUNDER ESC is designed for high power drone

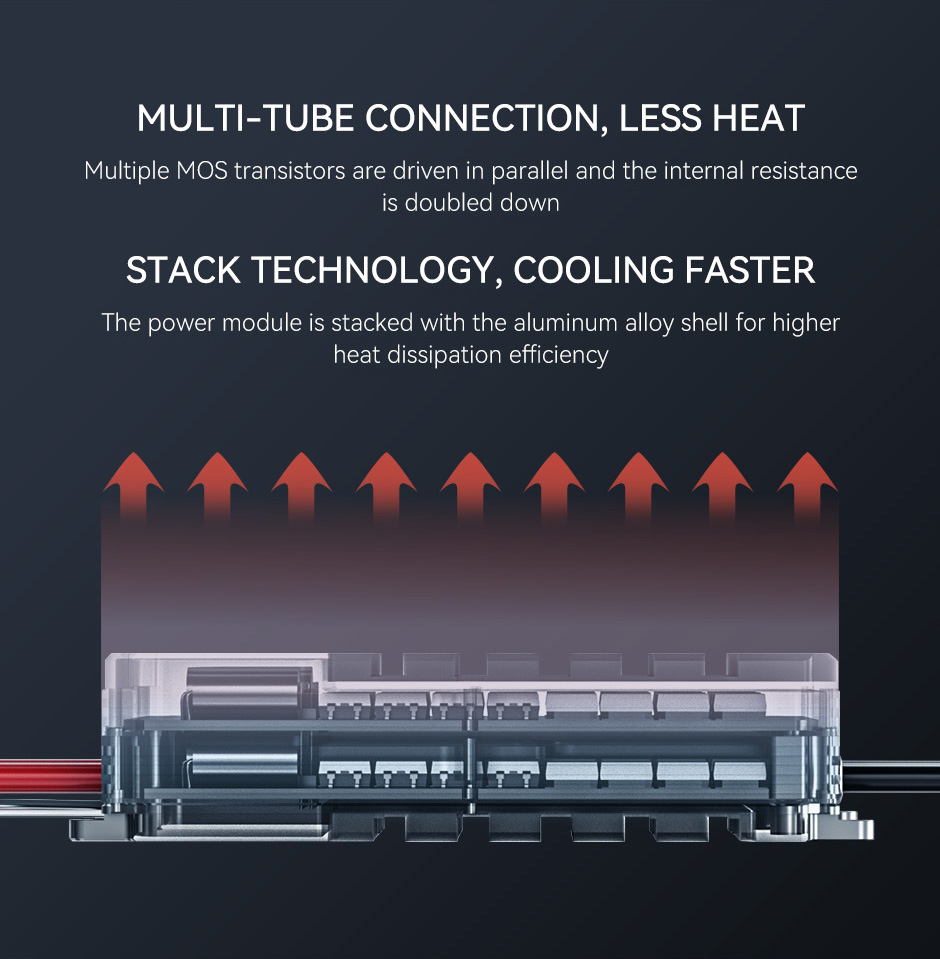

    MULTI-TUBE CONNECTION, LESS HEAT

    Multiple MOS transistors are driven in parallel and the internal resistance is doubled down

    STACK TECHNOLOGY, COOLING FASTER

    The power module is stacked with the aluminum alloy shell for higher heat dissipation efficiency

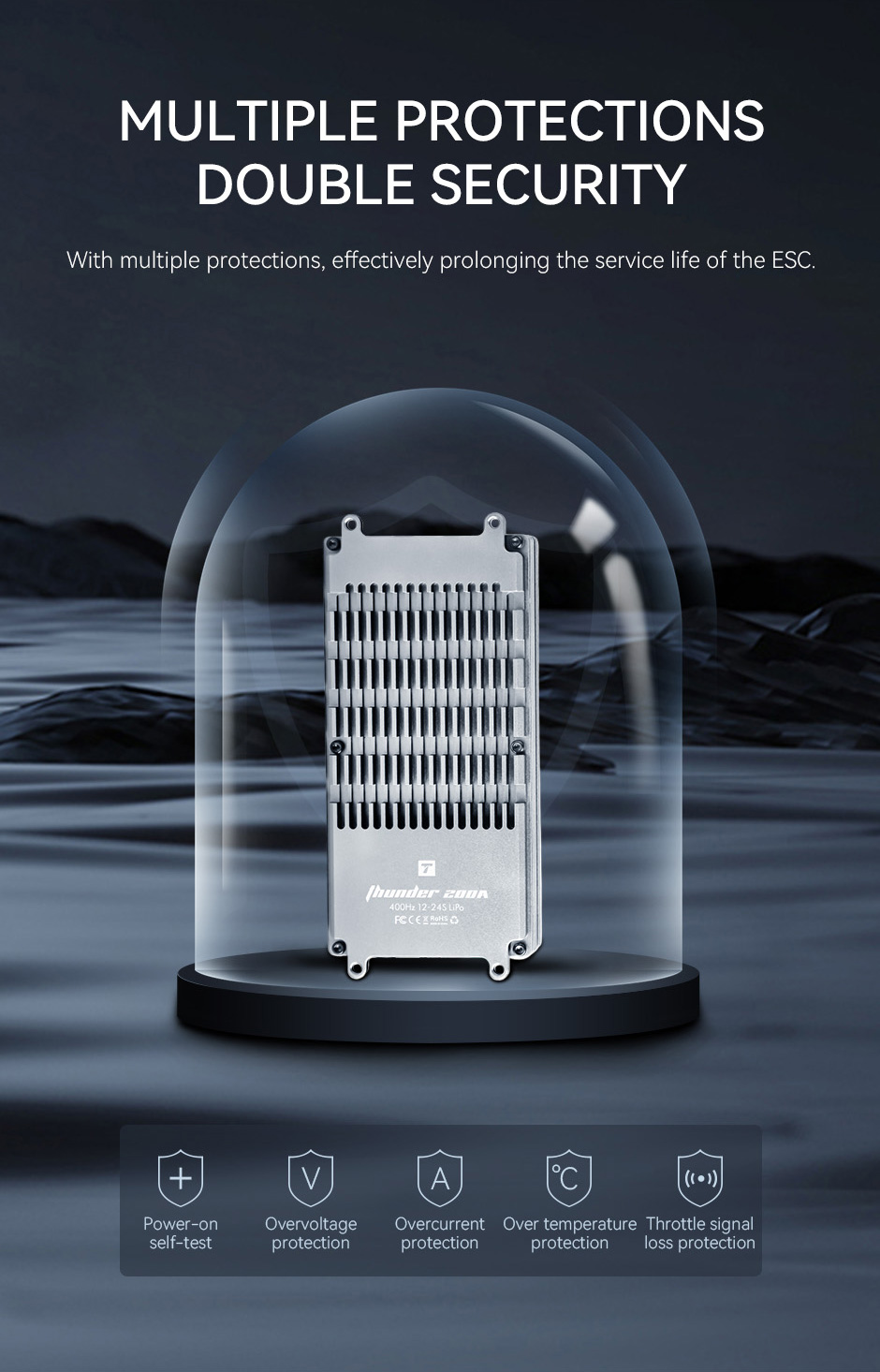

    MULTIPLE PROTECTIONS DOUBLE SECURITY

    With multiple protections, effectively prolonging the service life of the ESC

    • Power-on self-testPower-on self-test
    • Overvoltage protectionOvervoltage protection
    • Overcurrent protectionOvercurrent protection
    • Over temperature protectionOver temperature protection
    • Throttle signal loss protectionThrottle signal loss protection

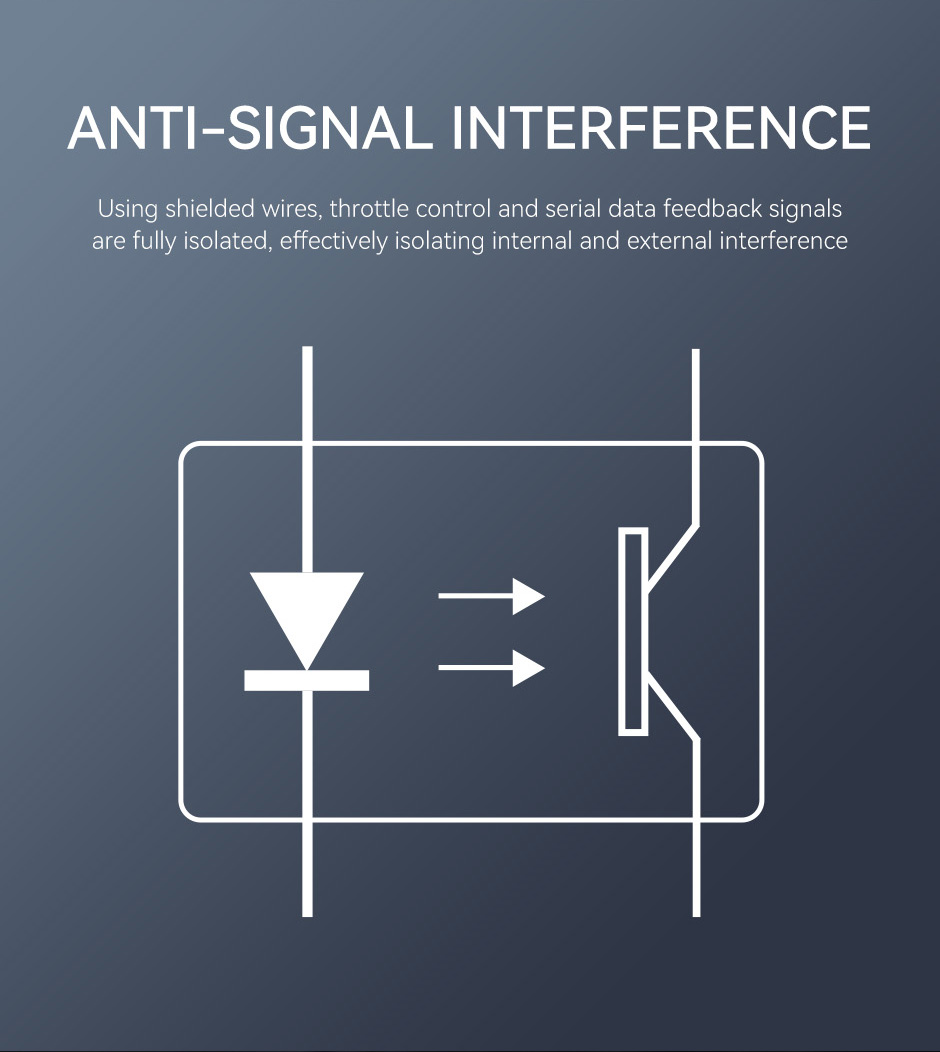

    ANTI-SIGNAL INTERFERENCE

    Using shielded wires, throttle control and serial data feedback signals are fully isolated, effectively isolating internal and external interference

    ANTI-SIGNAL INTERFERENCE

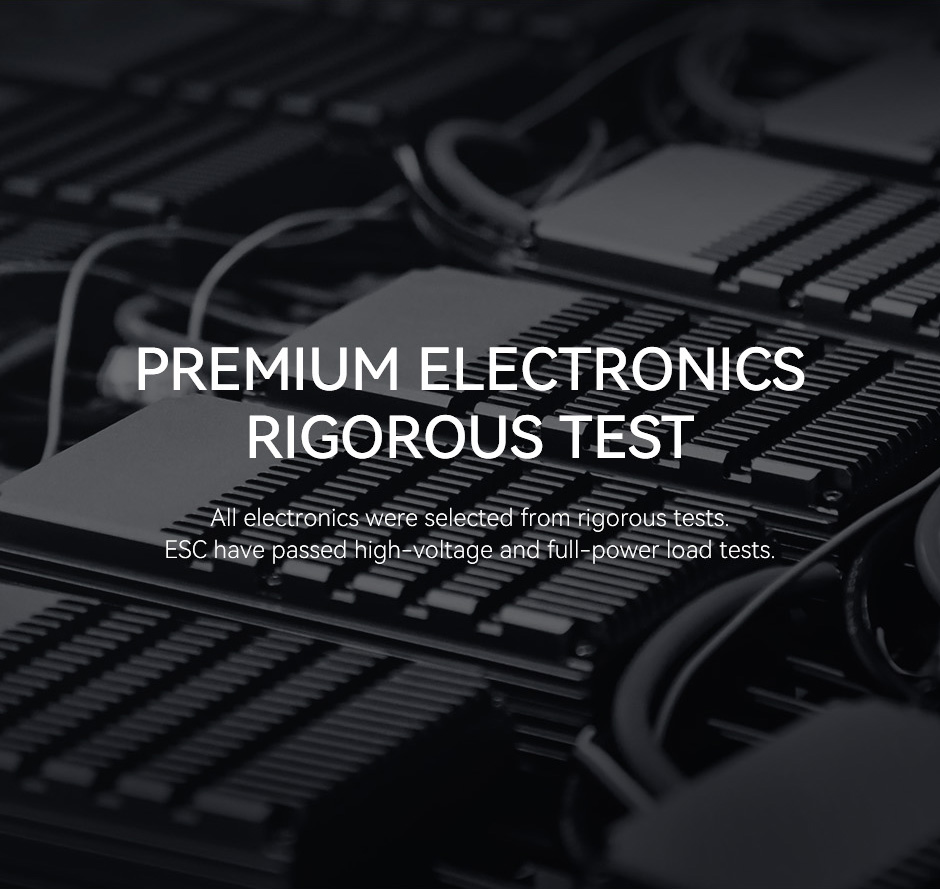

    PREMIUM ELECTRONICS RIGOROUS TEST

    All electronics were selected from rigorous tests
    ESC have passed high-voltage and full-power load tests

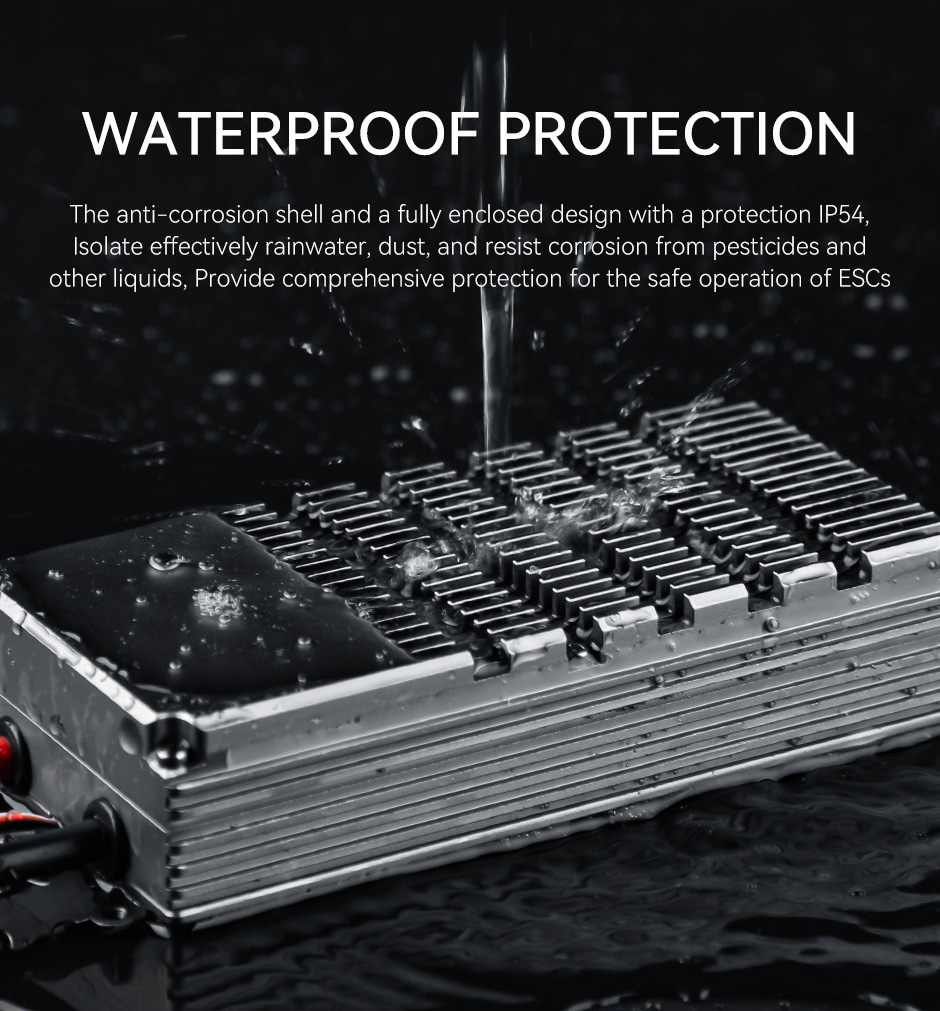

    WATERPROOF PROTECTION

    The anti-corrosion shell and a fully enclosed design with a protection IP54, Isolate effectively rainwater, dust, and resist corrosion from pesticides and other liquids, Provide comprehensive protection for the safe operation of ESCs

    CUSTOMIZED SERVICES

    CANIP67

    ELECTRIC PROPELLERfunction

    UART-TTLdata feedback protocol

    Technical Drawing


    Specification
    ModelTHUNDER 200A 24SCon. Current120A (good cooling space)
    Weight (Incl. cables)620gPeak current220A (3s/good
    cooling space)
    Size154.9*69.6*36.1mm(without wire length)StandbyConsumption≤50mA
    IPIP54Workingtemperature-20℃~65℃
    Support Voltage12~24SSignalPWM
    Power WireSilicone wire-black/red-8AWG-150mmPWM throttlePos. rangeCalibratable
    Motor WireSilicone wire-black-10AWG-150mmPWM voltage3.3~5V
    Signal WireUL1533-24AWGSingle core shielded wire-grey-520mm(JR 3Pin male）PWM frequency50~400HZ
    feedback linePVCwire-30 cores-black/red/white-100mm (JR 3Pin male)Data feedbackchannelUART-TTL(isolatedly power)
