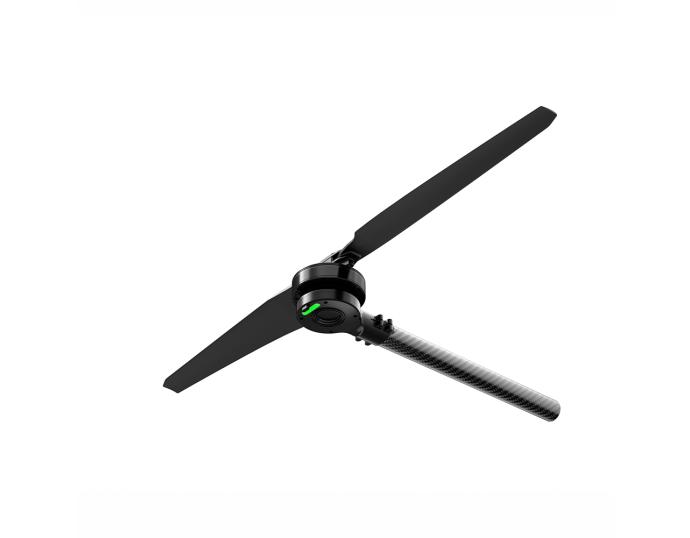

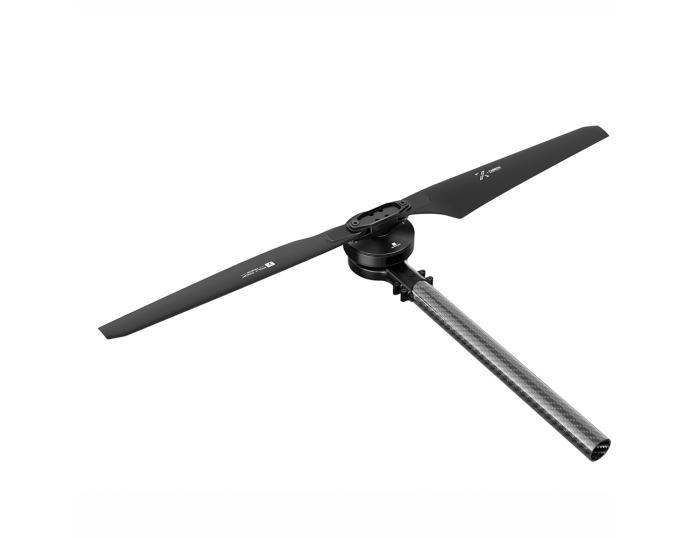

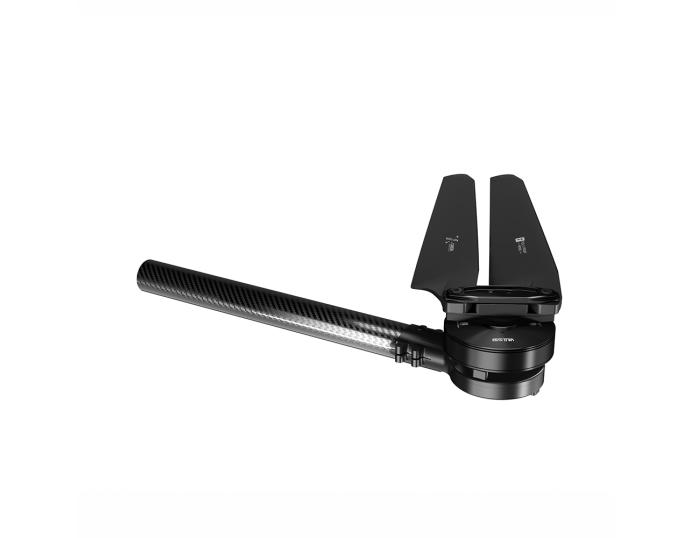

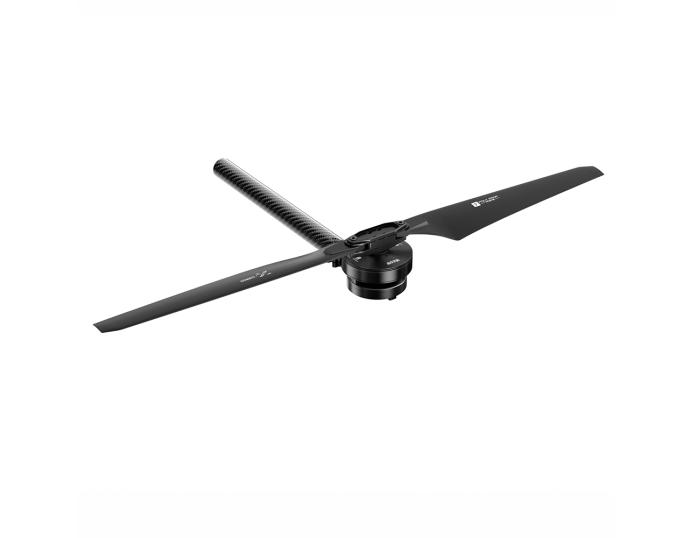

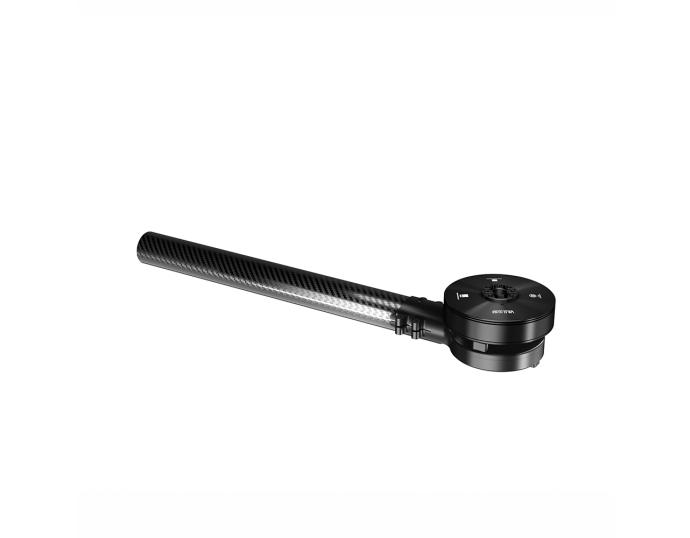

Name: U8Ⅱ-X Combo Pack Type 6S/12S (Integrated Propulsion System）UAV Motor_Standard_Modular Propulsion System_Combo Pack_T-Motor Store | UAV & FPV Drone Motors, ESCs, Propellers
Brand: T-Motor
SKU: T-MOTOR000803
Price: 400.00 USD
Availability: InStock

Relevant Products

FLAME 60A 12S V2.0 Multi-Rotor UAVs ESC

$99.99
FA28.2*9.2 Prop-2PCS/PAIR

$359.9
G28*9.2 Prop-2PCS/PAIR

$310.9

Detail information
Specifications

Hot Products

Technical Drawing

Specification

Product Model	U8II-XKV85	Exposed wire length	630mm
Arm size	132.987.157.2mm	Boom weight (incl. wire)	460g
Configu ration	36N42P	Shaft Diameter	IN:15mm
Idle Current（24V）	0.6A	Rated Voltage(Lipo)	12S
Internal Resistance	225mΩ	IP	/
Peak Current(180s)	19.1A	ESC	ALPHA 60A 12S V1.2
Max Power (180S)	1000W	Propeller Recommendation	MF2815

Product Model	U8II-XKV100	Exposed wire length	630mm
Arm size	132.987.157.2mm	Boom weight (incl. wire)	450g
Configu ration	36N42P	Shaft Diameter	IN:15mm
Idle Current（24V）	0.8A	Rated Voltage(Lipo)	12S
Internal Resistance	170mΩ	IP	/
Peak Current(180s)	29.3A	ESC	ALPHA 60A 12S V1.2
Max Power (180S)	1500W	Propeller Recommendation	MF2815

Product Model	U8II-XKV150	Exposed wire length	630mm
Arm size	132.987.157.2mm	Boom weight (incl. wire)	450g
Configu ration	36N42P	Shaft Diameter	IN:15mm
Idle Current（24V）	1.3A	Rated Voltage(Lipo)	6S
Internal Resistance	85mΩ	IP	/
Peak Current(180s)	29.7A	ESC	ALPHA 60A 6S
Max Power (180S)	580W	Propeller Recommendation	MF2815

Product Model	U8II-XKV190	Exposed wire length	630mm
Arm size	132.987.157.2mm	Boom weight (incl. wire)	450g
Configu ration	36N42P	Shaft Diameter	IN:15mm
Idle Current（24V）	1.7A	Rated Voltage(Lipo)	6S
Internal Resistance	48mΩ	IP	/
Peak Current(180s)	43.7A	ESC	ALPHA 60A 6S V
Max Power (180S)	940W	Propeller Recommendation	MF2815

Test Data

Type	Propeller	Throttle (%)	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N·m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
U8II-X KV85（Alpha 60A 12S ）	MF2815	40%	47.97	2.05	98	1440	0.52	1492	15.15	88 （Ambient Temperature： 25）
		45%	47.96	2.76	133	1599	0.64	1853	13.98
		50%	47.93	3.60	172	1760	0.77	2239	13.00
		55%	47.91	4.62	221	1918	0.91	2666	12.05
		60%	47.88	5.83	279	2076	1.07	3157	11.30
		65%	47.86	7.24	347	2231	1.24	3700	10.68
		70%	47.82	8.80	421	2386	1.40	4186	9.95
		75%	47.78	10.65	509	2537	1.60	4724	9.28
		80%	47.72	12.76	609	2687	1.80	5350	8.79
		85%	47.65	15.08	718	2836	2.00	5934	8.26
		90%	47.58	17.70	842	2980	2.22	6580	7.81
		95%	47.52	20.32	966	3106	2.41	7176	7.43
		100%	47.47	22.34	1060	3181	2.53	7548	7.12
U8II-X KV100（Alpha 60A 12S ）	MF2815	40%	48.00	3.47	167	1723	0.73	2088	12.52	95 （Ambient Temperature： 25）
		45%	47.98	4.66	224	1909	0.90	2594	11.60
		50%	47.94	6.11	293	2090	1.08	3145	10.74
		55%	47.89	7.83	375	2269	1.28	3747	10.00
		60%	47.83	9.83	470	2446	1.48	4384	9.32
		65%	47.79	12.13	579	2616	1.70	5028	8.68
		70%	47.72	14.74	703	2782	1.94	5740	8.16
		75%	47.64	17.67	842	2939	2.16	6440	7.65
		80%	47.54	20.86	992	3091	2.39	7115	7.17
		85%	47.46	24.37	1156	3230	2.62	7771	6.72
		90%	47.35	28.12	1331	3357	2.82	8403	6.31
		95%	47.25	31.56	1491	3454	2.99	8903	5.97
		100%	47.22	33.22	1569	3491	3.05	9082	5.79
U8II-X KV150（Alpha60A 6S ）	MF2815	40%	23.93	3.39	81	1344	0.45	1218	15.02	71 （Ambient Temperature： 25）
		45%	23.89	4.47	107	1491	0.55	1505	14.08
		50%	23.87	5.85	140	1635	0.66	1845	13.22
		55%	23.80	7.43	177	1780	0.78	2194	12.41
		60%	23.76	9.27	220	1918	0.91	2584	11.73
		65%	23.70	11.37	269	2053	1.04	2988	11.09
		70%	23.64	13.75	325	2186	1.18	3424	10.54
		75%	23.57	16.46	388	2316	1.33	3902	10.06
		80%	23.49	19.18	450	2432	1.47	4276	9.49
		85%	23.44	21.33	500	2514	1.57	4587	9.17
		90%	23.38	24.06	562	2609	1.69	4940	8.78
		95%	23.35	25.03	584	2641	1.74	5084	8.70
		100%	23.35	24.99	583	2640	1.73	5056	8.67
U8II-X KV190（Alpha 60A 6S ）	MF2815	40%	23.89	5.22	125	1571	0.64	1674	13.42	95 （Ambient Temperature： 25）
		45%	23.83	7.01	167	1741	0.78	2095	12.54
		50%	23.78	9.17	218	1906	0.93	2537	11.63
		55%	23.72	11.67	277	2066	1.08	3037	10.98
		60%	23.63	14.55	344	2220	1.25	3542	10.30
		65%	23.54	17.90	421	2373	1.42	4052	9.61
		70%	23.44	21.62	507	2518	1.60	4586	9.05
		75%	23.32	25.71	600	2658	1.78	5141	8.57
		80%	23.20	30.31	703	2794	1.96	5704	8.11
		85%	23.06	35.21	812	2921	2.14	6249	7.70
		90%	22.94	39.42	904	3018	2.29	6667	7.37
		95%	22.92	41.21	944	3053	2.34	6854	7.26
		100%	22.90	41.10	941	3048	2.34	6847	7.27
Notes：Motor temperature is the motor surface temperature aftering running at 100% for 10 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)

Matching Table

Arm Set	Compatible Tube Size	Motor	KV	Default ESC	Default Propeller	Propeller Options	Custom ESC
501-X	25mm/30mm (25mm=30mm+ adapter)	MN501-S	KV240	ALPHA 60A 12S V1.2	MF1503	P155, FA15.25	FLAME 60A 12S
			KV300	ALPHA 40A 6S	MF2009	P206, FA20.26.6	ALPHA 60A 12S V1.2, AIR 40A
			KV360		MF1806	P186.1, FA18.25.9
505-X		MN505-S	KV320	ALPHA 60A 6S	MF2211	P226.6, FA22.27.2	FLAME 60A 12S
			KV380		MF1806	P186.1, FA18.25.9
601-X		MN601-S	KV170	ALPHA 60A 12S V1.2	MF2009	P206, FA20.26.6	FLAME 60A 12S
			KV320	ALPHA 60A 6S		P206, FA20.26.6
605-X		MN605-S	KV170	ALPHA 60A 12S V1.2	MF2211	P226.6, FA22.27.2	FLAME 60A 12S
			KV320	ALPHA 60A 6S
701-X		MN701-S	KV135	ALPHA 80A 12S Round	MF2614	P247.2-10mm Hole, G247.8, FA24.2*7.9	/
705-X		MN705-S	KV125	ALPHA 80A 12S Round	MF2614	G268.5, FA26.28.5	/
U8Ⅱ-X U8 Lite-X XU8-X		U8Ⅱ U8 Lite XU8	KV85	ALPHA 60A 12S V1.2	MF2815	G289.2, FA28.29.2	FLAME 60A 12S
			KV100
			KV150	ALPHA 60A 6S
			KV190
6007Ⅱ-X	25mm/28mm	6007Ⅱ	KV160	ALPHA 60A 12S V1.2	MF2211	FA22.27.2, NS226.6, P22*6.6	FLAME 60A 12S
			KV320	ALPHA 60A 6S
P60-X	25mm/30mm (25mm=30mm+ adapter)	P60	KV170	FLAME 60A 12S	MF2211	P226.6, G227.2	/
P80-X	30mm/35mm or 40mm (Notify us your tube size)	P80	KV100/KV120	ALPHA 80A 12S	MF3016	P3010, G3010.5	FLAME 80A 12S, FLAME 100A 14S
X-501	25mm/30mm (25mm=30mm+ adapter)	MN501-S	KV240	ALPHA 60A 12S V1.2	P15*5	/	FLAME 60A 12S
			KV300	ALPHA 40A 6S	P20*6	/	ALPHA 60A 6S, AIR 40A
			KV360		P18*6.1	/
X-505		MN505-S	KV320	ALPHA 60A 6S	P22*6.6	/	FLAME 60A 12S
			KV380		P18*6.1	/
X-601		MN601-S	KV170	ALPHA 60A 12S V1.2	P20*6	/	FLAME 60A 12S
			KV320	ALPHA 60A 6S		/
X-605		MN605-S	KV170	ALPHA 60A 12S V1.2	P22*6.6	/	FLAME 60A 12S
			KV320	ALPHA 60A 6S		/
X-U8Ⅱ X-U8 Lite		U8Ⅱ U8 Lite	KV85	ALPHA 60A 12S V1.2	G28*9.2	/	FLAME 60A 12S
			KV100			/
			KV150	ALPHA 60A 6S		/
			KV190			/
X-701	30mm/35mm (30mm=35mm+ adapter)	MN701-S	KV135	ALPHA 80A 12S Round	P24*7.2 -10mmHole	G24*7.8	/
X-705		MN705-S	KV125	ALPHA 80A 12S Round	G26*8.5	/	/
* NOTE : order qty should be an EVEN number.
