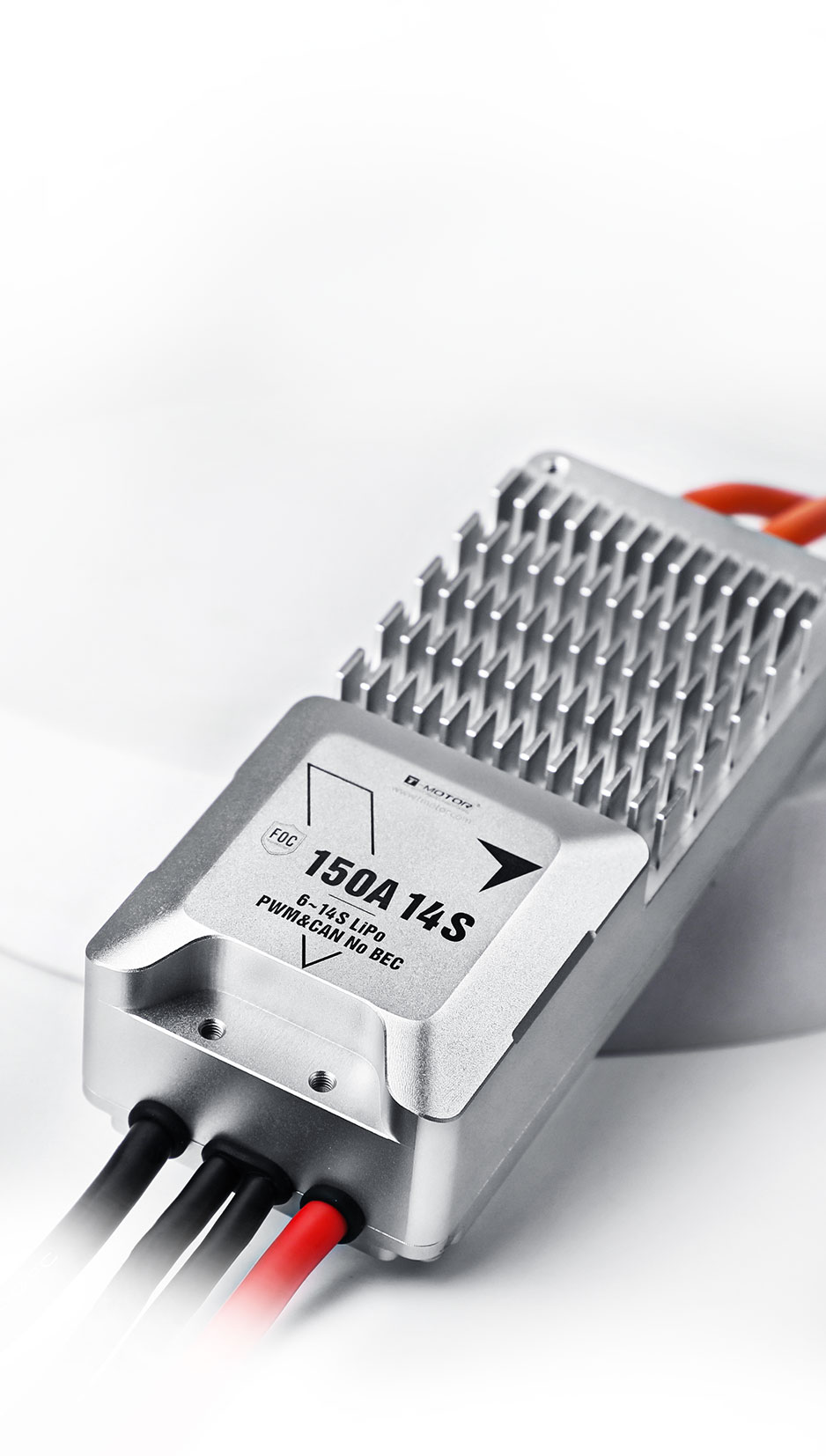

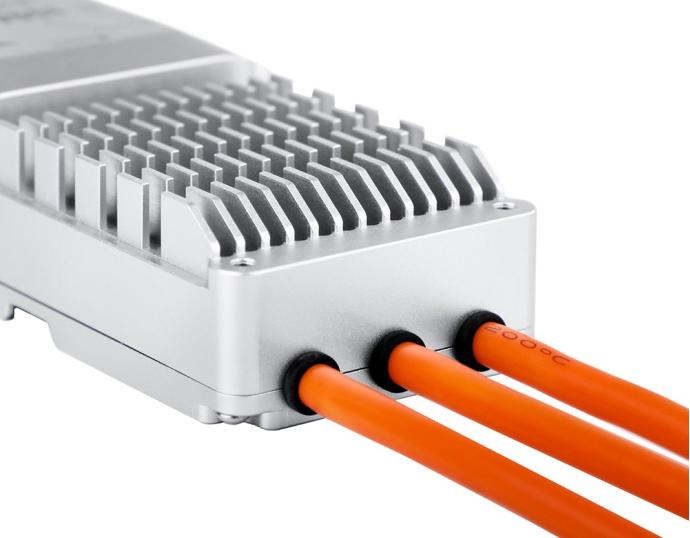

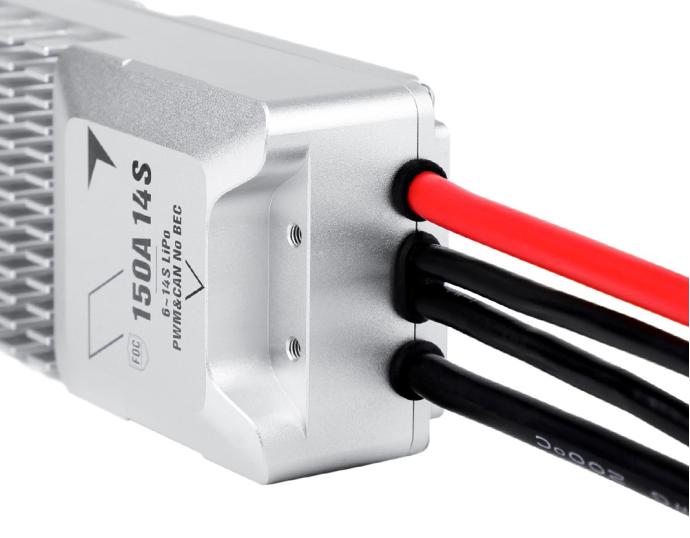

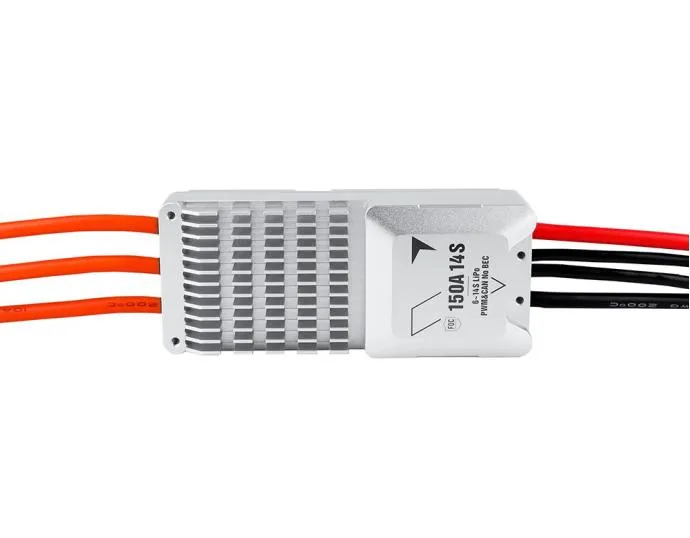

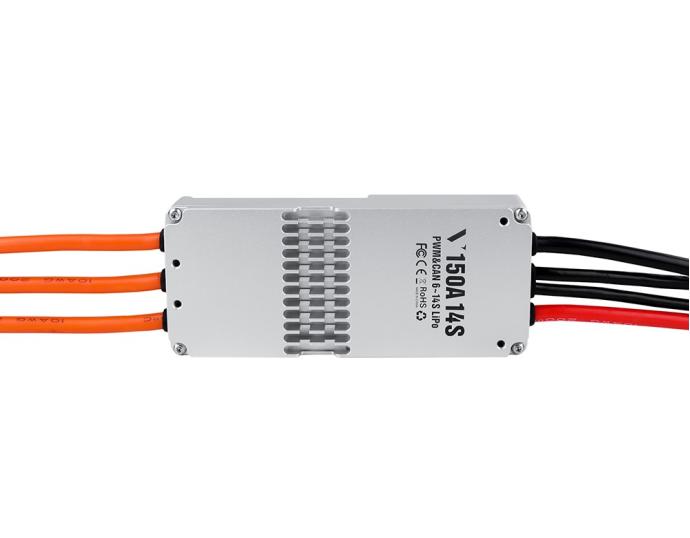

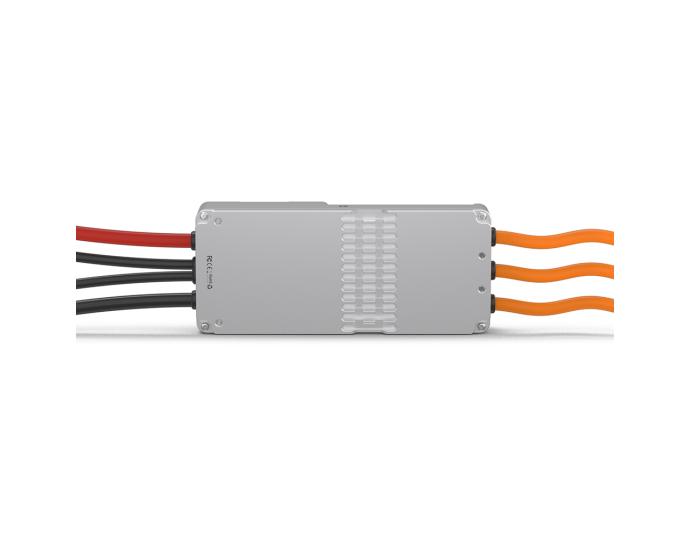

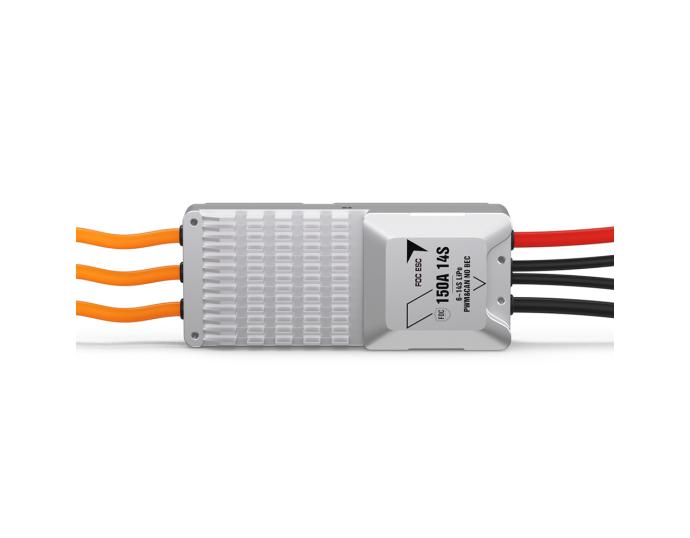

    V150A 14S
    V150A 14STHE ADVANCED EDITION OF FOC ESCS

    Fast
    response

    Efficient
    driving

    Accurate
    control

    Low-noise
    operation

    recommendation

    VL8020/8022
    MOTOR
    V150A
    ESC
    VZ28/29
    PROPELLER

    Specification

    6~14S

    Support Voltage

    70A

    Con. Current

    160A(3s)

    Peak Current

    206g(excl. cable)/295g

    ESC Weight

    116*49*31mm

    ESC Size

    Technical Drawing

    Specification Export to Excel

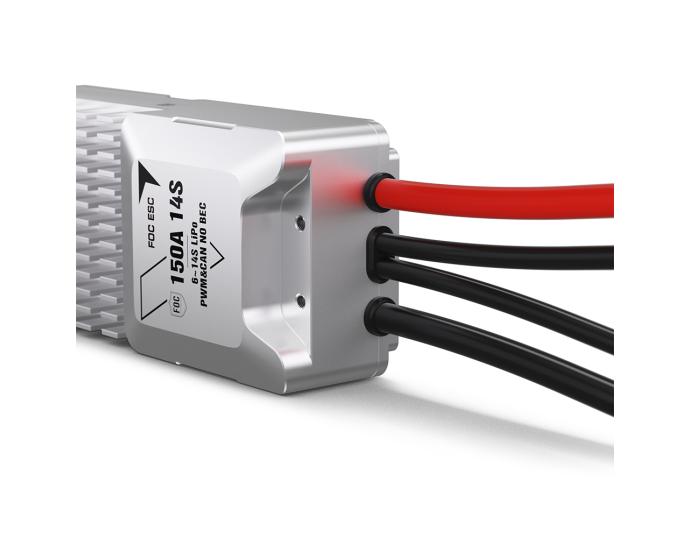

    Model No.V150A 14SPower CableSilicone wire-red/black
    -10AWG-200mm
    Size116*49*31mm (L*W*H)Signal CableShielded cables-Black-OD4.2-5C
    -500mm-JP-3P*2-Black blank
    white-green yellow gray
    Weight(Incl. cables)295gEncoder cablesShielded cables-Black-24AWG-5C
    -450mm-M6 aviation connector

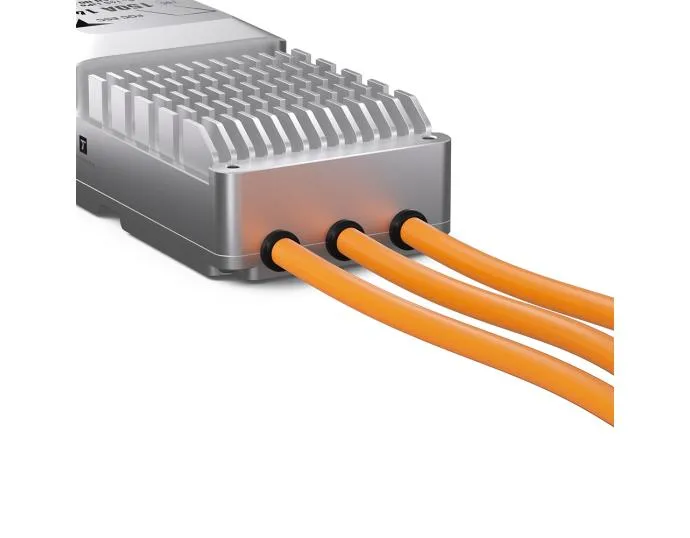

    Motor CableSilicone wire-orange-10AWG-150mmProtocolPWM/CAN
    Support Voltage18~60V (6~14S)BECNO
    Continuous Current70AThrottle Pos. Range1040-1940
    Peak Current(<10s)160AThrottle Refresh Frequency50-500HZ
    Standby Consumption≤50mA@48VThrottle Response Speed300ms

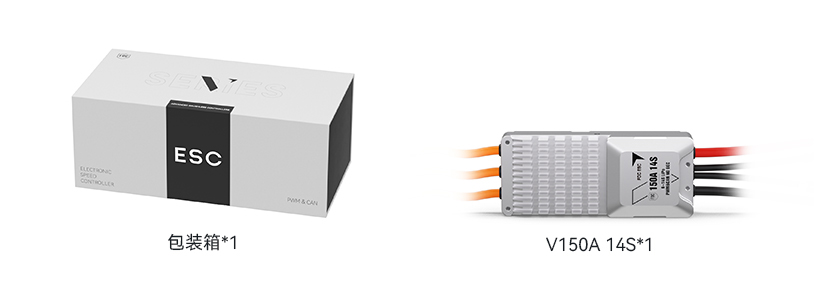

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
