    V60A 14S

    129.90

    Available points: 130 Points Points reward: 129 Points

    Quantity：

    129.90

    USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

    • Detail information
    • Specifications
    • Download

    Hot Products

    V60A 14S
    V60A 14STHE ADVANCED EDITION OF FOC ESCS

    Fast
    response

    Efficient
    driving

    Accurate
    control

    Low-noise
    operation

    recommendation

    VL5009/6011
    MOTOR
    V60A
    ESC
    DZ17/P22
    PROPELLER

    Specification

    6~14S

    Support Voltage

    30A

    Con. Current

    60A(10S)

    Peak Current

    63g(excl. cable)/85g

    ESC Weight

    77*33*19mm

    ESC Size

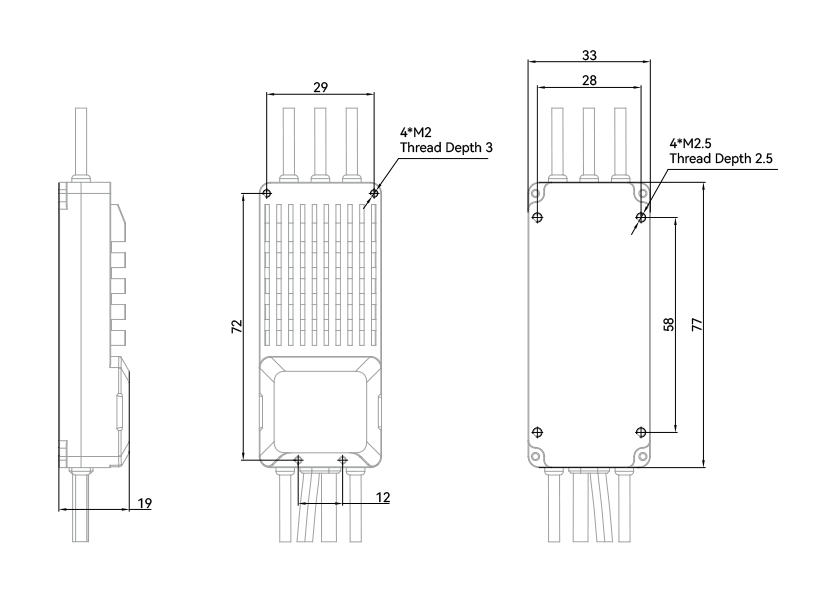

    Technical Drawing

    Specification
    Model No.V60A 14SPower CableSilicone wire-red/black
    -14AWG-160mm
    Size77*33*19mm (L*W*H)Signal CableShielded cables-Black-OD4.2-5C
    -300mm-JP-3P*2-Black blank
    white-green yellow gray
    Weight(Incl. cables)85gEncoder cablesShielded cables-Black-24AWG-5C
    -300mm-M6 aviation connector
    Motor CableSilicone wire-orange-16AWG-60mmProtocolPWM/CAN
    Support Voltage18~60V (6~14S)BECNO
    Continuous Current30AThrottle Pos. Range1040-1940
    Peak Current(<10s)60AThrottle Refresh Frequency50-500HZ
    Standby Consumption≤50mA@48VThrottle Response Speed300ms
    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
