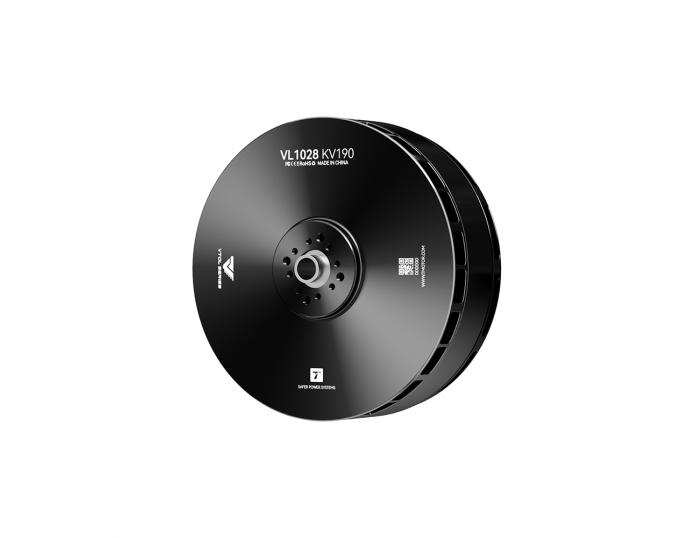

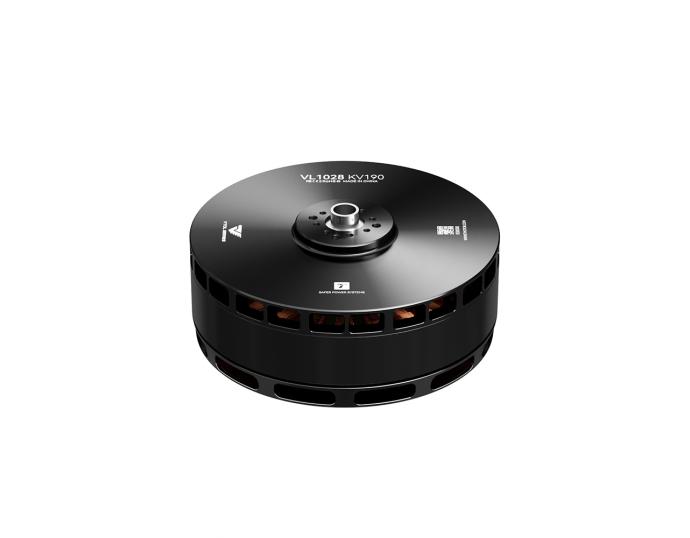

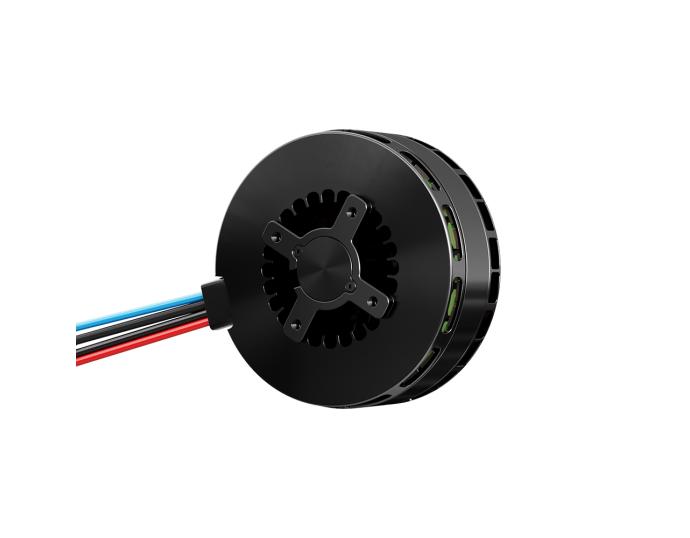

Name: T-MOTOR VL1028: Drone Motors for Heavy Lifting UAVs
Brand: T-Motor
SKU: T-MOTOR001400
Price: 409.00 USD
Availability: InStock

Collect

Detail information
Specifications
Download

Hot Products

VL Series
Propulsion System

VL1028 KV190

MOTOR

V200A

ESC

G29

PROPELLER

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Recommendation

12S

Voltage

28kg

Max Thrust/Arm

45~50kg

Recommended MTOW(Quad)

Technical Drawing


Specification

Model No.	VL1028	Magnet Level	180℃
Motor Size	Φ109.6*52.5mm	Lead Cable	Enameled wire 150mm
Stator	150°C high temperature -resisting coatings	Copper Wire	220℃
Configuration	24N28P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 12 OUT: 10	Rotor Dynamic Balance Standard	≤15mg
Bearing	Imported 6901	IP	IPX5
Centrifugal Cooling Design	YES	Package Size	19014080mm

Model No.	VL1028	KV (RPM/V)	190
Rated Voltage (LiPo)	12S	Idle Current (15V)	3.8A
Internal Resistance(25℃)	8mΩ	Peak Current	180A
Continuous Power(180s)	3200W	Ambient Temperature	-30℃～55℃
Max. Thrust	25.6kg	Motor Weight (indl. Cable)	940g

ESC specs.
Model No.	V200A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	220A (Under certain heat dissipation conditions)	Propeller-locking	ElectronicPropeller -locking
Continuous Current	120A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black-24AWG-5C-450±10mm-M6 aviation connector
Standby Consumption	≤50mA	Output Cable	Silicone wire-orange-14AWG-250±10mm
Throttle Pos. Range	1100-1940us (fixed)	Input Cable	Silicone wire-red/black-12AWG-1200±10mm
Throttle Refresh Frequency	50~500Hz	Signal Cable	Shielded cables-Black-OD4.2-5C-800±10mm-JP-3P*2-Black blank white-green yellow gray
Throttle Response Speed	300ms	Weight (Incl. cables)	495±10g

Prop specs.
Model No.	G299.5 inch (736.6241.3mm)	Weight (Single Blade)	95±5g

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
VL1028 KV190 + V200A 14S + G29*9.5	40%	44.71	5565	1.82	14.61	2743	653	8.52	68 (Ambient Temperature: 25)
	42%	44.67	6080	1.98	16.62	2879	742	8.19
	44%	44.64	6664	2.18	18.92	3011	844	7.89
	46%	44.61	7279	2.37	21.37	3143	953	7.64
	48%	44.59	7893	2.56	24.00	3273	1070	7.37
	50%	44.57	8603	2.79	27.01	3398	1204	7.15
	52%	44.54	9236	3.01	30.10	3526	1341	6.89
	54%	44.51	9881	3.22	33.33	3649	1484	6.66
	56%	44.47	10574	3.45	36.82	3768	1637	6.46
	58%	44.42	11284	3.68	40.61	3885	1804	6.25
	60%	44.36	12071	3.93	44.66	3999	1981	6.09
	62%	44.30	12814	4.18	48.95	4107	2168	5.91
	64%	44.25	13501	4.40	53.14	4217	2351	5.75
	66%	44.18	14222	4.64	57.76	4324	2552	5.57
	68%	44.11	14949	4.89	62.59	4430	2761	5.41
	70%	44.04	15640	5.14	67.69	4532	2981	5.25
	80%	43.74	19280	6.35	96.45	5021	4219	4.57
	90%	43.88	22918	7.58	135.09	5466	5928	3.86
	100%	43.31	24564	8.13	177.33	5638	7679	3.20
VL1028 KV190 + V200A 14S + G29*9.5	40%	50.25	7075	2.31	18.25	3089	917	7.72	68 (Ambient Temperature: 25)
	42%	50.21	7766	2.54	20.91	3238	1050	7.39
	44%	50.16	8472	2.77	23.76	3384	1192	7.11
	46%	50.11	9199	3.01	26.89	3532	1348	6.82
	48%	50.07	10007	3.27	30.21	3672	1512	6.62
	50%	50.02	10786	3.53	33.84	3808	1693	6.37
	52%	49.97	11579	3.79	37.76	3944	1887	6.13
	54%	49.92	12431	4.07	41.97	4075	2095	5.93
	56%	49.85	13296	4.35	46.38	4203	2312	5.75
	58%	49.78	14139	4.63	51.02	4330	2540	5.56
	60%	49.72	14996	4.91	55.88	4452	2778	5.40
	62%	49.65	15826	5.20	60.98	4577	3028	5.23
	64%	49.59	16622	5.47	66.30	4693	3288	5.05
	66%	49.53	17552	5.77	72.19	4802	3575	4.91
	68%	49.46	18445	6.07	78.32	4910	3874	4.76
	70%	49.40	19313	6.36	84.64	5016	4181	4.62
	80%	49.07	23351	7.74	120.83	5495	5929	3.94
	90%	49.21	24306	8.11	152.31	5600	7495	3.24
	100%	49.23	25609	8.54	158.17	5735	7787	3.28
Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

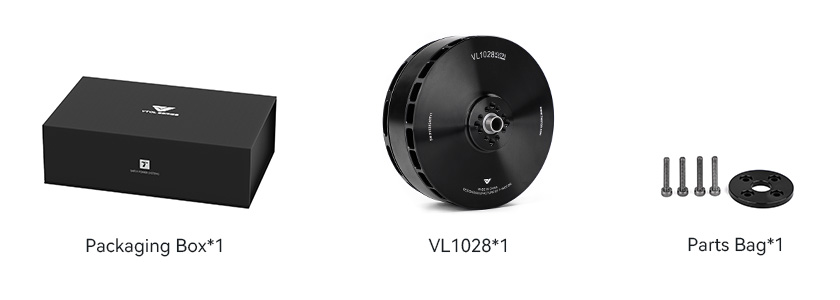

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.

VL1028 3D Diagram
