Name: T-MOTOR VL1032: Big Drone Motor for Heavy-Lift UAVs
Brand: T-Motor
SKU: T-MOTOR001401
Price: 439.00 USD
Availability: InStock

Collect

Detail information
Specifications
Download

Hot Products

VL Series
Propulsion System

VL1032 KV180

MOTOR

V200A

ESC

G30

PROPELLER

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Recommendation

12S

Voltage

32kg

Max Thrust/Arm

50~55kg

Recommended MTOW(Quad)

Technical Drawing


Specification

Model No.	VL1032	Magnet Level	180℃
Motor Size	Φ109.6*56mm	Lead Cable	Enameled wire 150mm
Stator	150°C high temperature -resisting coatings	Copper Wire	220℃
Configuration	24N28P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 12 OUT: 10	Rotor Dynamic Balance Standard	≤15mg
Bearing	Imported 6901	IP	IPX5
CentrifugalCooling Design	YES	Package Size	19014080mm

Model No.	VL1032	KV (RPM/V)	180
Rated Voltage (LiPo)	12S	Idle Current (15V)	4.6A
Internal Resistance(25℃)	6.5mΩ	Peak Current	200A
Continuous Power(180s)	3500W	Ambient Temperature	-30℃～55℃
Max. Thrust	31.7kg	Motor Weight(indl. Cable)	1090g

ESC specs.
Model No.	V200A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	220A (Under certain heat dissipation conditions)	Propeller-locking	ElectronicPropeller -locking
Continuous Current	120A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector
Standby Consumption	≤50mA	Output Cable	Silicone wire-orange -14AWG-250±10mm
Throttle Pos. Range	1100-1940us (fixed)	Input Cable	Silicone wire-red/black -12AWG-1200±10mm
Throttle RefreshFrequency	50~500Hz	Signal Cable	Shielded cables-Black -OD4.2-5C-800±10mm -JP-3P*2-Black blank white -green yellow gray
Throttle ResponseSpeed	300ms	Weight (Incl. cables)	495±10g

Prop specs.
Model No.	G3010.5 inch (762266.7mm)	Weight (Single Blade)	97±5g

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
VL1032 KV180 + V200A 14S + G30*10.5	40%	45.00	5977	2.04	15.95	2628	718	8.33	77 (Ambient Temperature: 25)
	42%	44.95	6656	2.25	18.31	2754	823	8.09
	44%	44.90	7338	2.48	20.85	2881	936	7.84
	46%	44.86	7960	2.69	23.50	3009	1054	7.56
	48%	44.81	8696	2.94	26.50	3131	1188	7.32
	50%	44.78	9420	3.19	29.72	3249	1331	7.08
	52%	44.75	10124	3.43	33.02	3369	1478	6.85
	54%	44.71	10979	3.71	36.81	3483	1646	6.67
	56%	44.66	11696	3.96	40.50	3596	1809	6.47
	58%	44.61	12520	4.24	44.62	3706	1990	6.30
	60%	44.55	13324	4.51	48.96	3813	2181	6.11
	62%	44.49	14151	4.79	53.52	3918	2381	5.94
	64%	44.43	14906	5.07	58.12	4021	2582	5.78
	66%	44.36	15696	5.35	63.00	4120	2795	5.61
	68%	44.31	16490	5.62	68.11	4220	3018	5.46
	70%	44.25	17241	5.90	73.31	4318	3244	5.32
	80%	44.11	21279	7.33	103.16	4763	4550	4.68
	90%	44.63	25317	8.76	140.00	5157	6248	4.05
	100%	43.32	29275	10.21	192.07	5519	8321	3.52
VL1032 KV180 + V200A 14S + G30*10.5	40%	50.49	7686	2.61	20.02	2967	1011	7.61	77 (Ambient Temperature: 25)
	42%	50.45	8540	2.90	23.03	3107	1162	7.35
	44%	50.41	9311	3.16	26.11	3244	1316	7.07
	46%	50.37	10181	3.46	29.60	3381	1491	6.83
	48%	50.32	11078	3.76	33.33	3512	1677	6.61
	50%	50.27	12003	4.07	37.34	3641	1877	6.39
	52%	50.21	12854	4.37	41.44	3768	2081	6.18
	54%	50.15	13784	4.69	45.93	3891	2303	5.99
	56%	50.08	14711	5.01	50.66	4010	2537	5.80
	58%	49.99	15689	5.36	55.84	4131	2791	5.62
	60%	49.94	16654	5.67	61.00	4244	3046	5.47
	62%	49.88	17561	6.00	66.40	4357	3312	5.30
	64%	49.80	18478	6.32	71.95	4465	3583	5.16
	66%	49.74	19373	6.65	77.78	4570	3869	5.01
	68%	49.69	20350	6.99	84.05	4669	4176	4.87
	70%	49.65	21251	7.31	90.37	4767	4487	4.74
	80%	49.49	25745	8.93	125.79	5213	6225	4.14
	90%	49.52	29924	10.46	170.12	5588	8423	3.55
	100%	48.51	31766	11.11	201.10	5729	9756	3.26
Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

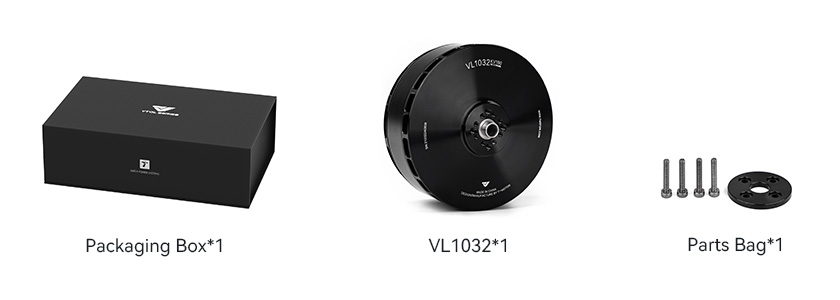

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.

VL1032 3D Diagram
