Name: T-MOTOR VL1035: Large Drone Motors for Heavy-Lift UAVs
Brand: T-Motor
SKU: T-MOTOR001402
Price: 479.00 USD
Availability: InStock

Collect

Detail information
Specifications
Download

Hot Products

VL Series
Propulsion System

VL1035 KV150

MOTOR

V200A

ESC

PL32

PROPELLER

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Recommendation

12S

Voltage

35kg

Max Thrust/Arm

55~60kg

Recommended MTOW(Quad)

Technical Drawing


Specification

Model No.	VL1035	Magnet Level	180℃
Motor Size	Φ109.6*61mm	Lead Cable	Enameled wire 150mm
Stator	150°C high temperature -resisting coatings	Copper Wire	220℃
Configuration	24N28P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 12 OUT: 10	Rotor Dynamic Balance Standard	≤15mg
Bearing	Imported 6901	IP	IPX5
CentrifugalCooling Design	YES	Package Size	19014080mm

Model No.	VL1035	KV (RPM/V)	150
Rated Voltage (LiPo)	14S	Idle Current (15V)	4.2A
Internal Resistance(25℃)	8mΩ	Peak Current	182A
Continuous Power(180s)	4000W	Ambient Temperature	-30℃～55℃
Max. Thrust	36.1kg	Motor Weight(indl. Cable)	1205g

ESC specs.
Model No.	V200A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	220A (Under certain heat dissipation conditions)	Propeller-locking	ElectronicPropeller -locking
Continuous Current	120A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector
Standby Consumption	≤50mA	Output Cable	Silicone wire-orange -14AWG-250±10mm
Throttle Pos. Range	1100-1940us (fixed)	Input Cable	Silicone wire-red/black -12AWG-1200±10mm
Throttle RefreshFrequency	50~500Hz	Signal Cable	Shielded cables-Black -OD4.2-5C-800±10mm -JP-3P*2-Black blank white -green yellow gray
Throttle ResponseSpeed	300ms	Weight (Incl. cables)	495±10g

Prop specs.
Model No.	PL3211 inch (812.8279.4mm)	Weight (Single Blade)	107±5g

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
VL1035 KV150 + V200A 14S + PL32*11	40%	50.43	6085	2.15	13.10	2350	661	9.21	97 (Ambient Temperature: 25)
	42%	50.39	6772	2.40	15.11	2470	761	8.89
	44%	50.36	7424	2.63	17.18	2586	865	8.58
	46%	50.32	8132	2.88	19.50	2700	981	8.29
	48%	50.28	8851	3.13	21.97	2814	1104	8.01
	50%	50.24	9663	3.41	24.74	2927	1243	7.78
	52%	50.21	10433	3.68	27.64	3036	1388	7.52
	54%	50.17	11261	3.97	30.76	3144	1543	7.30
	56%	50.13	12047	4.25	34.02	3253	1705	7.06
	58%	50.09	12793	4.52	37.33	3361	1870	6.84
	60%	50.04	13708	4.84	41.14	3465	2058	6.66
	62%	49.98	14553	5.15	45.04	3567	2251	6.47
	64%	49.93	15449	5.47	49.24	3666	2459	6.28
	66%	49.87	16358	5.81	53.68	3764	2677	6.11
	68%	49.81	17242	6.13	58.25	3860	2901	5.94
	70%	49.75	18136	6.45	62.96	3955	3132	5.79
	80%	49.47	22687	8.10	90.19	4409	4462	5.08
	90%	49.14	27481	9.90	125.48	4829	6166	4.46
	100%	48.83	33017	11.96	181.74	5264	8874	3.72
VL1035 KV150 + V200A 14S + PL32*11	40%	60.14	8863	3.11	18.47	2819	1111	7.98	97 (Ambient Temperature: 25)
	42%	60.10	9781	3.44	21.25	2954	1277	7.66
	44%	60.07	10690	3.76	24.15	3091	1451	7.37
	46%	60.01	11804	4.13	27.55	3222	1653	7.14
	48%	59.96	12821	4.49	31.01	3352	1859	6.90
	50%	59.90	13794	4.85	34.71	3480	2079	6.63
	52%	59.84	14873	5.24	38.83	3605	2324	6.40
	54%	59.78	15959	5.63	43.14	3728	2579	6.19
	56%	59.73	17056	6.03	47.68	3848	2848	5.99
	58%	59.66	18141	6.43	52.45	3966	3129	5.80
	60%	59.58	19320	6.85	57.73	4080	3439	5.62
	62%	59.51	20476	7.28	63.21	4192	3761	5.44
	64%	59.43	21585	7.71	68.96	4300	4098	5.27
	66%	59.35	22734	8.13	74.89	4408	4445	5.11
	68%	59.28	23867	8.54	80.98	4518	4800	4.97
	70%	59.19	25054	8.97	87.53	4621	5181	4.84
	80%	58.60	30871	11.16	125.47	5097	7353	4.20
	90%	58.67	34246	12.45	153.36	5350	8998	3.81
	100%	58.58	36173	13.19	174.95	5490	10248	3.53
Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 50V for10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

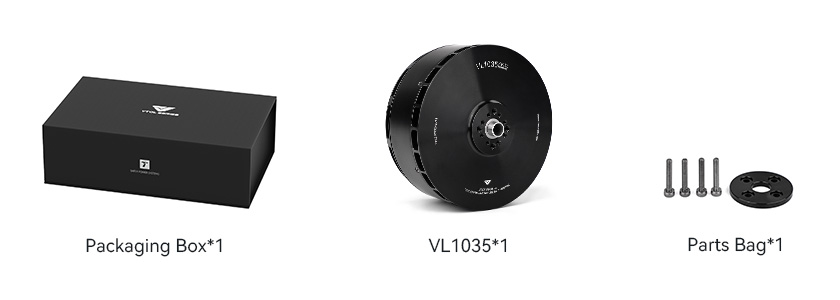

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.

VL1035 3D Diagram
