Name: T-MOTOR VL5009: Efficient Brushless Motor for UAVs
Brand: T-Motor
SKU: T-MOTOR001403
Price: 129.00 USD
Availability: InStock

Collect

Detail information
Specifications
Download

Hot Products

VL Series
Propulsion System

VL5009 KV275

MOTOR

V60A

ESC

DZ17

PROPELLER

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Recommendation

12S

Voltage

8.5kg

Max Thrust/Arm

12~15kg

Recommended MTOW(Quad)

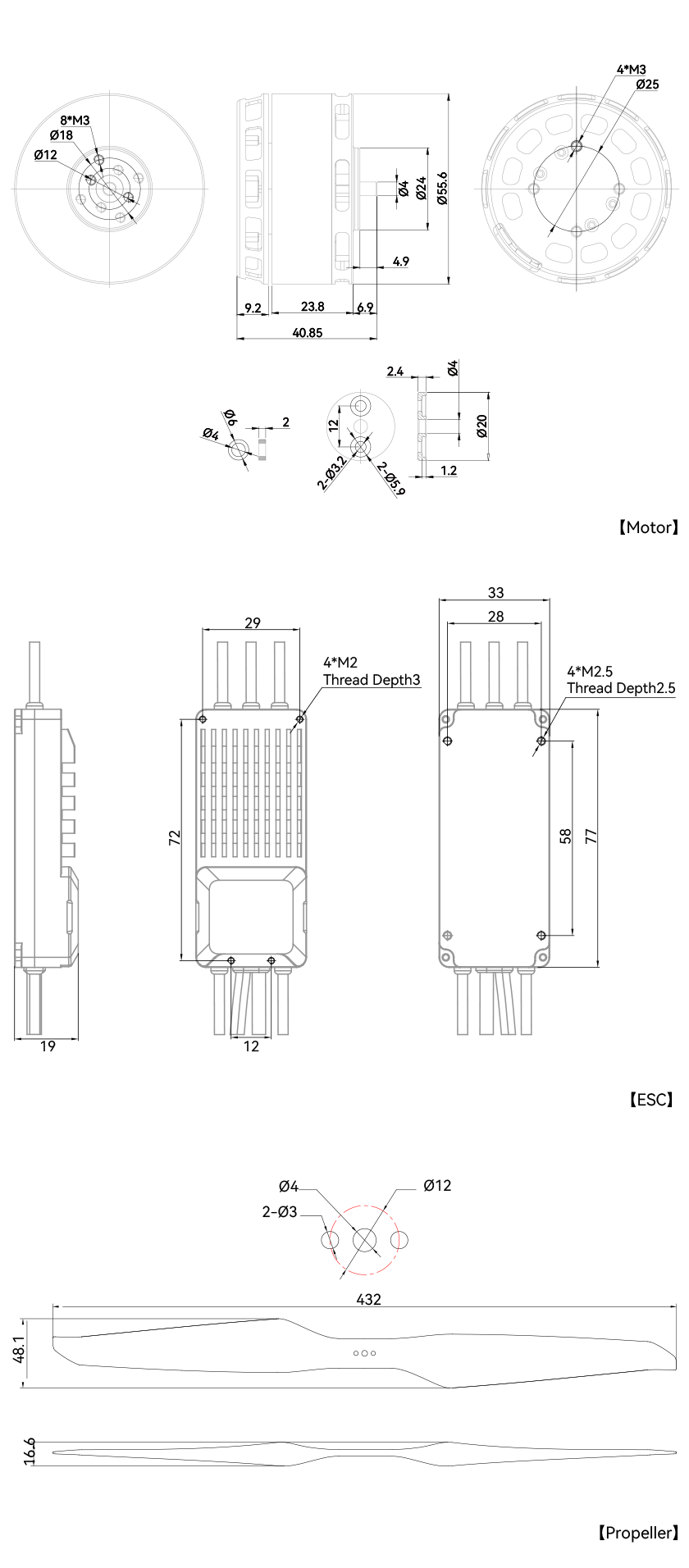

Technical Drawing


Specification

Model No.	VL5009	Magnet Level	180℃
Motor Size	Φ55.6*38.85mm	Lead Cable	Silicone wire 16# 600mm
Stator	150°C high temperature -resisting coatings	Copper Wire	240℃
Configuration	18N20P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 6 OUT: 4	Rotor Dynamic BalanceStandard	≤10mg
Bearing	Imported 696	IP	IPX5
CentrifugalCooling Design	YES	Package Size	13510450mm

Model No.	VL5009	KV (RPM/V)	275
Rated Voltage (LiPo)	12S	Idle Current (15V)	1.1A
Internal Resistance(25℃)	66mΩ	Peak Current	52A
Continuous Power(180s)	930W	Ambient Temperature	-30℃～55℃
Max. Thrust	8.5kg	Motor Weight(indl. Cable)	280g

ESC specs.
Model No.	V60A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	60A (Under certain heat dissipation conditions)	Propeller-locking	ElectronicPropeller -locking
Continuous Current	30A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black -24AWG-5C-300±10mm -M6 aviation connector
Standby Consumption	≤50mA	Output Cable	Silicone wire-orange -16AWG-60±10mm
Throttle Pos. Range	1100-1940us (fixed)	Input Cable	Silicone wire-red/black -14AWG-160±10mm
Throttle RefreshFrequency	50~500Hz	Signal Cable	Shielded cables-Black -OD4.2-5C-300±10mm -JP-3P*2-Black blank white-green yellow gray
Throttle ResponseSpeed	300ms	Weight (Incl. cables)	85g

Prop specs.
Model No.	DZ176.2 (431.8157.5mm)	Weight(Single Blade)	28±3g

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
VL5009 KV275 + V60A 14S + DZ17*6.2	40%	45.11	1510	0.31	3.78	4225	170	8.72	74 (Ambient Temperature: 25℃)
	42%	45.14	1678	0.34	4.36	4440	197	8.39
	44%	45.18	1857	0.38	5.00	4661	226	8.08
	46%	45.22	2038	0.41	5.71	4879	258	7.76
	48%	45.25	2218	0.45	6.43	5096	291	7.49
	50%	45.29	2437	0.49	7.31	5308	331	7.24
	52%	45.32	2659	0.53	8.22	5521	373	7.02
	54%	45.35	2876	0.58	9.21	5737	418	6.77
	56%	45.36	3094	0.62	10.27	5957	466	6.53
	58%	45.40	3333	0.67	11.45	6172	520	6.30
	60%	45.42	3572	0.72	12.65	6388	574	6.11
	62%	45.44	3823	0.77	13.98	6601	635	5.92
	64%	45.47	4078	0.81	15.41	6822	701	5.72
	66%	45.49	4366	0.87	17.07	7039	777	5.53
	68%	45.51	4643	0.93	18.78	7251	855	5.34
	70%	45.53	4922	0.99	20.57	7465	937	5.17
	80%	45.61	6711	1.35	33.29	8618	1518	4.35
	90%	45.65	8490	1.72	51.52	9628	2352	3.55
	100%	45.60	8624	1.76	51.70	9665	2357	3.60
VL5009 KV275 + V60A 14S + DZ17*6.2	40%	50.85	1890	0.39	4.74	4752	241	7.84	74 (Ambient Temperature: 25℃)
	42%	50.90	2119	0.44	5.47	4999	278	7.61
	44%	50.94	2330	0.48	6.29	5245	320	7.27
	46%	50.98	2565	0.53	7.20	5485	367	6.99
	48%	51.02	2794	0.57	8.15	5729	416	6.72
	50%	51.04	3045	0.62	9.23	5974	471	6.46
	52%	51.08	3302	0.67	10.36	6220	529	6.24
	54%	51.12	3609	0.73	11.74	6466	600	6.01
	56%	51.15	3870	0.79	13.09	6708	670	5.78
	58%	51.17	4167	0.85	14.66	6951	750	5.56
	60%	51.20	4482	0.91	16.35	7201	837	5.35
	62%	51.22	4817	0.98	18.23	7441	934	5.16
	64%	51.24	5142	1.05	20.18	7688	1034	4.97
	66%	51.26	5432	1.11	22.14	7883	1135	4.79
	68%	51.27	5744	1.17	24.72	8099	1267	4.53
	70%	51.30	6342	1.29	27.98	8477	1435	4.42
	80%	51.34	8358	1.72	46.00	9599	2362	3.54
	90%	51.31	8443	1.75	46.25	9653	2373	3.56
	100%	51.28	8551	1.77	46.43	9689	2381	3.59
Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

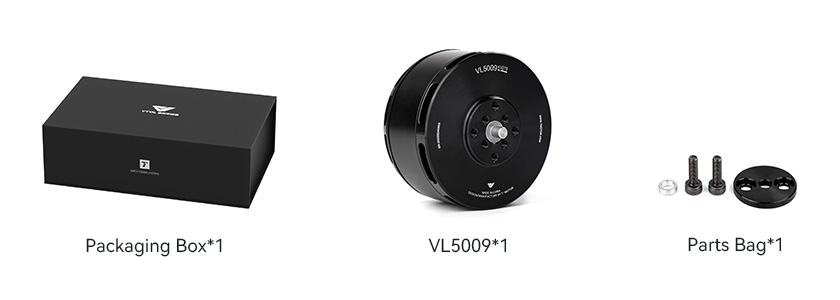

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
