Name: T-MOTOR VL6013: Heavy Drone Motor for VTOL UAV
Brand: T-Motor
SKU: T-MOTOR001405
Price: 159.00 USD
Availability: InStock

Collect

Detail information
Specifications
Download

Hot Products

VL Series
Propulsion System

VL6013 KV210

MOTOR

V200A

ESC

P22

PROPELLER

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Recommendation

12S

Voltage

13kg

Max Thrust/Arm

20~22kg

Recommended MTOW(Quad)

Technical Drawing


Specification

Model No.	VL6013	Magnet Level	180℃
Motor Size	Φ68.8*39.4mm	Lead Cable	Silicone wire14# 600mm
Stator	150°C high temperature -resisting coatings	Copper Wire	220℃
Configuration	24N28P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 6 OUT: 4	Rotor Dynamic BalanceStandard	≤10mg
Bearing	Imported 626	IP	IPX5
CentrifugalCooling Design	YES	Package Size	13510450mm

Model No.	VL6013	KV (RPM/V)	210
Rated Voltage (LiPo)	12S	Idle Current (15V)	1.5A
Internal Resistance(25℃)	50mΩ	Peak Current	70A
Continuous Power(180s)	13000W	Ambient Temperature	-30℃～55℃
Max. Thrust	13.1kg	Motor Weight(indl. Cable)	388g

ESC specs.
Model No.	V80A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	80A (Under certain heat dissipation conditions)	Propeller-locking	ElectronicPropeller -locking
Continuous Current	40A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector
Standby Consumption	≤50mA	Output Cable	Silicone wire-orange -14AWG-110±10mm
Throttle Pos. Range	1040~1940us (fixed)	Input Cable	Silicone wire-red/black -12AWG-180±10mm
Throttle RefreshFrequency	50~500Hz	Signal Cable	Shielded cables-Black -OD4.2-5C-450±10mm -JP-3P*2-Black blank white-green yellow gray
Throttle ResponseSpeed	300ms	Weight (Incl. cables)	110g

Prop specs.
Model No.	P226.6 inch (558.8167.6mm)	Weight (Single Blade)	45±2g

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
VL6013 KV210 + V80A 14S + P22*6.6	40%	45.02	2384	0.60	5.76	3343	259	9.19	72 (Ambient Temperature: 25)
	42%	45.06	2649	0.67	6.66	3512	300	8.83
	44%	45.08	2950	0.74	7.65	3676	345	8.56
	46%	45.10	3228	0.80	8.67	3841	391	8.26
	48%	45.12	3562	0.88	9.87	4001	445	8.00
	50%	45.13	3841	0.95	11.06	4165	499	7.70
	52%	45.15	4203	1.03	12.45	4332	562	7.47
	54%	45.15	4551	1.12	13.92	4493	628	7.24
	56%	45.15	4907	1.21	15.49	4648	699	7.02
	58%	45.15	5250	1.29	17.14	4805	774	6.78
	60%	45.15	5624	1.39	18.97	4961	857	6.57
	62%	45.13	6022	1.48	20.96	5126	946	6.37
	64%	45.12	6411	1.58	22.99	5274	1037	6.18
	66%	45.12	6827	1.68	25.23	5423	1138	6.00
	68%	45.11	7241	1.78	27.58	5574	1244	5.82
	70%	45.09	7670	1.89	30.18	5730	1361	5.63
	80%	44.97	9973	2.47	45.95	6468	2066	4.83
	90%	44.62	12189	3.04	77.83	7113	3473	3.51
	100%	44.56	12517	3.13	77.35	7195	3447	3.63
VL6013 KV210 + V80A 14S + P22*6.6	40%	50.82	3099	0.76	7.28	3748	370	8.38	72 (Ambient Temperature: 25)
	42%	50.86	3431	0.84	8.39	3933	427	8.04
	44%	50.89	3810	0.93	9.68	4119	493	7.74
	46%	50.91	4174	1.02	10.98	4300	559	7.46
	48%	50.93	4547	1.11	12.42	4485	633	7.19
	50%	50.96	4939	1.20	14.00	4663	713	6.93
	52%	50.97	5363	1.31	15.79	4846	805	6.66
	54%	50.99	5805	1.42	17.65	5016	900	6.45
	56%	51.00	6233	1.52	19.61	5189	1000	6.23
	58%	51.00	6680	1.64	21.76	5360	1110	6.02
	60%	51.01	7163	1.75	24.08	5537	1228	5.83
	62%	51.01	7661	1.88	26.66	5711	1360	5.63
	64%	51.01	8139	1.99	29.28	5873	1493	5.45
	66%	50.99	8622	2.12	32.10	6041	1637	5.27
	68%	50.98	9179	2.25	35.38	6208	1803	5.10
	70%	50.97	9690	2.38	38.66	6371	1970	4.92
	80%	50.70	12526	3.12	61.65	7175	3125	4.01
	90%	50.71	12759	3.18	69.88	7224	3543	3.60
	100%	50.63	13084	3.27	69.90	7311	3539	3.70
Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

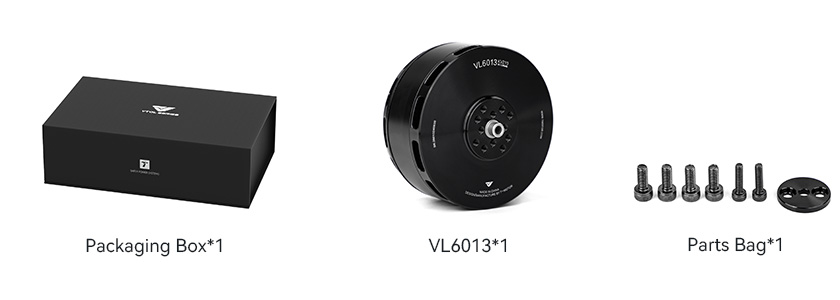

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.

VL6013 3D Diagram
