Name: T-MOTOR VL7015: Large Brushless Motor for High-Thrust UAVs
Brand: T-Motor
SKU: T-MOTOR001406
Price: 229.00 USD
Availability: InStock

Collect

Detail information
Specifications
Download

Hot Products

VL Series
Propulsion System

VL7015 KV190

MOTOR

V80A

ESC

P24

PROPELLER

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Recommendation

12S

Voltage

15kg

Max Thrust/Arm

22~24kg

Recommended MTOW(Quad)

Technical Drawing


Specification

Model No.	VL7015	Magnet Level	180℃
Motor Size	Φ79.2*44.4mm	Lead Cable	Silicone wire14# 600mm
Stator	150°C high temperature -resisting coatings	Copper Wire	220℃
Configuration	24N28P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 8 OUT: 8	Rotor Dynamic BalanceStandard	≤10mg
Bearing	Imported 608	IP	IP25
CentrifugalCooling Design	YES	Package Size	15813564mm

Model No.	VL7015	KV (RPM/V)	190
Rated Voltage (LiPo)	12S	Idle Current (15V)	2.0A
Internal Resistance(25℃)	35mΩ	Peak Current	85A
Continuous Power(180s)	1600W	Ambient Temperature	-30℃～55℃
Max. Thrust	15.8kg	Motor Weight(indl. Cable)	540g

ESC specs.
Model No.	V80A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	80A (Under certain heat dissipation conditions)	Propeller-locking	ElectronicPropeller -locking
Continuous Current	40A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector
Standby Consumption	≤50mA	Output Cable	Silicone wire-orange -14AWG-110±10mm
Throttle Pos. Range	1040~1940us (fixed)	Input Cable	Silicone wire-red/black -12AWG-180±10mm
Throttle RefreshFrequency	50~500Hz	Signal Cable	Shielded cables-Black -OD4.2-5C-450±10mm -JP-3P*2-Black blank white-green yellow gray
Throttle ResponseSpeed	300ms	Weight (Incl. cables)	110g

Prop specs.
Model No.	P247.2 inch (610198.1mm)	Weight (Single Blade)	60±5g

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
VL7015 KV190 + V80A 14S + P24*7.2	40%	44.31	2639	0.71	6.70	2975	297	8.88	79 (Ambient Temperature: 25)
	42%	44.30	2915	0.78	7.64	3128	338	8.61
	44%	44.28	3232	0.86	8.72	3276	386	8.37
	46%	44.27	3547	0.95	9.89	3428	438	8.10
	48%	44.25	3867	1.03	11.13	3574	492	7.86
	50%	44.23	4227	1.12	12.53	3724	554	7.63
	52%	44.21	4591	1.21	13.97	3867	617	7.44
	54%	44.19	4936	1.31	15.51	4012	685	7.20
	56%	44.16	5310	1.40	17.20	4156	759	6.99
	58%	44.14	5685	1.50	18.95	4295	836	6.80
	60%	44.11	6054	1.59	20.77	4426	916	6.61
	62%	44.08	6454	1.70	22.79	4564	1005	6.42
	64%	44.06	6781	1.79	24.74	4702	1090	6.22
	66%	44.02	7210	1.90	27.06	4840	1191	6.05
	68%	43.99	7669	2.02	29.54	4979	1299	5.90
	70%	43.95	8130	2.13	32.14	5114	1413	5.75
	80%	43.73	10545	2.77	47.74	5783	2088	5.05
	90%	43.42	13234	3.49	69.14	6441	3002	4.41
	100%	43.32	13839	3.66	75.39	6584	3266	4.24
VL7015 KV190 + V80A 14S + P24*7.2	40%	49.89	3354	0.89	8.25	3337	412	8.15	79 (Ambient Temperature: 25)
	42%	49.87	3719	0.99	9.49	3509	473	7.86
	44%	49.85	4103	1.09	10.80	3675	539	7.62
	46%	49.83	4507	1.19	12.25	3844	610	7.38
	48%	49.81	4922	1.29	13.82	4008	688	7.15
	50%	49.78	5320	1.40	15.49	4173	771	6.90
	52%	49.76	5765	1.51	17.32	4333	862	6.69
	54%	49.73	6231	1.63	19.32	4494	961	6.49
	56%	49.70	6696	1.76	21.48	4656	1068	6.27
	58%	49.67	7186	1.88	23.71	4810	1178	6.10
	60%	49.63	7679	2.02	26.17	4970	1299	5.91
	62%	49.60	8114	2.13	28.52	5121	1415	5.74
	64%	49.56	8645	2.27	31.38	5274	1555	5.56
	66%	49.52	9163	2.41	34.23	5423	1695	5.41
	68%	49.47	9674	2.54	37.18	5570	1840	5.26
	70%	49.43	10167	2.67	40.28	5716	1991	5.11
	80%	49.15	13102	3.45	59.91	6408	2945	4.45
	90%	49.00	14024	3.76	69.49	6683	3405	4.18
	100%	48.79	15867	4.16	83.63	6988	4080	3.84
Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

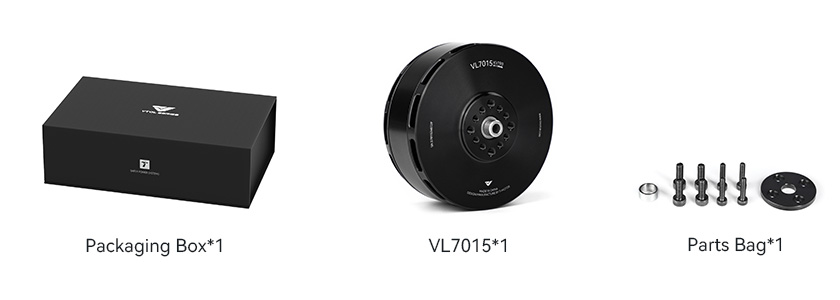

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.

VL7015 3D Diagram
