Name: T-MOTOR VL8015: Large BLDC Motor for Efficient UAV Propulsion
Brand: T-Motor
SKU: T-MOTOR001407
Price: 269.00 USD
Availability: InStock

Collect

Detail information
Specifications
Download

Hot Products

VL Series
Propulsion System

VL8015 KV170

MOTOR

V80A

ESC

G26

PROPELLER

Fast and economical
propeller locking

Fast (Lock the propeller in seconds)

The 360° custom angle propeller-locking can effectively avoid the turbulence caused by the rotation of the rotor and ensure that the aerodynamic layout of the fixed-wing aircraft is not affected, thereby improving flight safety

Economical (Adaptive propeller locking)

The ESC can automatically adjust the current to control the torque to lock the propeller as per the change of external force, reducing power consumption and heat to achieve energy saving

Recommendation

12S

Voltage

14.8kg

Max Thrust/Arm

25kg

Recommended MTOW(Quad)

Technical Drawing


Specification

Model No.	VL8015	Magnet Level	180℃
Motor Size	Φ88.8*42mm	Lead Cable	Silicone wire14# 1000mm
Stator	150°C high temperature -resisting coatings	Copper Wire	220℃
Configuration	24N28P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN: 12 OUT: 10	Rotor Dynamic BalanceStandard	≤10mg
Bearing	Imported 6901	IP	IPX5
CentrifugalCooling Design	YES	Package Size	15012057mm

Model No.	VL8015	KV (RPM/V)	170
Rated Voltage (LiPo)	12S	Idle Current (15V)	1.9A
Internal Resistance(25℃)	43mΩ	Peak Current	74A
Continuous Power(180s)	1200W	Ambient Temperature	-30℃～55℃
Max. Thrust	14.8g	Motor Weight(indl. Cable)	610g

ESC specs.
Model No.	V80A	Control	PWM/CAN
Max. Voltage	60V	Protocol	DRONE CAN/UAV CAN
Peak Current (10s)	80A (Under certain heat dissipation conditions)	Propeller-locking	ElectronicPropeller -locking
Continuous Current	40A (Under certain heat dissipation conditions)	Encoder cables	Shielded cables-Black -24AWG-5C-450±10mm -M6 aviation connector
Standby Consumption	≤50mA	Output Cable	Silicone wire-orange -14AWG-110±10mm
Throttle Pos. Range	1040~1940us (fixed)	Input Cable	Silicone wire-red/black -12AWG-180±10mm
Throttle RefreshFrequency	50~500Hz	Signal Cable	Shielded cables-Black -OD4.2-5C-450±10mm -JP-3P*2-Black blank white-green yellow gray
Throttle ResponseSpeed	300ms	Weight (Incl. cables)	110g

Prop specs.
Model No.	G268.5 inch (660.4215.9mm)	Weight (Single Blade)	68±5g

Test Data

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
VL8015 KV170 + V80A 14S + G26*8.5	40%	44.59	2944	0.89	6.53	2450	291	10.11	63 (Ambient Temperature: 25)
	42%	44.60	3249	0.98	7.48	2575	334	9.74
	44%	44.60	3558	1.07	8.50	2696	379	9.38
	46%	44.60	3879	1.17	9.62	2817	429	9.04
	48%	44.61	4216	1.26	10.85	2935	484	8.72
	50%	44.61	4575	1.37	12.17	3052	543	8.43
	52%	44.62	4962	1.47	13.62	3167	608	8.16
	54%	44.62	5354	1.59	15.17	3278	677	7.91
	56%	44.64	5726	1.70	16.77	3391	748	7.65
	58%	44.64	6121	1.82	18.53	3503	827	7.40
	60%	44.63	6509	1.93	20.32	3617	907	7.18
	62%	44.62	6920	2.05	22.23	3726	992	6.98
	64%	44.61	7329	2.17	24.26	3835	1082	6.77
	66%	44.60	7762	2.29	26.47	3940	1180	6.58
	68%	44.59	8178	2.42	28.73	4044	1281	6.38
	70%	44.57	8615	2.55	31.20	4145	1391	6.20
	80%	44.37	10932	3.23	45.81	4635	2032	5.38
	90%	44.04	13323	3.95	65.64	5093	2891	4.61
	100%	43.77	14233	4.23	84.17	5278	3684	3.86
VL8015 KV170 + V80A 14S + G26*8.5	40%	50.33	3722	1.10	7.98	2742	402	9.26	63 (Ambient Temperature: 25)
	42%	50.34	4099	1.21	9.17	2876	462	8.88
	44%	50.37	4499	1.33	10.48	3010	528	8.52
	46%	50.39	4916	1.45	11.88	3141	599	8.21
	48%	50.40	5364	1.58	13.44	3268	678	7.92
	50%	50.41	5787	1.70	15.04	3398	758	7.63
	52%	50.43	6228	1.83	16.80	3523	847	7.35
	54%	50.43	6683	1.97	18.66	3648	941	7.10
	56%	50.44	7173	2.11	20.71	3771	1045	6.87
	58%	50.43	7646	2.25	22.78	3891	1149	6.65
	60%	50.43	8136	2.39	25.08	4008	1265	6.43
	62%	50.42	8616	2.53	27.45	4129	1384	6.23
	64%	50.40	9103	2.68	29.97	4244	1511	6.03
	66%	50.37	9613	2.83	32.66	4355	1645	5.84
	68%	50.34	10111	2.98	35.47	4465	1785	5.66
	70%	50.30	10607	3.13	38.42	4574	1933	5.49
	80%	50.18	12159	3.59	48.39	4876	2428	5.01
	90%	50.00	13673	4.04	60.23	5164	3012	4.54
	100%	49.80	14842	4.40	73.75	5377	3673	4.04
Note:Temperatureinthechartisthebelltemperatureafterrunning@75%throttle on 44.4V for10mins. （Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.）

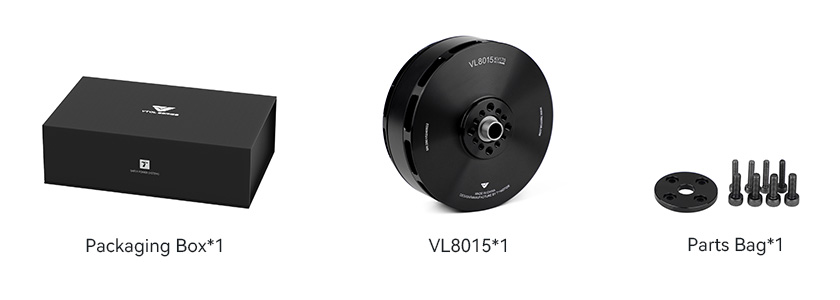

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.

VL8015 3D Diagram
