Specification Export to Excel
| Model No. | X-A12XL II-24S KV47 | Tube Size | 50mm |
| Setup | X-A12XL II-24S (Motor)+24S FOC 120A (ESC)+PFZ4918P (Propeller) | Wire Material,
Wire Gauge, Color | Power Wires: 10#AWG Red & Black
Signal Wires: 5P Teflon |
Recommended
Battery | 20~24S (LiPo) | Wire Length | 1695±10mm |
| Rated Thrust | 28~34kg | Weight | 4980±2%g
(Incl. Wires+Propeller) |
Efficiency At
Rated Thrust | 7.6g/W (33kg) | IP | IPX6 |
| Max. Thrust | 75.4kg | Recommended
Ambient Temperature | -20~55℃ |
| Motor Specs |
| Stator Size | 111*22mm | KV | 47 |
| ESC Specs |
| Throttle Range | 1100~1940us (Fixed) | Max. Voltage | 100V |
| Protocol | DRONE CAN、UAV CAN、
CUBE CAN | Peak Current
(For A Short Time) | 120A
(OpenEnvironment
AndTemperature≤60℃) |
| Control Method | PWM/CAN | BEC | NO |
| Prop Specs |
| Model No. | PFZ4918P
(Folding Carbon Fiber) | Length | 49 Inch (1245.17mm) |

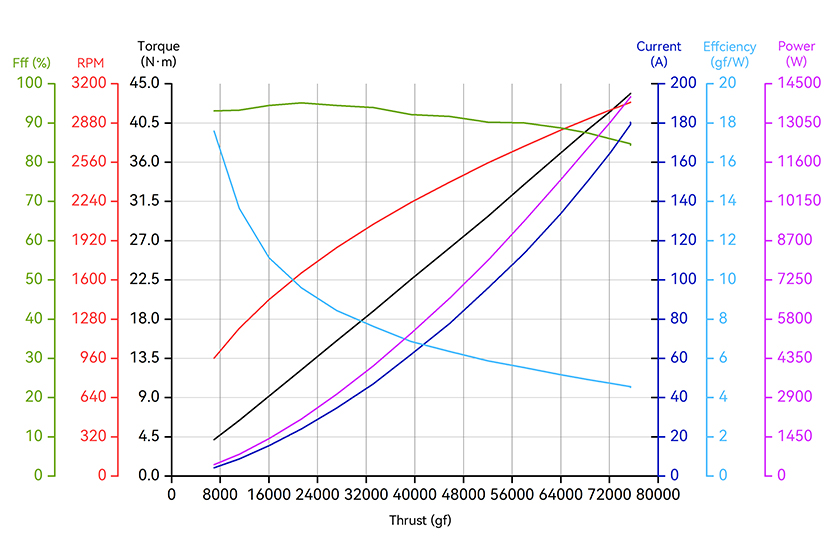

Test Data Export to Excel
| Type | Voltage
(V) | Throttle | Current
(A) | Thrust
(gf) | Torque
(N·m) | RPM | Motor
Efficiency
(%) | Overall
Efficiency
(gf/W) | Operating
Temperature
(℃) |
X-A12XL II-24S KV47
+
24S FOC 120A
+
PFZ4918P | 92 | 30% | 4.29 | 6958 | 4.20 | 963 | 93.10 | 17.60 | 88
(Ambient Temperature: 25) |
| 35% | 8.83 | 11117 | 6.40 | 1207 | 93.31 | 13.65 |
| 40% | 15.60 | 16003 | 9.20 | 1441 | 94.50 | 11.13 |
| 45% | 24.13 | 21350 | 12.20 | 1657 | 95.16 | 9.60 |
| 50% | 34.79 | 27103 | 15.53 | 1864 | 94.53 | 8.45 |
| 55% | 47.09 | 33150 | 18.96 | 2055 | 93.94 | 7.64 |
| 60% | 62.18 | 39403 | 22.59 | 2235 | 92.20 | 6.87 |
| 65% | 77.84 | 45682 | 26.20 | 2399 | 91.71 | 6.36 |
| 70% | 95.93 | 51983 | 29.82 | 2555 | 90.22 | 5.88 |
| 75% | 113.77 | 58009 | 33.50 | 2693 | 90.06 | 5.53 |
| 80% | 133.71 | 63912 | 37.06 | 2821 | 88.78 | 5.18 |
| 85% | 150.79 | 68530 | 39.80 | 2916 | 87.43 | 4.93 |
| 90% | 165.12 | 72159 | 41.87 | 2987 | 86.01 | 4.74 |
| 95% | 179.44 | 75482 | 43.90 | 3050 | 84.74 | 4.56 |
| 100% | 180.44 | 75403 | 43.90 | 3051 | 84.31 | 4.53 |
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.) |

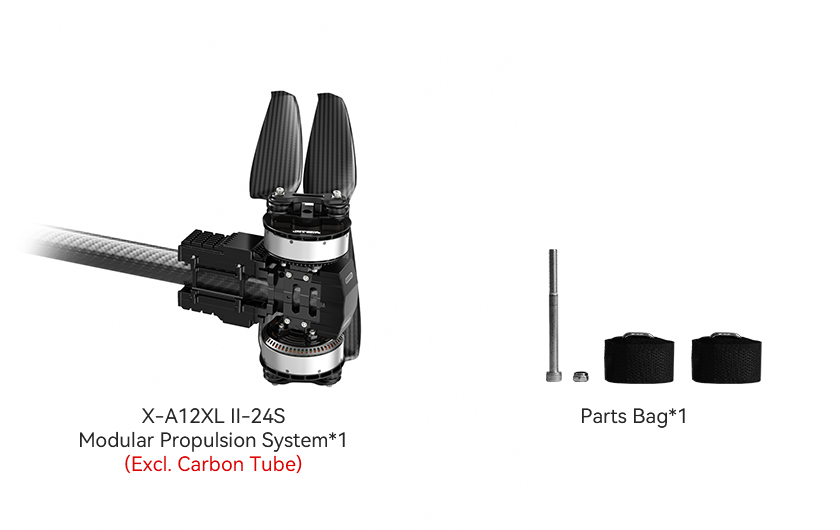

Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to "
