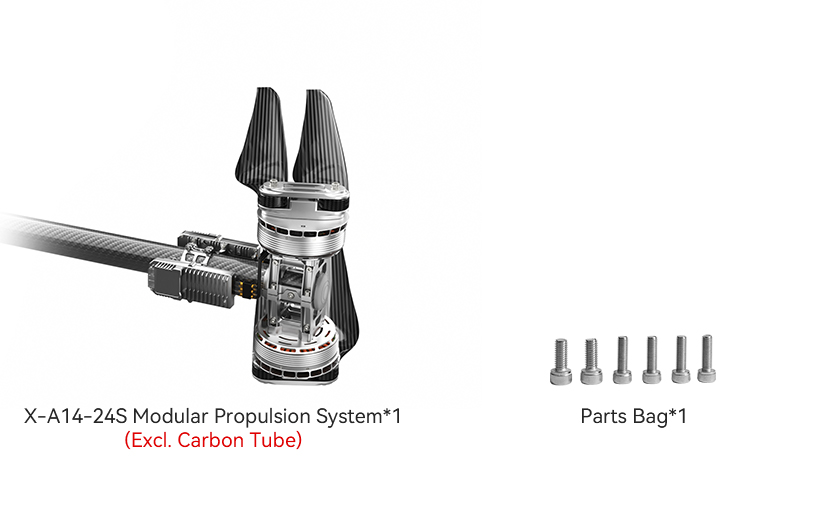

MODULAR Propulsion System
Load capacity
30~50kgAgricultureLoad capacity
90~120kgAgricultureTake-off weight
140~160kgQuadcopterTake-off weight
210~240kgHexacopter
| Model No. | X-A14-24S KV37 | Tube Size | 60mm |
| Setup | A14-24S (Motor)+24S FOC 150A (ESC)+EFZ57 (Propeller) | Wire Material, Wire Gauge, Color | Power Wires: 8#AWG Red & Black Signal Wires: 5+1 Shielded |
| Recommended Battery | 24~28S (LiPo) | Wire Length | 1500±5mm |
| Rated Thrust | 45~50kg | Weight | 9700±2%g (Incl. Wires+Propeller) |
| Efficiency At Rated Thrust | 7.4g/W (45kg) | IP | IPX5 |
| Max. Thrust | 113kg | Recommended Ambient Temperature | -20~55℃ |
| Motor Specs | |||
| Stator Size | 138*25mm | KV | 37 |
| ESC Specs | |||
| Throttle Range | 1100~1940us (Fixed) | Max. Voltage | 120V |
| Protocol | DRONE CAN、UAV CAN、 CUBE CAN | Peak Current (For A Short Time) | 150A (OpenEnvironment AndTemperature≤60℃) |
| Control Method | PWM/CAN | BEC | NO |
| Prop Specs | |||
| Model No. | EFZ57 (Folding Carbon Fiber) | Length | 57 Inch (1447.8mm) |

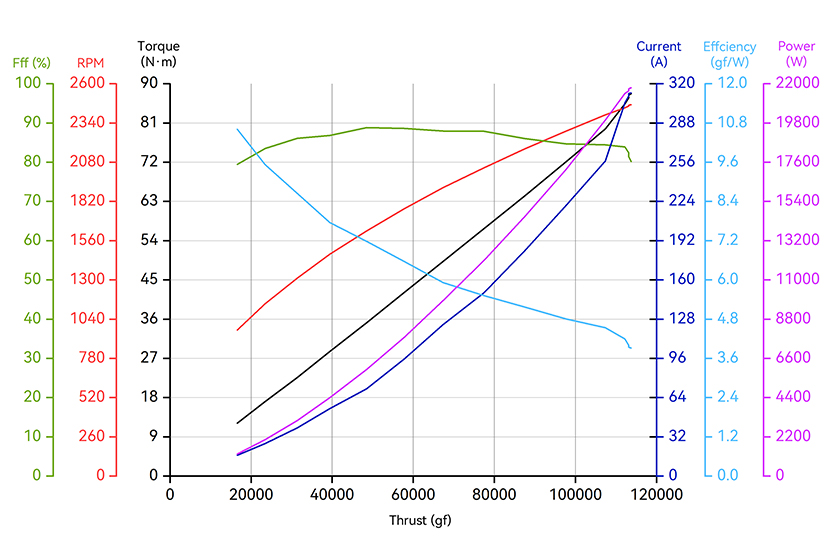

| Type | Voltage (V) | Throttle | Current (A) | Thrust (gf) | Torque (N·m) | RPM | Motor Efficiency (%) | Overall Efficiency (gf/W) | Operating Temperature (℃) |
| X-A14-24S KV37 + 24S FOC 150A + EFZ57P | 92 | 30% | 16.98 | 16574 | 12.24 | 969 | 79.48 | 10.61 | 102 (Ambient Temperature: 25) |
| 35% | 26.73 | 23430 | 17.16 | 1143 | 83.51 | 9.53 | |||
| 40% | 39.41 | 31352 | 22.74 | 1312 | 86.14 | 8.65 | |||
| 45% | 55.19 | 39418 | 28.62 | 1471 | 86.84 | 7.76 | |||
| 50% | 71.37 | 48473 | 35.13 | 1626 | 91.11 | 7.38 | |||
| 55% | 95.48 | 57714 | 41.98 | 1772 | 88.68 | 6.57 | |||
| 60% | 123.64 | 67340 | 49.15 | 1913 | 86.54 | 5.92 | |||
| 65% | 149.65 | 77392 | 56.54 | 2044 | 87.90 | 5.62 | |||
| 70% | 184.07 | 87491 | 64.13 | 2170 | 86.06 | 5.17 | |||
| 75% | 220.40 | 97534 | 71.77 | 2286 | 84.74 | 4.81 | |||
| 80% | 256.98 | 107318 | 79.62 | 2395 | 84.48 | 4.54 | |||
| 85% | 312.62 | 113724 | 84.50 | 2461 | 75.72 | 3.95 | |||
| 90% | 312.24 | 113102 | 84.39 | 2459 | 75.64 | 3.94 | |||
| 95% | 304.48 | 112178 | 83.99 | 2457 | 77.13 | 4.00 | |||
| 100% | 312.22 | 111504 | 83.54 | 2454 | 74.72 | 3.88 | |||
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.) | |||||||||
