    X-A16 L-24S

    MODULAR Propulsion System

    X-A16 L-24S modular propulsion system
    X-A16 L-24SMOTOR
    24SFOC 260AESC
    EFZ63PPROPELLER

    RECOMMENDATIONS

    Load capacity

    100~120kgAgriculture
    Quadcopter Drone

    Load capacity

    220~250kgAgriculture
    Hexacopter Drone

    Take-off weight

    280~300kgQuadcopter

    Take-off weight

    420~450kgHexacopter
    Technical Drawing


    Specification Export to Excel
    Model No.X-A16 L-24S KV35Tube Size80mm
    SetupA16 L-24S (Motor)+24S FOC 260A (ESC)+EFZ63 (Propeller)Wire Material,
    Wire Gauge, Color    		Power Wires: 8#AWG Red & Black
    Signal Wires: 5+1 Shielded
    Recommended Battery24~28S (LiPo)Wire Length2000±5mm
    Rated Thrust70~75kgWeight15200±2%g
    (Incl. Wires+Propeller)
    Efficiency At Rated Thrust6.6g/W (70kg)IPIPX5
    Max. Thrust156kgRecommended
    Ambient Temperature    		-20~55℃
    Motor Specs
    Stator Size155*35mmKV35
    ESC Specs
    Throttle Range1100~1940us (Fixed)Max. Voltage120V
    ProtocolDRONE CAN、UAV CAN、
    CUBE CAN    		Peak Current
    (For A Short Time)    		260A
    (OpenEnvironment
    AndTemperature≤60℃)
    Control MethodPWM/CANBECNO
    Prop Specs
    Model No.EFZ63
    (Folding Carbon Fiber)    		Length63 Inch (1600.2mm)
    Test Data Export to Excel
    TypeVoltage
    (V)    		ThrottleCurrent
    (A)    		Thrust
    (gf)    		Torque
    (N·m)    		RPMMotor
    Efficiency
    (%)    		Overall
    Efficiency
    (gf/W)    		Operating
    Temperature
    (℃)
    X-A16 L-24S KV35
    +
    24S FOC 260A
    +
    EFZ63P    		9330%14.011660113.2482287.8712.8089
    (Ambient Temperature: 25)
    35%25.972528419.99100787.6710.52
    40%41.203505227.50117989.009.19
    45%61.064584436.00134589.668.11
    50%82.705773045.33150191.067.54
    55%112.396946754.86164490.776.67
    60%145.338196664.74178189.736.09
    65%178.729426074.59190689.945.70
    70%217.7610651984.67202388.955.28
    75%255.5811863294.97212989.465.01
    80%296.81130061104.98222689.034.73
    85%333.48141077114.14231489.584.57
    90%376.99151334123.38239388.564.34
    95%402.44156782129.48243488.544.21
    100%407.72156970129.44243887.524.16

    Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min.

    (Data above based on benchtest at T-MOTOR lab are for reference only.)

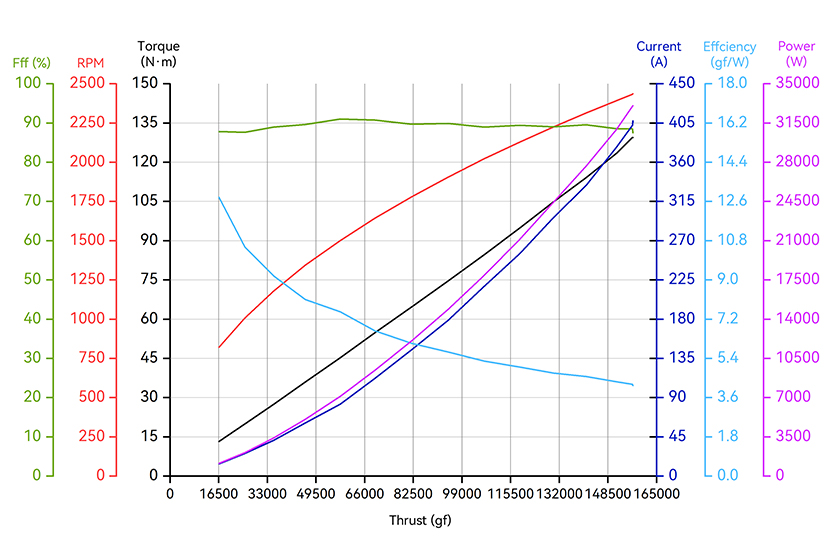

    Analysis Chart

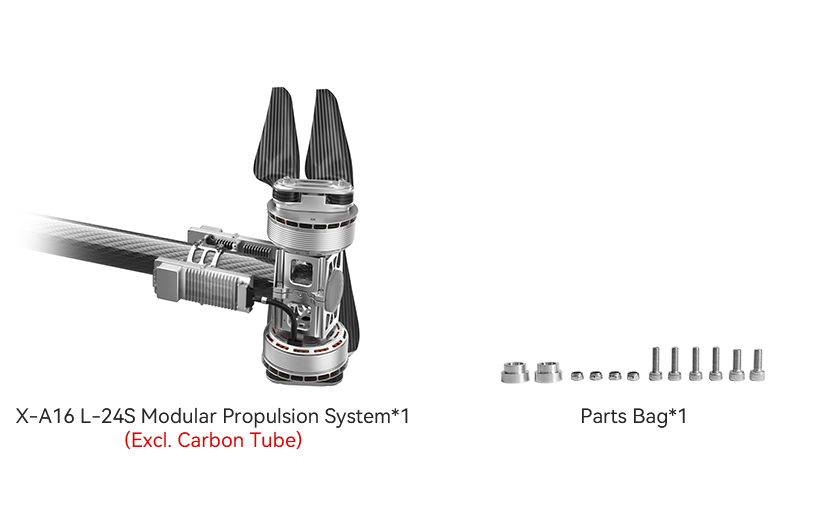

    Packing List


    Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
