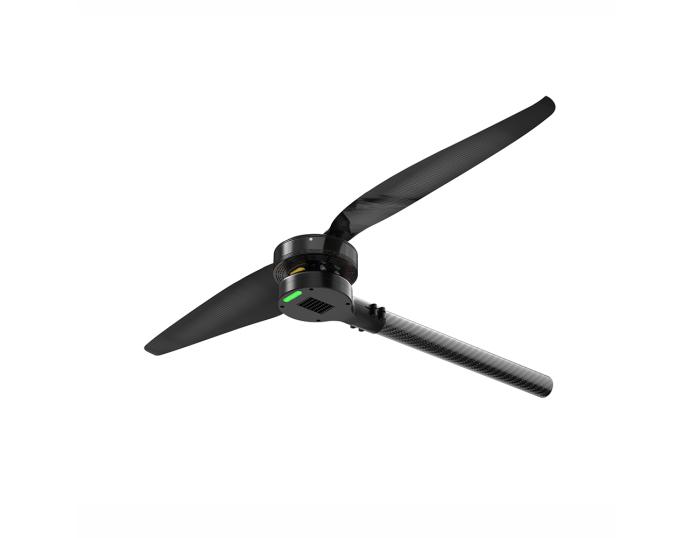

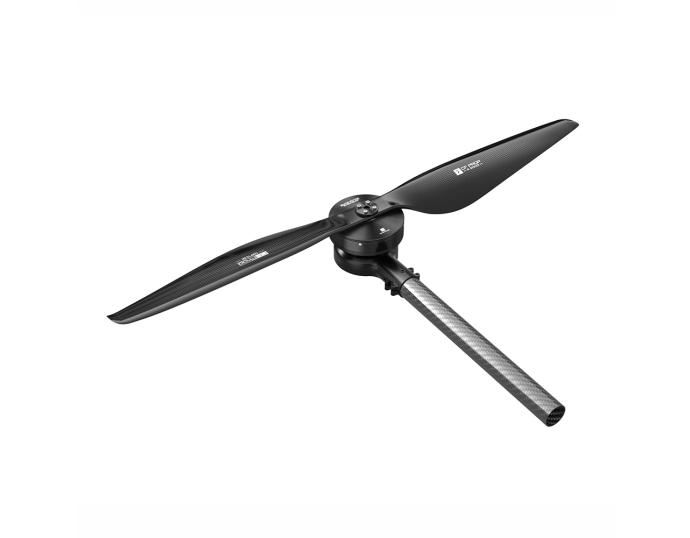

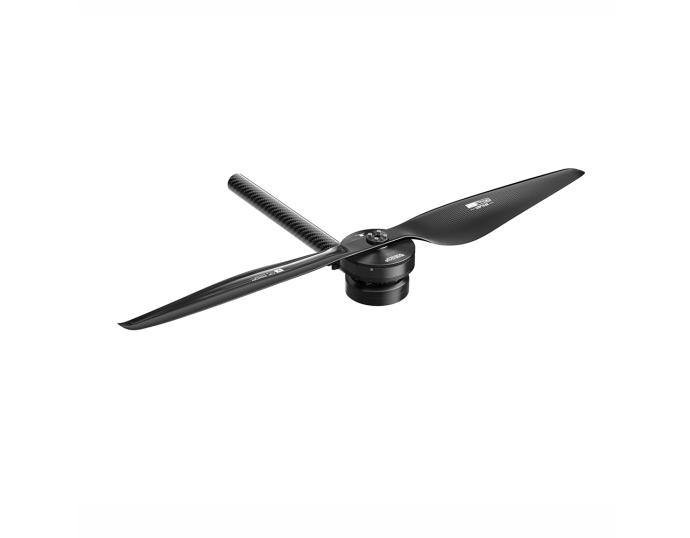

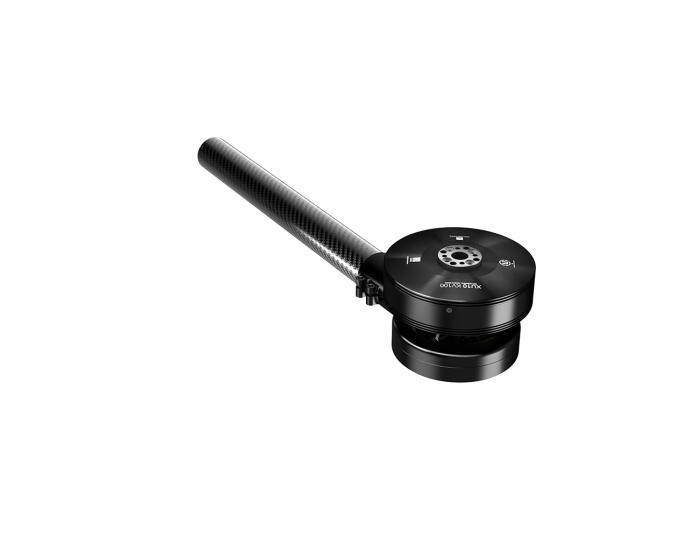

Name: XU10-X Modular Propulsion System for Agricultural UAVs
Brand: T-Motor
SKU: T-MOTOR001515
Price: 481.90 USD
Availability: InStock

XU10-X

481.90

Available points: 0 Points Points reward: 481 Points

Parameter：

XU10-X KV100+ALPHA 60A 12S
XU10-X KV100+ALPHA 60A 12S+G28*9.2
XU10-X KV100+ALPHA 60A 12S+G29*9.5
XU10-X KV100+ALPHA 60A 12S+G30*10.5

Quantity：

481.90

USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

NEW MODULAR DESIGN
NEW TECHNOLOGY

A modular power system specially built for unmanned multi-rotors
It integrates a motor and FOC ESC

MOTOR

XU10 KV100

ESC

ALPHA 60A 12S V1.2

PROPELLER

G28*9.2 / G29*9.5 / G30*10.5

High Maintainability

Reduce user maintenance costs. The motor and ESC can be removed by
the plug structure easy to install and highly maintainable

Intelligent & Efficiency

FOC (sine wave) ESCs are default match for the integrated propulsion systems. The efficient, accurate and stable motor control from intelligent algorithm meets the demand of various applications. (T-MOTOR square wave ESCs are available for custom demands.)

High RPM, High Efficiency, Strong Power

X·carbon is polymer folding prop series of high RPM, high efficiency and strong power designed by T-MOTOR (X·carbon are the default props. Other props from T-MOTOR are available upon request.)

LED switching

A hall sensor is used for easy switch of the light colors.
Switch the colors with a magnet.

Convenient installation

Ready to use without complex installation
(carbon tube not included)

Connector

Custom-engineered gold-plated power connector superior current
conduction (40A rated) exceptional durability

Model	XU10-X KV100	Lead Cable Length	630mm
Dimension	144.398.675.4mm	Arm Set Weight(Incl. Cable)	705g
Configuration	36N42P	Shaft Diameter	15mm
Idle Current (24V)	1.1A	Rated Voltage (LiPo)	12S
Peak Current (180s)	30A	ESCRecommendation	ALPHA 60A 12S V1.2
Max. Power (180s)	1400W	PropellerRecommendation	G289.2/G299.5/G30*10.5

Type	Voltage (V)	Propeller	Throttle	Thrust (gf)	Torque (N·m)	Current (A)	RPM	Power (W)	Efficiency (gf/W)	Operating Temperature (℃)
XU10-X KV100（Alpha 60A 12S V1.2）	12S(48V)	T-MOTOR G28*9.2	40%	1565	0.51	2.43	1625	116	13.41	68 （Ambient Temperature: 25）
			45%	1952	0.63	3.22	1808	154	12.65
			50%	2394	0.77	4.18	1991	200	11.95
			55%	2855	0.91	5.29	2172	253	11.27
			60%	3345	1.06	6.59	2349	315	10.60
			65%	3851	1.22	8.03	2525	384	10.04
			70%	4376	1.39	9.67	2697	462	9.47
			75%	4981	1.58	11.61	2864	554	9.00
			80%	5596	1.77	13.70	3029	653	8.57
			85%	6226	1.97	16.03	3189	763	8.16
			90%	6886	2.17	18.55	3345	882	7.81
			95%	7494	2.36	20.99	3482	996	7.52
			100%	7810	2.46	22.26	3542	1056	7.40
XU10-X KV100（Alpha 60A 12S V1.2）	12S(48V)	T-MOTOR G29*9.5	40%	1820	0.63	2.84	1616	136	13.38	72 （Ambient Temperature: 25）
			45%	2274	0.77	3.76	1796	180	12.60
			50%	2768	0.94	4.91	1974	235	11.76
			55%	3303	1.11	6.23	2151	298	11.07
			60%	3877	1.3	7.77	2326	372	10.43
			65%	4481	1.5	9.56	2493	457	9.81
			70%	5101	1.7	11.57	2657	552	9.24
			75%	5769	1.92	13.78	2819	657	8.78
			80%	6461	2.14	16.25	2975	774	8.35
			85%	7159	2.37	18.90	3125	898	7.97
			90%	7855	2.6	21.75	3270	1032	7.61
			95%	8466	2.8	24.45	3394	1159	7.31
			100%	8780	2.9	25.87	3454	1225	7.17
XU10-X KV100（Alpha 60A 12S V1.2）	12S(48V)	T-MOTOR G30*10.5	40%	2182	0.77	3.37	1598	161	13.52	78 （Ambient Temperature: 25）
			45%	2679	0.94	4.48	1773	214	12.51
			50%	3276	1.14	5.84	1946	279	11.74
			55%	3882	1.35	7.40	2116	354	10.98
			60%	4474	1.56	9.24	2285	441	10.15
			65%	5177	1.8	11.32	2444	540	9.59
			70%	5921	2.05	13.75	2600	655	9.04
			75%	6677	2.31	16.35	2750	778	8.59
			80%	7413	2.57	19.17	2894	910	8.15
			85%	8158	2.82	22.17	3032	1051	7.77
			90%	8902	3.08	25.40	3163	1201	7.41
			95%	9575	3.31	28.36	3271	1339	7.15
			100%	9895	3.42	29.93	3323	1412	7.01
Note: Motor temperature is motor surface temperature @100% throttle running 3min. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
