AT195A 6-14S VTOL Fixed Wing Drone ESC

About T-MOTOR AT195A 6-14S VTOL UAV Fixed Wing Drone ESC

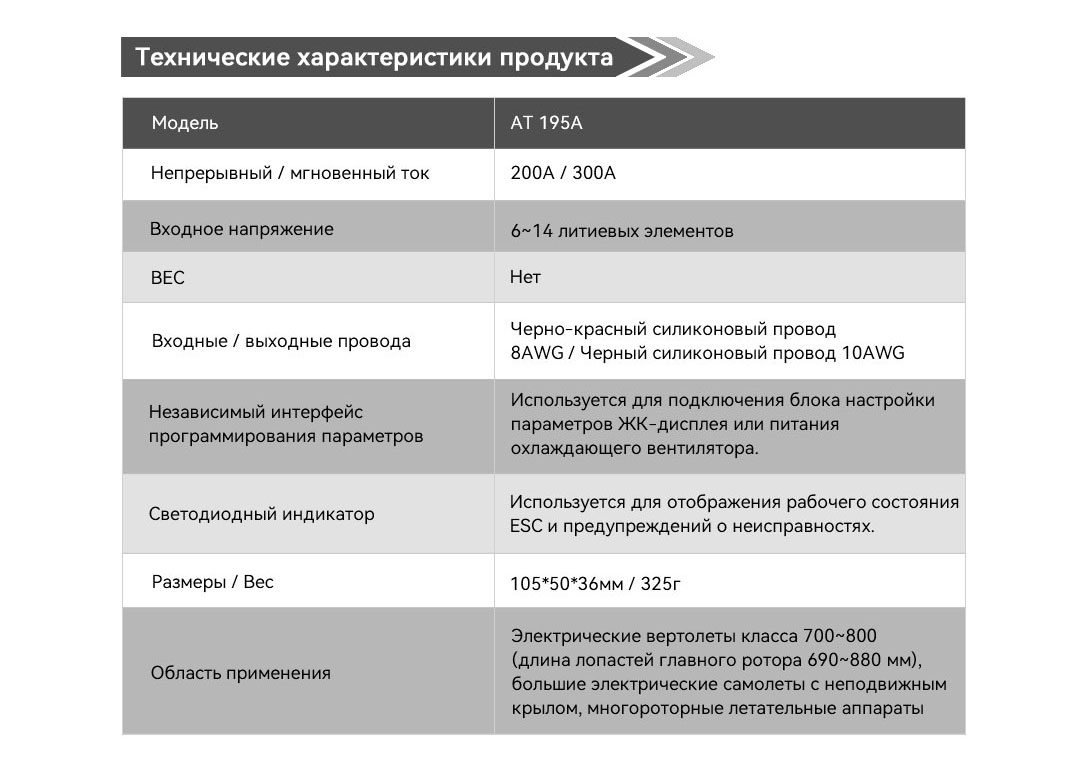

The AT195A is a fixed-wing electrical regulator with a switching power supply scheme, supports 6-14S lithium batteries.

The maximum peak current is 240A. It is recommended for VTOL drones with a wingspan of 2.2-4.6 meters. It is recommended for the use of AT 72-80 series motors.

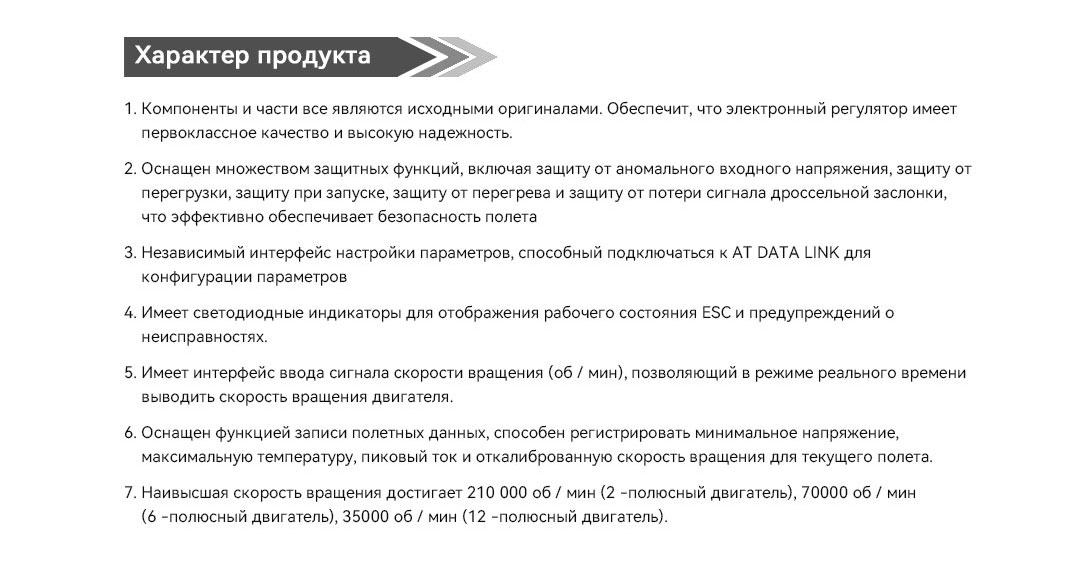

AT195A Highlights:

1.Fixed wing special ESC, continuous current 195A, support 6-14S lithium battery.

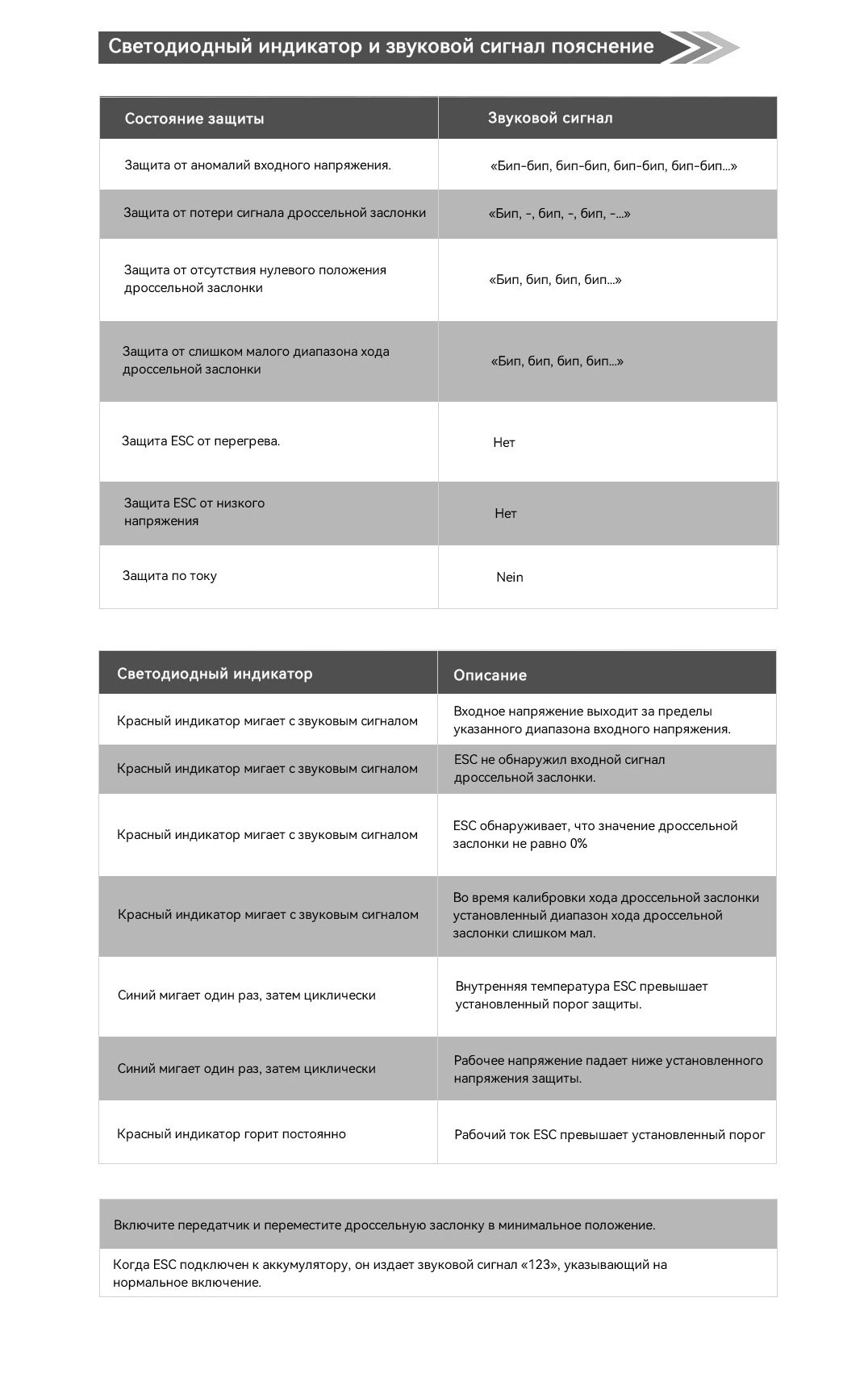

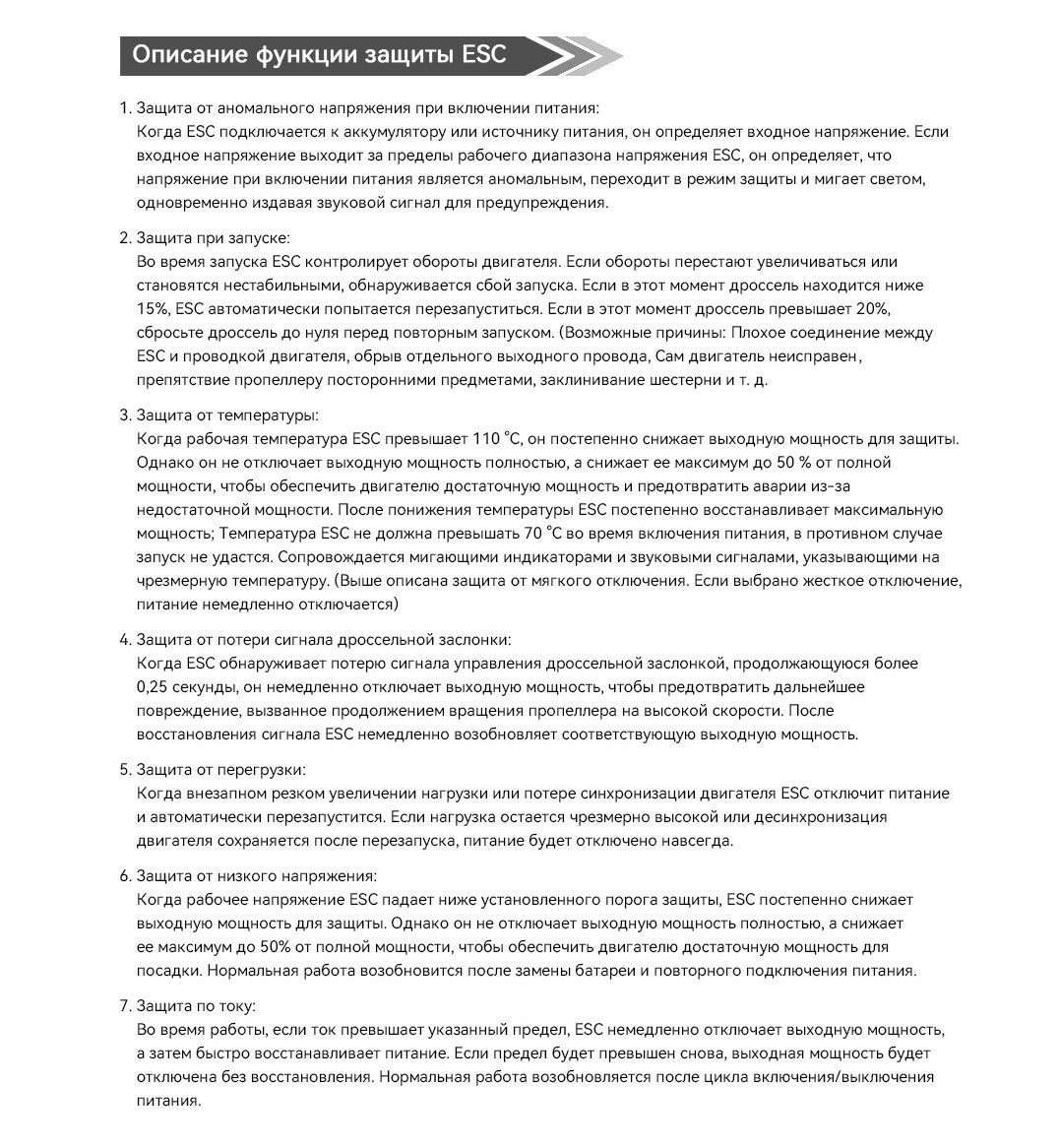

2.Multiple protection mechanism, let your flying machine fly safely under multiple protection.

3.Built-in anti-ignition circuit, avoiding invisible plug damage and heat burn.

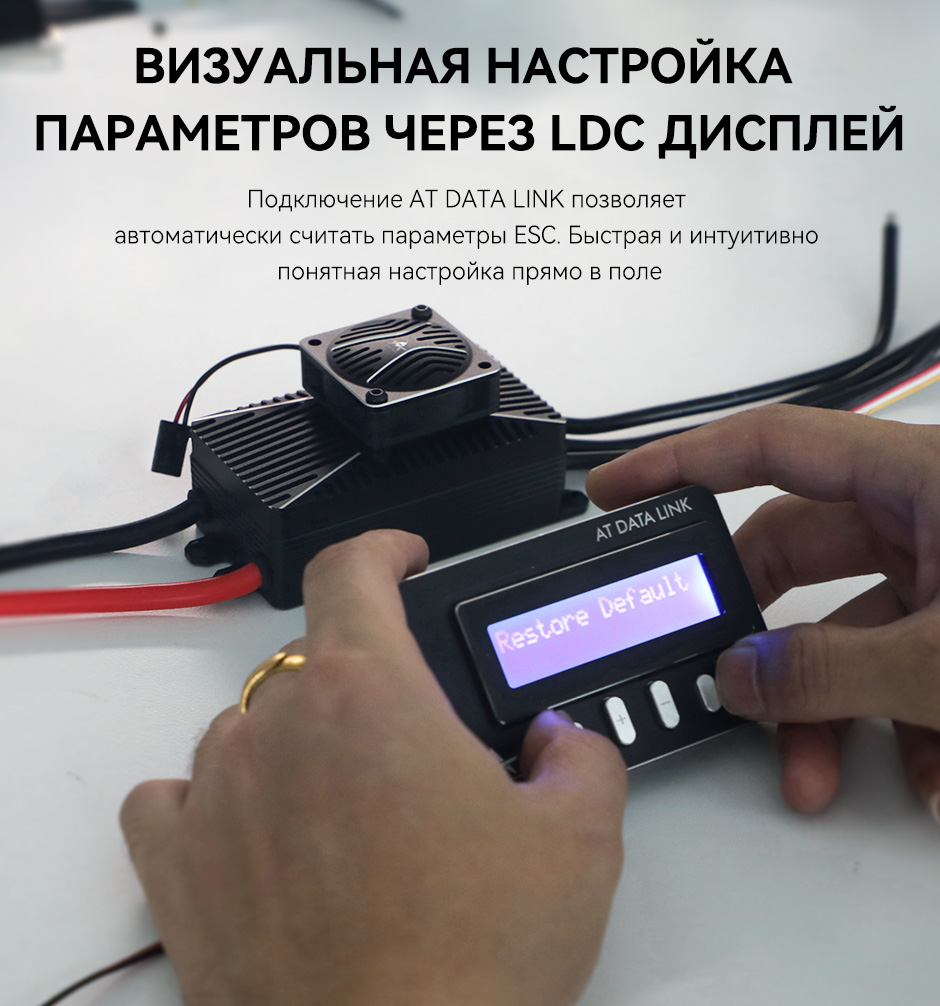

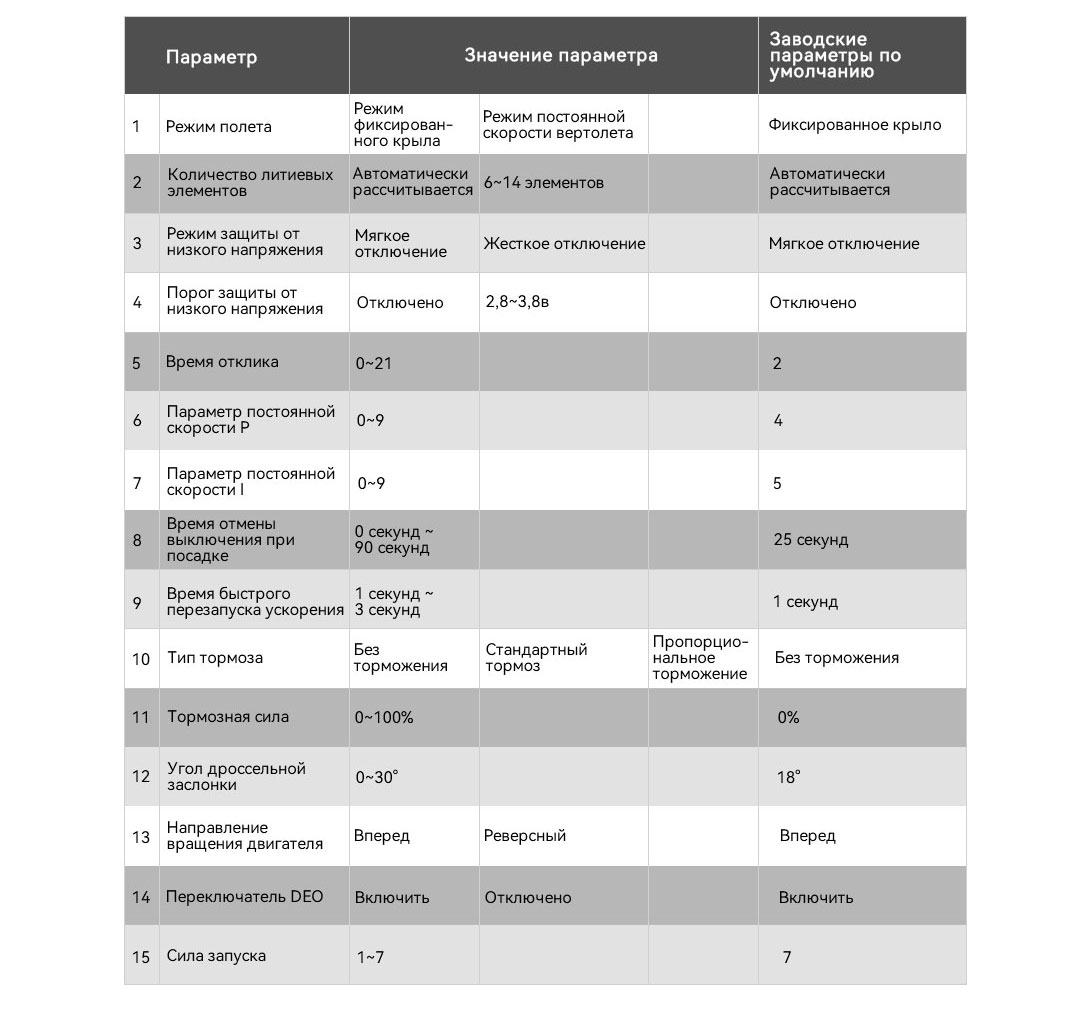

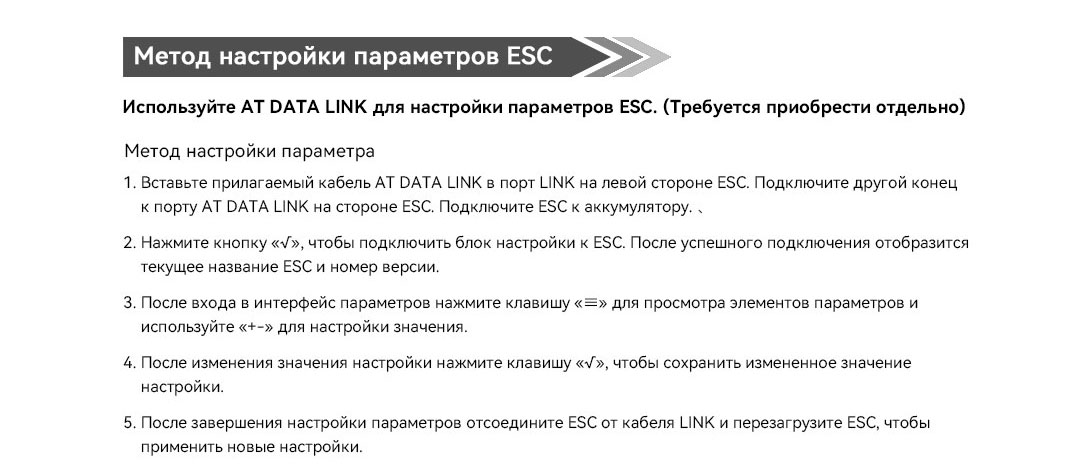

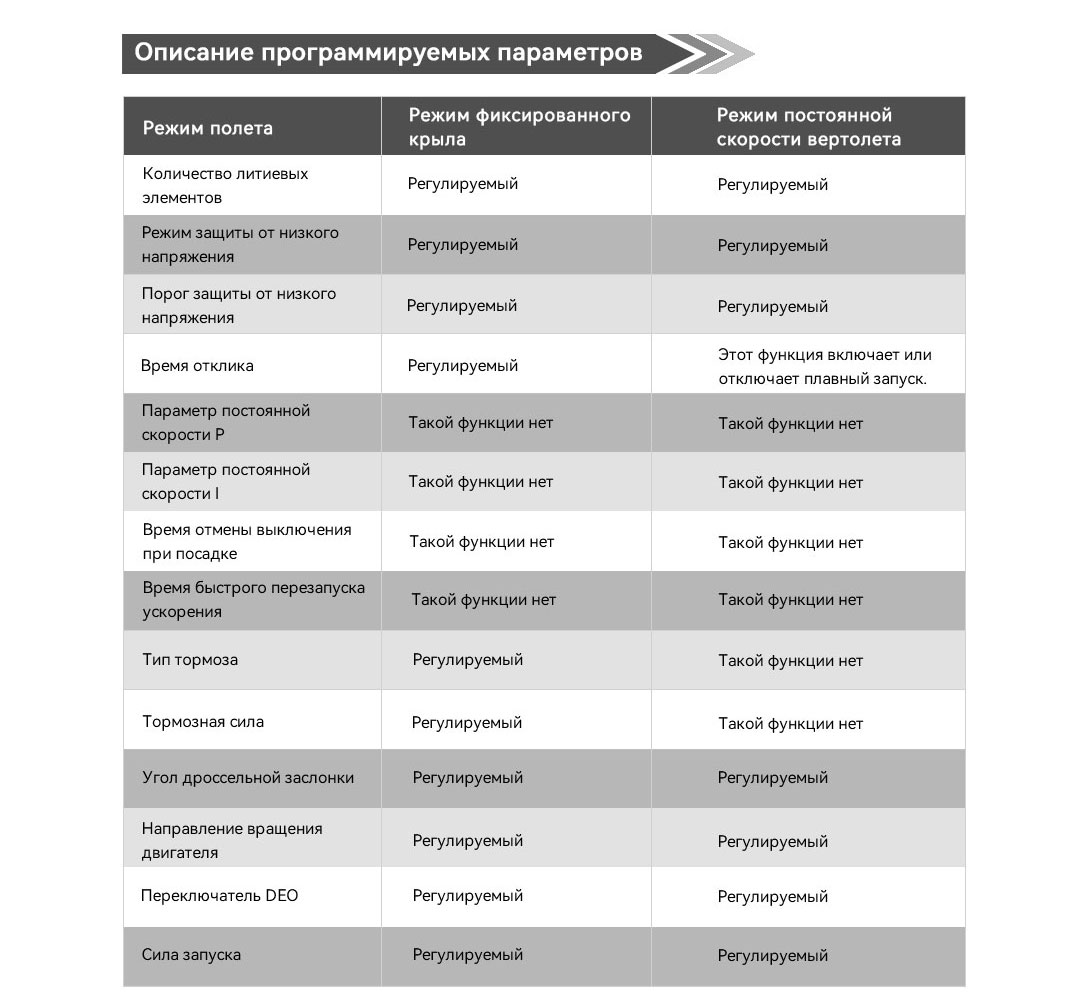

4.Connect with AT DATA LINK for LCD visualization parameter adjustment, automatically read the ESC parameters.

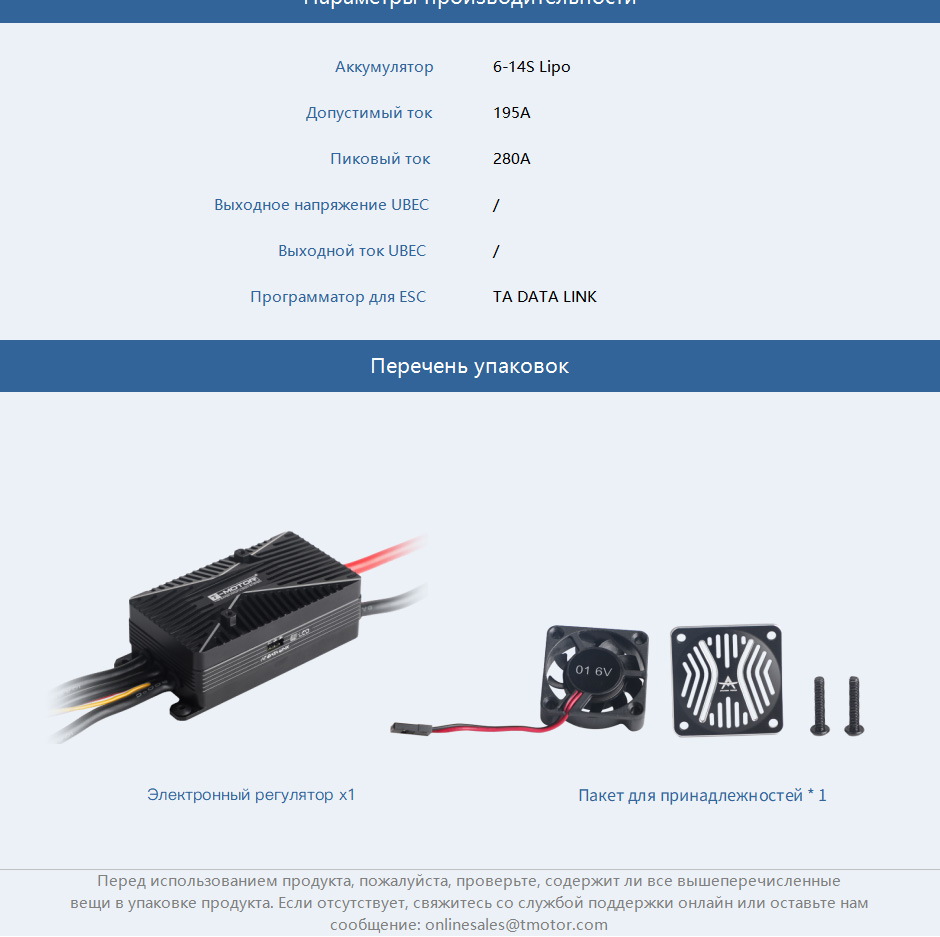

Packing List Includes:

1x T-Motor AT195A ESC

1x Hardware Kit

Matching Guide:

AT 7215 30cc Motor / AT7224 40cc Motor

AT 8020 55cc Motor / AT8025 70cc Motor
