About T-MOTOR MN3510 Multirotor Fixed Wing UAV Motor KV360/KV630/KV700

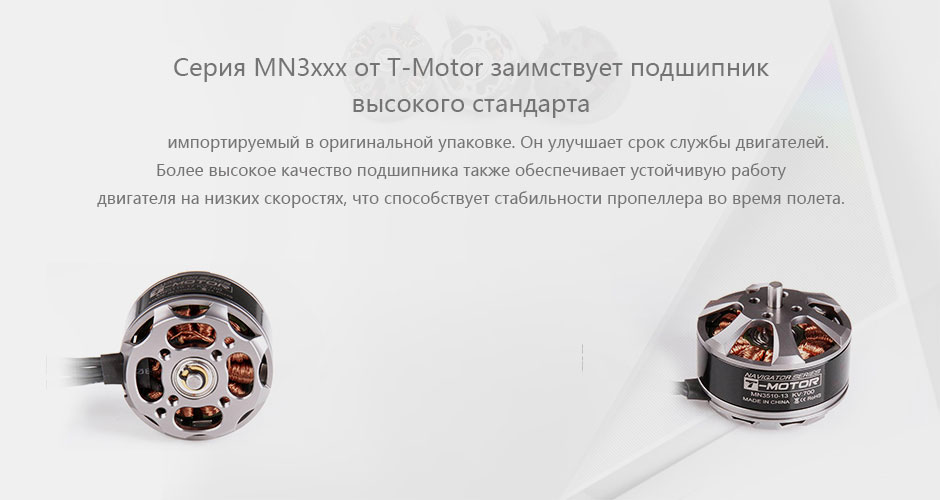

T-Motor MN3510 KV360/KV630/KV/700 Navigator Series brushless motor is designed for superior performance in UAV applications. With oversized high-quality ball bearings, it ensures smooth, stable operation at low speeds and withstands pressure for enhanced frame stability. Featuring a maximum thrust of 2.2kg and an MTBF of about 1000 hours, the MN3510 offers exceptional balance and durability. Ideal for multi-rotors, VTOL, and fixed-wing UAVs, it combines precision engineering with high-strength construction for reliable, long-lasting performance.

Navigator MN3510 Highlights:

Max. thrust:2.2kg
MTBF：About1000hours
Features：Super Balance; High Strength Construction

Application Areas：

Multi-rotors, VTOL, and Fixed-wing UAVs.

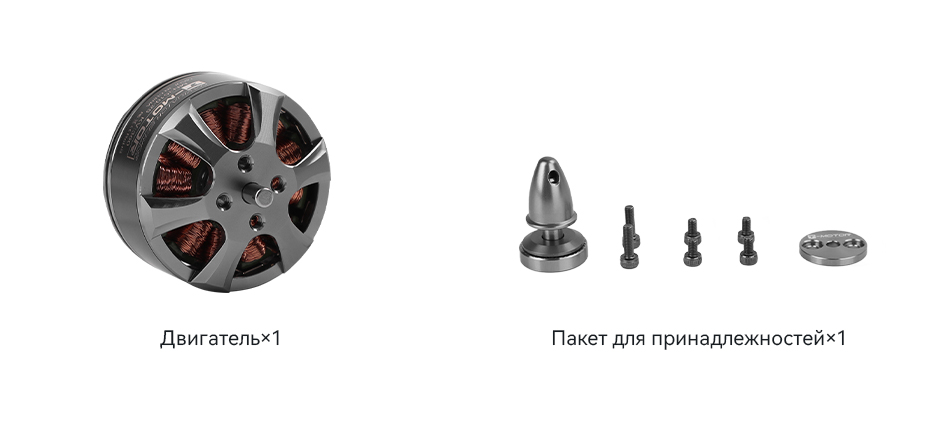

Packing List Includes:

1x T-MOTOR MN3510 Motor KV360/KV630/KV700( kv which you choose)

1x Hardware pack

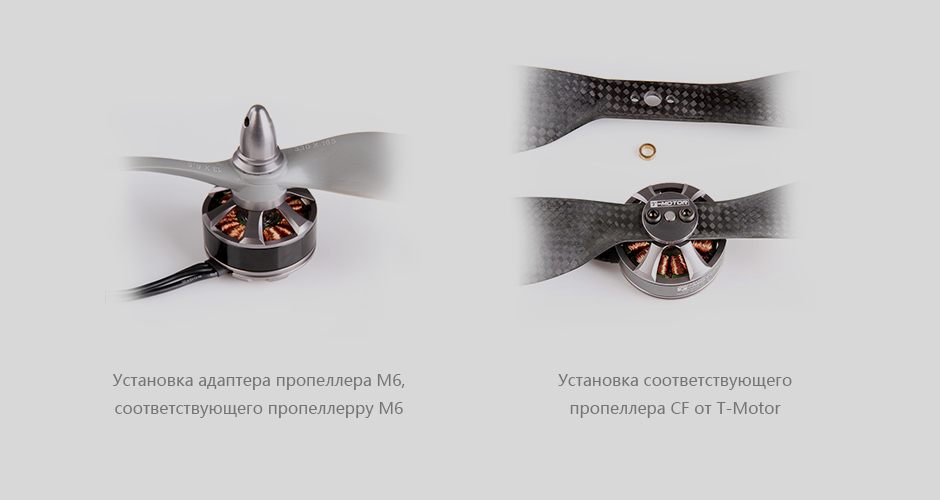

Matching Guide:

T-MOTOR P15*5 Prop / Air 20A 3-4S ESC

If you have any questions or inquires, please contact us: onlinesales@tmotor.com

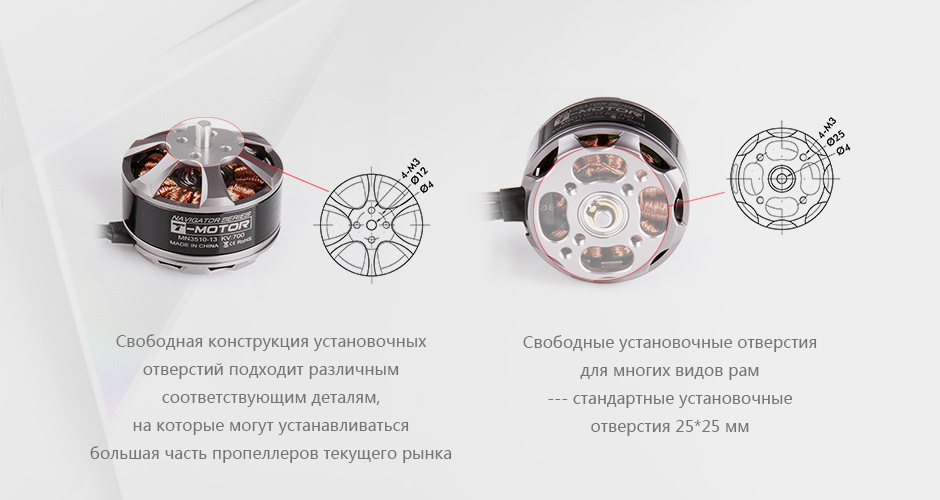

Technical Drawing

Specification

Test Item	MN3510 KV360	Configuration	12N14P
Internal Resistance	188mΩ	Motor Dimensions	Φ41.8×28.5mm
Shaft Diameter	4mm	StatorHeight	10mm
Stator Diameter	35mm	Cable Length	600mm
AWG	18#	Weight Excluding Cables	97g
Weight Including Cables	117g	Idle Current@10v	0.4A
No.of Cells(Lipo)	3-6S	Max Continuous Current 180S	15A
Max Power (180S)	330W

Test Item	MN3510 KV630	Configuration	12N14P
Internal Resistance	65mΩ	Motor Dimensions	Φ41.8×28.5mm
Shaft Diameter	4mm	Stator Height	10mm
Stator Diameter	35mm	Cable Length	600mm
AWG	18#	Weight Excluding Cables	97g
Weight Including Cables	119g	Idle Current@10v	0.5A
No.of Cells(Lipo)	3-4S	Max Continuous Current 180S	22A
Max Power (180S)	495W

Test Item	MN3510 KV700	Configuration	12N14P
Internal Resistance	50mΩ	Motor Dimensions	Φ41.8×28.5mm
Shaft Diameter	4mm	Stator Height	10mm
Stator Diameter	35mm	Cable Length	600mm
AWG	18#	Weight Excluding Cables	97g
Weight Including Cables	118g	Idle Current@10v	0.5A
No.of Cells(Lipo)	3-4S	Max Continuous Current 180S	25A
Max Power (180S)	555W

Test Data

Item No.	Voltage (V)	Prop	Throttle	Current (A)	Power (W)	Thrust (G)	RPM	Efficiency (G/W)	Operating Temperature (℃)
MN3510 KV360	14.8	T-MOTOR 14*4.8CF	50%	1.2	17.76	280	2600	15.77	40
			65%	2.5	37.00	500	3400	13.51
			75%	3.5	51.80	620	3800	11.97
			85%	4.9	72.52	760	4300	10.48
			100%	5.7	84.36	870	4600	10.31
		T-MOTOR 15*5CF	50%	1.5	22.20	340	2600	15.32	42
			65%	3	44.40	580	3300	13.06
			75%	4.5	66.60	760	3800	11.41
			85%	5.8	85.84	900	4100	10.48
			100%	6.8	100.64	1000	4400	9.94
		T-MOTOR 16*5.4CF	50%	1.73	25.60	380	2450	14.84	40
			65%	3.6	53.28	630	3200	11.82
			75%	5.3	78.44	800	3700	10.20
			85%	6.9	102.12	1000	4000	9.79
			100%	8.1	119.88	1100	4300	9.18
	22.2	T-MOTOR 12*4CF	50%	1.6	35.52	350	4300	9.85	43
			65%	2.7	59.94	560	5300	9.34
			75%	4	88.80	760	6000	8.56
			85%	5.5	122.10	930	6600	7.62
			100%	6.4	142.08	1060	7000	7.46
		T-MOTOR 13*4.4CF	50%	1.8	39.96	460	4200	11.51	43
			65%	3.4	75.48	730	5300	9.67
			75%	4.8	106.56	900	5900	8.45
			85%	6.2	137.64	1100	6500	7.99
			100%	7.5	166.50	1300	6900	7.81
		T-MOTOR 14*4.8CF	50%	2.5	55.50	660	4000	11.89	50
			65%	4.7	104.34	1000	4900	9.58
			75%	6.8	150.96	1280	5500	8.48
			85%	8.8	195.36	1500	6000	7.68
			100%	10.6	235.32	1700	6500	7.22
		T-MOTOR 15*5CF	50%	3	66.60	780	3800	11.71	60
			65%	5.6	124.32	1180	4500	9.49
			75%	7.7	170.94	1460	5300	8.54
			85%	10.6	235.32	1700	5720	7.22
			100%	12.5	277.50	1900	6040	6.85
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
MN3510 KV630	14.8	T-MOTOR 12*4CF	50%	2.8	41.44	440	4500	10.62	43
			65%	5.3	78.44	750	5700	9.56
			75%	7.6	112.48	910	6500	8.09
			85%	10	148.00	1100	7000	7.43
			100%	12.3	182.04	1260	7500	6.92
		T-MOTOR 13*4.4CF	50%	3.4	50.32	540	4500	10.73	44
			65%	6.1	90.28	860	5500	9.53
			75%	8.8	130.24	1100	6300	8.45
			85%	11.8	174.64	1300	6800	7.44
			100%	14	207.20	1500	7300	7.24
		T-MOTOR 14*4.8CF	50%	4.6	68.08	700	4100	10.28	53
			65%	8.7	128.76	1110	5300	8.62
			75%	11.8	174.64	1360	5700	7.79
			85%	16.4	242.72	1700	6300	7.00
			100%	20	296.00	1850	6600	6.25
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
MN3510 KV700	11.1	T-MOTOR 12*4CF	50%	2.5	27.75	350	4000	12.61	40
			65%	4.8	53.28	550	4900	10.32
			75%	6.6	73.26	700	5500	9.56
			85%	9.1	101.01	870	6300	8.61
			100%	11.1	123.21	1000	6600	8.12
		T-MOTOR 13*4.4CF	50%	2.9	32.19	400	3800	12.43	42
			65%	5.6	62.16	650	4900	10.46
			75%	7.9	87.69	830	5300	9.47
			85%	10.5	116.55	1000	6000	8.58
			100%	12.6	139.86	1100	6400	7.87
		T-MOTOR 14*4.8CF	50%	4.1	45.51	550	3500	12.09	43
			65%	7.7	85.47	890	4500	10.41
			75%	10.7	118.77	1060	4900	8.92
			85%	14.5	160.95	1300	5500	8.08
			100%	17.3	192.03	1460	5800	7.60
	14.8	T-MOTOR 11*3.7CF	50%	3.2	47.36	460	5300	9.71	43
			65%	6	88.80	710	6500	8.00
			75%	8.2	121.36	870	7500	7.17
			85%	11	162.80	1080	8200	6.63
			100%	13	192.40	1230	8700	6.39
		T-MOTOR 12*4CF	50%	3.8	56.24	580	5000	10.31	43
			65%	7.4	109.52	880	6300	8.04
			75%	10.3	152.44	1100	7300	7.22
			85%	14	207.20	1360	7700	6.56
			100%	16.8	248.64	1600	8300	6.44
		T-MOTOR 13*4.4CF	50%	4.7	69.56	730	4900	10.49	47
			65%	9	133.20	1120	6100	8.41
			75%	12.3	182.04	1400	6800	7.69
			85%	16	236.80	1600	7400	6.76
			100%	19.4	287.12	1800	7850	6.27
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
